Sector Rotation Indicator for ThinkorSwim

[FellowTrader]

Thanks autolox.. just wondering if a watchlist column would be better not to visit other sites and all in one place



[autolox]

Thanks autolox.. just wondering if a watchlist column would be better not to visit other sites and all in one place

The watchlist would be made up of the sector symbols listed from the web site I posted (SelectSPDR..). With net change on the watchlist you would see which are performing best. It's conceivable to make a custom column that has sector weight information if you want it.



[autolox]

Thanks autolox.. just wondering if a watchlist column would be better not to visit other sites and all in one place

http://tos.mx/CpW0hbN - This share link *might have some more symbols than just the X's. As far as weightings go, if you wanted that to show up for each symbol, it could probably be done using a combination of "GetSymbol()" and a nested if then so that the proper weightings could show up for each symbol. Generally though, Technology is the lead weighting with the others following in a fairly consistent order. Doing this would involve adjusting weightings sourced from the sectoSPDR site with some regularity, perhaps weekly or so. I would think if any significant adjustments are made they would be seen in headlines well ahead of them going active.

At the selectSPDR link, you just "scroll" on the main page and you can see the weightings for each of the X funds at the single site. You don't have to move around to multiple sites IF sector fund weighting is your only interest. Now, if you want weightings of names within the X funds or the summary of weightings in the SPY overall, yes, you would have to visit two separate sites but I think you could "get away" with a weekly review and be fine. Extreme diligence would be tracking all of this on a daily basis and analyzing that dataset regularly for the pace of change. There are a lot of in depth ways you can "skin this cat", but if you just want to have a rough idea of what sectors are performing best, the watchlist with these funds is a pretty quick and easy way. On the watchlist image, I shared it before sorting by the net change column which is simply done by just clicking the column header which allows you to sort by that specific column in ascending or descending order.

Just to expound on the net change idea, per that column Tech, Consumer Discretionary, Communications, healthcare, Industrials, Financials and real estate were the "green sectors" for today. Now, we can peal the onion back some and say "Ok, so, what is 'net change'?" - we know this is simply how far above the previous day's close an instrument is trading. My personal preference is taking a look at whether the previous days high is broken or not. It is possible to break previous days low yet finish with a positive net change, thus my personal greater interest in whether we have held previous lows and broken previous highs over just watching net change, but, please, do whatever and work with whatever improves your account statement. I'm just sharing what I consider to work for me...

Back along the "not visit other sites" mention - ToS does not store sector weightings anywhere the I know of. Therefore, if you want that information readily available, I don't think there are any methods that would allow you to "automate that into" Tos. As I'm writing this though, I just remembered something that you might find useful that I had kinda forgotten about. Apologies if this is old news to you... ToS does have access to a set of heat maps and the S&P and other indices are included. This is available uner the "MarketWatch" tab and "Visualize". I assume the size of the blocks in the visualization is an indication of the instruments weight in that sector. Maybe this is a adequate and simpler approach vs what I've been describing. At the end of the day, it just depends on how deep you want to go into this rabbit hole to understand the mechanics of what's being presented. I consider that to be the reason I've studied all of these things as I have.

Hope all this helps!



[FellowTrader]

Thanks Much .. Appreciate the great explanation . Will check the link out and get back to you.



[Drexen]

Could you assist with (if it possible) painting a scan query watchlist ticker with the sector rotation colors?



[useThinkScript]

Unfortunately, no.
The watchlist sector data column is not an accessible field in ThinkScript.
Therefore, sector column cannot be customized.
Nor can sector be used in a custom query.

@Drexen @pegasis



[pegasis]

Pretty cool idea. I have nothing useful to add, other than this picture. Changed the lines to histogram style bars and it lets you view it kind of like a Thermo mode, it makes it a little easier for me to visualize this way. I might change the coloring a bit also to make each sector a little easier to identify while hovering over them. I know in the screenshot the labels appear to be blocking the top right corner, however if I put my mouse there they disappear and I can see it.

Edit: thank you for posting this sir!

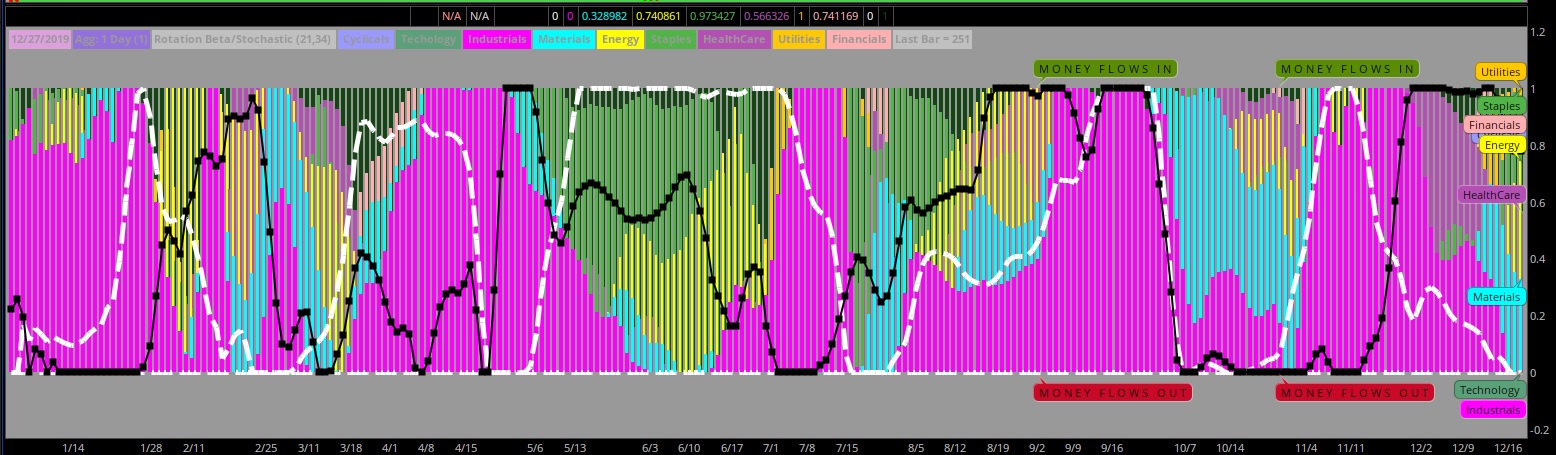

1 year / 1 day chart

View attachment 6451

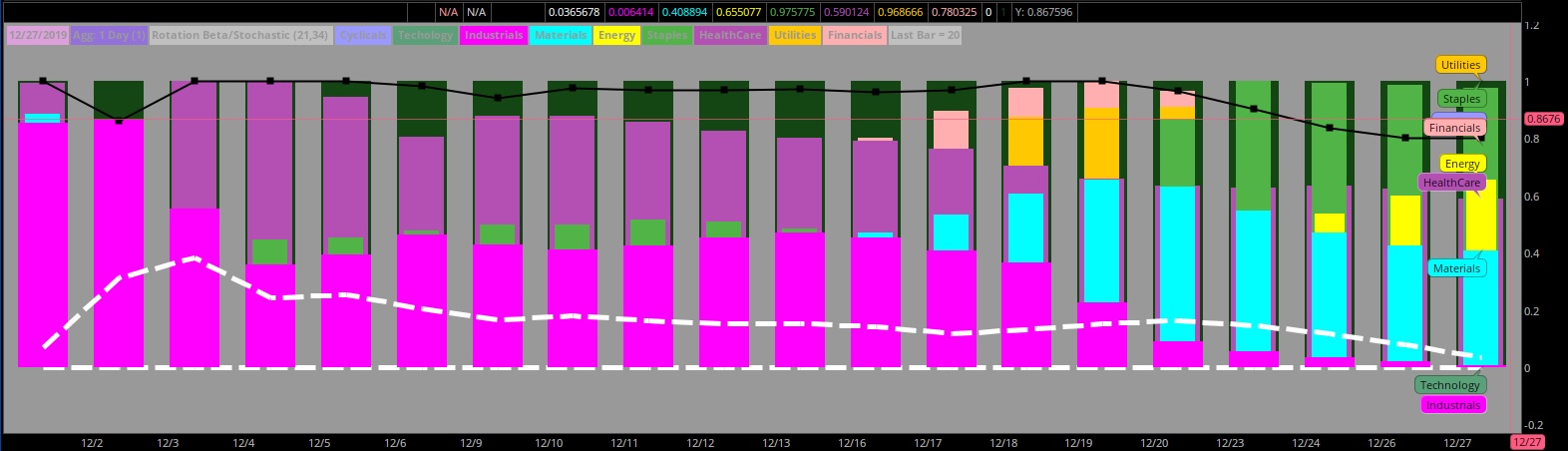

10 Days / 1 day chart

View attachment 6452

is there a scan for the sector changes?



[TechGuy]

Sector Rotation involves shifting investments to sectors expected to outperform, optimizing returns based on market conditions.

It's for the visual learner like me. Take a look at that chart on a weekly TF and you'll see the Rotation. I would move money into what is moving up and rotating out of what is dropping.

Once the top sectors are found, you would then look for stocks in that sector that are leading and place your trade according to your style.

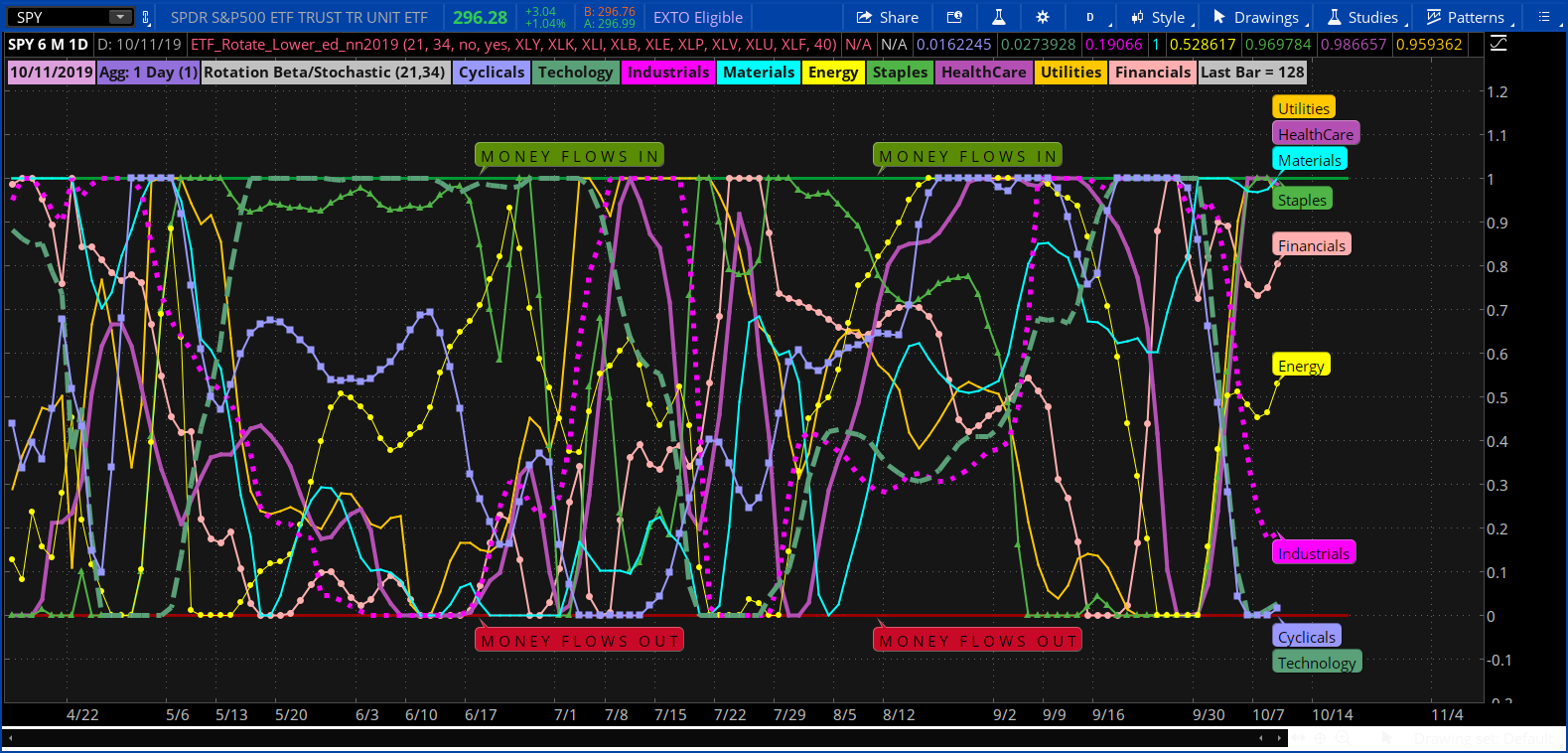

View attachment 5727


@diazlaz See if this concept is workable. Idealy, to me, SPY should be at ==0 with the others rotating around it. Thoughts?
@BenTen Please copy this to its own thread...

# beta_rotation_v2
#ETF_Rotate_Lower_ED_nn 4-2019
# from 4/4/2019 chat room:
# 06:37 Mobius: johnny - To find rotation quickly - Use primary ETF's in a watchlist with 2 columns first column is Correlation to SPX second is a stochastic of Beta, if Beta is 1 or close to 1 that ETF is moving at the fastest momentum in that range and if correlation is with SPX .85 or better it's moving with SPX cor# daily start with 13,34 as starting point
#markos #took out out Beta 1 & 2 4-19-19 # Put Back in 6-23-19

declare lower;

input BetaLength = 21;
input StochLength =34;
input showBeta = No;
input showOverlay = Yes;

input Cyclicals      = "XLY";
input Technology     = "XLK";
input Industrials    = "XLI";
input Materials      = "XLB";
input Energy         = "XLE";
input Staples        = "XLP";
input HealthCare     = "XLV";
input Utilities      = "XLU";
input Financials     = "XLF";

#------------------------------
#----purple colors
defineglobalColor(“PlumMedium“, createColor(221, 160, 221));
defineglobalColor(“Orchid“, createColor(218, 130, 214));
defineglobalColor(“MediumOrchid“, createColor(186, 85, 211));
defineglobalColor(“MediumPurple“, createColor(147, 112, 219));
defineglobalColor(“DarkOrchid“, createColor(153, 50, 204));


plot Scriptlabel = Double.NaN;
Scriptlabel.SetDefaultColor(CreateColor (0, 0, 0));

def Agg = GetAggregationPeriod();

#--------------------date start
addLabel(1,  getMonth() + "/" +
             getDayOfMonth(getYyyyMmDd()) + "/" +
             AsPrice(getYear()), GlobalColor("PlumMedium"));
#--------------------date end

#addLabel(1, " Ticker: '" + GetSymbol() + "' ", GlobalColor("Orchid"));

addLabel(1, "Agg: " +
              ( if Agg == 60000 then "1 Min"
           else if Agg == 120000 then "2 Min"
           else if Agg == 180000 then "3 Min"
           else if Agg == 240000 then "4 Min"
           else if Agg == 300000 then "5 Min"
           else if Agg == 600000 then "10 Min"
           else if Agg == 900000 then "15 Min"
           else if Agg == 1800000 then "30 Min"
           else if Agg == 3600000 then "1 Hour"
           else if Agg == 7200000 then "2 Hour"
           else if Agg == 14400000 then "4 Hours"
           else if Agg == 86400000 then "1 Day"
           else if Agg == 604800000 then "1 Week"
           else if Agg == 2592000000 then "1 Month"
           else  (Agg / 1000 / 60) + "Minutes")  +
           " (" + (if Agg<=23400000
                   then 23400000/Agg
                   else 86400000/Agg)+ ")"
          , GlobalColor("MediumPurple"));
#addLabel(1, BarNumber() + " Bars", GlobalColor("DarkOrchid"));

#-----------------------------
#-----------------------------

addLabel(1,"Rotation Beta/Stochastic (" + betaLength + "," +stochLength + ") ", color.Light_Gray);


script calcBeta {
  input secondSymbol = "XLF";
  input refSymbol = "SPX";
  input betaLength = 21;
  input returnLength = 1;

  def refPrice = close(refSymbol);
  def primary = if refPrice[returnLength] == 0
                then 0
                else (refPrice - refPrice[returnLength]) /
                      refPrice[returnLength] * 100;
  def secondPrice = close(secondSymbol);
  def secondary = if secondPrice[returnLength] == 0
                  then 0
                  else (secondPrice - secondPrice[returnLength]) /
                        secondPrice[returnLength] * 100;
  plot Beta = covariance(secondary, primary, betaLength) /
                         Sqr(stdev(primary, betaLength));
}

script EhlersESSfilter {
    input price = close;
    input length = 8;
    def ESS_coeff_0 = Exp(-Double.Pi * Sqrt(2) / length);
    def ESS_coeff_2 = 2 * ESS_coeff_0 * Cos(Sqrt(2) * Double.Pi / length);
    def ESS_coeff_3 = - Sqr(ESS_coeff_0);
    def ESS_coeff_1 = 1 - ESS_coeff_2 - ESS_coeff_3;
    def ESS_filter = if IsNaN(price + price[1]) then
                      ESS_filter[1]
                 else ESS_coeff_1 * (price + price[1]) / 2 +
                      ESS_coeff_2 * ESS_filter[1] +
                      ESS_coeff_3 * ESS_filter[2];
    plot Smooth_Filter =
         if barnumber() <  length then
              price
         else if !IsNaN(price) then
              ESS_filter
         else Double.NaN;
}

script calcStoch {
  input data = close;
  input StochLength = 21;
  def stochasticValue = ((data - lowest(data, StochLength)) /
                         (highest(data, StochLength) - lowest(data, StochLength)));
  plot stoch = stochasticValue;
}

plot beta1 = if showBeta then calcBeta(Cyclicals) else Double.NaN;
plot beta2 = if showBeta then calcBeta(Technology) else Double.NaN;
####
plot stoch1 = calcStoch(
                        data = EhlersESSfilter(
                               calcBeta(secondSymbol = Cyclicals,
                               betaLength = BetaLength)),
                                     stochLength = StochLength);
stoch1.SetDefaultColor(Color.VIOLET);
stoch1.SetLineWeight(2);
stoch1.SetPaintingStrategy(PaintingStrategy.LINE_VS_SQUARES);
stoch1.HideBubble();
AddLabel(ShowOverlay, " Cyclicals ", Color.VIOLET);
AddChartBubble(ShowOverlay and IsNaN(close[-1]) and !IsNaN(close), if stoch1 < 0.15 then 0 else if stoch1 > 0.85 then 1 else stoch1, "Cyclicals", Color.VIOLET, stoch1 > 0.5);

plot stoch2 = calcStoch(
                        data = EhlersESSfilter(
                               calcBeta(secondSymbol = Technology,
                               betaLength = BetaLength)),
                                     stochLength = StochLength);
stoch2.SetDefaultColor(CreateColor(90, 160, 120));
stoch2.SetLineWeight(5);
stoch2.SetStyle(Curve.LONG_DASH);
stoch2.HideBubble();
AddLabel(ShowOverlay, " Techology ", CreateColor(90, 160, 120));
AddChartBubble(ShowOverlay and IsNaN(close[-1]) and !IsNaN(close), if stoch2 < 0.15 then 0 else if stoch2 > 0.85 then 1 else stoch2, "Technology", CreateColor(90, 160, 120), stoch2 > 0.5);

plot stoch3 = calcStoch(
                        data = EhlersESSfilter(
                               calcBeta(secondSymbol = Industrials,
                               betaLength = BetaLength)),
                                     stochLength = StochLength);
stoch3.SetDefaultColor(Color.MAGENTA);
stoch3.SetLineWeight(5);
stoch3.SetStyle(Curve.SHORT_DASH);
stoch3.HideBubble();
AddLabel(ShowOverlay, " Industrials ", Color.MAGENTA);
AddChartBubble(ShowOverlay and IsNaN(close[-1]) and !IsNaN(close), if stoch3 < 0.15 then 0 else if stoch3 > 0.85 then 1 else stoch3, "Industrials", Color.MAGENTA, stoch3 > 0.5);

plot stoch4 = calcStoch(
                        data = EhlersESSfilter(
                               calcBeta(secondSymbol = Materials,
                               betaLength = BetaLength)),
                                     stochLength = StochLength);
stoch4.SetDefaultColor(Color.CYAN);
stoch4.SetLineWeight(2);
stoch4.SetPaintingStrategy(PaintingStrategy.LINE);
stoch4.HideBubble();
AddLabel(ShowOverlay, " Materials ", Color.CYAN);
AddChartBubble(ShowOverlay and IsNaN(close[-1]) and !IsNaN(close), if stoch4 < 0.15 then 0 else if stoch4 > 0.85 then 1 else stoch4, "Materials", Color.CYAN, stoch4 > 0.5);

plot stoch5 = calcStoch(
                        data = EhlersESSfilter(
                               calcBeta(secondSymbol = Energy,
                               betaLength = BetaLength)),
                                     stochLength = StochLength);
stoch5.SetDefaultColor(Color.YELLOW);
stoch5.SetLineWeight(1);
stoch5.SetPaintingStrategy(PaintingStrategy.Line_vs_POINTS);
stoch5.HideBubble();
AddLabel(ShowOverlay, " Energy ", Color.YELLOW);
AddChartBubble(ShowOverlay and IsNaN(close[-1]) and !IsNaN(close), if stoch5 < 0.15 then 0 else if stoch5 > 0.85 then 1 else stoch5, "Energy", Color.YELLOW, stoch5 > 0.5);

plot stoch6 = calcStoch(
                        data = EhlersESSfilter(
                               calcBeta(secondSymbol = Staples,
                               betaLength = BetaLength)),
                                     stochLength = StochLength);
stoch6.SetDefaultColor(CreateColor(80, 180, 70));
stoch6.SetLineWeight(2);
stoch6.SetPaintingStrategy(PaintingStrategy.LINE_VS_TRIANGLES);
stoch6.HideBubble();
AddLabel(ShowOverlay, " Staples ", CreateColor(80, 180, 70));
AddChartBubble(ShowOverlay and IsNaN(close[-1]) and !IsNaN(close), if stoch6 < 0.15 then 0 else if stoch6 > 0.85 then 1 else stoch6, "Staples", CreateColor(80, 180, 70), stoch6 > close);

plot stoch7 = calcStoch(
                        data = EhlersESSfilter(
                               calcBeta(secondSymbol = HealthCare,
                               betaLength = BetaLength)),
                                     stochLength = StochLength);
stoch7.SetDefaultColor(CreateColor(180, 80, 180));
stoch7.SetLineWeight(4);
stoch7.SetPaintingStrategy(PaintingStrategy.LINE);
stoch7.HideBubble();
AddLabel(ShowOverlay, " HealthCare ", CreateColor(180, 80, 180));
AddChartBubble("time condition" = ShowOverlay and IsNaN(close[-1]) and !IsNaN(close), "price location" = if stoch7 < 0.15 then 0 else if stoch7 > 0.85 then 1 else stoch7, text = "HealthCare", color = CreateColor(180, 80, 180), stoch7 > 0.5);

plot stoch8 = calcStoch(
                        data = EhlersESSfilter(
                               calcBeta(secondSymbol = Utilities,
                               betaLength = BetaLength)),
                                     stochLength = StochLength);
stoch8.SetDefaultColor(Color.ORANGE);
stoch8.SetLineWeight(2);
stoch8.SetPaintingStrategy(PaintingStrategy.LINE);
stoch8.HideBubble();
AddLabel(ShowOverlay, " Utilities ", Color.ORANGE);
AddChartBubble(ShowOverlay and IsNaN(close[-1]) and !IsNaN(close[0]), if stoch8 < 0.15 then 0 else if stoch8 > 0.85 then 1 else stoch8, "Utilities", Color.ORANGE, stoch8 > 0.5);

plot stoch9 = calcStoch(
                        data = EhlersESSfilter(
                               calcBeta(secondSymbol = Financials,
                               betaLength = BetaLength)),
                                     stochLength = StochLength);
stoch9.SetDefaultColor(Color.PINK);
stoch9.SetLineWeight(2);
stoch9.SetPaintingStrategy(PaintingStrategy.LINE_VS_POINTS);
stoch9.HideBubble();
AddLabel(ShowOverlay, " Financials ", Color.PINK);
AddChartBubble(ShowOverlay and IsNaN(close[-1]) and !IsNaN(close), if stoch9 < 0.15 then 0 else if stoch9 > 0.85 then 1 else stoch9, "Financials", Color.PINK, stoch9 > 0.5);

#----------------------------------------------
def barNumber = BarNumber();
def endBar = if !IsNaN(close) and IsNaN(close[-1]) then barNumber else endBar[1];
def lastBar = HighestAll(endBar);
input flowLabelStep = 40;
addLabel(1,"Last Bar = " + lastBar, color.Light_Gray);
DefineGlobalColor("YellowGreen", CreateColor(90, 140, 5));
AddChartBubble(barNumber == (lastBar - flowLabelStep), 1.01,
"M O N E Y   F L O W S   I N", globalColor("YellowGreen"), 1);
AddChartBubble(barNumber == (lastBar - 2*flowLabelStep), 1.01,
"M O N E Y   F L O W S   I N", globalColor("YellowGreen"), 1);
#mAddChartBubble(barNumber == (lastBar - 3*flowLabelStep), 1.01,
#"M O N E Y   F L O W S   I N", globalColor("YellowGreen"), 1);

DefineGlobalColor("Cinamon", CreateColor(200, 10, 40));
AddChartBubble(barNumber == (lastBar - flowLabelStep), -0.01,
"M O N E Y   F L O W S   O U T", globalColor("Cinamon"), 0);
AddChartBubble(barNumber == (lastBar - 2*flowLabelStep), -0.01,
"M O N E Y   F L O W S   O U T", globalColor("Cinamon"), 0);
#mAddChartBubble(barNumber == (lastBar - 3*flowLabelStep), -0.01,
#m"M O N E Y   F L O W S   O U T", globalColor("Cinamon"), 0);

#plot zero = if isNaN(close) then double.nan else 0;
plot zero = if barNumber > (lastBar + 7) then double.nan else 0;
zero.SetDefaultColor(createColor(90, 20, 20));
zero.SetStyle(Curve.Long_Dash);
zero.SetLineWeight(5);
zero.HideBubble();
plot one = if barNumber > (lastBar + 7) then double.nan else 1;
one.SetDefaultColor(createColor(20, 70, 20));
one.SetStyle(Curve.Long_Dash);
one.SetLineWeight(5);
one.HideBubble();
#EOC

SectorRotate_ED_NN

which line do I change to set SPY at 0? I looked at coding and I am not good at reading scripts. However, I am a good copier and paster and added a few more ETFS. Many thanks for your original
