# Programmatic Support and Resistance for Thinkorswim

#### ravi.narkilla

##### New member
Thanks DeusMecanicus, Would it be possible to add HH HL LL LH for this,

I have a portion of script from the old funwiththinkscript forum that might be what you are looking for. It just calculates the peaks and valleys slightly different than the programmatic support/resistance indicator.
Code:
``````##Robert_Payne
# define a peak as having a high greater than the two previous candles AND the two following candles
def peak = high > highest(high[1], 2) and high > highest(high[-2], 2);

# use a recursive variable to remember the peak value.
# if peak conditions are met, then set the value to the current high
# otherwise set the value to what it was before
def PeakValue = if peak then high else PeakValue[1];

# ----- define a valley as any point which is lower than the three preceding lows and the three following lows
def Valley = low < Lowest(low[1], 2) and low < Lowest(low[-2], 2);

def ValleyValue = if Valley then low else ValleyValue[1];

###Modified DeusMecanicus
plot Resistance1 = PeakValue;
plot Support1 = ValleyValue;
def lowerresist = Resistance1 < Resistance1[1];
def highersupport = Support1 > Support1[1];
def recresist = if Resistance1 > Resistance1[1] then 0 else if lowerresist then 1 else recresist[1];
def recsupport = if Support1 < Support1[1] then 0 else if highersupport then 1 else recsupport[1];

plot insideresistance = if recresist and recsupport then Resistance1 else Double.NaN;
plot insidesupport = if recsupport and recresist then Support1 else Double.NaN;
#--------------------------------------------------------------
insideresistance.SetPaintingStrategy(PaintingStrategy.HORIZONTAL);
insideresistance.SetDefaultColor(Color.MAGENTA);
insideresistance.SetLineWeight(5);

#--------------------------------------------------------------
insidesupport.SetPaintingStrategy(PaintingStrategy.HORIZONTAL);
insidesupport.SetDefaultColor(Color.CYAN);
insidesupport.SetLineWeight(5);
#--------------------------------------------------------------
#--------------------------------------------------------------
Resistance1.SetPaintingStrategy(PaintingStrategy.HORIZONTAL);
Resistance1.SetDefaultColor(Color.MAGENTA);

#--------------------------------------------------------------
Support1.SetPaintingStrategy(PaintingStrategy.HORIZONTAL);
Support1.SetDefaultColor(Color.CYAN);``````

#### majidg

##### Member
Hi DeusMecanicus, can you please show how to add pricebubble at peak and valley points?

#### spartan.ts

##### Member
I have a portion of script from the old funwiththinkscript forum that might be what you are looking for. It just calculates the peaks and valleys slightly different than the programmatic support/resistance indicator.
Code:
``````##Robert_Payne
# define a peak as having a high greater than the two previous candles AND the two following candles
def peak = high > highest(high[1], 2) and high > highest(high[-2], 2);

# use a recursive variable to remember the peak value.
# if peak conditions are met, then set the value to the current high
# otherwise set the value to what it was before
def PeakValue = if peak then high else PeakValue[1];

# ----- define a valley as any point which is lower than the three preceding lows and the three following lows
def Valley = low < Lowest(low[1], 2) and low < Lowest(low[-2], 2);

def ValleyValue = if Valley then low else ValleyValue[1];

###Modified DeusMecanicus
plot Resistance1 = PeakValue;
plot Support1 = ValleyValue;
def lowerresist = Resistance1 < Resistance1[1];
def highersupport = Support1 > Support1[1];
def recresist = if Resistance1 > Resistance1[1] then 0 else if lowerresist then 1 else recresist[1];
def recsupport = if Support1 < Support1[1] then 0 else if highersupport then 1 else recsupport[1];

plot insideresistance = if recresist and recsupport then Resistance1 else Double.NaN;
plot insidesupport = if recsupport and recresist then Support1 else Double.NaN;
#--------------------------------------------------------------
insideresistance.SetPaintingStrategy(PaintingStrategy.HORIZONTAL);
insideresistance.SetDefaultColor(Color.MAGENTA);
insideresistance.SetLineWeight(5);

#--------------------------------------------------------------
insidesupport.SetPaintingStrategy(PaintingStrategy.HORIZONTAL);
insidesupport.SetDefaultColor(Color.CYAN);
insidesupport.SetLineWeight(5);
#--------------------------------------------------------------
#--------------------------------------------------------------
Resistance1.SetPaintingStrategy(PaintingStrategy.HORIZONTAL);
Resistance1.SetDefaultColor(Color.MAGENTA);

#--------------------------------------------------------------
Support1.SetPaintingStrategy(PaintingStrategy.HORIZONTAL);
Support1.SetDefaultColor(Color.CYAN);``````

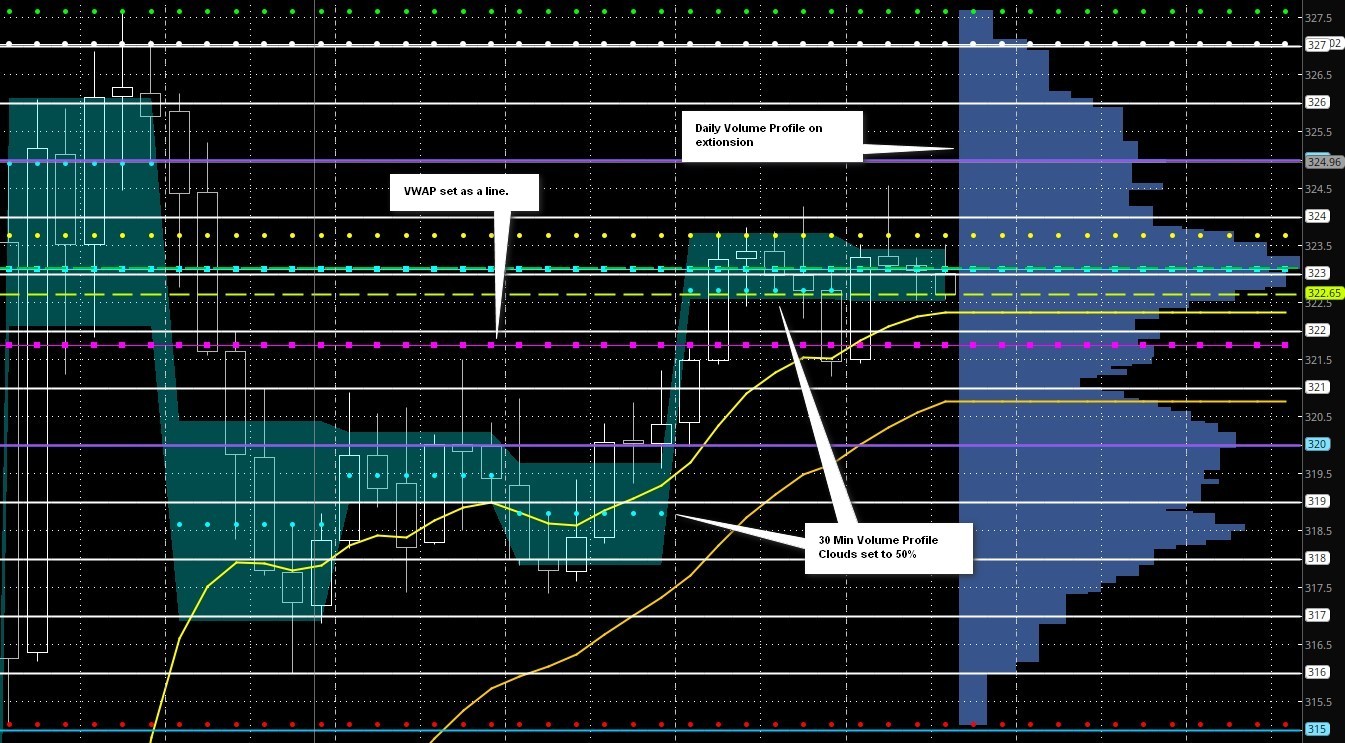

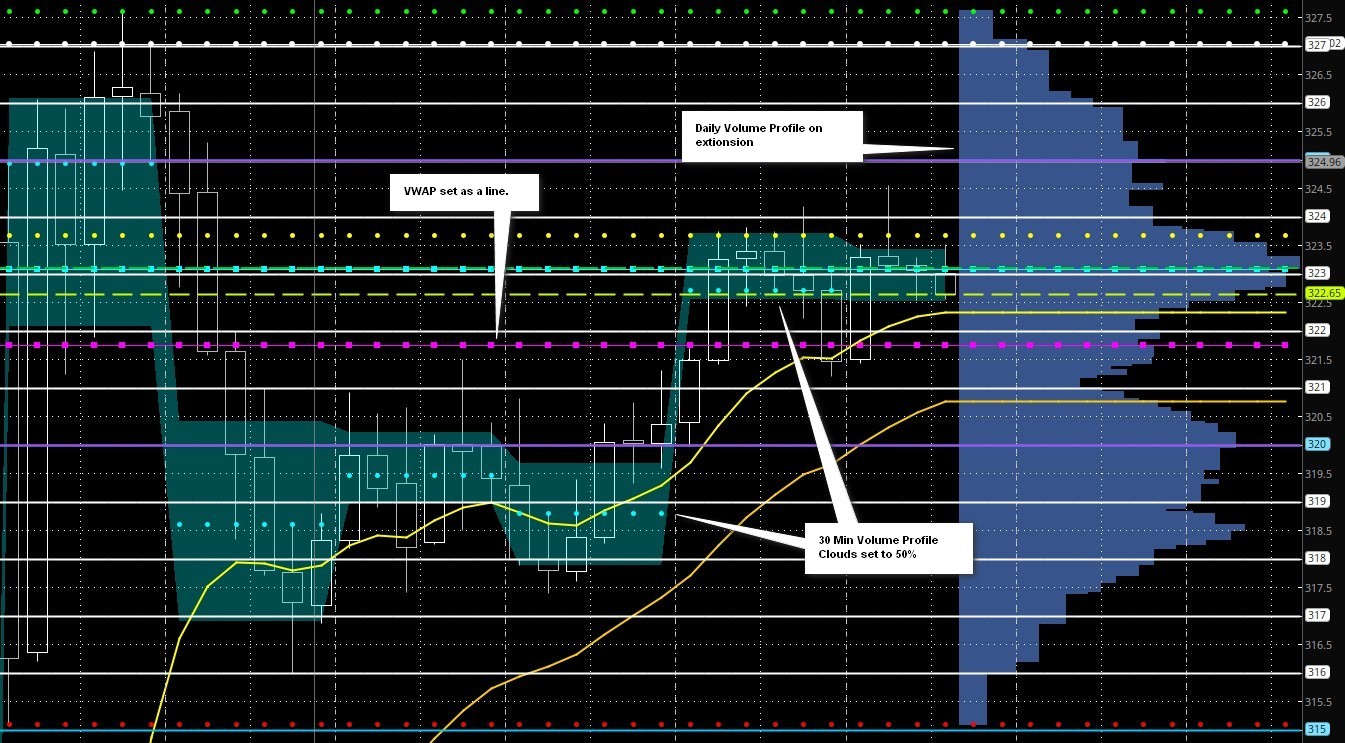

Any chance this can use a VWAP calculation from the pivots? wondering if it would fix the delay issues from this version?

#### mr_nicegy

##### New member
@suziq Got it working.

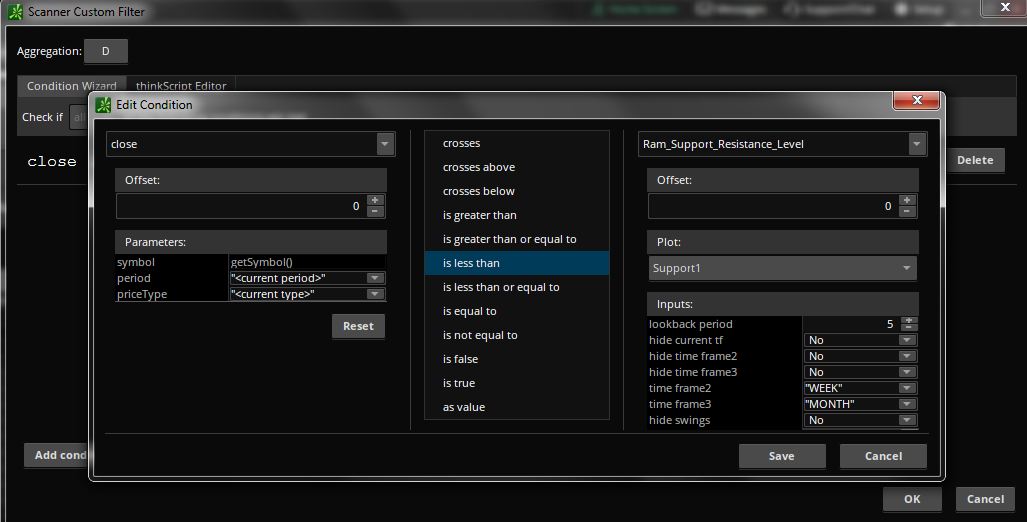

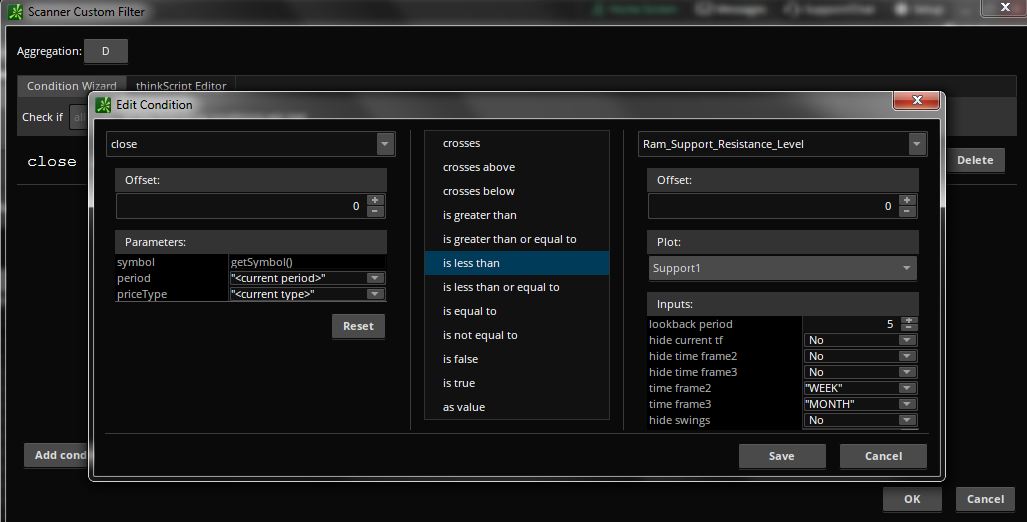

Scan results

Can you please share the study?

#### dxk

##### Member
I would like to create a scan for this study, it has been working well for me on break outs

I only need the scan for resistance 1

Can anyone help me with this

Code:
``````declare upper;

input LookbackPeriod = 5;
input HideCurrentTF = no;
input HideTimeFrame2 = no;
input HideTimeFrame3 = no;
input TimeFrame2 = {"15 MIN", "1 MIN", "2 MIN", "3 MIN", "4 MIN", "5 MIN", "10 MIN", "20 MIN", "30 MIN", "1 HOUR", "2 HOURS", "4 HOURS", DAY, "2 DAYS", "3 DAYS", "4 DAYS", default WEEK, MONTH, "OPT EXP"};
input TimeFrame3 = {"30 MIN", "1 MIN", "2 MIN", "3 MIN", "4 MIN", "5 MIN", "10 MIN", "15 MIN", "20 MIN", "1 HOUR", "2 HOURS", "4 HOURS", DAY, "2 DAYS", "3 DAYS", "4 DAYS", WEEK, default MONTH, "OPT EXP"};
input HideSwings = no;
input SwingsLagBar = 1;

#--------------------------------------------------------------
def _highInPeriod1 = Highest(high, LookbackPeriod);
def _lowInPeriod1 = Lowest(low, LookbackPeriod);
#--------------------------------------------------------------
def marketLow1 = if _lowInPeriod1 < _lowInPeriod1[-LookbackPeriod] then _lowInPeriod1 else _lowInPeriod1[-LookbackPeriod];
def _markedLow1 = low == marketLow1;

rec _lastMarkedLow1 = CompoundValue(1, if IsNaN(_markedLow1) then _lastMarkedLow1[1] else if _markedLow1 then low else _lastMarkedLow1[1], low);
#--------------------------------------------------------------
def marketHigh1 = if _highInPeriod1 > _highInPeriod1[-LookbackPeriod] then _highInPeriod1 else _highInPeriod1[-LookbackPeriod];
def _markedHigh1 = high == marketHigh1;

rec _lastMarkedHigh1 = CompoundValue(1, if IsNaN(_markedHigh1) then _lastMarkedHigh1[1] else if _markedHigh1 then high else _lastMarkedHigh1[1], high);
#--------------------------------------------------------------
plot Resistance1 = _lastMarkedHigh1;
plot Support1 = _lastMarkedLow1;
#--------------------------------------------------------------
Resistance1.SetPaintingStrategy(PaintingStrategy.HORIZONTAL);
Resistance1.SetDefaultColor(Color.MAGENTA);
Resistance1.SetHiding(HideCurrentTF);
#--------------------------------------------------------------
Support1.SetPaintingStrategy(PaintingStrategy.HORIZONTAL);
Support1.SetDefaultColor(Color.YELLOW);
Support1.SetHiding(HideCurrentTF);
#--------------------------------------------------------------
def LowSwingForw = Lowest(low, SwingsLagBar)[-SwingsLagBar];
def LowSwingBack = Lowest(low, LookbackPeriod)[1];
def SwingLow = if low < LowSwingForw and low <= LowSwingBack then 1 else 0;
plot LowSwing = if SwingLow then low else Double.NaN;
LowSwing.hide();
#--------------------------------------------------------------
def HighSwingForw = Highest(high, SwingsLagBar)[-SwingsLagBar];
def HighSwingBack = Highest(high, LookbackPeriod)[1];
def SwingHigh = if high > HighSwingForw and high >= HighSwingBack then 1 else 0;
plot HighSwing = if SwingHigh then high else Double.NaN;
HighSwing.hide();
#--------------------------------------------------------------
HighSwing.SetPaintingStrategy(PaintingStrategy.BOOLEAN_ARROW_DOWN);
HighSwing.SetLineWeight(5);
HighSwing.SetDefaultColor(Color.MAGENTA);
HighSwing.SetHiding(HideSwings);
LowSwing.SetPaintingStrategy(PaintingStrategy.BOOLEAN_ARROW_UP);
LowSwing.SetLineWeight(5);
LowSwing.SetDefaultColor(Color.YELLOW);
LowSwing.SetHiding(HideSwings);
#--------------------------------------------------------------
#--------------------------------------------------------------
AddLabel(HighSwing, "SupRes : Swing High", Color.MAGENTA);
AddLabel(LowSwing, "SupRes : Swing Low", Color.YELLOW);
#--------------------------------------------------------------
def _highInPeriod2 = Highest(high(period = TimeFrame2), LookbackPeriod);
def _lowInPeriod2 = Lowest(low(period = TimeFrame2), LookbackPeriod);
#--------------------------------------------------------------
def marketLow2 = if _lowInPeriod2 < _lowInPeriod2[-LookbackPeriod] then _lowInPeriod2 else _lowInPeriod2[-LookbackPeriod];
def _markedLow2 = low(period = TimeFrame2) == marketLow2;

rec _lastMarkedLow2 = CompoundValue(1, if IsNaN(_markedLow2) then _lastMarkedLow2[1] else if _markedLow2 then low(period = TimeFrame2) else _lastMarkedLow2[1], low(period = TimeFrame2));
#--------------------------------------------------------------
def marketHigh2 = if _highInPeriod2 > _highInPeriod2[-LookbackPeriod] then _highInPeriod2 else _highInPeriod2[-LookbackPeriod];
def _markedHigh2 = high(period = TimeFrame2) == marketHigh2;

rec _lastMarkedHigh2 = CompoundValue(1, if IsNaN(_markedHigh2) then _lastMarkedHigh2[1] else if _markedHigh2 then high(period = TimeFrame2) else _lastMarkedHigh2[1], high(period = TimeFrame2));
#--------------------------------------------------------------
plot Resistance2 = _lastMarkedHigh2;
Resistance2.hide();
plot Support2 = _lastMarkedLow2;
Support2.hide();
#--------------------------------------------------------------
Resistance2.SetPaintingStrategy(PaintingStrategy.HORIZONTAL);
Resistance2.SetDefaultColor(Color.MAGENTA);
Resistance2.SetHiding(HideTimeFrame2);
#--------------------------------------------------------------
Support2.SetPaintingStrategy(PaintingStrategy.HORIZONTAL);
Support2.SetDefaultColor(Color.YELLOW);
Support2.SetHiding(HideTimeFrame2);
#--------------------------------------------------------------
def _highInPeriod3 = Highest(high(period = TimeFrame3), LookbackPeriod);
def _lowInPeriod3 = Lowest(low(period = TimeFrame3), LookbackPeriod);
#--------------------------------------------------------------
def marketLow3 = if _lowInPeriod3 < _lowInPeriod3[-LookbackPeriod] then _lowInPeriod3 else _lowInPeriod3[-LookbackPeriod];
def _markedLow3 = low(period = TimeFrame3) == marketLow3;

rec _lastMarkedLow3 = CompoundValue(1, if IsNaN(_markedLow3) then _lastMarkedLow3[1] else if _markedLow3 then low(period = TimeFrame3) else _lastMarkedLow3[1], low(period = TimeFrame3));
#--------------------------------------------------------------
def marketHigh3 = if _highInPeriod3 > _highInPeriod3[-LookbackPeriod] then _highInPeriod3 else _highInPeriod3[-LookbackPeriod];
def _markedHigh3 = high(period = TimeFrame3) == marketHigh3;

rec _lastMarkedHigh3 = CompoundValue(1, if IsNaN(_markedHigh3) then _lastMarkedHigh3[1] else if _markedHigh3 then high(period = TimeFrame3) else _lastMarkedHigh3[1], high(period = TimeFrame3));
#--------------------------------------------------------------
plot Resistance3 = _lastMarkedHigh3;
Resistance3.hide();
plot Support3 = _lastMarkedLow3;
Support3.hide();
#--------------------------------------------------------------
Resistance3.SetPaintingStrategy(PaintingStrategy.HORIZONTAL);
Resistance3.SetDefaultColor(Color.MAGENTA);
Resistance3.SetHiding(HideTimeFrame3);
#--------------------------------------------------------------
Support3.SetPaintingStrategy(PaintingStrategy.HORIZONTAL);
Support3.SetDefaultColor(Color.YELLOW);
Support3.SetHiding(HideTimeFrame3);``````

#### MerryDay

Staff member
Staff
VIP
I would like to create a scan for this study, it has been working well for me on break outs

I only need the scan for resistance 1

Can anyone help me with this

Code:
``````declare upper;

input LookbackPeriod = 5;
input HideCurrentTF = no;
input HideTimeFrame2 = no;
input HideTimeFrame3 = no;
input TimeFrame2 = {"15 MIN", "1 MIN", "2 MIN", "3 MIN", "4 MIN", "5 MIN", "10 MIN", "20 MIN", "30 MIN", "1 HOUR", "2 HOURS", "4 HOURS", DAY, "2 DAYS", "3 DAYS", "4 DAYS", default WEEK, MONTH, "OPT EXP"};
input TimeFrame3 = {"30 MIN", "1 MIN", "2 MIN", "3 MIN", "4 MIN", "5 MIN", "10 MIN", "15 MIN", "20 MIN", "1 HOUR", "2 HOURS", "4 HOURS", DAY, "2 DAYS", "3 DAYS", "4 DAYS", WEEK, default MONTH, "OPT EXP"};
input HideSwings = no;
input SwingsLagBar = 1;

#--------------------------------------------------------------
def _highInPeriod1 = Highest(high, LookbackPeriod);
def _lowInPeriod1 = Lowest(low, LookbackPeriod);
#--------------------------------------------------------------
def marketLow1 = if _lowInPeriod1 < _lowInPeriod1[-LookbackPeriod] then _lowInPeriod1 else _lowInPeriod1[-LookbackPeriod];
def _markedLow1 = low == marketLow1;

rec _lastMarkedLow1 = CompoundValue(1, if IsNaN(_markedLow1) then _lastMarkedLow1[1] else if _markedLow1 then low else _lastMarkedLow1[1], low);
#--------------------------------------------------------------
def marketHigh1 = if _highInPeriod1 > _highInPeriod1[-LookbackPeriod] then _highInPeriod1 else _highInPeriod1[-LookbackPeriod];
def _markedHigh1 = high == marketHigh1;

rec _lastMarkedHigh1 = CompoundValue(1, if IsNaN(_markedHigh1) then _lastMarkedHigh1[1] else if _markedHigh1 then high else _lastMarkedHigh1[1], high);
#--------------------------------------------------------------
plot Resistance1 = _lastMarkedHigh1;
plot Support1 = _lastMarkedLow1;
#--------------------------------------------------------------
Resistance1.SetPaintingStrategy(PaintingStrategy.HORIZONTAL);
Resistance1.SetDefaultColor(Color.MAGENTA);
Resistance1.SetHiding(HideCurrentTF);
#--------------------------------------------------------------
Support1.SetPaintingStrategy(PaintingStrategy.HORIZONTAL);
Support1.SetDefaultColor(Color.YELLOW);
Support1.SetHiding(HideCurrentTF);
#--------------------------------------------------------------
def LowSwingForw = Lowest(low, SwingsLagBar)[-SwingsLagBar];
def LowSwingBack = Lowest(low, LookbackPeriod)[1];
def SwingLow = if low < LowSwingForw and low <= LowSwingBack then 1 else 0;
plot LowSwing = if SwingLow then low else Double.NaN;
LowSwing.hide();
#--------------------------------------------------------------
def HighSwingForw = Highest(high, SwingsLagBar)[-SwingsLagBar];
def HighSwingBack = Highest(high, LookbackPeriod)[1];
def SwingHigh = if high > HighSwingForw and high >= HighSwingBack then 1 else 0;
plot HighSwing = if SwingHigh then high else Double.NaN;
HighSwing.hide();
#--------------------------------------------------------------
HighSwing.SetPaintingStrategy(PaintingStrategy.BOOLEAN_ARROW_DOWN);
HighSwing.SetLineWeight(5);
HighSwing.SetDefaultColor(Color.MAGENTA);
HighSwing.SetHiding(HideSwings);
LowSwing.SetPaintingStrategy(PaintingStrategy.BOOLEAN_ARROW_UP);
LowSwing.SetLineWeight(5);
LowSwing.SetDefaultColor(Color.YELLOW);
LowSwing.SetHiding(HideSwings);
#--------------------------------------------------------------
#--------------------------------------------------------------
AddLabel(HighSwing, "SupRes : Swing High", Color.MAGENTA);
AddLabel(LowSwing, "SupRes : Swing Low", Color.YELLOW);
#--------------------------------------------------------------
def _highInPeriod2 = Highest(high(period = TimeFrame2), LookbackPeriod);
def _lowInPeriod2 = Lowest(low(period = TimeFrame2), LookbackPeriod);
#--------------------------------------------------------------
def marketLow2 = if _lowInPeriod2 < _lowInPeriod2[-LookbackPeriod] then _lowInPeriod2 else _lowInPeriod2[-LookbackPeriod];
def _markedLow2 = low(period = TimeFrame2) == marketLow2;

rec _lastMarkedLow2 = CompoundValue(1, if IsNaN(_markedLow2) then _lastMarkedLow2[1] else if _markedLow2 then low(period = TimeFrame2) else _lastMarkedLow2[1], low(period = TimeFrame2));
#--------------------------------------------------------------
def marketHigh2 = if _highInPeriod2 > _highInPeriod2[-LookbackPeriod] then _highInPeriod2 else _highInPeriod2[-LookbackPeriod];
def _markedHigh2 = high(period = TimeFrame2) == marketHigh2;

rec _lastMarkedHigh2 = CompoundValue(1, if IsNaN(_markedHigh2) then _lastMarkedHigh2[1] else if _markedHigh2 then high(period = TimeFrame2) else _lastMarkedHigh2[1], high(period = TimeFrame2));
#--------------------------------------------------------------
plot Resistance2 = _lastMarkedHigh2;
Resistance2.hide();
plot Support2 = _lastMarkedLow2;
Support2.hide();
#--------------------------------------------------------------
Resistance2.SetPaintingStrategy(PaintingStrategy.HORIZONTAL);
Resistance2.SetDefaultColor(Color.MAGENTA);
Resistance2.SetHiding(HideTimeFrame2);
#--------------------------------------------------------------
Support2.SetPaintingStrategy(PaintingStrategy.HORIZONTAL);
Support2.SetDefaultColor(Color.YELLOW);
Support2.SetHiding(HideTimeFrame2);
#--------------------------------------------------------------
def _highInPeriod3 = Highest(high(period = TimeFrame3), LookbackPeriod);
def _lowInPeriod3 = Lowest(low(period = TimeFrame3), LookbackPeriod);
#--------------------------------------------------------------
def marketLow3 = if _lowInPeriod3 < _lowInPeriod3[-LookbackPeriod] then _lowInPeriod3 else _lowInPeriod3[-LookbackPeriod];
def _markedLow3 = low(period = TimeFrame3) == marketLow3;

rec _lastMarkedLow3 = CompoundValue(1, if IsNaN(_markedLow3) then _lastMarkedLow3[1] else if _markedLow3 then low(period = TimeFrame3) else _lastMarkedLow3[1], low(period = TimeFrame3));
#--------------------------------------------------------------
def marketHigh3 = if _highInPeriod3 > _highInPeriod3[-LookbackPeriod] then _highInPeriod3 else _highInPeriod3[-LookbackPeriod];
def _markedHigh3 = high(period = TimeFrame3) == marketHigh3;

rec _lastMarkedHigh3 = CompoundValue(1, if IsNaN(_markedHigh3) then _lastMarkedHigh3[1] else if _markedHigh3 then high(period = TimeFrame3) else _lastMarkedHigh3[1], high(period = TimeFrame3));
#--------------------------------------------------------------

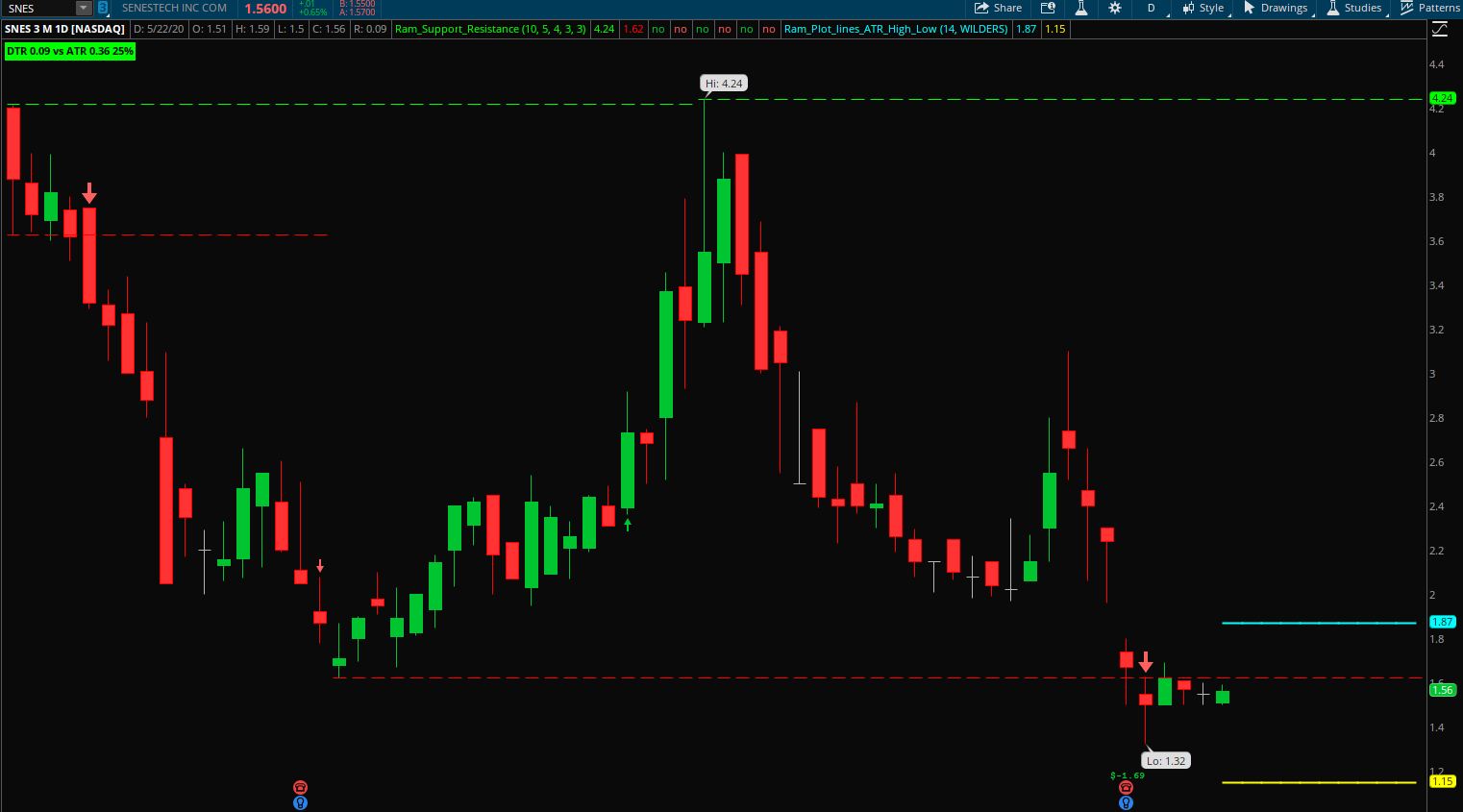

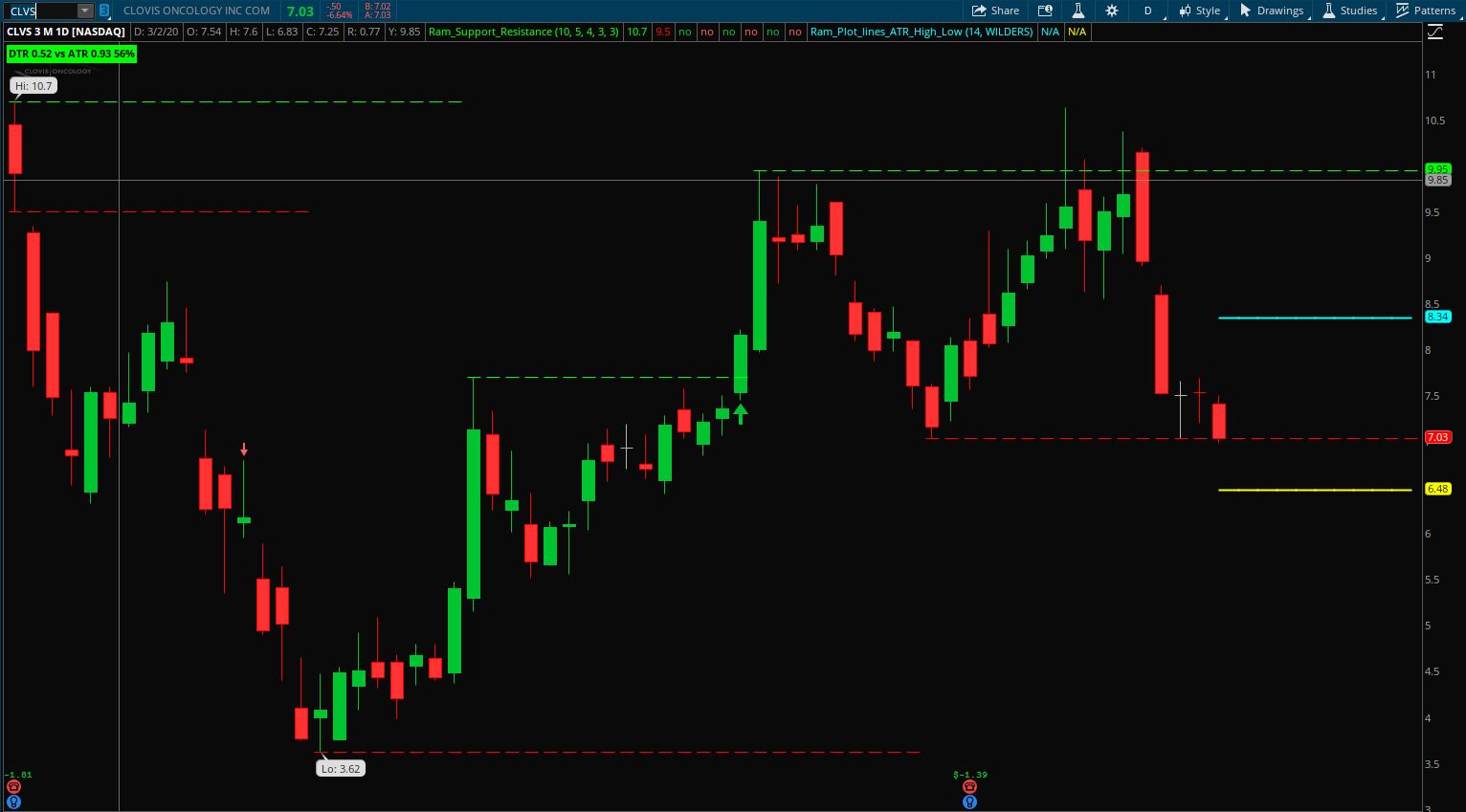

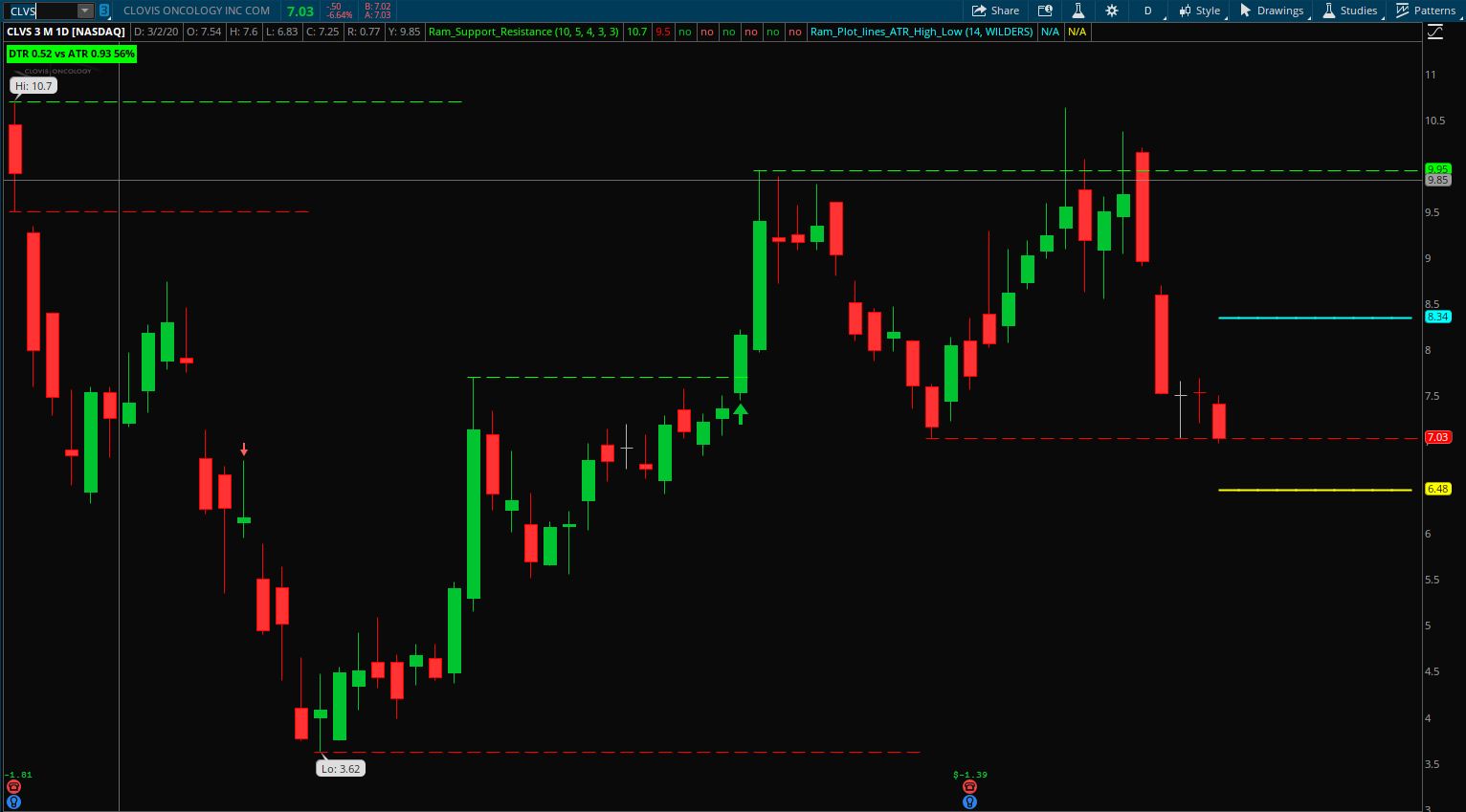

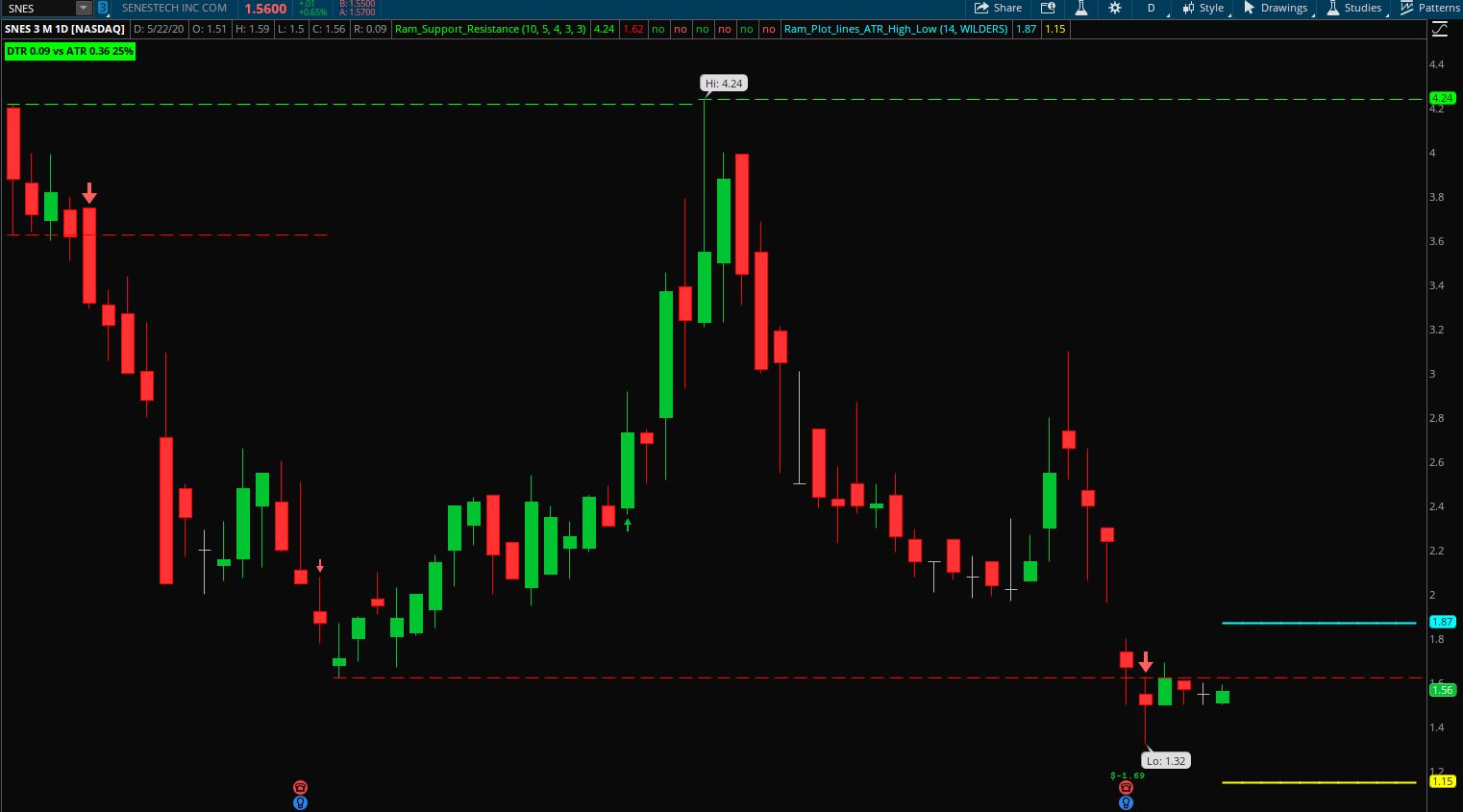

plot Resistance3 = _lastMarkedHigh3;
Resistance3.hide();
plot Support3 = _lastMarkedLow3;
Support3.hide();
#--------------------------------------------------------------
Resistance3.SetPaintingStrategy(PaintingStrategy.HORIZONTAL);
Resistance3.SetDefaultColor(Color.MAGENTA);
Resistance3.SetHiding(HideTimeFrame3);
#--------------------------------------------------------------
Support3.SetPaintingStrategy(PaintingStrategy.HORIZONTAL);
Support3.SetDefaultColor(Color.YELLOW);
Support3.SetHiding(HideTimeFrame3);``````

dxk

87k+ Posts
193 Online

## The Market Trading Game Changer

Join 2,500+ subscribers inside the useThinkScript VIP Membership Club
• Exclusive indicators
• Proven strategies & setups
• Private Discord community
• Exclusive members-only content
• 1 full year of unlimited support

What is useThinkScript?

useThinkScript is the #1 community of stock market investors using indicators and other tools to power their trading strategies. Traders of all skill levels use our forums to learn about scripting and indicators, help each other, and discover new ways to gain an edge in the markets.

How do I get started?

We get it. Our forum can be intimidating, if not overwhelming. With thousands of topics, tens of thousands of posts, our community has created an incredibly deep knowledge base for stock traders. No one can ever exhaust every resource provided on our site.

If you are new, or just looking for guidance, here are some helpful links to get you started.

What are the benefits of VIP Membership?
