SleepyZ said:
Yes, this controls the number of profiles to be displayed, currently at input profiles = 1000;, set it to input profiles = 1;
Click to expand...
It's a nice a job of programming. I'm curious why we didn't just adjust the opacity level on the default study to zero to see only the VAL's & POC.


Join useThinkScript to post your question to a community of 21,000+ developers and traders.

SIGN UP NOW LEARN MORE
Hello Everyone ,

I was able to get the POC point of Control Price to populate in the wtachlist,. however, how can I assign it a backlgorund color if over the POC Value, and a color if Under the POC Value. I am new to this.

def poc = reference VolumeProfile("time per profile" = "MONTH", "on expansion" = no, opacity = 0, "show value area" = No, multiplier = 1.0, "price per row height mode" = "TICKSIZE");
AddLabel(1, poc, Color.WHITE);

Hlearner said:
Hello Everyone ,

I was able to get the POC point of Control Price to populate in the wtachlist,. however, how can I assign it a backlgorund color if over the POC Value, and a color if Under the POC Value. I am new to this.

def poc = reference VolumeProfile("time per profile" = "MONTH", "on expansion" = no, opacity = 0, "show value area" = No, multiplier = 1.0, "price per row height mode" = "TICKSIZE");
AddLabel(1, poc, Color.WHITE);
Click to expand...
Try this
Code:
def poc = reference VolumeProfile("time per profile" = "MONTH", "on expansion" = no, opacity = 0, "show value area" = No, multiplier = 1.0, "price per row height mode" = "TICKSIZE");
AddLabel(1, poc, Color.WHITE);
assignBackgroundColor(if close > poc then color.green else color.red);
Click to expand...

Hello, I was just wondering if there would be any way to have the VolumeProfile show the ratio between buy & sell vol at each prices. Basically want to combine these two scripts:

VolumeProfile
Code:
#
# TD Ameritrade IP Company, Inc. (c) 2010-2021
#


input pricePerRowHeightMode = {default AUTOMATIC, TICKSIZE, CUSTOM};
input customRowHeight = 1.0;
input timePerProfile = {default CHART, MINUTE, HOUR, DAY, WEEK, MONTH, "OPT EXP", BAR};
input multiplier = 1;
input onExpansion = yes;
input profiles = 1000;
input showPointOfControl = yes;
input showValueArea = yes;
input valueAreaPercent = 70;
input opacity = 50;


def period;
def yyyymmdd = getYyyyMmDd();
def seconds = secondsFromTime(0);
def month = getYear() * 12 + getMonth();
def day_number = daysFromDate(first(yyyymmdd)) + getDayOfWeek(first(yyyymmdd));
def dom = getDayOfMonth(yyyymmdd);
def dow = getDayOfWeek(yyyymmdd - dom + 1);
def expthismonth = (if dow > 5 then 27 else 20) - dow;
def exp_opt = month + (dom > expthismonth);
switch (timePerProfile) {
case CHART:
    period = 0;
case MINUTE:
    period = floor(seconds / 60 + day_number * 24 * 60);
case HOUR:
    period = floor(seconds / 3600 + day_number * 24);
case DAY:
    period = countTradingDays(min(first(yyyymmdd), yyyymmdd), yyyymmdd) - 1;
case WEEK:
    period = floor(day_number / 7);
case MONTH:
    period = floor(month - first(month));
case "OPT EXP":
    period = exp_opt - first(exp_opt);
case BAR:
    period = barNumber() - 1;
}


def count = CompoundValue(1, if period != period[1] then (count[1] + period - period[1]) % multiplier else count[1], 0);
def cond = count < count[1] + period - period[1];
def height;
switch (pricePerRowHeightMode) {
case AUTOMATIC:
    height = PricePerRow.AUTOMATIC;
case TICKSIZE:
    height = PricePerRow.TICKSIZE;
case CUSTOM:
    height = customRowHeight;
}


profile vol = volumeProfile("startNewProfile" = cond, "onExpansion" = onExpansion, "numberOfProfiles" = profiles, "pricePerRow" = height, "value area percent" = valueAreaPercent);
def con = compoundValue(1, onExpansion, no);
def pc = if IsNaN(vol.getPointOfControl()) and con then pc[1] else vol.getPointOfControl();
def hVA = if IsNaN(vol.getHighestValueArea()) and con then hVA[1] else vol.getHighestValueArea();
def lVA = if IsNaN(vol.getLowestValueArea()) and con then lVA[1] else vol.getLowestValueArea();


def hProfile = if IsNaN(vol.getHighest()) and con then hProfile[1] else vol.getHighest();
def lProfile = if IsNaN(vol.getLowest()) and con then lProfile[1] else vol.getLowest();
def plotsDomain = IsNaN(close) == onExpansion;


plot POC = if plotsDomain then pc else Double.NaN;
plot ProfileHigh = if plotsDomain then hProfile else Double.NaN;
plot ProfileLow = if plotsDomain then lProfile else Double.NaN;
plot VAHigh = if plotsDomain then hVA else Double.NaN;
plot VALow = if plotsDomain then lVA else Double.NaN;


DefineGlobalColor("Profile", GetColor(1));
DefineGlobalColor("Point Of Control", GetColor(5));
DefineGlobalColor("Value Area", GetColor(8));


vol.show(globalColor("Profile"), if showPointOfControl then globalColor("Point Of Control") else color.current, if showValueArea then globalColor("Value Area") else color.current, opacity);
POC.SetDefaultColor(globalColor("Point Of Control"));
POC.SetPaintingStrategy(PaintingStrategy.HORIZONTAL);
VAHigh.SetPaintingStrategy(PaintingStrategy.HORIZONTAL);
VALow.SetPaintingStrategy(PaintingStrategy.HORIZONTAL);
VAHigh.SetDefaultColor(globalColor("Value Area"));
VALow.SetDefaultColor(globalColor("Value Area"));
ProfileHigh.SetPaintingStrategy(PaintingStrategy.HORIZONTAL);
ProfileLow.SetPaintingStrategy(PaintingStrategy.HORIZONTAL);
ProfileHigh.SetDefaultColor(GetColor(3));
ProfileLow.SetDefaultColor(GetColor(3));
ProfileHigh.hide();
ProfileLow.hide();

and VolumeRatio:
Code:
# Original author: Unknown
# Modified by 7of9


declare lower;


#Inputs


input Show30DayAvg = yes;
input ShowTodayVolume = yes;
input ShowPercentOf30DayAvg = yes;
input UnusualVolumePercent = 200;
input Show30BarAvg = yes;
input ShowCurrentBar = yes;
input ShowPercentOf30BarAvg = yes;
input ShowSellVolumePercent = yes;


def O = open;
def H = high;
def C = close;
def L = low;
def V = volume;
def buying = V*(C-L)/(H-L);
def selling = V*(H-C)/(H-L);


# Selling Volume


Plot SellVol = selling;
SellVol.setPaintingStrategy(PaintingStrategy.Histogram);
SellVol.SetDefaultColor(Color.Red);
SellVol.HideTitle();
SellVol.HideBubble();
SellVol.SetLineWeight(5);


# Total Volume


Plot BuyVol = volume;
BuyVol.setPaintingStrategy(PaintingStrategy.Histogram);
BuyVol.SetDefaultColor(Color.Dark_Green);
BuyVol.HideTitle();
BuyVol.HideBubble();
BuyVol.SetLineWeight(5);


#Volume Data


def volLast30DayAvg = (volume(period = "DAY")[1] + volume(period = "DAY")[2] + volume(period = "DAY")[3] + volume(period = "DAY")[4] + volume(period = "DAY")[5] + volume(period = "DAY")[6] + volume(period = "DAY")[7] + volume(period = "DAY")[8] + volume(period = "DAY")[9] + volume(period = "DAY")[10] + volume(period = "DAY")[11] + volume(period = "DAY")[12] + volume(period = "DAY")[13] + volume(period = "DAY")[14] + volume(period = "DAY")[15] + volume(period = "DAY")[16] + volume(period = "DAY")[17] + volume(period = "DAY")[18] + volume(period = "DAY")[19] + volume(period = "DAY")[20] + volume(period = "DAY")[21] + volume(period = "DAY")[22] + volume(period = "DAY")[23] + volume(period = "DAY")[24] + volume(period = "DAY")[25] + volume(period = "DAY")[26] + volume(period = "DAY")[27] + volume(period = "DAY")[28] + volume(period = "DAY")[29] + volume(period = "DAY")[30]) / 30;
def today = volume(period = "DAY");
def percentOf30Day = Round((today / volLast30DayAvg) * 100, 0);
def avg30Bars = (volume[1] + volume[2] + volume[3] + volume[4] + volume[5] + volume[6] + volume[7] + volume[8] + volume[9] + volume[10] + volume[11] + volume[12] + volume[13] + volume[14] + volume[15] + volume[16] + volume[17] + volume[18] + volume[19] + volume[20] + volume[21] + volume[22] + volume[23] + volume[24] + volume[25] + volume[26] + volume[27] + volume[28] + volume[29] + volume[30]) / 30;
def curVolume = volume;
def percentOf30Bar = Round((curVolume / avg30Bars) * 100, 0);
def SellVolPercent = Round((Selling / Volume) * 100, 0);


# Labels


AddLabel(Show30DayAvg, "Avg 30 Days: " + Round(volLast30DayAvg, 0), Color.LIGHT_GRAY);


AddLabel(ShowTodayVolume, "Today: " + today, (if percentOf30Day >= UnusualVolumePercent then Color.GREEN else if percentOf30Day >= 100 then Color.ORANGE else Color.LIGHT_GRAY));


AddLabel(ShowPercentOf30DayAvg, percentOf30Day + "%", (if percentOf30Day >= UnusualVolumePercent then Color.GREEN else if percentOf30Day >= 100 then Color.ORANGE else Color.WHITE) );


AddLabel(Show30BarAvg, "Avg 30 Bars: " + Round(avg30Bars, 0), Color.LIGHT_GRAY);


AddLabel(ShowCurrentBar, "Cur Bar: " + curVolume, (if percentOf30Bar >= UnusualVolumePercent then Color.GREEN else if PercentOf30Bar >= 100 then Color.ORANGE else Color.LIGHT_GRAY));


AddLabel(ShowPercentOf30BarAvg, PercentOf30Bar + "%", (if PercentOf30Bar >= UnusualVolumePercent then Color.GREEN else if PercentOf30Bar >= 100 then Color.ORANGE else Color.WHITE) );


AddLabel(ShowSellVolumePercent, "Cur Bar Sell %: " + SellVolPercent, (if SellVolPercent > 51 then Color.RED else if SellVolPercent < 49 then Color.GREEN else Color.ORANGE));


input length = 50;


plot Vol = volume;
plot VolAvg = Average(volume, length);


Vol.SetPaintingStrategy(PaintingStrategy.HISTOGRAM);
Vol.SetLineWeight(3);
Vol.DefineColor("Up", Color.UPTICK);
Vol.DefineColor("Down", Color.DOWNTICK);
Vol.AssignValueColor(if close > close[1] then Vol.color("Up") else if close < close[1] then Vol.color("Down") else GetColor(1));
VolAvg.SetDefaultColor(GetColor(8));

mrstantrades said:
So the VolumeProfile shows the volume at different prices normally, but it shows it as 1 solid color. I would like to see if it's possible to have it show the ratio of buy and sell volume, similar to how the VolumeRatio indicator does it.

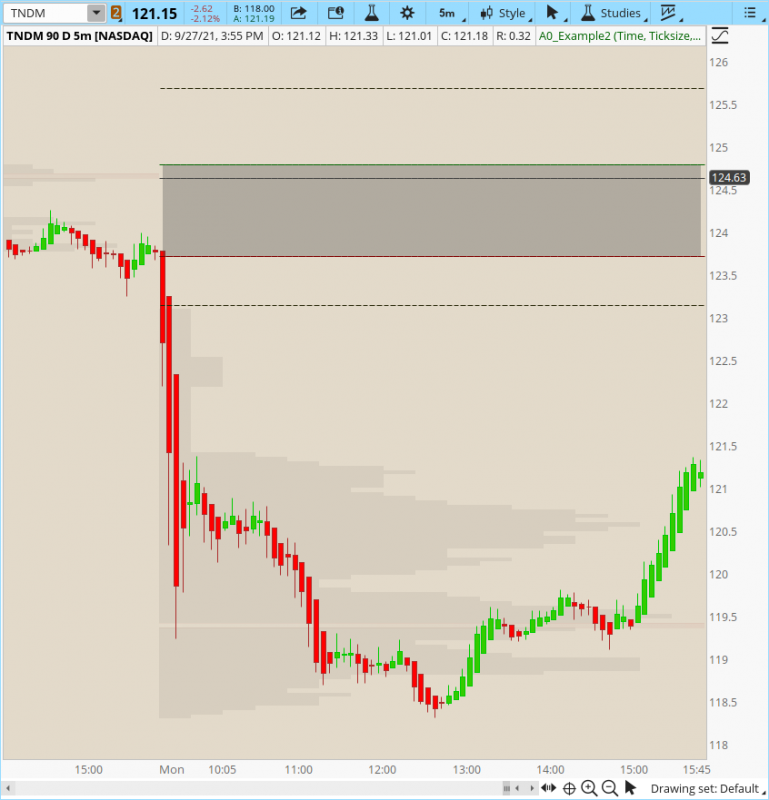

I took a screenshot of the VolumeProfile indicator and drew how it would ideally look:



Notice the partially red and partially green bars, that would be how the ratio of volume at that price would be displayed. So if there's 50% sell volume and 50% buy volume at a price of lets say 467 on SPY, then that bar at 467 would be half red half green.
Click to expand...
https://usethinkscript.com/threads/answers-to-commonly-asked-questions.6006/page-2#post-78392

mrstantrades said:
Hello, I was just wondering if there would be any way to have the VolumeProfile show the ratio between buy & sell vol at each prices. Basically want to combine these two scripts:

VolumeProfile
Code:
#
# TD Ameritrade IP Company, Inc. (c) 2010-2021
#


input pricePerRowHeightMode = {default AUTOMATIC, TICKSIZE, CUSTOM};
input customRowHeight = 1.0;
input timePerProfile = {default CHART, MINUTE, HOUR, DAY, WEEK, MONTH, "OPT EXP", BAR};
input multiplier = 1;
input onExpansion = yes;
input profiles = 1000;
input showPointOfControl = yes;
input showValueArea = yes;
input valueAreaPercent = 70;
input opacity = 50;


def period;
def yyyymmdd = getYyyyMmDd();
def seconds = secondsFromTime(0);
def month = getYear() * 12 + getMonth();
def day_number = daysFromDate(first(yyyymmdd)) + getDayOfWeek(first(yyyymmdd));
def dom = getDayOfMonth(yyyymmdd);
def dow = getDayOfWeek(yyyymmdd - dom + 1);
def expthismonth = (if dow > 5 then 27 else 20) - dow;
def exp_opt = month + (dom > expthismonth);
switch (timePerProfile) {
case CHART:
    period = 0;
case MINUTE:
    period = floor(seconds / 60 + day_number * 24 * 60);
case HOUR:
    period = floor(seconds / 3600 + day_number * 24);
case DAY:
    period = countTradingDays(min(first(yyyymmdd), yyyymmdd), yyyymmdd) - 1;
case WEEK:
    period = floor(day_number / 7);
case MONTH:
    period = floor(month - first(month));
case "OPT EXP":
    period = exp_opt - first(exp_opt);
case BAR:
    period = barNumber() - 1;
}


def count = CompoundValue(1, if period != period[1] then (count[1] + period - period[1]) % multiplier else count[1], 0);
def cond = count < count[1] + period - period[1];
def height;
switch (pricePerRowHeightMode) {
case AUTOMATIC:
    height = PricePerRow.AUTOMATIC;
case TICKSIZE:
    height = PricePerRow.TICKSIZE;
case CUSTOM:
    height = customRowHeight;
}


profile vol = volumeProfile("startNewProfile" = cond, "onExpansion" = onExpansion, "numberOfProfiles" = profiles, "pricePerRow" = height, "value area percent" = valueAreaPercent);
def con = compoundValue(1, onExpansion, no);
def pc = if IsNaN(vol.getPointOfControl()) and con then pc[1] else vol.getPointOfControl();
def hVA = if IsNaN(vol.getHighestValueArea()) and con then hVA[1] else vol.getHighestValueArea();
def lVA = if IsNaN(vol.getLowestValueArea()) and con then lVA[1] else vol.getLowestValueArea();


def hProfile = if IsNaN(vol.getHighest()) and con then hProfile[1] else vol.getHighest();
def lProfile = if IsNaN(vol.getLowest()) and con then lProfile[1] else vol.getLowest();
def plotsDomain = IsNaN(close) == onExpansion;


plot POC = if plotsDomain then pc else Double.NaN;
plot ProfileHigh = if plotsDomain then hProfile else Double.NaN;
plot ProfileLow = if plotsDomain then lProfile else Double.NaN;
plot VAHigh = if plotsDomain then hVA else Double.NaN;
plot VALow = if plotsDomain then lVA else Double.NaN;


DefineGlobalColor("Profile", GetColor(1));
DefineGlobalColor("Point Of Control", GetColor(5));
DefineGlobalColor("Value Area", GetColor(8));


vol.show(globalColor("Profile"), if showPointOfControl then globalColor("Point Of Control") else color.current, if showValueArea then globalColor("Value Area") else color.current, opacity);
POC.SetDefaultColor(globalColor("Point Of Control"));
POC.SetPaintingStrategy(PaintingStrategy.HORIZONTAL);
VAHigh.SetPaintingStrategy(PaintingStrategy.HORIZONTAL);
VALow.SetPaintingStrategy(PaintingStrategy.HORIZONTAL);
VAHigh.SetDefaultColor(globalColor("Value Area"));
VALow.SetDefaultColor(globalColor("Value Area"));
ProfileHigh.SetPaintingStrategy(PaintingStrategy.HORIZONTAL);
ProfileLow.SetPaintingStrategy(PaintingStrategy.HORIZONTAL);
ProfileHigh.SetDefaultColor(GetColor(3));
ProfileLow.SetDefaultColor(GetColor(3));
ProfileHigh.hide();
ProfileLow.hide();

and VolumeRatio:
Code:
# Original author: Unknown
# Modified by 7of9


declare lower;


#Inputs


input Show30DayAvg = yes;
input ShowTodayVolume = yes;
input ShowPercentOf30DayAvg = yes;
input UnusualVolumePercent = 200;
input Show30BarAvg = yes;
input ShowCurrentBar = yes;
input ShowPercentOf30BarAvg = yes;
input ShowSellVolumePercent = yes;


def O = open;
def H = high;
def C = close;
def L = low;
def V = volume;
def buying = V*(C-L)/(H-L);
def selling = V*(H-C)/(H-L);


# Selling Volume


Plot SellVol = selling;
SellVol.setPaintingStrategy(PaintingStrategy.Histogram);
SellVol.SetDefaultColor(Color.Red);
SellVol.HideTitle();
SellVol.HideBubble();
SellVol.SetLineWeight(5);


# Total Volume


Plot BuyVol = volume;
BuyVol.setPaintingStrategy(PaintingStrategy.Histogram);
BuyVol.SetDefaultColor(Color.Dark_Green);
BuyVol.HideTitle();
BuyVol.HideBubble();
BuyVol.SetLineWeight(5);


#Volume Data


def volLast30DayAvg = (volume(period = "DAY")[1] + volume(period = "DAY")[2] + volume(period = "DAY")[3] + volume(period = "DAY")[4] + volume(period = "DAY")[5] + volume(period = "DAY")[6] + volume(period = "DAY")[7] + volume(period = "DAY")[8] + volume(period = "DAY")[9] + volume(period = "DAY")[10] + volume(period = "DAY")[11] + volume(period = "DAY")[12] + volume(period = "DAY")[13] + volume(period = "DAY")[14] + volume(period = "DAY")[15] + volume(period = "DAY")[16] + volume(period = "DAY")[17] + volume(period = "DAY")[18] + volume(period = "DAY")[19] + volume(period = "DAY")[20] + volume(period = "DAY")[21] + volume(period = "DAY")[22] + volume(period = "DAY")[23] + volume(period = "DAY")[24] + volume(period = "DAY")[25] + volume(period = "DAY")[26] + volume(period = "DAY")[27] + volume(period = "DAY")[28] + volume(period = "DAY")[29] + volume(period = "DAY")[30]) / 30;
def today = volume(period = "DAY");
def percentOf30Day = Round((today / volLast30DayAvg) * 100, 0);
def avg30Bars = (volume[1] + volume[2] + volume[3] + volume[4] + volume[5] + volume[6] + volume[7] + volume[8] + volume[9] + volume[10] + volume[11] + volume[12] + volume[13] + volume[14] + volume[15] + volume[16] + volume[17] + volume[18] + volume[19] + volume[20] + volume[21] + volume[22] + volume[23] + volume[24] + volume[25] + volume[26] + volume[27] + volume[28] + volume[29] + volume[30]) / 30;
def curVolume = volume;
def percentOf30Bar = Round((curVolume / avg30Bars) * 100, 0);
def SellVolPercent = Round((Selling / Volume) * 100, 0);


# Labels


AddLabel(Show30DayAvg, "Avg 30 Days: " + Round(volLast30DayAvg, 0), Color.LIGHT_GRAY);


AddLabel(ShowTodayVolume, "Today: " + today, (if percentOf30Day >= UnusualVolumePercent then Color.GREEN else if percentOf30Day >= 100 then Color.ORANGE else Color.LIGHT_GRAY));


AddLabel(ShowPercentOf30DayAvg, percentOf30Day + "%", (if percentOf30Day >= UnusualVolumePercent then Color.GREEN else if percentOf30Day >= 100 then Color.ORANGE else Color.WHITE) );


AddLabel(Show30BarAvg, "Avg 30 Bars: " + Round(avg30Bars, 0), Color.LIGHT_GRAY);


AddLabel(ShowCurrentBar, "Cur Bar: " + curVolume, (if percentOf30Bar >= UnusualVolumePercent then Color.GREEN else if PercentOf30Bar >= 100 then Color.ORANGE else Color.LIGHT_GRAY));


AddLabel(ShowPercentOf30BarAvg, PercentOf30Bar + "%", (if PercentOf30Bar >= UnusualVolumePercent then Color.GREEN else if PercentOf30Bar >= 100 then Color.ORANGE else Color.WHITE) );


AddLabel(ShowSellVolumePercent, "Cur Bar Sell %: " + SellVolPercent, (if SellVolPercent > 51 then Color.RED else if SellVolPercent < 49 then Color.GREEN else Color.ORANGE));


input length = 50;


plot Vol = volume;
plot VolAvg = Average(volume, length);


Vol.SetPaintingStrategy(PaintingStrategy.HISTOGRAM);
Vol.SetLineWeight(3);
Vol.DefineColor("Up", Color.UPTICK);
Vol.DefineColor("Down", Color.DOWNTICK);
Vol.AssignValueColor(if close > close[1] then Vol.color("Up") else if close < close[1] then Vol.color("Down") else GetColor(1));
VolAvg.SetDefaultColor(GetColor(8));
Click to expand...
Look at this,..... https://tos.mx/Qn2f88R

cwinman said:
I have been looking for this code everywhere! Thanks!
Is there a way to change how the price is viewed? Right now it shows like this...89.0013, or 335.2702. Is there any way to round it into a 2 decimal price?
Click to expand...
Yes
Ruby:
def poc = reference VolumeProfile("time per profile" = "MONTH", "on expansion" = no, opacity = 0, "show value area" = No, multiplier = 1.0, "price per row height mode" = "TICKSIZE");
AddLabel(1, astext(poc), Color.WHITE);
assignBackgroundColor(if close > poc then color.green else color.red);
Click to expand...

gilda said:
This is the one I'm using.

Code:
# Profile TPO & Volume
input profileType = {default Time, Volume};
input pricePerRowHeightMode = {default Ticksize, Automatic, Custom};
input customRowHeight = 1.0;
input timePerProfile = {default Day, Week, Month, Year, Hour, Chart, "Opt Exp"};
input multiplier = 1;
input OnExpansionProfile = No;
input OnExpansionValueArea = No;
input profiles = 2;
input showPointOfControl = Yes;
input showValueArea = Yes;
input showValueAreaCloud = Yes;
input ValueAreaPercent = 70;
input ShowHighLow = Yes;
input opacity = 5;
input PaintBars = No;
input ShowExtensions = No;
input DynamicHideExtensions = Yes;
input ShowLabel = No;
def FibExt1 = 1.618;
def FibExt2 = 2.618;
def FibExt3 = 4.236;
def SE = ShowExtensions;
def ShowProfileValueAreaCloud = no;

def period;
def yyyymmdd = GetYYYYMMDD();
def seconds = SecondsFromTime(0);
def month = GetYear() * 12 + GetMonth();
def year = GetYear();
def day_number = DaysFromDate(First(yyyymmdd)) + GetDayOfWeek(First(yyyymmdd));
def dom = GetDayOfMonth(yyyymmdd);
def dow = GetDayOfWeek(yyyymmdd - dom + 1);
def expthismonth = (if dow > 5 then 27 else 20) - dow;
def exp_opt = month + (dom > expthismonth);
switch (timePerProfile) {
case Chart:
    period = 0;
case Hour:
    period = Floor(seconds / 3600 + day_number * 24);
case Day:
    period = CountTradingDays(Min(First(yyyymmdd), yyyymmdd), yyyymmdd) - 1;
case Week:
    period = Floor(day_number / 7);
case Month:
    period = Floor(month - First(month));
case Year:
    period = Floor(year - First(year));
case "Opt Exp":
    period = exp_opt - First(exp_opt);
}

def CloseByPeriod = close(Period = timePerProfile)[-1];
def Openbyperiod  = open(Period = timePerProfile)[-1];
def NewDay = if !IsNaN(CloseByPeriod) then 0 else 1;

rec Count = if period != period[1] then (Count[1] + period - period[1]) % 1 else Count[1];
def Cond = Count < Count[1] + period - period[1];
def height;
switch (pricePerRowHeightMode) {
case Automatic:
    height = PricePerRow.AUTOMATIC;
case Ticksize:
    height = PricePerRow.TICKSIZE;
case Custom:
    height = customRowHeight;
}

profile VOL = if profileType == profileType.Volume then VolumeProfile("startNewProfile" = Cond, "onExpansion" = onExpansionProfile, "NumberOfProfiles" = profiles, "PricePerRow" = height, "Value Area Percent" = ValueAreaPercent) else TimeProfile("startNewProfile" = Cond, "OnExpansion" = onExpansionProfile, "NumberOfProfiles" = profiles, "PricePerRow" = height, "Value Area Percent" = ValueAreaPercent);

def con = CompoundValue(1, onExpansionProfile, no);
rec pc = if IsNaN(VOL.GetPointOfControl()) and con then pc[1] else VOL.GetPointOfControl();
rec hVA = if IsNaN(VOL.GetHighestValueArea()) and con then hVA[1] else VOL.GetHighestValueArea();
rec lVA = if IsNaN(VOL.GetLowestValueArea()) and con then lVA[1] else VOL.GetLowestValueArea();
rec HVA_Last = if period == period[1] then HVA_Last[1] else hVA[1];
rec PC_Last  = if period == period[1] then PC_Last[1]  else pc[1];
rec LVA_Last = if period == period[1] then LVA_Last[1] else lVA[1];
rec hProfile = if IsNaN(VOL.GetHighest()) and con then hProfile[1] else VOL.GetHighest();
rec lProfile = if IsNaN(VOL.GetLowest()) and con then lProfile[1] else VOL.GetLowest();
def plotsDomain = IsNaN(close) == onExpansionProfile;

rec hP_Last = if period == period[1] then hP_Last[1] else hProfile[1];
rec lP_Last = if period == period[1] then lP_Last[1] else lProfile[1];

plot VAH  = if !showValueArea then Double.NaN else if IsNaN(close[0]) then HVA_Last[0] else if !OnExpansionValueArea then HVA_Last[0] else Double.NaN;
plot POC  = if IsNaN(close[0]) then PC_Last[0] else if !OnExpansionValueArea then PC_Last[0] else Double.NaN;
plot VAL  = if !showValueArea then Double.NaN else if IsNaN(close[0]) then LVA_Last[0] else if !OnExpansionValueArea then LVA_Last[0] else Double.NaN;
plot High = if !ShowHighLow then Double.NaN else if IsNaN(close[0]) then hP_Last[0] else if !OnExpansionValueArea then hP_Last[0] else Double.NaN;
plot Low = if !ShowHighLow then Double.NaN else if IsNaN(close[0]) then lP_Last[0] else if !OnExpansionValueArea then lP_Last[0] else Double.NaN;

DefineGlobalColor("Profile", GetColor(7));
DefineGlobalColor("Point Of Control", GetColor(5));
DefineGlobalColor("Value Area", GetColor(8));

VOL.Show(GlobalColor("Profile"), if showPointOfControl then GlobalColor("Point Of Control") else Color.CURRENT, if ShowProfileValueAreaCloud then GlobalColor("Value Area") else Color.CURRENT, opacity);

POC.SetPaintingStrategy(PaintingStrategy.HORIZONTAL);
POC.SetDefaultColor(Color.DARK_GRAY);
#POC.SetDefaultColor(CreateColor(32,49,57));
POC.SetLineWeight(1);
POC.HideTitle();

VAH.SetPaintingStrategy(PaintingStrategy.HORIZONTAL);
VAH.SetDefaultColor(Color.DARK_GREEN);
VAH.SetLineWeight(1);
VAH.HideBubble();
VAH.HideTitle();

VAL.SetPaintingStrategy(PaintingStrategy.HORIZONTAL);
VAL.SetDefaultColor(Color.DARK_RED);
VAL.SetLineWeight(1);
VAL.HideBubble();
VAL.HideTitle();

High.SetPaintingStrategy(PaintingStrategy.DASHES);
High.SetDefaultColor(CreateColor(38, 38, 8));
High.SetLineWeight(1);
High.HideBubble();
High.HideTitle();

Low.SetPaintingStrategy(PaintingStrategy.DASHES);
Low.SetDefaultColor(CreateColor(38, 38, 8));
Low.SetLineWeight(1);
Low.HideBubble();
Low.HideTitle();
#Paint Bars

#AssignPriceColor(if !PaintBars then Color.CURRENT else if open >= VAH and close >= VAH then CreateColor(0, 204, 0) else if open <= VAL and close <= VAL then CreateColor(204, 0, 0) else Color.Light_GRAY);
AssignPriceColor(if !PaintBars then Color.CURRENT else if open >= VAH and close >= VAH then Color.Green else if open <= VAL and close <= VAL then Color.Red else Color.Light_GRAY);
#Value Area Cloud

#DefineGlobalColor("Value Area Cloud", (CreateColor(20, 20, 20)));
DefineGlobalColor("Value Area Cloud", Color.DARK_GRAY);
def cloudhigh = if showValueAreaCloud and IsNaN(close[0]) then HVA_Last else if !OnExpansionValueArea then HVA_Last else Double.NaN;
def cloudlow  = if showValueAreaCloud and IsNaN(close[0]) then LVA_Last else if !OnExpansionValueArea then LVA_Last else Double.NaN;
AddCloud (cloudhigh, cloudlow, GlobalColor("Value Area Cloud"));
#Chart Label

def InsideValueArea = close < HVA_Last and close > LVA_Last;
def BelowValue = close < LVA_Last;

AddLabel(ShowLabel, close, if InsideValueArea then Color.GRAY else if BelowValue then Color.RED else Color.GREEN);
#Fibonacci Extensions

def VAWidth = VAH - VAL;

plot E1H = if SE < 1 then Double.NaN else VAH + VAWidth * (FibExt1 - 1);
E1H.SetHiding(DynamicHideExtensions and close < VAH);
E1H.SetDefaultColor(CreateColor(0, 51, 0));
E1H.SetPaintingStrategy(PaintingStrategy.DASHES);
E1H.SetLineWeight(1);
E1H.HideBubble();
E1H.HideTitle();
plot E1L = if SE < 1 then Double.NaN else VAL - VAWidth * (FibExt1 - 1);
E1L.SetHiding(DynamicHideExtensions and close > VAL);
E1L.SetDefaultColor(CreateColor(51, 0, 0));
E1L.SetPaintingStrategy(PaintingStrategy.DASHES);
E1L.SetLineWeight(1);
E1L.HideBubble();
E1L.HideTitle();

plot E2H = if SE < 1 then Double.NaN else VAH + VAWidth * (FibExt2 - 1);
E2H.SetHiding(DynamicHideExtensions and close < E1H);
E2H.SetDefaultColor(CreateColor(0, 51, 0));
E2H.SetPaintingStrategy(PaintingStrategy.DASHES);
E2H.SetLineWeight(1);
E2H.HideBubble();
E2H.HideTitle();
plot E2L = if SE < 1 then Double.NaN else VAL - VAWidth * (FibExt2 - 1);
E2L.SetHiding(DynamicHideExtensions and close > E1L);
E2L.SetDefaultColor(CreateColor(51, 0, 0));
E2L.SetPaintingStrategy(PaintingStrategy.DASHES);
E2L.SetLineWeight(1);
E2L.HideBubble();
E2L.HideTitle();

plot E3H = if SE < 1 then Double.NaN else VAH + VAWidth * (FibExt3 - 1);
E3H.SetHiding(DynamicHideExtensions and close < E2H);
E3H.SetDefaultColor(CreateColor(0, 51, 0));
E3H.SetPaintingStrategy(PaintingStrategy.DASHES);
E3H.SetLineWeight(1);
E3H.HideBubble();
E3H.HideTitle();
plot E3L = if SE < 1 then Double.NaN else VAL - VAWidth * (FibExt3 - 1);
E3L.SetHiding(DynamicHideExtensions and close > E2L);
E3L.SetDefaultColor(CreateColor(51, 0, 0));
E3L.SetPaintingStrategy(PaintingStrategy.DASHES);
E3L.SetLineWeight(1);
E3L.HideBubble();
E3L.HideTitle();
View attachment 1020
Click to expand...
how can i make the value area clear instead of grey. Truthfully i just want to see the red and green lines

Optionzilla said:
how can i make the value area clear instead of grey. Truthfully i just want to see the red and green lines
Click to expand...
Try setting input opacity to zero (0) and comment out the following code as shown
Ruby:
#AddCloud (cloudhigh, cloudlow, GlobalColor("Value Area Cloud"));

mrstantrades said:
Hello, I was just wondering if there would be any way to have the VolumeProfile show the ratio between buy & sell vol at each prices. Basically want to combine these two scripts:

VolumeProfile
Code:
#
# TD Ameritrade IP Company, Inc. (c) 2010-2021
#


input pricePerRowHeightMode = {default AUTOMATIC, TICKSIZE, CUSTOM};
input customRowHeight = 1.0;
input timePerProfile = {default CHART, MINUTE, HOUR, DAY, WEEK, MONTH, "OPT EXP", BAR};
input multiplier = 1;
input onExpansion = yes;
input profiles = 1000;
input showPointOfControl = yes;
input showValueArea = yes;
input valueAreaPercent = 70;
input opacity = 50;


def period;
def yyyymmdd = getYyyyMmDd();
def seconds = secondsFromTime(0);
def month = getYear() * 12 + getMonth();
def day_number = daysFromDate(first(yyyymmdd)) + getDayOfWeek(first(yyyymmdd));
def dom = getDayOfMonth(yyyymmdd);
def dow = getDayOfWeek(yyyymmdd - dom + 1);
def expthismonth = (if dow > 5 then 27 else 20) - dow;
def exp_opt = month + (dom > expthismonth);
switch (timePerProfile) {
case CHART:
    period = 0;
case MINUTE:
    period = floor(seconds / 60 + day_number * 24 * 60);
case HOUR:
    period = floor(seconds / 3600 + day_number * 24);
case DAY:
    period = countTradingDays(min(first(yyyymmdd), yyyymmdd), yyyymmdd) - 1;
case WEEK:
    period = floor(day_number / 7);
case MONTH:
    period = floor(month - first(month));
case "OPT EXP":
    period = exp_opt - first(exp_opt);
case BAR:
    period = barNumber() - 1;
}


def count = CompoundValue(1, if period != period[1] then (count[1] + period - period[1]) % multiplier else count[1], 0);
def cond = count < count[1] + period - period[1];
def height;
switch (pricePerRowHeightMode) {
case AUTOMATIC:
    height = PricePerRow.AUTOMATIC;
case TICKSIZE:
    height = PricePerRow.TICKSIZE;
case CUSTOM:
    height = customRowHeight;
}


profile vol = volumeProfile("startNewProfile" = cond, "onExpansion" = onExpansion, "numberOfProfiles" = profiles, "pricePerRow" = height, "value area percent" = valueAreaPercent);
def con = compoundValue(1, onExpansion, no);
def pc = if IsNaN(vol.getPointOfControl()) and con then pc[1] else vol.getPointOfControl();
def hVA = if IsNaN(vol.getHighestValueArea()) and con then hVA[1] else vol.getHighestValueArea();
def lVA = if IsNaN(vol.getLowestValueArea()) and con then lVA[1] else vol.getLowestValueArea();


def hProfile = if IsNaN(vol.getHighest()) and con then hProfile[1] else vol.getHighest();
def lProfile = if IsNaN(vol.getLowest()) and con then lProfile[1] else vol.getLowest();
def plotsDomain = IsNaN(close) == onExpansion;


plot POC = if plotsDomain then pc else Double.NaN;
plot ProfileHigh = if plotsDomain then hProfile else Double.NaN;
plot ProfileLow = if plotsDomain then lProfile else Double.NaN;
plot VAHigh = if plotsDomain then hVA else Double.NaN;
plot VALow = if plotsDomain then lVA else Double.NaN;


DefineGlobalColor("Profile", GetColor(1));
DefineGlobalColor("Point Of Control", GetColor(5));
DefineGlobalColor("Value Area", GetColor(8));


vol.show(globalColor("Profile"), if showPointOfControl then globalColor("Point Of Control") else color.current, if showValueArea then globalColor("Value Area") else color.current, opacity);
POC.SetDefaultColor(globalColor("Point Of Control"));
POC.SetPaintingStrategy(PaintingStrategy.HORIZONTAL);
VAHigh.SetPaintingStrategy(PaintingStrategy.HORIZONTAL);
VALow.SetPaintingStrategy(PaintingStrategy.HORIZONTAL);
VAHigh.SetDefaultColor(globalColor("Value Area"));
VALow.SetDefaultColor(globalColor("Value Area"));
ProfileHigh.SetPaintingStrategy(PaintingStrategy.HORIZONTAL);
ProfileLow.SetPaintingStrategy(PaintingStrategy.HORIZONTAL);
ProfileHigh.SetDefaultColor(GetColor(3));
ProfileLow.SetDefaultColor(GetColor(3));
ProfileHigh.hide();
ProfileLow.hide();

and VolumeRatio:
Code:
# Original author: Unknown
# Modified by 7of9


declare lower;


#Inputs


input Show30DayAvg = yes;
input ShowTodayVolume = yes;
input ShowPercentOf30DayAvg = yes;
input UnusualVolumePercent = 200;
input Show30BarAvg = yes;
input ShowCurrentBar = yes;
input ShowPercentOf30BarAvg = yes;
input ShowSellVolumePercent = yes;


def O = open;
def H = high;
def C = close;
def L = low;
def V = volume;
def buying = V*(C-L)/(H-L);
def selling = V*(H-C)/(H-L);


# Selling Volume


Plot SellVol = selling;
SellVol.setPaintingStrategy(PaintingStrategy.Histogram);
SellVol.SetDefaultColor(Color.Red);
SellVol.HideTitle();
SellVol.HideBubble();
SellVol.SetLineWeight(5);


# Total Volume


Plot BuyVol = volume;
BuyVol.setPaintingStrategy(PaintingStrategy.Histogram);
BuyVol.SetDefaultColor(Color.Dark_Green);
BuyVol.HideTitle();
BuyVol.HideBubble();
BuyVol.SetLineWeight(5);


#Volume Data


def volLast30DayAvg = (volume(period = "DAY")[1] + volume(period = "DAY")[2] + volume(period = "DAY")[3] + volume(period = "DAY")[4] + volume(period = "DAY")[5] + volume(period = "DAY")[6] + volume(period = "DAY")[7] + volume(period = "DAY")[8] + volume(period = "DAY")[9] + volume(period = "DAY")[10] + volume(period = "DAY")[11] + volume(period = "DAY")[12] + volume(period = "DAY")[13] + volume(period = "DAY")[14] + volume(period = "DAY")[15] + volume(period = "DAY")[16] + volume(period = "DAY")[17] + volume(period = "DAY")[18] + volume(period = "DAY")[19] + volume(period = "DAY")[20] + volume(period = "DAY")[21] + volume(period = "DAY")[22] + volume(period = "DAY")[23] + volume(period = "DAY")[24] + volume(period = "DAY")[25] + volume(period = "DAY")[26] + volume(period = "DAY")[27] + volume(period = "DAY")[28] + volume(period = "DAY")[29] + volume(period = "DAY")[30]) / 30;
def today = volume(period = "DAY");
def percentOf30Day = Round((today / volLast30DayAvg) * 100, 0);
def avg30Bars = (volume[1] + volume[2] + volume[3] + volume[4] + volume[5] + volume[6] + volume[7] + volume[8] + volume[9] + volume[10] + volume[11] + volume[12] + volume[13] + volume[14] + volume[15] + volume[16] + volume[17] + volume[18] + volume[19] + volume[20] + volume[21] + volume[22] + volume[23] + volume[24] + volume[25] + volume[26] + volume[27] + volume[28] + volume[29] + volume[30]) / 30;
def curVolume = volume;
def percentOf30Bar = Round((curVolume / avg30Bars) * 100, 0);
def SellVolPercent = Round((Selling / Volume) * 100, 0);


# Labels


AddLabel(Show30DayAvg, "Avg 30 Days: " + Round(volLast30DayAvg, 0), Color.LIGHT_GRAY);


AddLabel(ShowTodayVolume, "Today: " + today, (if percentOf30Day >= UnusualVolumePercent then Color.GREEN else if percentOf30Day >= 100 then Color.ORANGE else Color.LIGHT_GRAY));


AddLabel(ShowPercentOf30DayAvg, percentOf30Day + "%", (if percentOf30Day >= UnusualVolumePercent then Color.GREEN else if percentOf30Day >= 100 then Color.ORANGE else Color.WHITE) );


AddLabel(Show30BarAvg, "Avg 30 Bars: " + Round(avg30Bars, 0), Color.LIGHT_GRAY);


AddLabel(ShowCurrentBar, "Cur Bar: " + curVolume, (if percentOf30Bar >= UnusualVolumePercent then Color.GREEN else if PercentOf30Bar >= 100 then Color.ORANGE else Color.LIGHT_GRAY));


AddLabel(ShowPercentOf30BarAvg, PercentOf30Bar + "%", (if PercentOf30Bar >= UnusualVolumePercent then Color.GREEN else if PercentOf30Bar >= 100 then Color.ORANGE else Color.WHITE) );


AddLabel(ShowSellVolumePercent, "Cur Bar Sell %: " + SellVolPercent, (if SellVolPercent > 51 then Color.RED else if SellVolPercent < 49 then Color.GREEN else Color.ORANGE));


input length = 50;


plot Vol = volume;
plot VolAvg = Average(volume, length);


Vol.SetPaintingStrategy(PaintingStrategy.HISTOGRAM);
Vol.SetLineWeight(3);
Vol.DefineColor("Up", Color.UPTICK);
Vol.DefineColor("Down", Color.DOWNTICK);
Vol.AssignValueColor(if close > close[1] then Vol.color("Up") else if close < close[1] then Vol.color("Down") else GetColor(1));
VolAvg.SetDefaultColor(GetColor(8));
Click to expand...

See if this might help. I just created it and am trying to improve it and understand how TOS uses the dataprofile data. https://usethinkscript.com/threads/buying-vs-selling-power-indicator-for-thinkorswim.2917/post-83201

Last edited:
You must log in or register to reply here.
Thread starter Similar threads Forum Replies Date
T NextSignal's Market Volume Profile For ThinkOrSwim Indicators 16
L A Volume Pressure Moving Average For ThinkOrSwim Indicators 15
S Trade Ideas Intraday , single bar , Relative Volume RVOL For ThinkOrSwim Indicators 16
samer800 VWOP: Volume Weighted & Oscillated Price for ThinkOrSwim Indicators 13
Wiinii Reversal Candle Anomaly Detector w/Volume-Colored Candles - VPA for ThinkOrSwim Indicators 11

Similar threads

Not the exact question you're looking for?

Start a new thread and receive assistance from our community.

87k+ Posts
372 Online
Create Post

Similar threads

Similar threads

The Market Trading Game Changer

Join 2,500+ subscribers inside the useThinkScript VIP Membership Club
  • Exclusive indicators
  • Proven strategies & setups
  • Private Discord community
  • ‘Buy The Dip’ signal alerts
  • Exclusive members-only content
  • Add-ons and resources
  • 1 full year of unlimited support
Try VIP Club Today

Frequently Asked Questions

What is useThinkScript?

useThinkScript is the #1 community of stock market investors using indicators and other tools to power their trading strategies. Traders of all skill levels use our forums to learn about scripting and indicators, help each other, and discover new ways to gain an edge in the markets.

How do I get started?

We get it. Our forum can be intimidating, if not overwhelming. With thousands of topics, tens of thousands of posts, our community has created an incredibly deep knowledge base for stock traders. No one can ever exhaust every resource provided on our site.

If you are new, or just looking for guidance, here are some helpful links to get you started.

What are the benefits of VIP Membership?
VIP members get exclusive access to these proven and tested premium indicators: Buy the Dip, Advanced Market Moves 2.0, Take Profit, and Volatility Trading Range. In addition, VIP members get access to over 50 VIP-only custom indicators, add-ons, and strategies, private VIP-only forums, private Discord channel to discuss trades and strategies in real-time, customer support, trade alerts, and much more. Learn all about VIP membership here.
How can I access the premium indicators?
To access the premium indicators, which are plug and play ready, sign up for VIP membership here.
Back
Top
