Mobius Squeeze and Custom Labels For ThinkOrSwim

[EvilSurgeon]

@Mattyb740 I am just starting to dable in swingtrading on a daily or weekly level. Mostly, until now, I do long term value trading. I have made some updates, which I can share, but still tinkering. Did find some things that were not bugs, but not working as we would like.



[Mattyb740]

@Mattyb740 I am just starting to dable in swingtrading on a daily or weekly level. Mostly, until now, I do long term value trading. I have made some updates, which I can share, but still tinkering. Did find some things that were not bugs, but not working as we would like.

Ok, thanks for answering!



[EvilSurgeon]

Ok, thanks for answering!

Sure, I think the codes were fine, I am just enhancing. Look in the codes for what you are using to see what the aggregations are set to, and either change to what you want, use input instead of def so you can choose what you want on the settings, or use getaggregation() to set it to chart aggregation: https://tlc.thinkorswim.com/center/reference/thinkScript/Functions/Others/GetAggregationPeriod



[EvilSurgeon]

Does anyone know if this can be used on any timeframe? The time frames I usually watch are qtrly, monthly, weekly, and daily on separate charts. Thanks!



[MerryDay]

Does anyone know if this can be used on any timeframe? The time frames I usually watch are qtrly, monthly, weekly, and daily on separate charts. Thanks!

The Squeeze is a much loved, much discussed subject on our forum. You can find how members are using it and with what timeframes in the hundreds of pages in these threads:
https://usethinkscript.com/threads/john-carters-squeeze-pro-question.8705/#post-80562



[BOOMERMANG]

Modified the Squeeze Index bar by adding the description of the data points, and separating each data point into its own label. This made it a little less confusing/cluttered for me, and it also made it so that when using a narrower window the whole bar fits on the screen. I was loosing part of the bar to it going off screen when the window was narrow.

Before, bar would get lost off screen with a narrow window.

After, labels are able to shift to accommodate window size.

Full Size

What you need to do:
Replace this line of code at the end:

AddLabel(yes, " SQUEEZE INDEX: " + squeezeIndex + " [" + squeezeIndex[1] + "] " + "[" + AsText(squeezeIndexDifference, NumberFormat.TWO_DECIMAL_PLACES) + "%] " + "[" + (counter[1]) + "] | " + "[" + accumCounter + "] " + "[" + AsText(historicalDifference[1], NumberFormat.TWO_DECIMAL_PLACES) + "%] ", if squeezeIndex > squeezeIndex[1] and squeezeIndex > 50 and squeezeIndexDifference > 0 then CreateColor(16, 198, 226) else color.LIGHT_ORANGE);

With this:

AddLabel(yes, " SqzIndex: [" + squeezeIndex + "]", if squeezeIndex > squeezeIndex[1] and squeezeIndex > 50 and squeezeIndexDifference > 0 then CreateColor(16, 198, 226) else color.LIGHT_ORANGE);

AddLabel(yes, " PrevSqz Index: [" + squeezeIndex[1] + "] ", if squeezeIndex > squeezeIndex[1] and squeezeIndex > 50 and squeezeIndexDifference > 0 then CreateColor(16, 198, 226) else color.LIGHT_ORANGE);

AddLabel(yes, " %Change: [" + AsText(squeezeIndexDifference, NumberFormat.TWO_DECIMAL_PLACES) + "%] ", if squeezeIndex > squeezeIndex[1] and squeezeIndex > 50 and squeezeIndexDifference > 0 then CreateColor(16, 198, 226) else color.LIGHT_ORANGE);

AddLabel(yes," CurrentSqz: [" + (counter[1]) + "] ", if squeezeIndex > squeezeIndex[1] and squeezeIndex > 50 and squeezeIndexDifference > 0 then CreateColor(16, 198, 226) else color.LIGHT_ORANGE);

AddLabel(yes," LastSqz: [" + accumCounter + "] ", if squeezeIndex > squeezeIndex[1] and squeezeIndex > 50 and squeezeIndexDifference > 0 then CreateColor(16, 198, 226) else color.LIGHT_ORANGE);

AddLabel(yes," SqzDepth: [" + AsText(historicalDifference[1], NumberFormat.TWO_DECIMAL_PLACES) + "%] ", if squeezeIndex > squeezeIndex[1] and squeezeIndex > 50 and squeezeIndexDifference > 0 then CreateColor(16, 198, 226) else color.LIGHT_ORANGE);

Feel free to use your own label names. Just change the part after AddLabel(yes, " on each line.

For example:

AddLabel(yes, " YourLabelHere: [" + squeezeIndex + "]", if squeezeIndex > squeezeIndex[1] and squeezeIndex > 50 and squeezeIndexDifference > 0 then CreateColor(16, 198, 226) else color.LIGHT_ORANGE);



[EvilSurgeon]

Truth be told I love your set up and if you were able to put the columns in a file instead of one by one that would be much appreciated, and your price action study, you really have a great set up it looks like and would love to test it and use it.
Where my labtop is insanely slow I can’t copy code and upload it, lol I can’t even get on the internet and get on here without it taking 10 years. It’s what I have now, but hopefully I can upgrade soon.

Let me know what your testing shows. Not sure if what I gave you is what you were asking for.



[wado729]

Red "<<< Squeeze >>>" is a bearish squeeze and the blue "<<< squeeze >>>" is bullish right?

I'm still confused on this. What is the difference between the Red Squeeze vs the Blue?



[MerryDay]

I'm still confused on this. What is the difference between the Red Squeeze vs the Blue?

How Do We Read This? Blue is no chance of a squeeze ; Orange is in imminent chance of squeeze or in-squeeze
https://usethinkscript.com/threads/mobius-squeeze-and-custom-labels-for-thinkorswim.8414/#post-79120



[earmenteros]

Mobius Squeeze and Custom Labels For ThinkOrSwim
A little gift for the group. This is my first indicator. I took Mobius' Squeeze and added a few things. There's about 30 line of code and 150 line of comments explaining what everything does. My background is data science as it pertains to advertising and a copywriter. I did some coding 2 centuries ago.

With the indicator, I can predict when a Squeeze will happen, as well as how likely a Squeeze is to happen. Bunch of other stuff, too. Provides about 6 items of direct metrics and another 6 of indirect metrics/indications. It is a pretty good tool for anticipating trends (if I say so myself)

Hi David! Thank you so much for the squeeze indicator! I've found it incredibly helpful but have some questions calculating an oncoming squeeze. More specifically, how do you discern the direction when the SI and previous SI are both negative? Also, how does volume impact when the next squeeze is coming.

By direction, I mean moving towards to, or away from, a squeeze. For instance, in his commentary he cites an example of SI = 200; G2 = 1-- == moving fast towards (down) a squeeze. Is this to mean that if it were SI = -200; G2 = -100 the direction would be up towards a squeeze? In what context are the terms up and down being used?

With respect to volume, I was hoping to get a little clarity on his comment, "a consistent drop of 20% will mean the SI could reach zero in 5 bars, depending on volume." In such case, how does volume affect the move towards (or away from) a squeeze?

Thanks in advance for all the guidance!



[MerryDay]

Hi David! Thank you so much for the squeeze indicator! I've found it incredibly helpful but have some questions calculating an oncoming squeeze. More specifically, how do you discern the direction when the SI and previous SI are both negative? Also, how does volume impact when the next squeeze is coming.

By direction, I mean moving towards to, or away from, a squeeze. For instance, in his commentary he cites an example of SI = 200; G2 = 1-- == moving fast towards (down) a squeeze. Is this to mean that if it were SI = -200; G2 = -100 the direction would be up towards a squeeze? In what context are the terms up and down being used?

With respect to volume, I was hoping to get a little clarity on his comment, "a consistent drop of 20% will mean the SI could reach zero in 5 bars, depending on volume." In such case, how does volume affect the move towards (or away from) a squeeze?

Thanks in advance for all the guidance!

No up and down are not used in that context. This indicator was created just to indicate toward and away from squeeze.
Read more here: https://usethinkscript.com/threads/mobius-squeeze-and-custom-labels-for-thinkorswim.8414/#post-79120

The OP also 'attempts' to predict if a squeeze was eminent. His reference to volume was to explain that 'eminent' is relative. Without any volume to move an equity forward, eminence can take a while.



[TapthatAsk]

@Kitchasap

1. Add the below script to Studies
2. In scan hacker set up the condition:

##  Scanner Only  ##
# @Some Random Alien 10/2121
input length = 21; #hint length: Length for average calculation.
input price = close;
input SDmult = 2.0;
input ATRmult = 1.5;
def K = (Highest(high, length) + Lowest(low, length)) /
2 + ExpAverage(close, length);
def Momo = Inertia(price - K / 2, length);
#--------------- [ Metrics From Mobius ] ---------------

def SD = StDev(close, length);
def Avg = Average(close, length);
def ATR = Average(TrueRange(high, close, low), length);
def SDup = Avg + (SDmult * SD);
def ATRup = Avg + (ATRmult * ATR);
def Squeeze = if SDup < ATRUp then 0 else Double.NaN;


#------------------------------------------------------------------------------------------
#  David M.(Some Random Alien) 10-6-2021
#  Don't blame Mobius... I made this mess :)
#  Code displays Squeeze Watch Prediction Index.
#  Depending on volume, a score of less then 25 could signal an impeding Squeeze.

def squeezePrediction = ((SDup - ATRup) / (SDup + ATRup) / 2) * 100;
def squeezeIndex = Round(squeezePrediction * 10000, 0);
def squeezeIndexDifference = (squeezeIndex - squeezeIndex[1]) / (squeezeIndex + squeezeIndex[1]) / 2 * 100;
def squeezeProgress = Round((squeezePrediction - squeezePrediction[1]) * 10000, 2);
def squeezeIndexOn = squeezeIndex <= 0;
rec counter = if squeezeIndexOn then counter[1] + 1 else 0;
def deepSqueeze = squeezeIndex <= -20;
plot scan_DeepSqueeze = !deepSqueeze[1] and deepSqueeze ;

does the entire code go into the scan? or is it just the top portion and the bottom portion is a separate scan?



[MerryDay]

does the entire code go into the scan? or is it just the top portion and the bottom portion is a separate scan?

Sorry, I don't know the definition of top portion and bottom portion.
To use the scan, you can follow the instructions found here:
https://usethinkscript.com/threads/mobius-squeeze-and-custom-labels-for-thinkorswim.8414/#post-79403

or
You can stuff the whole script found in the above link into the Scan Hacker using the ThinkScript editor, click save, click run



[TosRox]

In this example, the Monthly Sqz watchlist does not match the chart, but everything else does, still can not figure out a way around this bug, which seems to show up sporadically.

Hello EvilSurgeon, diggin through old material and noticed the screen shot of a TOS watchlist that you shared. I am looking at the last column that you titled "IBD_RSI_Wt", could you share the thinkscript for how you derived this?



[MagicQuotes]

Alien's Analytics Simplified:


The Math:

1. Mobius finds the squeeze by looking at when a calculation using the Average True Range drops below a calculation using the standard deviation of the 21 moving average creating the squeeze.
2. Alien's Squeeze Index makes a ratio of the ATR above the Std.Dev vs the ATR below the Std.Dev -This tells us whether we are moving toward or away from squeezing.

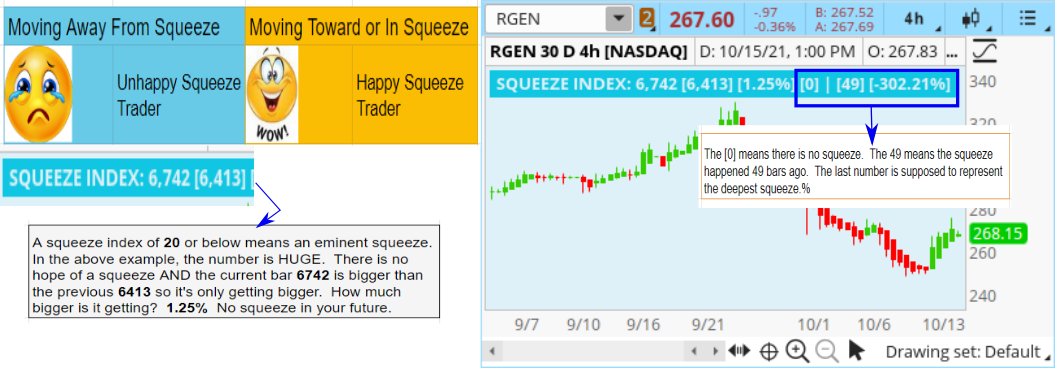

How Do We Read This? Blue is no chance of a squeeze ; Orange is in eminent chance of squeeze or in-squeeze
View attachment 12153

Mobius used the ATR in a variety of creative ways to filter out one time spikes as well as a touchstone gradient to gauge volatility- resorting to adjusting to a multiplier of ATR with recursive boundaries for High Low ranges. By comparing the current price action (close) within any period ,his scripts concentrate on the Primary Question: The primary question to keep in mind: Accumulation or Distribution : If One or other then when to Probability to go Long exceeds Probability to go Short else Refrain. Almost all his indicators address these underlying price discovery metrics whether they are long or short term or just scalping. His meticulous logical work is in my experience far superior to any other single contributor in the whole network. Kudos to Mobius. A subtle but persistent thinker and coder.
