Mobius’ Momentum Squeeze for ThinkorSwim

This is my attempt at a MTF squeeze histo for entry and exit, its not pretty BUT it works so far.

(Im NOT an expert writing script I learn stuff here and there, yes I know some of it can be simplified and made shorter... Im learning cut me a break)

My orange arrow signals for early entry are pretty good, you still have to confirm with trend etc [I use QQE MOD and NMACD both give very good signals]

When all levels finally turn cyan it produces a green arrow up for a normal entry.
Yes, you could write it so when each level turns over and its > 0 to paint an arrow up(each a diff shade of green) which shows its only getting stronger, but my interest is on the early entry and exit - which is just the reverse.

Im trying to figure out whats the best combo of sqz histo's that are turning over to give the EARLY entry (my orange arrow) and exit signal. In general its when hist going from red to yellow, BUT which(as far as timeframes) red and yellow is best and should maybe 1 be cyan, if so which one? And the flip side for early exit red arrows, where the hist going from cyan to dark blue(normally signals momentum is slowing) - but again which ones are best to use?

I left it as is with brief notes and some tests I tried turned “off” via ‘ # ’

Could def use some help with the labels too, sometimes 2 are appearing at the same time



#MTF Sqz Histo Entry Exit by JP782 10/01/22
#based off of code via TheBewb using existing Mobius Squeeze Momentum

input Candle = no;
input agg = AggregationPeriod.MIN;
def price = close(period = agg);
input length = 20;

plot Zero_Line = 0;
Zero_Line.HIDE();

def K = (Highest(high, length) + Lowest(low, length)) / 2 + ExpAverage(close, length);
def momo = Inertia(price - K / 2, length);

def pos = momo >= 0;
def neg = momo < 0;
def up = momo >= momo[1];
def dn = momo < momo[1];

def PosUp = pos and up;
def PosDn = pos and dn;
def NegDn = neg and dn;
def NegUp = neg and up;

plot momentum = momo;
momentum.DefineColor("PosUp", Color.CYAN);
momentum.DefineColor("PosDn", Color.BLUE);
momentum.DefineColor("NegDn", Color.RED);
momentum.DefineColor("NegUp", Color.YELLOW);
#momentum.SetPaintingStrategy(PaintingStrategy.HISTOGRAM);
momentum.SETStyle(CURVE.FIRM);
momentum.SetLineWeight(1);
momentum.AssignValueColor(if PosUp then momentum.Color("PosUp") else if PosDn then momentum.Color("PosDn") else if NegDn then momentum.Color("NegDn") else if NegUp then momentum.Color("NegUp") else momentum.Color("NegUp"));
momentum.hide();


#################################################################################

input agg2 = AggregationPeriod.TWO_MIN;
def price2 = close(period = agg2);
input length2 = 20;

def K2 = (Highest(high, length2) + Lowest(low, length2)) / 2 + ExpAverage(close, length2);
def momo2 = Inertia(price2 - K2 / 2, length2);

def pos2 = momo2 >= 0;
def neg2 = momo2 < 0;
def up2 = momo2 >= momo2[1];
def dn2 = momo2 < momo2[1];

def PosUp2 = pos2 and up2;
def PosDn2 = pos2 and dn2;
def NegDn2 = neg2 and dn2;
def NegUp2 = neg2 and up2;

plot momentum2 = momo2;
momentum2.DefineColor("PosUp2", Color.CYAN);
momentum2.DefineColor("PosDn2", Color.BLUE);
momentum2.DefineColor("NegDn2", Color.RED);
momentum2.DefineColor("NegUp2", Color.YELLOW);
#momentum2.SetPaintingStrategy(PaintingStrategy.HORIZONTAL);
momentum2.SETStyle(CURVE.FIRM);
momentum2.SetLineWeight(1);
momentum2.AssignValueColor(if PosUp2 then momentum2.Color("PosUp2”) else if PosDn2 then momentum2.Color("PosDn2”) else if NegDn2 then momentum2.Color("NegDn2”) else if NegUp2 then momentum2.Color("NegUp2”) else momentum2.Color("NegUp2”));
momentum2.hide();

#################################################################################

#################################################################################


input agg3 = AggregationPeriod.THREE_MIN;
def price3 = close(period = agg3);
input length3 = 20;

def K3 = (Highest(high, length3) + Lowest(low, length3)) / 2 + ExpAverage(close, length3);
def momo3 = Inertia(price3 - K3 / 2, length3);

def pos3 = momo3 >= 0;
def neg3 = momo3 < 0;
def up3 = momo3 >= momo3[1];
def dn3 = momo3 < momo3[1];

def PosUp3 = pos3 and up3;
def PosDn3 = pos3 and dn3;
def NegDn3 = neg3 and dn3;
def NegUp3 = neg3 and up3;

plot momentum3 = momo3;
momentum3.DefineColor("PosUp3”, Color.CYAN);
momentum3.DefineColor("PosDn3”, Color.BLUE);
momentum3.DefineColor("NegDn3”, Color.RED);
momentum3.DefineColor("NegUp3”, Color.YELLOW);
#momentum3.SetPaintingStrategy(PaintingStrategy.HISTOGRAM);
momentum3.SETStyle(CURVE.FIRM);
momentum3.SetLineWeight(1);
momentum3.AssignValueColor(if PosUp3 then momentum3.Color("PosUp3”) else if PosDn3 then momentum3.Color("PosDn3”) else if NegDn3 then momentum3.Color("NegDn3”) else if NegUp3 then momentum3.Color("NegUp3”) else momentum3.Color("NegUp3”));
momentum3.hide();


#################################################################################

input agg4 = AggregationPeriod.FOUR_MIN;
def price4 = close(period = agg4);
input length4 = 20;

def K4 = (Highest(high, length4) + Lowest(low, length4)) / 2 + ExpAverage(close, length4);
def momo4 = Inertia(price4 - K4 / 2, length4);

def pos4 = momo4 >= 0;
def neg4 = momo4 < 0;
def up4 = momo4 >= momo4[1];
def dn4 = momo4 < momo4[1];

def PosUp4 = pos4 and up4;
def PosDn4 = pos4 and dn4;
def NegDn4 = neg4 and dn4;
def NegUp4 = neg4 and up4;

plot momentum4 = momo4;
momentum4.DefineColor("PosUp4”, Color.CYAN);
momentum4.DefineColor("PosDn4”, Color.BLUE);
momentum4.DefineColor("NegDn4”, Color.RED);
momentum4.DefineColor("NegUp4”, Color.YELLOW);
#momentum4.SetPaintingStrategy(PaintingStrategy.HISTOGRAM);
momentum4.SETStyle(CURVE.FIRM);
momentum4.SetLineWeight(1);
momentum4.AssignValueColor(if PosUp4 then momentum4.Color("PosUp4”) else if PosDn4 then momentum4.Color("PosDn4”) else if NegDn4 then momentum4.Color("NegDn4”) else if NegUp4 then momentum4.Color("NegUp4”) else momentum4.Color("NegUp4”));
momentum4.hide();


#################################################################################


input agg5 = AggregationPeriod.FIVE_MIN;
def price5 = close(period = agg5);
input length5 = 20;

def K5 = (Highest(high, length5) + Lowest(low, length5)) / 2 + ExpAverage(close, length5);
def momo5 = Inertia(price5 - K5 / 2, length5);

def pos5 = momo5 >= 0;
def neg5 = momo5 < 0;
def up5 = momo5 >= momo5[1];
def dn5 = momo5 < momo5[1];


def PosUp5 = pos5 and up5;
def PosDn5 = pos5 and dn5;
def NegDn5 = neg5 and dn5;
def NegUp5 = neg5 and up5;


plot momentum5 = momo5;
momentum5.DefineColor("PosUp5”, Color.CYAN);
momentum5.DefineColor("PosDn5”, Color.BLUE);
momentum5.DefineColor("NegDn5”, Color.RED);
momentum5.DefineColor("NegUp5”, Color.YELLOW);
#momentum5.SetPaintingStrategy(PaintingStrategy.HISTOGRAM);
momentum5.SETStyle(CURVE.FIRM);
momentum5.SetLineWeight(1);
momentum5.AssignValueColor(if PosUp5 then momentum5.Color("PosUp5”) else if PosDn5 then momentum5.Color("PosDn5”) else if NegDn5 then momentum5.Color("NegDn5”) else if NegUp5 then momentum5.Color("NegUp5”) else momentum5.Color("NegUp5”));
momentum5.hide();
momentum5.hide();

#################################################################################


input agg10 = AggregationPeriod.TEN_MIN;
def price10 = close(period = agg10);
input length10 = 20;

def K10 = (Highest(high, length10) + Lowest(low, length10)) / 2 + ExpAverage(close, length10);
def momo10 = Inertia(price10 - K10 / 2, length10);

def pos10 = momo10 >= 0;
def neg10 = momo10 < 0;
def up10 = momo10 >= momo10[1];
def dn10 = momo10 < momo10[1];

def PosUp10 = pos10 and up10;
def PosDn10 = pos10 and dn10;
def NegDn10 = neg10 and dn10;
def NegUp10 = neg10 and up10;


plot momentum10 = momo10;
momentum10.DefineColor("PosUp10", Color.CYAN);
momentum10.DefineColor("PosDn10", Color.BLUE);
momentum10.DefineColor("NegDn10", Color.RED);
momentum10.DefineColor("NegUp10", Color.YELLOW);
#momentum10.SetPaintingStrategy(PaintingStrategy.HISTOGRAM);
momentum10.SETStyle(CURVE.FIRM);
momentum10.SetLineWeight(1);
momentum10.AssignValueColor(if PosUp10 then momentum10.Color("PosUp10") else if PosDn10 then momentum10.Color("PosDn10") else if NegDn10 then momentum10.Color("NegDn10") else if NegUp10 then momentum10.Color("NegUp10") else momentum10.Color("NegUp10"));
momentum10.hide();

############################################################################################

DEF CYAN = IF PosUp AND PosUp2 AND PosUp3 AND PosUp4 AND PosUp5 AND PosUp10 THEN 1 ELSE 0;
DEF BLUE = IF PosDn AND PosDn2 AND PosDn3 AND PosDn4 AND PosDn5 AND PosDn10 THEN 1 ELSE 0;
DEF RED1 = IF NegDn AND NegDn2 AND NegDn3 AND NegDn4 AND NegDn5 AND NegDn10 THEN 1 ELSE 0;
DEF YELLOW= IF NegUp AND NegUp2 AND NegUp3 AND NegUp4 AND NegUp5 AND NegUp10 THEN 1 ELSE 0;

###########################################################################################
DEF DARKGREEN = IF PosUp + PosUp2 + PosUp3 + PosUp4 + PosUp5 + PosUp10 >= 6 THEN 1 ELSE 0;

DEF GREEN = IF PosUp + PosUp2 + PosUp3 + PosUp4 + PosUp5 + PosUp10 >= 5 then 1 ELSE 0;

DEF LIGHTGRN = if PosDn + PosDn2 + PosDn3 + PosDn4 + PosDn5 + PosDn10 >=4 THEN 1 ELSE 0;

DEF RED = IF NegDn + NegDn2 + NegDn3 + NegDn4 + NegDn5 + NegDn10 >=6 THEN 1 ELSE 0;

DEF ORANGE = if NegDn + NegDn2 + NegDn3 + NegDn4 + NegDn5 + NegDn10 >=5 THEN 1 ELSE 0;

DEF DarkRED = if NegUp + NegUp2 + NegUp3 + NegUp4 + NegUp5 + NegUp10 >=4 THEN 1 ELSE 0;


############################################################################################
#DEF CONDALL1 = IF NegUp AND NegUp2 AND NegUp3 AND NegUp4 AND NegUp5 AND NegUp10 THEN 1 ELSE 0;
#DEF COND_ALL1 = CONDALL1 > 0 ;
def Cond1 = if NegUp + NegUp2 + NegUp3 + NegUp4 + NegUp5 + NegUp10 >=5 THEN 1 ELSE 0;
def Cond2 = IF PosUp + PosUp2 + PosUp3 + PosUp4 + PosUp5 + PosUp10 >= 1 then 1 ELSE 0;
DEF COND_ALL1 = COND1 AND COND2;
#PLOT EARLY_IN = IF COND_ALL1 AND !COND_ALL1[1] THEN 1 else Double.NaN;
#EARLY_IN.SETPAINTINGSTRATEGY(PAINTINGSTRATEGY.BOOLEAN_ARROW_UP);
#EARLY_IN.SETDEFAULTCOLOR(COLOR.ORANGE);#YELLOW BARS
#EARLY_IN.SETLINEWEIGHT(3);
plot EARLY_IN = if COND_ALL1 AND !COND_ALL1[1] THEN (low - 5 * tickSize()) else double.NaN;
EARLY_IN.SetPaintingStrategy(PaintingStrategy.ARROW_UP);
EARLY_IN.setdefaultColor(COLOR.ORANGE);#YELLOW BARS
EARLY_IN.setlineWeight(3);

#DEF CONDALL = IF PosUp AND PosUp2 AND PosUp3 AND PosUp4 AND PosUp5 AND PosUp10 THEN 1 ELSE 0;
DEF CONDALL = IF PosUp + PosUp2 + PosUp3 + PosUp4 + PosUp5 + PosUp10 >= 6 THEN 1 ELSE 0;
#PLOT IN = IF CONDALL AND !CONDALL[1] THEN 1 else Double.NaN;
#IN.SETPAINTINGSTRATEGY(PAINTINGSTRATEGY.BOOLEAN_ARROW_UP);
#IN.SETDEFAULTCOLOR(COLOR.DARK_GREEN);#CYAN BARS
#IN.SETLINEWEIGHT(3);

plot IN = if CONDALL and !CONDALL[1] then (low - 8 * tickSize()) else double.NaN;
IN.SetPaintingStrategy(PaintingStrategy.ARROW_UP);
IN.setdefaultColor(color.DARK_GREEN);#CYAN BARS
IN.setlineWeight(3);



############### DOWN SIGNAL #####################
DEF COND_DN = IF PosDn AND PosDn2 AND PosDn3 AND PosDn4 AND PosDn5 AND PosDn10 THEN 1 ELSE 0;
#plot OUT = IF COND_DN AND !COND_DN[1] THEN 1 else Double.NaN;
#OUT.SETPAINTINGSTRATEGY(PAINTINGSTRATEGY.BOOLEAN_ARROW_DOWN);
#OUT.SETDEFAULTCOLOR(COLOR.RED);#BLUE BARS = STILL UP BUT LOSING MOMENTUM
#OUT.SETLINEWEIGHT(3);

#plot B = IF DARKGREEN AND !DARKGREEN[1] THEN 1 else Double.NaN;
#B.SETPAINTINGSTRATEGY(PAINTINGSTRATEGY.BOOLEAN_ARROW_DOWN);
#B.SETDEFAULTCOLOR(COLOR.BLUE);#5 out of 6
#B.SetLineWeight(1);

#def A = (B[1] or B[2]) and OUT;# OUT[-1] ; (out[-1]) or (out[-2])B(B,2)
DEF A1 = COND_DN AND LIGHTGRN;
DEF A = A1 and !A1[1];
#PLOT OUT1 = A;
#OUT1.SETPAINTINGSTRATEGY(PAINTINGSTRATEGY.BOOLEAN_ARROW_DOWN);
#OUT1.SETDEFAULTCOLOR(COLOR.RED);#4 out of 6 rising
#OUT1.SETLINEWEIGHT(3);

plot OUT1 = if A then (high + 3 * tickSize()) else double.NaN;
OUT1.SetPaintingStrategy(PaintingStrategy.ARROW_DOWN);
OUT1.setdefaultColor(COLOR.RED);#4 out of 6 rising
OUT1.setlineWeight(3);


assignPriceColor (if Candle then
if LIGHTGRN then Color.DARK_GREEN
else if GREEN then Color.GREEN
else if DARKGREEN then Color.LIGHT_GREEN
else if RED then Color.RED
else if ORANGE then Color.DARK_Orange
else if DarkRed then Color.PINK
else Color.Gray
else Color.current);

addlabel (yes,"SqzTrend",if LIGHTGRN then Color.UPTICK else if GREEN then Color.Dark_GREEN else if DARKGREEN then CreateColor(15, 156, 0) else if RED then Color.RED else IF ORANGE then Color.DARK_Orange else if DarkRed then Color.PINK else Color.Gray);
#### Lt Grn CreateColor(15, 156, 0), Drk Grn Uptick,

addlabel(LightGRN,”6out6”,Color.UPTICK);
addlabel(GREEN,”5out6”,color.Dark_GREEN);
addlabel(DARKGREEN,”4out6”, CreateColor(15, 156, 0));
addlabel(RED,”6out6”,color.RED);
addlabel(ORANGE,”5out6”,color.DARK_ORANGE);
addlabel(DarkRed and !ORANGE and !RED and !DARKGREEN and !GREEN and !LightGRN, "4out6”, color.pink);

###########################################################

JP782 said:
This is my attempt at a MTF squeeze histo for entry and exit, its not pretty BUT it works so far.

(Im NOT an expert writing script I learn stuff here and there, yes I know some of it can be simplified and made shorter... Im learning cut me a break)

My orange arrow signals for early entry are pretty good, you still have to confirm with trend etc [I use QQE MOD and NMACD both give very good signals]

When all levels finally turn cyan it produces a green arrow up for a normal entry.
Yes, you could write it so when each level turns over and its > 0 to paint an arrow up(each a diff shade of green) which shows its only getting stronger, but my interest is on the early entry and exit - which is just the reverse.

Im trying to figure out whats the best combo of sqz histo's that are turning over to give the EARLY entry (my orange arrow) and exit signal. In general its when hist going from red to yellow, BUT which(as far as timeframes) red and yellow is best and should maybe 1 be cyan, if so which one? And the flip side for early exit red arrows, where the hist going from cyan to dark blue(normally signals momentum is slowing) - but again which ones are best to use?

I left it as is with brief notes and some tests I tried turned “off” via ‘ # ’

Could def use some help with the labels too, sometimes 2 are appearing at the same time



#MTF Sqz Histo Entry Exit by JP782 10/01/22
#based off of code via TheBewb using existing Mobius Squeeze Momentum

input Candle = no;
input agg = AggregationPeriod.MIN;
def price = close(period = agg);
input length = 20;

plot Zero_Line = 0;
Zero_Line.HIDE();

def K = (Highest(high, length) + Lowest(low, length)) / 2 + ExpAverage(close, length);
def momo = Inertia(price - K / 2, length);

def pos = momo >= 0;
def neg = momo < 0;
def up = momo >= momo[1];
def dn = momo < momo[1];

def PosUp = pos and up;
def PosDn = pos and dn;
def NegDn = neg and dn;
def NegUp = neg and up;

plot momentum = momo;
momentum.DefineColor("PosUp", Color.CYAN);
momentum.DefineColor("PosDn", Color.BLUE);
momentum.DefineColor("NegDn", Color.RED);
momentum.DefineColor("NegUp", Color.YELLOW);
#momentum.SetPaintingStrategy(PaintingStrategy.HISTOGRAM);
momentum.SETStyle(CURVE.FIRM);
momentum.SetLineWeight(1);
momentum.AssignValueColor(if PosUp then momentum.Color("PosUp") else if PosDn then momentum.Color("PosDn") else if NegDn then momentum.Color("NegDn") else if NegUp then momentum.Color("NegUp") else momentum.Color("NegUp"));
momentum.hide();


#################################################################################

input agg2 = AggregationPeriod.TWO_MIN;
def price2 = close(period = agg2);
input length2 = 20;

def K2 = (Highest(high, length2) + Lowest(low, length2)) / 2 + ExpAverage(close, length2);
def momo2 = Inertia(price2 - K2 / 2, length2);

def pos2 = momo2 >= 0;
def neg2 = momo2 < 0;
def up2 = momo2 >= momo2[1];
def dn2 = momo2 < momo2[1];

def PosUp2 = pos2 and up2;
def PosDn2 = pos2 and dn2;
def NegDn2 = neg2 and dn2;
def NegUp2 = neg2 and up2;

plot momentum2 = momo2;
momentum2.DefineColor("PosUp2", Color.CYAN);
momentum2.DefineColor("PosDn2", Color.BLUE);
momentum2.DefineColor("NegDn2", Color.RED);
momentum2.DefineColor("NegUp2", Color.YELLOW);
#momentum2.SetPaintingStrategy(PaintingStrategy.HORIZONTAL);
momentum2.SETStyle(CURVE.FIRM);
momentum2.SetLineWeight(1);
momentum2.AssignValueColor(if PosUp2 then momentum2.Color("PosUp2”) else if PosDn2 then momentum2.Color("PosDn2”) else if NegDn2 then momentum2.Color("NegDn2”) else if NegUp2 then momentum2.Color("NegUp2”) else momentum2.Color("NegUp2”));
momentum2.hide();

#################################################################################

#################################################################################


input agg3 = AggregationPeriod.THREE_MIN;
def price3 = close(period = agg3);
input length3 = 20;

def K3 = (Highest(high, length3) + Lowest(low, length3)) / 2 + ExpAverage(close, length3);
def momo3 = Inertia(price3 - K3 / 2, length3);

def pos3 = momo3 >= 0;
def neg3 = momo3 < 0;
def up3 = momo3 >= momo3[1];
def dn3 = momo3 < momo3[1];

def PosUp3 = pos3 and up3;
def PosDn3 = pos3 and dn3;
def NegDn3 = neg3 and dn3;
def NegUp3 = neg3 and up3;

plot momentum3 = momo3;
momentum3.DefineColor("PosUp3”, Color.CYAN);
momentum3.DefineColor("PosDn3”, Color.BLUE);
momentum3.DefineColor("NegDn3”, Color.RED);
momentum3.DefineColor("NegUp3”, Color.YELLOW);
#momentum3.SetPaintingStrategy(PaintingStrategy.HISTOGRAM);
momentum3.SETStyle(CURVE.FIRM);
momentum3.SetLineWeight(1);
momentum3.AssignValueColor(if PosUp3 then momentum3.Color("PosUp3”) else if PosDn3 then momentum3.Color("PosDn3”) else if NegDn3 then momentum3.Color("NegDn3”) else if NegUp3 then momentum3.Color("NegUp3”) else momentum3.Color("NegUp3”));
momentum3.hide();


#################################################################################

input agg4 = AggregationPeriod.FOUR_MIN;
def price4 = close(period = agg4);
input length4 = 20;

def K4 = (Highest(high, length4) + Lowest(low, length4)) / 2 + ExpAverage(close, length4);
def momo4 = Inertia(price4 - K4 / 2, length4);

def pos4 = momo4 >= 0;
def neg4 = momo4 < 0;
def up4 = momo4 >= momo4[1];
def dn4 = momo4 < momo4[1];

def PosUp4 = pos4 and up4;
def PosDn4 = pos4 and dn4;
def NegDn4 = neg4 and dn4;
def NegUp4 = neg4 and up4;

plot momentum4 = momo4;
momentum4.DefineColor("PosUp4”, Color.CYAN);
momentum4.DefineColor("PosDn4”, Color.BLUE);
momentum4.DefineColor("NegDn4”, Color.RED);
momentum4.DefineColor("NegUp4”, Color.YELLOW);
#momentum4.SetPaintingStrategy(PaintingStrategy.HISTOGRAM);
momentum4.SETStyle(CURVE.FIRM);
momentum4.SetLineWeight(1);
momentum4.AssignValueColor(if PosUp4 then momentum4.Color("PosUp4”) else if PosDn4 then momentum4.Color("PosDn4”) else if NegDn4 then momentum4.Color("NegDn4”) else if NegUp4 then momentum4.Color("NegUp4”) else momentum4.Color("NegUp4”));
momentum4.hide();


#################################################################################


input agg5 = AggregationPeriod.FIVE_MIN;
def price5 = close(period = agg5);
input length5 = 20;

def K5 = (Highest(high, length5) + Lowest(low, length5)) / 2 + ExpAverage(close, length5);
def momo5 = Inertia(price5 - K5 / 2, length5);

def pos5 = momo5 >= 0;
def neg5 = momo5 < 0;
def up5 = momo5 >= momo5[1];
def dn5 = momo5 < momo5[1];


def PosUp5 = pos5 and up5;
def PosDn5 = pos5 and dn5;
def NegDn5 = neg5 and dn5;
def NegUp5 = neg5 and up5;


plot momentum5 = momo5;
momentum5.DefineColor("PosUp5”, Color.CYAN);
momentum5.DefineColor("PosDn5”, Color.BLUE);
momentum5.DefineColor("NegDn5”, Color.RED);
momentum5.DefineColor("NegUp5”, Color.YELLOW);
#momentum5.SetPaintingStrategy(PaintingStrategy.HISTOGRAM);
momentum5.SETStyle(CURVE.FIRM);
momentum5.SetLineWeight(1);
momentum5.AssignValueColor(if PosUp5 then momentum5.Color("PosUp5”) else if PosDn5 then momentum5.Color("PosDn5”) else if NegDn5 then momentum5.Color("NegDn5”) else if NegUp5 then momentum5.Color("NegUp5”) else momentum5.Color("NegUp5”));
momentum5.hide();
momentum5.hide();

#################################################################################


input agg10 = AggregationPeriod.TEN_MIN;
def price10 = close(period = agg10);
input length10 = 20;

def K10 = (Highest(high, length10) + Lowest(low, length10)) / 2 + ExpAverage(close, length10);
def momo10 = Inertia(price10 - K10 / 2, length10);

def pos10 = momo10 >= 0;
def neg10 = momo10 < 0;
def up10 = momo10 >= momo10[1];
def dn10 = momo10 < momo10[1];

def PosUp10 = pos10 and up10;
def PosDn10 = pos10 and dn10;
def NegDn10 = neg10 and dn10;
def NegUp10 = neg10 and up10;


plot momentum10 = momo10;
momentum10.DefineColor("PosUp10", Color.CYAN);
momentum10.DefineColor("PosDn10", Color.BLUE);
momentum10.DefineColor("NegDn10", Color.RED);
momentum10.DefineColor("NegUp10", Color.YELLOW);
#momentum10.SetPaintingStrategy(PaintingStrategy.HISTOGRAM);
momentum10.SETStyle(CURVE.FIRM);
momentum10.SetLineWeight(1);
momentum10.AssignValueColor(if PosUp10 then momentum10.Color("PosUp10") else if PosDn10 then momentum10.Color("PosDn10") else if NegDn10 then momentum10.Color("NegDn10") else if NegUp10 then momentum10.Color("NegUp10") else momentum10.Color("NegUp10"));
momentum10.hide();

############################################################################################

DEF CYAN = IF PosUp AND PosUp2 AND PosUp3 AND PosUp4 AND PosUp5 AND PosUp10 THEN 1 ELSE 0;
DEF BLUE = IF PosDn AND PosDn2 AND PosDn3 AND PosDn4 AND PosDn5 AND PosDn10 THEN 1 ELSE 0;
DEF RED1 = IF NegDn AND NegDn2 AND NegDn3 AND NegDn4 AND NegDn5 AND NegDn10 THEN 1 ELSE 0;
DEF YELLOW= IF NegUp AND NegUp2 AND NegUp3 AND NegUp4 AND NegUp5 AND NegUp10 THEN 1 ELSE 0;

###########################################################################################
DEF DARKGREEN = IF PosUp + PosUp2 + PosUp3 + PosUp4 + PosUp5 + PosUp10 >= 6 THEN 1 ELSE 0;

DEF GREEN = IF PosUp + PosUp2 + PosUp3 + PosUp4 + PosUp5 + PosUp10 >= 5 then 1 ELSE 0;

DEF LIGHTGRN = if PosDn + PosDn2 + PosDn3 + PosDn4 + PosDn5 + PosDn10 >=4 THEN 1 ELSE 0;

DEF RED = IF NegDn + NegDn2 + NegDn3 + NegDn4 + NegDn5 + NegDn10 >=6 THEN 1 ELSE 0;

DEF ORANGE = if NegDn + NegDn2 + NegDn3 + NegDn4 + NegDn5 + NegDn10 >=5 THEN 1 ELSE 0;

DEF DarkRED = if NegUp + NegUp2 + NegUp3 + NegUp4 + NegUp5 + NegUp10 >=4 THEN 1 ELSE 0;


############################################################################################
#DEF CONDALL1 = IF NegUp AND NegUp2 AND NegUp3 AND NegUp4 AND NegUp5 AND NegUp10 THEN 1 ELSE 0;
#DEF COND_ALL1 = CONDALL1 > 0 ;
def Cond1 = if NegUp + NegUp2 + NegUp3 + NegUp4 + NegUp5 + NegUp10 >=5 THEN 1 ELSE 0;
def Cond2 = IF PosUp + PosUp2 + PosUp3 + PosUp4 + PosUp5 + PosUp10 >= 1 then 1 ELSE 0;
DEF COND_ALL1 = COND1 AND COND2;
#PLOT EARLY_IN = IF COND_ALL1 AND !COND_ALL1[1] THEN 1 else Double.NaN;
#EARLY_IN.SETPAINTINGSTRATEGY(PAINTINGSTRATEGY.BOOLEAN_ARROW_UP);
#EARLY_IN.SETDEFAULTCOLOR(COLOR.ORANGE);#YELLOW BARS
#EARLY_IN.SETLINEWEIGHT(3);
plot EARLY_IN = if COND_ALL1 AND !COND_ALL1[1] THEN (low - 5 * tickSize()) else double.NaN;
EARLY_IN.SetPaintingStrategy(PaintingStrategy.ARROW_UP);
EARLY_IN.setdefaultColor(COLOR.ORANGE);#YELLOW BARS
EARLY_IN.setlineWeight(3);

#DEF CONDALL = IF PosUp AND PosUp2 AND PosUp3 AND PosUp4 AND PosUp5 AND PosUp10 THEN 1 ELSE 0;
DEF CONDALL = IF PosUp + PosUp2 + PosUp3 + PosUp4 + PosUp5 + PosUp10 >= 6 THEN 1 ELSE 0;
#PLOT IN = IF CONDALL AND !CONDALL[1] THEN 1 else Double.NaN;
#IN.SETPAINTINGSTRATEGY(PAINTINGSTRATEGY.BOOLEAN_ARROW_UP);
#IN.SETDEFAULTCOLOR(COLOR.DARK_GREEN);#CYAN BARS
#IN.SETLINEWEIGHT(3);

plot IN = if CONDALL and !CONDALL[1] then (low - 8 * tickSize()) else double.NaN;
IN.SetPaintingStrategy(PaintingStrategy.ARROW_UP);
IN.setdefaultColor(color.DARK_GREEN);#CYAN BARS
IN.setlineWeight(3);



############### DOWN SIGNAL #####################
DEF COND_DN = IF PosDn AND PosDn2 AND PosDn3 AND PosDn4 AND PosDn5 AND PosDn10 THEN 1 ELSE 0;
#plot OUT = IF COND_DN AND !COND_DN[1] THEN 1 else Double.NaN;
#OUT.SETPAINTINGSTRATEGY(PAINTINGSTRATEGY.BOOLEAN_ARROW_DOWN);
#OUT.SETDEFAULTCOLOR(COLOR.RED);#BLUE BARS = STILL UP BUT LOSING MOMENTUM
#OUT.SETLINEWEIGHT(3);

#plot B = IF DARKGREEN AND !DARKGREEN[1] THEN 1 else Double.NaN;
#B.SETPAINTINGSTRATEGY(PAINTINGSTRATEGY.BOOLEAN_ARROW_DOWN);
#B.SETDEFAULTCOLOR(COLOR.BLUE);#5 out of 6
#B.SetLineWeight(1);

#def A = (B[1] or B[2]) and OUT;# OUT[-1] ; (out[-1]) or (out[-2])B(B,2)
DEF A1 = COND_DN AND LIGHTGRN;
DEF A = A1 and !A1[1];
#PLOT OUT1 = A;
#OUT1.SETPAINTINGSTRATEGY(PAINTINGSTRATEGY.BOOLEAN_ARROW_DOWN);
#OUT1.SETDEFAULTCOLOR(COLOR.RED);#4 out of 6 rising
#OUT1.SETLINEWEIGHT(3);

plot OUT1 = if A then (high + 3 * tickSize()) else double.NaN;
OUT1.SetPaintingStrategy(PaintingStrategy.ARROW_DOWN);
OUT1.setdefaultColor(COLOR.RED);#4 out of 6 rising
OUT1.setlineWeight(3);


assignPriceColor (if Candle then
if LIGHTGRN then Color.DARK_GREEN
else if GREEN then Color.GREEN
else if DARKGREEN then Color.LIGHT_GREEN
else if RED then Color.RED
else if ORANGE then Color.DARK_Orange
else if DarkRed then Color.PINK
else Color.Gray
else Color.current);

addlabel (yes,"SqzTrend",if LIGHTGRN then Color.UPTICK else if GREEN then Color.Dark_GREEN else if DARKGREEN then CreateColor(15, 156, 0) else if RED then Color.RED else IF ORANGE then Color.DARK_Orange else if DarkRed then Color.PINK else Color.Gray);
#### Lt Grn CreateColor(15, 156, 0), Drk Grn Uptick,

addlabel(LightGRN,”6out6”,Color.UPTICK);
addlabel(GREEN,”5out6”,color.Dark_GREEN);
addlabel(DARKGREEN,”4out6”, CreateColor(15, 156, 0));
addlabel(RED,”6out6”,color.RED);
addlabel(ORANGE,”5out6”,color.DARK_ORANGE);
addlabel(DarkRed and !ORANGE and !RED and !DARKGREEN and !GREEN and !LightGRN, "4out6”, color.pink);

###########################################################
Click to expand...
Interesting. Thank you. Whenever the signals (arrows) are good, I immediately wonder, "Does this repaint?" I am aware that this is a multi-time frame. Thanks

JP782 said:
This is my attempt at a MTF squeeze histo for entry and exit, its not pretty BUT it works so far.

(Im NOT an expert writing script I learn stuff here and there, yes I know some of it can be simplified and made shorter... Im learning cut me a break)

My orange arrow signals for early entry are pretty good, you still have to confirm with trend etc [I use QQE MOD and NMACD both give very good signals]

When all levels finally turn cyan it produces a green arrow up for a normal entry.
Yes, you could write it so when each level turns over and its > 0 to paint an arrow up(each a diff shade of green) which shows its only getting stronger, but my interest is on the early entry and exit - which is just the reverse.

Im trying to figure out whats the best combo of sqz histo's that are turning over to give the EARLY entry (my orange arrow) and exit signal. In general its when hist going from red to yellow, BUT which(as far as timeframes) red and yellow is best and should maybe 1 be cyan, if so which one? And the flip side for early exit red arrows, where the hist going from cyan to dark blue(normally signals momentum is slowing) - but again which ones are best to use?

I left it as is with brief notes and some tests I tried turned “off” via ‘ # ’

Could def use some help with the labels too, sometimes 2 are appearing at the same time



#MTF Sqz Histo Entry Exit by JP782 10/01/22
#based off of code via TheBewb using existing Mobius Squeeze Momentum

input Candle = no;
input agg = AggregationPeriod.MIN;
def price = close(period = agg);
input length = 20;

plot Zero_Line = 0;
Zero_Line.HIDE();

def K = (Highest(high, length) + Lowest(low, length)) / 2 + ExpAverage(close, length);
def momo = Inertia(price - K / 2, length);

def pos = momo >= 0;
def neg = momo < 0;
def up = momo >= momo[1];
def dn = momo < momo[1];

def PosUp = pos and up;
def PosDn = pos and dn;
def NegDn = neg and dn;
def NegUp = neg and up;

plot momentum = momo;
momentum.DefineColor("PosUp", Color.CYAN);
momentum.DefineColor("PosDn", Color.BLUE);
momentum.DefineColor("NegDn", Color.RED);
momentum.DefineColor("NegUp", Color.YELLOW);
#momentum.SetPaintingStrategy(PaintingStrategy.HISTOGRAM);
momentum.SETStyle(CURVE.FIRM);
momentum.SetLineWeight(1);
momentum.AssignValueColor(if PosUp then momentum.Color("PosUp") else if PosDn then momentum.Color("PosDn") else if NegDn then momentum.Color("NegDn") else if NegUp then momentum.Color("NegUp") else momentum.Color("NegUp"));
momentum.hide();


#################################################################################

input agg2 = AggregationPeriod.TWO_MIN;
def price2 = close(period = agg2);
input length2 = 20;

def K2 = (Highest(high, length2) + Lowest(low, length2)) / 2 + ExpAverage(close, length2);
def momo2 = Inertia(price2 - K2 / 2, length2);

def pos2 = momo2 >= 0;
def neg2 = momo2 < 0;
def up2 = momo2 >= momo2[1];
def dn2 = momo2 < momo2[1];

def PosUp2 = pos2 and up2;
def PosDn2 = pos2 and dn2;
def NegDn2 = neg2 and dn2;
def NegUp2 = neg2 and up2;

plot momentum2 = momo2;
momentum2.DefineColor("PosUp2", Color.CYAN);
momentum2.DefineColor("PosDn2", Color.BLUE);
momentum2.DefineColor("NegDn2", Color.RED);
momentum2.DefineColor("NegUp2", Color.YELLOW);
#momentum2.SetPaintingStrategy(PaintingStrategy.HORIZONTAL);
momentum2.SETStyle(CURVE.FIRM);
momentum2.SetLineWeight(1);
momentum2.AssignValueColor(if PosUp2 then momentum2.Color("PosUp2”) else if PosDn2 then momentum2.Color("PosDn2”) else if NegDn2 then momentum2.Color("NegDn2”) else if NegUp2 then momentum2.Color("NegUp2”) else momentum2.Color("NegUp2”));
momentum2.hide();

#################################################################################

#################################################################################


input agg3 = AggregationPeriod.THREE_MIN;
def price3 = close(period = agg3);
input length3 = 20;

def K3 = (Highest(high, length3) + Lowest(low, length3)) / 2 + ExpAverage(close, length3);
def momo3 = Inertia(price3 - K3 / 2, length3);

def pos3 = momo3 >= 0;
def neg3 = momo3 < 0;
def up3 = momo3 >= momo3[1];
def dn3 = momo3 < momo3[1];

def PosUp3 = pos3 and up3;
def PosDn3 = pos3 and dn3;
def NegDn3 = neg3 and dn3;
def NegUp3 = neg3 and up3;

plot momentum3 = momo3;
momentum3.DefineColor("PosUp3”, Color.CYAN);
momentum3.DefineColor("PosDn3”, Color.BLUE);
momentum3.DefineColor("NegDn3”, Color.RED);
momentum3.DefineColor("NegUp3”, Color.YELLOW);
#momentum3.SetPaintingStrategy(PaintingStrategy.HISTOGRAM);
momentum3.SETStyle(CURVE.FIRM);
momentum3.SetLineWeight(1);
momentum3.AssignValueColor(if PosUp3 then momentum3.Color("PosUp3”) else if PosDn3 then momentum3.Color("PosDn3”) else if NegDn3 then momentum3.Color("NegDn3”) else if NegUp3 then momentum3.Color("NegUp3”) else momentum3.Color("NegUp3”));
momentum3.hide();


#################################################################################

input agg4 = AggregationPeriod.FOUR_MIN;
def price4 = close(period = agg4);
input length4 = 20;

def K4 = (Highest(high, length4) + Lowest(low, length4)) / 2 + ExpAverage(close, length4);
def momo4 = Inertia(price4 - K4 / 2, length4);

def pos4 = momo4 >= 0;
def neg4 = momo4 < 0;
def up4 = momo4 >= momo4[1];
def dn4 = momo4 < momo4[1];

def PosUp4 = pos4 and up4;
def PosDn4 = pos4 and dn4;
def NegDn4 = neg4 and dn4;
def NegUp4 = neg4 and up4;

plot momentum4 = momo4;
momentum4.DefineColor("PosUp4”, Color.CYAN);
momentum4.DefineColor("PosDn4”, Color.BLUE);
momentum4.DefineColor("NegDn4”, Color.RED);
momentum4.DefineColor("NegUp4”, Color.YELLOW);
#momentum4.SetPaintingStrategy(PaintingStrategy.HISTOGRAM);
momentum4.SETStyle(CURVE.FIRM);
momentum4.SetLineWeight(1);
momentum4.AssignValueColor(if PosUp4 then momentum4.Color("PosUp4”) else if PosDn4 then momentum4.Color("PosDn4”) else if NegDn4 then momentum4.Color("NegDn4”) else if NegUp4 then momentum4.Color("NegUp4”) else momentum4.Color("NegUp4”));
momentum4.hide();


#################################################################################


input agg5 = AggregationPeriod.FIVE_MIN;
def price5 = close(period = agg5);
input length5 = 20;

def K5 = (Highest(high, length5) + Lowest(low, length5)) / 2 + ExpAverage(close, length5);
def momo5 = Inertia(price5 - K5 / 2, length5);

def pos5 = momo5 >= 0;
def neg5 = momo5 < 0;
def up5 = momo5 >= momo5[1];
def dn5 = momo5 < momo5[1];


def PosUp5 = pos5 and up5;
def PosDn5 = pos5 and dn5;
def NegDn5 = neg5 and dn5;
def NegUp5 = neg5 and up5;


plot momentum5 = momo5;
momentum5.DefineColor("PosUp5”, Color.CYAN);
momentum5.DefineColor("PosDn5”, Color.BLUE);
momentum5.DefineColor("NegDn5”, Color.RED);
momentum5.DefineColor("NegUp5”, Color.YELLOW);
#momentum5.SetPaintingStrategy(PaintingStrategy.HISTOGRAM);
momentum5.SETStyle(CURVE.FIRM);
momentum5.SetLineWeight(1);
momentum5.AssignValueColor(if PosUp5 then momentum5.Color("PosUp5”) else if PosDn5 then momentum5.Color("PosDn5”) else if NegDn5 then momentum5.Color("NegDn5”) else if NegUp5 then momentum5.Color("NegUp5”) else momentum5.Color("NegUp5”));
momentum5.hide();
momentum5.hide();

#################################################################################


input agg10 = AggregationPeriod.TEN_MIN;
def price10 = close(period = agg10);
input length10 = 20;

def K10 = (Highest(high, length10) + Lowest(low, length10)) / 2 + ExpAverage(close, length10);
def momo10 = Inertia(price10 - K10 / 2, length10);

def pos10 = momo10 >= 0;
def neg10 = momo10 < 0;
def up10 = momo10 >= momo10[1];
def dn10 = momo10 < momo10[1];

def PosUp10 = pos10 and up10;
def PosDn10 = pos10 and dn10;
def NegDn10 = neg10 and dn10;
def NegUp10 = neg10 and up10;


plot momentum10 = momo10;
momentum10.DefineColor("PosUp10", Color.CYAN);
momentum10.DefineColor("PosDn10", Color.BLUE);
momentum10.DefineColor("NegDn10", Color.RED);
momentum10.DefineColor("NegUp10", Color.YELLOW);
#momentum10.SetPaintingStrategy(PaintingStrategy.HISTOGRAM);
momentum10.SETStyle(CURVE.FIRM);
momentum10.SetLineWeight(1);
momentum10.AssignValueColor(if PosUp10 then momentum10.Color("PosUp10") else if PosDn10 then momentum10.Color("PosDn10") else if NegDn10 then momentum10.Color("NegDn10") else if NegUp10 then momentum10.Color("NegUp10") else momentum10.Color("NegUp10"));
momentum10.hide();

############################################################################################

DEF CYAN = IF PosUp AND PosUp2 AND PosUp3 AND PosUp4 AND PosUp5 AND PosUp10 THEN 1 ELSE 0;
DEF BLUE = IF PosDn AND PosDn2 AND PosDn3 AND PosDn4 AND PosDn5 AND PosDn10 THEN 1 ELSE 0;
DEF RED1 = IF NegDn AND NegDn2 AND NegDn3 AND NegDn4 AND NegDn5 AND NegDn10 THEN 1 ELSE 0;
DEF YELLOW= IF NegUp AND NegUp2 AND NegUp3 AND NegUp4 AND NegUp5 AND NegUp10 THEN 1 ELSE 0;

###########################################################################################
DEF DARKGREEN = IF PosUp + PosUp2 + PosUp3 + PosUp4 + PosUp5 + PosUp10 >= 6 THEN 1 ELSE 0;

DEF GREEN = IF PosUp + PosUp2 + PosUp3 + PosUp4 + PosUp5 + PosUp10 >= 5 then 1 ELSE 0;

DEF LIGHTGRN = if PosDn + PosDn2 + PosDn3 + PosDn4 + PosDn5 + PosDn10 >=4 THEN 1 ELSE 0;

DEF RED = IF NegDn + NegDn2 + NegDn3 + NegDn4 + NegDn5 + NegDn10 >=6 THEN 1 ELSE 0;

DEF ORANGE = if NegDn + NegDn2 + NegDn3 + NegDn4 + NegDn5 + NegDn10 >=5 THEN 1 ELSE 0;

DEF DarkRED = if NegUp + NegUp2 + NegUp3 + NegUp4 + NegUp5 + NegUp10 >=4 THEN 1 ELSE 0;


############################################################################################
#DEF CONDALL1 = IF NegUp AND NegUp2 AND NegUp3 AND NegUp4 AND NegUp5 AND NegUp10 THEN 1 ELSE 0;
#DEF COND_ALL1 = CONDALL1 > 0 ;
def Cond1 = if NegUp + NegUp2 + NegUp3 + NegUp4 + NegUp5 + NegUp10 >=5 THEN 1 ELSE 0;
def Cond2 = IF PosUp + PosUp2 + PosUp3 + PosUp4 + PosUp5 + PosUp10 >= 1 then 1 ELSE 0;
DEF COND_ALL1 = COND1 AND COND2;
#PLOT EARLY_IN = IF COND_ALL1 AND !COND_ALL1[1] THEN 1 else Double.NaN;
#EARLY_IN.SETPAINTINGSTRATEGY(PAINTINGSTRATEGY.BOOLEAN_ARROW_UP);
#EARLY_IN.SETDEFAULTCOLOR(COLOR.ORANGE);#YELLOW BARS
#EARLY_IN.SETLINEWEIGHT(3);
plot EARLY_IN = if COND_ALL1 AND !COND_ALL1[1] THEN (low - 5 * tickSize()) else double.NaN;
EARLY_IN.SetPaintingStrategy(PaintingStrategy.ARROW_UP);
EARLY_IN.setdefaultColor(COLOR.ORANGE);#YELLOW BARS
EARLY_IN.setlineWeight(3);

#DEF CONDALL = IF PosUp AND PosUp2 AND PosUp3 AND PosUp4 AND PosUp5 AND PosUp10 THEN 1 ELSE 0;
DEF CONDALL = IF PosUp + PosUp2 + PosUp3 + PosUp4 + PosUp5 + PosUp10 >= 6 THEN 1 ELSE 0;
#PLOT IN = IF CONDALL AND !CONDALL[1] THEN 1 else Double.NaN;
#IN.SETPAINTINGSTRATEGY(PAINTINGSTRATEGY.BOOLEAN_ARROW_UP);
#IN.SETDEFAULTCOLOR(COLOR.DARK_GREEN);#CYAN BARS
#IN.SETLINEWEIGHT(3);

plot IN = if CONDALL and !CONDALL[1] then (low - 8 * tickSize()) else double.NaN;
IN.SetPaintingStrategy(PaintingStrategy.ARROW_UP);
IN.setdefaultColor(color.DARK_GREEN);#CYAN BARS
IN.setlineWeight(3);



############### DOWN SIGNAL #####################
DEF COND_DN = IF PosDn AND PosDn2 AND PosDn3 AND PosDn4 AND PosDn5 AND PosDn10 THEN 1 ELSE 0;
#plot OUT = IF COND_DN AND !COND_DN[1] THEN 1 else Double.NaN;
#OUT.SETPAINTINGSTRATEGY(PAINTINGSTRATEGY.BOOLEAN_ARROW_DOWN);
#OUT.SETDEFAULTCOLOR(COLOR.RED);#BLUE BARS = STILL UP BUT LOSING MOMENTUM
#OUT.SETLINEWEIGHT(3);

#plot B = IF DARKGREEN AND !DARKGREEN[1] THEN 1 else Double.NaN;
#B.SETPAINTINGSTRATEGY(PAINTINGSTRATEGY.BOOLEAN_ARROW_DOWN);
#B.SETDEFAULTCOLOR(COLOR.BLUE);#5 out of 6
#B.SetLineWeight(1);

#def A = (B[1] or B[2]) and OUT;# OUT[-1] ; (out[-1]) or (out[-2])B(B,2)
DEF A1 = COND_DN AND LIGHTGRN;
DEF A = A1 and !A1[1];
#PLOT OUT1 = A;
#OUT1.SETPAINTINGSTRATEGY(PAINTINGSTRATEGY.BOOLEAN_ARROW_DOWN);
#OUT1.SETDEFAULTCOLOR(COLOR.RED);#4 out of 6 rising
#OUT1.SETLINEWEIGHT(3);

plot OUT1 = if A then (high + 3 * tickSize()) else double.NaN;
OUT1.SetPaintingStrategy(PaintingStrategy.ARROW_DOWN);
OUT1.setdefaultColor(COLOR.RED);#4 out of 6 rising
OUT1.setlineWeight(3);


assignPriceColor (if Candle then
if LIGHTGRN then Color.DARK_GREEN
else if GREEN then Color.GREEN
else if DARKGREEN then Color.LIGHT_GREEN
else if RED then Color.RED
else if ORANGE then Color.DARK_Orange
else if DarkRed then Color.PINK
else Color.Gray
else Color.current);

addlabel (yes,"SqzTrend",if LIGHTGRN then Color.UPTICK else if GREEN then Color.Dark_GREEN else if DARKGREEN then CreateColor(15, 156, 0) else if RED then Color.RED else IF ORANGE then Color.DARK_Orange else if DarkRed then Color.PINK else Color.Gray);
#### Lt Grn CreateColor(15, 156, 0), Drk Grn Uptick,

addlabel(LightGRN,”6out6”,Color.UPTICK);
addlabel(GREEN,”5out6”,color.Dark_GREEN);
addlabel(DARKGREEN,”4out6”, CreateColor(15, 156, 0));
addlabel(RED,”6out6”,color.RED);
addlabel(ORANGE,”5out6”,color.DARK_ORANGE);
addlabel(DarkRed and !ORANGE and !RED and !DARKGREEN and !GREEN and !LightGRN, "4out6”, color.pink);

###########################################################
Click to expand...

@JP782

I added this code completely, but not showing anything for me, could you share the shared link of this code if possible.

Thanks in advanace.

Rrm411 said:
@JP782

I added this code completely, but not showing anything for me, could you share the shared link of this code if possible.

Thanks in advanace.
Click to expand...
The arrows only show up on a chart with a 1-minute time period according to the default settings. If you need it to work on a time frame other than 1 minute, you must adjust the input settings.

I found Mobius' MTF Momentum Squeeze in the OneNote that plots a secondary aggregation squeeze histogram as a line on top of the normal histogram. The increasing portion of the line correctly matches the color of the higher time frame histogram, however, the horizontal line portion of the line plot always displays as yellow, (instead of matching the correct color) no matter if the histogram is increasing or decreasing. Does anyone know how to fix the assignvaluecolor statement so that the line color matches? (For example in the screen shot, the increasing histogram line above 0 is both cyan and yellow, decreasing above 0 is both blue and yellow, and decreasing below 0 is both red and yellow). Screen shot below is SPX from today on a 5m chart with 15m higher aggregation. Thanks!



Ruby:
# Momentum Squeeze Multiple Aggregations

# Mobius

# V01.06.2011 Chat room discussion

#hint: Squeeze Label with directional color for both aggregations. Label is green when momentum is ascending, red when descending. User Input for separate Squeeze and Oscillator lenghts and Secondary Aggregation.


declare lower;


input Slength = 20; #hint Slength: Length for Squeeze

input Klength = 20; #hint Klength: Length for Oscillator

input SDmult = 2.0; #hint SDMult: Multiplier for Standard Deviation

input ATRmult = 1.5;#hint ATRmult: Multiplier for the Average True Range

input SecondaryAggregation = AggregationPeriod.Fifteen_Min;


def h = high;

def l = low;

def c = close;

def c2 = close(period = SecondaryAggregation)[1];

def h2 = high(period = SecondaryAggregation)[1];

def l2 = low(period = SecondaryAggregation)[1];

def K = (Highest(h, Klength) + Lowest(l, Klength)) /

         2 + ExpAverage(c, Klength);

def K2 = (Highest(h2, Klength) + Lowest(l2, Klength)) /

          2 + ExpAverage(c2, Klength);

plot Momo = Inertia(c - K / 2, Klength);

     Momo.setPaintingStrategy(PaintingStrategy.Histogram);

     Momo.setLineWeight(4);

     Momo.assignValueColor(if Momo > Momo[1] and Momo > 0

                           then Color.Cyan

                           else if Momo > 0 and Momo < Momo[1]

                                then Color.Blue

                                else if Momo < 0 and Momo < Momo[1]

                                     then Color.Red

                                     else Color.Yellow);

plot Momo2 = Inertia(c2 - K2 / 2, Klength);

     Momo2.setPaintingStrategy(PaintingStrategy.Line);

     Momo2.setLineWeight(2);

     Momo2.assignValueColor(if Momo2 > Momo2[1] and Momo2 > 0

                            then Color.Cyan

                            else if Momo2 > 0 and Momo2 < Momo2[1]

                                 then Color.Blue

                                 else if Momo2 < 0 and Momo2 < Momo2[1]

                                      then Color.Red

                                      else Color.Yellow);

def SD = StDev(c, Slength);

def Avg = Average(c, Slength);

def ATR = Average(TrueRange(h, c, l), Slength);

def SDup = Avg + (SdMult * Sd);

def ATRup = Avg + (AtrMult * ATR);

def Pointlocation = Round(HighestAll(Momo) *1.1, 0);

plot Squeeze = if SDup < ATRup

               then pointLocation

               else Double.NaN;

     Squeeze.SetPaintingStrategy(PaintingStrategy.Points);

     Squeeze.SetLineWeight(4);

     Squeeze.SetDefaultColor(Color.Red);

plot zero = if IsNaN(c)

            then Double.NaN

            else 0;

     zero.SetPaintingStrategy(PaintingStrategy.line);

     zero.SetLineWeight(1);

     zero.SetDefaultColor(Color.gray);

def SD2 = StDev(c2, Slength);

def Avg2 = Average(c2, Slength);

def ATR2 = Average(TrueRange(h2, c2, l2), Slength);

def SDup2 = Avg2 + (SdMult * SD2);

def ATRup2 = Avg2 + (AtrMult * ATR2);

plot Squeeze2 = if SDup2 < ATRup2

                then if isNaN(c) then double.nan else PointLocation * 1.10

                else Double.NaN;

     Squeeze2.SetPaintingStrategy(PaintingStrategy.Points);

     Squeeze2.SetLineWeight(4);

     Squeeze2.SetDefaultColor(Color.Red);

def aggregation = SecondaryAggregation / 1000 / 60;

AddLabel(!isNaN(Squeeze), "Squeeze On Chart Aggregation", if isAscending(Momo)

                                     then Color.Green

                                     else Color.Red);

AddLabel(!isNaN(Squeeze2), "Squeeze On " + Aggregation + " Min. Aggregation", if isAscending(Momo2)

                                    then Color.Green

                                    else Color.Red);

# End Code - Momentum Squeeze

bp805 said:
I found Mobius' MTF Momentum Squeeze in the OneNote that plots a secondary aggregation squeeze histogram as a line on top of the normal histogram. The increasing portion of the line correctly matches the color of the higher time frame histogram, however, the horizontal line portion of the line plot always displays as yellow, (instead of matching the correct color) no matter if the histogram is increasing or decreasing. Does anyone know how to fix the assignvaluecolor statement so that the line color matches? (For example in the screen shot, the increasing histogram line above 0 is both cyan and yellow, decreasing above 0 is both blue and yellow, and decreasing below 0 is both red and yellow). Screen shot below is SPX from today on a 5m chart with 15m higher aggregation. Thanks!



Ruby:
# Momentum Squeeze Multiple Aggregations

# Mobius

# V01.06.2011 Chat room discussion

#hint: Squeeze Label with directional color for both aggregations. Label is green when momentum is ascending, red when descending. User Input for separate Squeeze and Oscillator lenghts and Secondary Aggregation.


declare lower;


input Slength = 20; #hint Slength: Length for Squeeze

input Klength = 20; #hint Klength: Length for Oscillator

input SDmult = 2.0; #hint SDMult: Multiplier for Standard Deviation

input ATRmult = 1.5;#hint ATRmult: Multiplier for the Average True Range

input SecondaryAggregation = AggregationPeriod.Fifteen_Min;


def h = high;

def l = low;

def c = close;

def c2 = close(period = SecondaryAggregation)[1];

def h2 = high(period = SecondaryAggregation)[1];

def l2 = low(period = SecondaryAggregation)[1];

def K = (Highest(h, Klength) + Lowest(l, Klength)) /

         2 + ExpAverage(c, Klength);

def K2 = (Highest(h2, Klength) + Lowest(l2, Klength)) /

          2 + ExpAverage(c2, Klength);

plot Momo = Inertia(c - K / 2, Klength);

     Momo.setPaintingStrategy(PaintingStrategy.Histogram);

     Momo.setLineWeight(4);

     Momo.assignValueColor(if Momo > Momo[1] and Momo > 0

                           then Color.Cyan

                           else if Momo > 0 and Momo < Momo[1]

                                then Color.Blue

                                else if Momo < 0 and Momo < Momo[1]

                                     then Color.Red

                                     else Color.Yellow);

plot Momo2 = Inertia(c2 - K2 / 2, Klength);

     Momo2.setPaintingStrategy(PaintingStrategy.Line);

     Momo2.setLineWeight(2);

     Momo2.assignValueColor(if Momo2 > Momo2[1] and Momo2 > 0

                            then Color.Cyan

                            else if Momo2 > 0 and Momo2 < Momo2[1]

                                 then Color.Blue

                                 else if Momo2 < 0 and Momo2 < Momo2[1]

                                      then Color.Red

                                      else Color.Yellow);

def SD = StDev(c, Slength);

def Avg = Average(c, Slength);

def ATR = Average(TrueRange(h, c, l), Slength);

def SDup = Avg + (SdMult * Sd);

def ATRup = Avg + (AtrMult * ATR);

def Pointlocation = Round(HighestAll(Momo) *1.1, 0);

plot Squeeze = if SDup < ATRup

               then pointLocation

               else Double.NaN;

     Squeeze.SetPaintingStrategy(PaintingStrategy.Points);

     Squeeze.SetLineWeight(4);

     Squeeze.SetDefaultColor(Color.Red);

plot zero = if IsNaN(c)

            then Double.NaN

            else 0;

     zero.SetPaintingStrategy(PaintingStrategy.line);

     zero.SetLineWeight(1);

     zero.SetDefaultColor(Color.gray);

def SD2 = StDev(c2, Slength);

def Avg2 = Average(c2, Slength);

def ATR2 = Average(TrueRange(h2, c2, l2), Slength);

def SDup2 = Avg2 + (SdMult * SD2);

def ATRup2 = Avg2 + (AtrMult * ATR2);

plot Squeeze2 = if SDup2 < ATRup2

                then if isNaN(c) then double.nan else PointLocation * 1.10

                else Double.NaN;

     Squeeze2.SetPaintingStrategy(PaintingStrategy.Points);

     Squeeze2.SetLineWeight(4);

     Squeeze2.SetDefaultColor(Color.Red);

def aggregation = SecondaryAggregation / 1000 / 60;

AddLabel(!isNaN(Squeeze), "Squeeze On Chart Aggregation", if isAscending(Momo)

                                     then Color.Green

                                     else Color.Red);

AddLabel(!isNaN(Squeeze2), "Squeeze On " + Aggregation + " Min. Aggregation", if isAscending(Momo2)

                                    then Color.Green

                                    else Color.Red);

# End Code - Momentum Squeeze
Click to expand...

See if this helps. Plotting of a higher timeframe on a lower timeframe chart is hard to color due to the zigzag line of the higher.

This has the c2, h2, and l2 without the [1] bar offset, a different paintingstrategy and some >= and <= signs replacing just > and <.


Code:
# Momentum Squeeze Multiple Aggregations

# Mobius

# V01.06.2011 Chat room discussion

#hint: Squeeze Label with directional color for both aggregations. Label is green when momentum is ascending, red when descending. User Input for separate Squeeze and Oscillator lenghts and Secondary Aggregation.


declare lower;


input Slength = 20; #hint Slength: Length for Squeeze

input Klength = 20; #hint Klength: Length for Oscillator

input SDmult = 2.0; #hint SDMult: Multiplier for Standard Deviation

input ATRmult = 1.5;#hint ATRmult: Multiplier for the Average True Range

input SecondaryAggregation = AggregationPeriod.Fifteen_Min;


def h = high;

def l = low;

def c = close;

def c2 = close(period = SecondaryAggregation);

def h2 = high(period = SecondaryAggregation);

def l2 = low(period = SecondaryAggregation);

def K = (Highest(h, Klength) + Lowest(l, Klength)) /

         2 + ExpAverage(c, Klength);

def K2 = (Highest(h2, Klength) + Lowest(l2, Klength)) /

          2 + ExpAverage(c2, Klength);

plot Momo = Inertia(c - K / 2, Klength);

     Momo.setPaintingStrategy(PaintingStrategy.Histogram);

     Momo.setLineWeight(4);

     Momo.assignValueColor(if Momo >= Momo[1] and Momo > 0

                           then Color.Cyan

                           else if Momo > 0 and Momo < Momo[1]

                                then Color.Blue

                                else if Momo < 0 and Momo < Momo[1]

                                     then Color.Red

                                     else Color.Yellow);

plot Momo2 = Inertia(c2 - K2 / 2, Klength);

     Momo2.setPaintingStrategy(PaintingStrategy.LINE_VS_SQUARES);

     Momo2.setLineWeight(5);

     Momo2.assignValueColor(if Momo2 >= Momo2[1] and Momo2 >= 0

                            then Color.Cyan

                            else if Momo2 > 0 and Momo2 <= Momo2[1]

                                 then Color.Blue

                                 else if Momo2 <= 0 and Momo2 <= Momo2[1]

                                      then Color.Red

                                      else Color.Yellow);

def SD = StDev(c, Slength);

def Avg = Average(c, Slength);

def ATR = Average(TrueRange(h, c, l), Slength);

def SDup = Avg + (SdMult * Sd);

def ATRup = Avg + (AtrMult * ATR);

def Pointlocation = Round(HighestAll(Momo) *1.1, 0);

plot Squeeze = if SDup < ATRup

               then pointLocation

               else Double.NaN;

     Squeeze.SetPaintingStrategy(PaintingStrategy.Points);

     Squeeze.SetLineWeight(4);

     Squeeze.SetDefaultColor(Color.Red);

plot zero = if IsNaN(c)

            then Double.NaN

            else 0;

     zero.SetPaintingStrategy(PaintingStrategy.line);

     zero.SetLineWeight(1);

     zero.SetDefaultColor(Color.gray);

def SD2 = StDev(c2, Slength);

def Avg2 = Average(c2, Slength);

def ATR2 = Average(TrueRange(h2, c2, l2), Slength);

def SDup2 = Avg2 + (SdMult * SD2);

def ATRup2 = Avg2 + (AtrMult * ATR2);

plot Squeeze2 = if SDup2 < ATRup2

                then if isNaN(c) then double.nan else PointLocation * 1.10

                else Double.NaN;

     Squeeze2.SetPaintingStrategy(PaintingStrategy.Points);

     Squeeze2.SetLineWeight(4);

     Squeeze2.SetDefaultColor(Color.Red);

def aggregation = SecondaryAggregation / 1000 / 60;

AddLabel(!isNaN(Squeeze), "Squeeze On Chart Aggregation", if isAscending(Momo)

                                     then Color.Green

                                     else Color.Red);

AddLabel(!isNaN(Squeeze2), "Squeeze On " + Aggregation + " Min. Aggregation", if isAscending(Momo2)

                                    then Color.Green

                                    else Color.Red);

# End Code - Momentum Squeeze
Click to expand...

bp805 said:
I found Mobius' MTF Momentum Squeeze in the OneNote that plots a secondary aggregation squeeze histogram as a line on top of the normal histogram. The increasing portion of the line correctly matches the color of the higher time frame histogram, however, the horizontal line portion of the line plot always displays as yellow, (instead of matching the correct color) no matter if the histogram is increasing or decreasing. Does anyone know how to fix the assignvaluecolor statement so that the line color matches? (For example in the screen shot, the increasing histogram line above 0 is both cyan and yellow, decreasing above 0 is both blue and yellow, and decreasing below 0 is both red and yellow). Screen shot below is SPX from today on a 5m chart with 15m higher aggregation. Thanks!



Ruby:
# Momentum Squeeze Multiple Aggregations

# Mobius

# V01.06.2011 Chat room discussion

#hint: Squeeze Label with directional color for both aggregations. Label is green when momentum is ascending, red when descending. User Input for separate Squeeze and Oscillator lenghts and Secondary Aggregation.


declare lower;


input Slength = 20; #hint Slength: Length for Squeeze

input Klength = 20; #hint Klength: Length for Oscillator

input SDmult = 2.0; #hint SDMult: Multiplier for Standard Deviation

input ATRmult = 1.5;#hint ATRmult: Multiplier for the Average True Range

input SecondaryAggregation = AggregationPeriod.Fifteen_Min;


def h = high;

def l = low;

def c = close;

def c2 = close(period = SecondaryAggregation)[1];

def h2 = high(period = SecondaryAggregation)[1];

def l2 = low(period = SecondaryAggregation)[1];

def K = (Highest(h, Klength) + Lowest(l, Klength)) /

         2 + ExpAverage(c, Klength);

def K2 = (Highest(h2, Klength) + Lowest(l2, Klength)) /

          2 + ExpAverage(c2, Klength);

plot Momo = Inertia(c - K / 2, Klength);

     Momo.setPaintingStrategy(PaintingStrategy.Histogram);

     Momo.setLineWeight(4);

     Momo.assignValueColor(if Momo > Momo[1] and Momo > 0

                           then Color.Cyan

                           else if Momo > 0 and Momo < Momo[1]

                                then Color.Blue

                                else if Momo < 0 and Momo < Momo[1]

                                     then Color.Red

                                     else Color.Yellow);

plot Momo2 = Inertia(c2 - K2 / 2, Klength);

     Momo2.setPaintingStrategy(PaintingStrategy.Line);

     Momo2.setLineWeight(2);

     Momo2.assignValueColor(if Momo2 > Momo2[1] and Momo2 > 0

                            then Color.Cyan

                            else if Momo2 > 0 and Momo2 < Momo2[1]

                                 then Color.Blue

                                 else if Momo2 < 0 and Momo2 < Momo2[1]

                                      then Color.Red

                                      else Color.Yellow);

def SD = StDev(c, Slength);

def Avg = Average(c, Slength);

def ATR = Average(TrueRange(h, c, l), Slength);

def SDup = Avg + (SdMult * Sd);

def ATRup = Avg + (AtrMult * ATR);

def Pointlocation = Round(HighestAll(Momo) *1.1, 0);

plot Squeeze = if SDup < ATRup

               then pointLocation

               else Double.NaN;

     Squeeze.SetPaintingStrategy(PaintingStrategy.Points);

     Squeeze.SetLineWeight(4);

     Squeeze.SetDefaultColor(Color.Red);

plot zero = if IsNaN(c)

            then Double.NaN

            else 0;

     zero.SetPaintingStrategy(PaintingStrategy.line);

     zero.SetLineWeight(1);

     zero.SetDefaultColor(Color.gray);

def SD2 = StDev(c2, Slength);

def Avg2 = Average(c2, Slength);

def ATR2 = Average(TrueRange(h2, c2, l2), Slength);

def SDup2 = Avg2 + (SdMult * SD2);

def ATRup2 = Avg2 + (AtrMult * ATR2);

plot Squeeze2 = if SDup2 < ATRup2

                then if isNaN(c) then double.nan else PointLocation * 1.10

                else Double.NaN;

     Squeeze2.SetPaintingStrategy(PaintingStrategy.Points);

     Squeeze2.SetLineWeight(4);

     Squeeze2.SetDefaultColor(Color.Red);

def aggregation = SecondaryAggregation / 1000 / 60;

AddLabel(!isNaN(Squeeze), "Squeeze On Chart Aggregation", if isAscending(Momo)

                                     then Color.Green

                                     else Color.Red);

AddLabel(!isNaN(Squeeze2), "Squeeze On " + Aggregation + " Min. Aggregation", if isAscending(Momo2)

                                    then Color.Green

                                    else Color.Red);

# End Code - Momentum Squeeze
Click to expand...

the original assigncolor formula assigns a color when a value changes from previous bar. this has problems with mtf, because only the 1st bar is different.

the code below assigns a number when a change happens, or keeps the last number. then uses it to assign a color.

replace the existing
Momo2.assignValueColor( )

with the code below

untested

Code:
#mod2
#set a var = # depending on last chg
#ref it in assigncolor

def colornum =
# above+  , cyan = 1
if Momo2 > 0 and Momo2 > Momo2[1] then 1

# above- , blue=2
else if Momo2 > 0 and Momo2 < Momo2[1] then 2

# below- ,  red=3
else if Momo2 < 0 and Momo2 < Momo2[1] then 3

# below+ , yellow=4
else if Momo2 < 0 and Momo2 > Momo2[1] then 4

else colornum[1];


Momo2.assignValueColor(
if colornum = 1 then Color.Cyan
else if colornum = 2 then Color.Blue
else if colornum = 3 then Color.Red
else Color.Yellow);

MerryDay said:
MOBIUS MOMENTUM SQUEEZE V02 dated 4/1/2020
Ruby:
# Momentum Squeeze V02
# Mobius
# V02.04.01.2020
# New faster Momentum Oscillator with outer band markers. New more accurate Squeeze indication.

declare lower;

input n = 20;

def c = close;
def mean = Inertia(c, n);
def SD = Sqrt((fold i = 0 to n
               with s
               do s + Sqr(mean - GetValue(c, i))) / n);
plot Momo = Inertia((c - mean) / SD, Floor(n ));
     Momo.SetPaintingStrategy(PaintingStrategy.HISTOGRAM);
     Momo.assignValueColor(if Momo > Momo[1] and Momo > 0
                           then Color.Cyan
                           else if Momo > 0 and Momo < Momo[1]
                           then Color.Blue
                           else if Momo < 0 and Momo < Momo[1]
                           then Color.dark_Red
                           else Color.Yellow);
def upper = mean + (2 * SD);
def lower = mean - (2 * SD);
def W = (upper - lower) / mean;
def B = Highest(W, n * 2);
def Sq = Lowest(W, n * 2);
plot Squeeze = if ((W - Sq) / (B - Sq)) <= .01
               then 0
               else Double.NaN;
     Squeeze.SetStyle(Curve.POINTS);
     Squeeze.SetLineWeight(3);
     Squeeze.SetDefaultColor(Color.YELLOW);
AddLabel(Squeeze, "Squeeze", Color.YELLOW);
plot "0" = if !IsNaN(Squeeze) or IsNaN(c) then Double.NaN else 0;
     "0".SetStyle(Curve.Points);
     "0".SetDefaultColor(Color.GRAY);
plot "1" = if IsNaN(c) then Double.NaN else 1;
     "1".SetDefaultColor(Color.GREEN);
plot "-1" = if IsNaN(c) then Double.NaN else -1;
     "-1".SetDefaultColor(Color.dark_RED);
# End Code V02 Momentum Squeeze

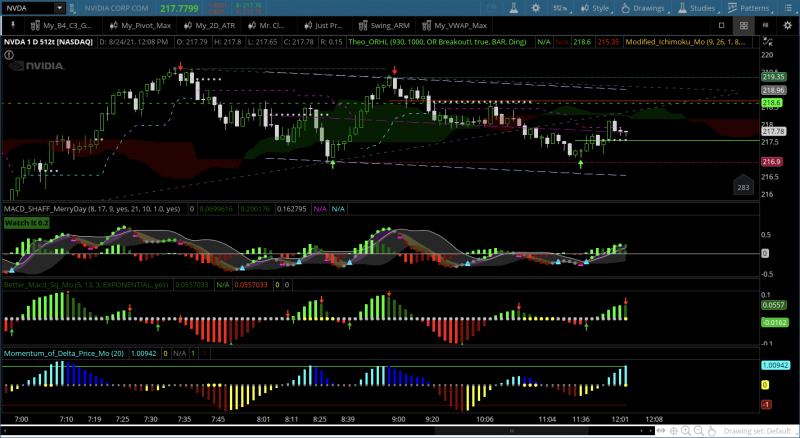

@Jonas99 shared this on Discord. He provided this image with the comparison of the indicator which is the one on the very bottom.
View attachment 821
Click to expand...
Is there any way to add red and green dots to version 2, and perhaps trigger arrows?

Here is my modified version. I like to add this as it helps reduce the "noise" to see the Forrest for the trees.
https://tos.mx/ByIE029 - the "mob squeeze" indicator.
I also use 9,50, and 200 day moving averages.
Ruby:
#hint:test test test test

declare lower;

input Slength = 20; #hint Slength: Length for Squeeze
input Klength = 20; #hint Klength: Length for Oscillator
input price = close;
input SDmult = 2.0;
input ATRmult = 1.5;

def K = (Highest(high, Klength) + Lowest(low, Klength)) /
2 + ExpAverage(close, Klength);
plot Momo = Inertia(price - K / 2, Klength);
Momo.SetPaintingStrategy(PaintingStrategy.HISTOGRAM);
Momo.SetLineWeight(3);
Momo.AssignValueColor(if Momo > Momo[1] and Momo > 0
then Color.CYAN
else if Momo > 0 and Momo < Momo[1]
then Color.BLUE
else if Momo < 0 and Momo < Momo[1]
then Color.RED
else Color.YELLOW);
def SD = StDev(close, Slength);
def Avg = Average(close, Slength);
def ATR = Average(TrueRange(high, close, low), Slength);
def SDup = Avg + (SDmult * SD);
def ATRup = Avg + (ATRmult * ATR);
plot Squeeze = if SDup < ATRup
then 0
else Double.NaN;
Squeeze.SetPaintingStrategy(PaintingStrategy.POINTS);
Squeeze.SetLineWeight(3);
Squeeze.SetDefaultColor(Color.RED);
plot zero = if IsNaN(close) or !IsNaN(Squeeze) then Double.NaN else 0;
zero.SetPaintingStrategy(PaintingStrategy.POINTS);
zero.SetLineWeight(3);
zero.SetDefaultColor(Color.GREEN);
AddLabel(!IsNaN(Squeeze), "Squeeze", if IsAscending(Momo)
then Color.GREEN
else Color.RED);
# End Code - Momentum Squeeze

Last edited by a moderator:
MerryDay said:
MOBIUS MOMENTUM SQUEEZE V02 dated 4/1/2020
Ruby:
# Momentum Squeeze V02
# Mobius
# V02.04.01.2020
# New faster Momentum Oscillator with outer band markers. New more accurate Squeeze indication.

declare lower;

input n = 20;

def c = close;
def mean = Inertia(c, n);
def SD = Sqrt((fold i = 0 to n
               with s
               do s + Sqr(mean - GetValue(c, i))) / n);
plot Momo = Inertia((c - mean) / SD, Floor(n ));
     Momo.SetPaintingStrategy(PaintingStrategy.HISTOGRAM);
     Momo.assignValueColor(if Momo > Momo[1] and Momo > 0
                           then Color.Cyan
                           else if Momo > 0 and Momo < Momo[1]
                           then Color.Blue
                           else if Momo < 0 and Momo < Momo[1]
                           then Color.dark_Red
                           else Color.Yellow);
def upper = mean + (2 * SD);
def lower = mean - (2 * SD);
def W = (upper - lower) / mean;
def B = Highest(W, n * 2);
def Sq = Lowest(W, n * 2);
plot Squeeze = if ((W - Sq) / (B - Sq)) <= .01
               then 0
               else Double.NaN;
     Squeeze.SetStyle(Curve.POINTS);
     Squeeze.SetLineWeight(3);
     Squeeze.SetDefaultColor(Color.YELLOW);
AddLabel(Squeeze, "Squeeze", Color.YELLOW);
plot "0" = if !IsNaN(Squeeze) or IsNaN(c) then Double.NaN else 0;
     "0".SetStyle(Curve.Points);
     "0".SetDefaultColor(Color.GRAY);
plot "1" = if IsNaN(c) then Double.NaN else 1;
     "1".SetDefaultColor(Color.GREEN);
plot "-1" = if IsNaN(c) then Double.NaN else -1;
     "-1".SetDefaultColor(Color.dark_RED);
# End Code V02 Momentum Squeeze
@Jonas99 shared this on Discord. He provided this image with the comparison of the indicator which is the one on the very bottom.
View attachment 821
Click to expand...


I've searched around, but didn't turn up anything. Would anyone be able to point me to the scripts that appear in the @Jonas99 screenshot shared by @MerryDay?
  • MACD_SHAFF_MerryDay
  • Better_MACD_Sq_Mo
  • Momentum_of_Delta_Price_Mo - This is the MOBIUS MOMENTUM SQUEEZE V02 in @MerryDay's message?
  • Theo_ ORHL

Last edited:
bthinktrd20 said:
I've searched around, but didn't turn up anything. Would anyone be able to point me to the scripts that appear in the @Jonas99 screenshot shared by @MerryDay?
  • MACD_SHAFF_MerryDay
  • Better_MACD_Sq_Mo
  • Momentum_of_Delta_Price_Mo - This is the MOBIUS MOMENTUM SQUEEZE V02 in @MerryDay's message?
  • Theo_ ORHL
Click to expand...

They do not appear to be general forum indicators.
Sadly, @Jonas99 is no longer an active member, so it is not possible to ask him.

The point of the post was the many similarities of indicators. That it is always important to watch out for collinearity:
https://usethinkscript.com/threads/...nt-to-successful-trading-in-thinkorswim.6114/

You must log in or register to reply here.

Join useThinkScript to post your question to a community of 21,000+ developers and traders.

SIGN UP NOW LEARN MORE
Thread starter Similar threads Forum Replies Date
S Mobius Squeeze and Custom Labels For ThinkOrSwim Indicators 54
MerryDay Mobius Volume Waves for ThinkorSwim Indicators 44
J007RMC Repaints Mobius Full Stochastic MTF for ThinkorSwim Indicators 4
dougn Trend Pivot Points Indicator by Mobius For ThinkOrSwim Indicators 85
mc01439 Mobius (Demarks Pivot and Demarks MA) for ThinkorSwim Indicators 6

Similar threads

Not the exact question you're looking for?

Start a new thread and receive assistance from our community.

87k+ Posts
317 Online
Create Post

Similar threads

Similar threads

The Market Trading Game Changer

Join 2,500+ subscribers inside the useThinkScript VIP Membership Club
  • Exclusive indicators
  • Proven strategies & setups
  • Private Discord community
  • ‘Buy The Dip’ signal alerts
  • Exclusive members-only content
  • Add-ons and resources
  • 1 full year of unlimited support
Try VIP Club Today

Frequently Asked Questions

What is useThinkScript?

useThinkScript is the #1 community of stock market investors using indicators and other tools to power their trading strategies. Traders of all skill levels use our forums to learn about scripting and indicators, help each other, and discover new ways to gain an edge in the markets.

How do I get started?

We get it. Our forum can be intimidating, if not overwhelming. With thousands of topics, tens of thousands of posts, our community has created an incredibly deep knowledge base for stock traders. No one can ever exhaust every resource provided on our site.

If you are new, or just looking for guidance, here are some helpful links to get you started.

What are the benefits of VIP Membership?
VIP members get exclusive access to these proven and tested premium indicators: Buy the Dip, Advanced Market Moves 2.0, Take Profit, and Volatility Trading Range. In addition, VIP members get access to over 50 VIP-only custom indicators, add-ons, and strategies, private VIP-only forums, private Discord channel to discuss trades and strategies in real-time, customer support, trade alerts, and much more. Learn all about VIP membership here.
How can I access the premium indicators?
To access the premium indicators, which are plug and play ready, sign up for VIP membership here.
Back
Top
