ATR-Based Support & Resistance for ThinkorSwim

[wado729]

Its not a setting to change from Clouds to Plots, it's a change of code. That being said, it's still doesn't work on mobile. The ATR calculation requires an AggregationPeriod but Mobile doesn't support those so I am stuck trying to get the ATR calculation right.



[Rrm411]

Its not a setting to change from Clouds to Plots, it's a change of code. That being said, it's still doesn't work on mobile. The ATR calculation requires an AggregationPeriod but Mobile doesn't support those so I am stuck trying to get the ATR calculation right.

Thank you for the very quick response. I got your point.



[oilfield_trash]

Hey @BenTen, Thank you for this amazing tool. This indicator probably is on the best out here to spot reversal, especially when you trading a smaller timeframe, like 1-2 minute. I was wondering if this could be turn in to a scanner. I was hoping to scan a 2 minute chart with an aggregation period of 4 hours. Is it even possible? Thank You!!



[MerryDay]

Hey @BenTen, Thank you for this amazing tool. This indicator probably is on the best out here to spot reversal, especially when you trading a smaller timeframe, like 1-2 minute. I was wondering if this could be turn in to a scanner. I was hoping to scan a 2 minute chart with an aggregation period of 4 hours. Is it even possible? Thank You!!

No, you cannot scan for: "a 2-minute chart with an aggregation period of 4 hours"
Secondary aggregations are not allowed in the scanner, watchlists, or conditional orders

It is because of the fundamental way that the condition wizard works.
In the condition wizard, before we start to create the condition filters, we choose the aggregation period.
It is locked in.

In this case, you would choose to set the scan hacker filter to 2min.
The condition wizard will then execute the script using 2min data. When the scanner gets to the part of the script that specifies using 4-hour data; it vomits an error message: "secondary aggregations not allowed".



[METAL]

Ultimate ATR Combo
This has

• 2 ATR's with values 10,3 & 30,9.
• I find the 10,3 vs 10, 1.75 holds me in trades a little longer,
• but I do like the 1.75 for shorter trades.

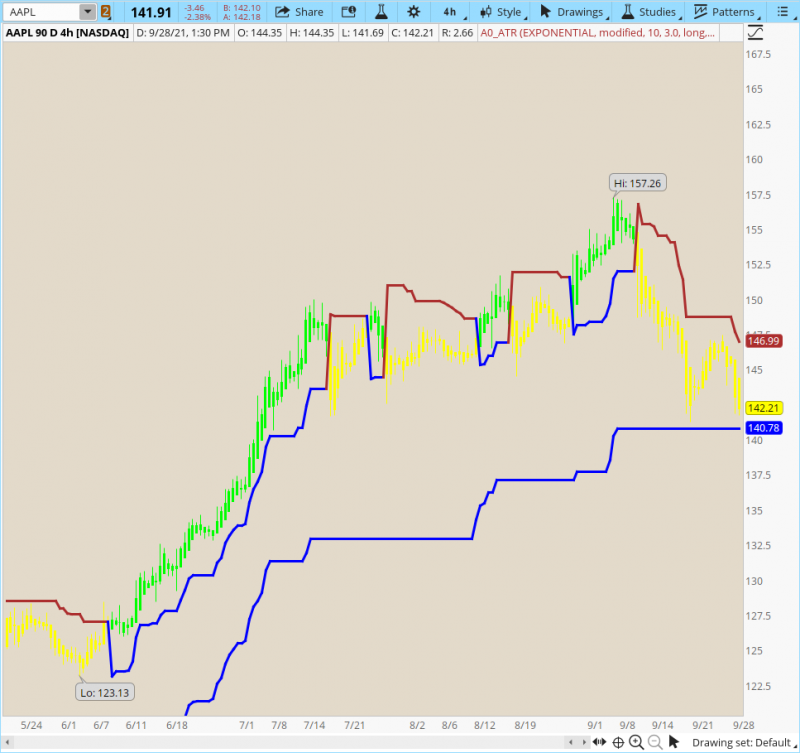

View attachment 1027
Here is my code that colors the bars.

# Ultimate ATR Combo
# Investing to Give
declare upper;
input averageType = AverageType.EXPONENTIAL;

# Fast ATR TS
input trailType = {default modified, unmodified};
input ATRPeriod = 10;
input ATRFactor = 3.0;
input firstTrade = {default long, short};

Assert(ATRFactor > 0, "'atr factor' must be positive: " + ATRFactor);

def HiLo = Min(high - low, 1.5 * Average(high - low, ATRPeriod));
def HRef = if low <= high[1]
then high - close[1]
else (high - close[1]) - 0.5 * (low - high[1]);
def LRef = if high >= low[1]
then close[1] - low
else (close[1] - low) - 0.5 * (low[1] - high);

def trueRange;
switch (trailType) {
case modified:
trueRange = Max(HiLo, Max(HRef, LRef));
case unmodified:
trueRange = TrueRange(high, close, low);
}
def loss = ATRFactor * MovingAverage(averageType, trueRange, ATRPeriod);

def state = {default init, long, short};
def trail;
switch (state[1]) {
case init:
if (!IsNaN(loss)) {
switch (firstTrade) {
case long:
state = state.long;
trail = close - loss;
case short:
state = state.short;
trail = close + loss;
}
} else {
state = state.init;
trail = Double.NaN;
}
case long:
if (close > trail[1]) {
state = state.long;
trail = Max(trail[1], close - loss);
} else {
state = state.short;
trail = close + loss;
}
case short:
if (close < trail[1]) {
state = state.short;
trail = Min(trail[1], close + loss);
} else {
state = state.long;
trail = close - loss;
}
}

def BuySignal = Crosses(state == state.long, 0, CrossingDirection.ABOVE);
def SellSignal = Crosses(state == state.short, 0, CrossingDirection.ABOVE);

def Buy_Zone = state == state.long;
def Sell_Zone = state == state.short;

# plot Buy = Buy_Zone[1] == 0 and Buy_Zone;
# plot Sell = Sell_Zone[1] == 0 and Sell_Zone;

plot TrailingStop = trail;

TrailingStop.SetPaintingStrategy(PaintingStrategy.Line);
TrailingStop.DefineColor("Buy", GetColor(5));
TrailingStop.DefineColor("Sell", GetColor(6));
TrailingStop.SetLineWeight(3);
TrailingStop.AssignValueColor(if state == state.long
then TrailingStop.Color("Sell")
else TrailingStop.Color("Buy"));


# Slow ATR TS
input trailType_Slow = {default modified_Slow, unmodified_Slow};
input ATRPeriod_Slow = 30;
input ATRFactor_Slow = 10.0;
input firstTrade_Slow = {default long_Slow, short_Slow};

Assert(ATRFactor_Slow > 0, "'atr factor' must be positive: " + ATRFactor_Slow);

def HiLo_Slow = Min(high - low, 1.5 * Average(high - low, ATRPeriod_Slow));
def HRef_Slow = if low <= high[1]
then high - close[1]
else (high - close[1]) - 0.5 * (low - high[1]);
def LRef_Slow = if high >= low[1]
then close[1] - low
else (close[1] - low) - 0.5 * (low[1] - high);

def trueRange_Slow;
switch (trailType_Slow) {
case modified_Slow:
trueRange_Slow = Max(HiLo_Slow, Max(HRef_Slow, LRef_Slow));
case unmodified_Slow:
trueRange_Slow = TrueRange(high, close, low);
}
def loss_Slow = ATRFactor_Slow * MovingAverage(averageType, trueRange_Slow, ATRPeriod_Slow);

def state_Slow = {default init_Slow, long_Slow, short_Slow};
def trail_Slow;
switch (state_Slow[1]) {
case init_Slow:
if (!IsNaN(loss_Slow)) {
switch (firstTrade_Slow) {
case long_Slow:
state_Slow = state_Slow.long_Slow;
trail_Slow = close - loss_Slow;
case short_Slow:
state_Slow = state_Slow.short_Slow;
trail_Slow = close + loss_Slow;
}
} else {
state_Slow = state_Slow.init_Slow;
trail_Slow = Double.NaN;
}
case long_Slow:
if (close > trail_Slow[1]) {
state_Slow = state_Slow.long_Slow;
trail_Slow = Max(trail_Slow[1], close - loss_Slow);
} else {
state_Slow = state_Slow.short_Slow;
trail_Slow = close + loss_Slow;
}
case short_Slow:
if (close < trail_Slow[1]) {
state_Slow = state_Slow.short_Slow;
trail_Slow = Min(trail_Slow[1], close + loss_Slow);
} else {
state_Slow = state_Slow.long_Slow;
trail_Slow = close - loss_Slow;
}
}

def BuySignal_Slow = Crosses(state_Slow == state_Slow.long_Slow, 0, CrossingDirection.ABOVE);
def SellSignal_Slow = Crosses(state_Slow == state_Slow.short_Slow, 0, CrossingDirection.ABOVE);

def Buy_Zone_Slow = state_Slow == state_Slow.long_Slow;
def Sell_Zone_Slow = state_Slow == state_Slow.short_Slow;

plot TrailingStop_Slow = trail_Slow;

TrailingStop_Slow.SetPaintingStrategy(PaintingStrategy.Line);
TrailingStop_Slow.DefineColor("Buy", GetColor(5));
TrailingStop_Slow.DefineColor("Sell", GetColor(6));
TrailingStop_Slow.SetLineWeight(3);
TrailingStop_Slow.AssignValueColor(if state_Slow == state_Slow.long_Slow
then TrailingStop_Slow.Color("Sell")
else TrailingStop_Slow.Color("Buy"));




def Buy = Buy_Zone and Buy_Zone_Slow;
def Sell = Sell_Zone and Sell_Zone_Slow;

AssignPriceColor (if Buy then Color.GREEN else if Sell then Color.RED else Color.YELLOW);
# End

This code looks like it was supposed to have three ATR's. Fast, Medium, Slow. Can someone, Please, finish it so it has three?
