reference study in different timeframe

[MFitz73]

Hi guys, I have a question about a strategy running on a 2 min timeframe. Is it possible for that strategy to be able to reference
a lower study from a 10 minute time frame. I know that I can do this with the open or close value but I am having issues trying to do it
with say the lower study macd crossover on a 10 minute time frame. Or maybe stochastic momentum or any lower study that has
a crossover.

I tried the following code and it's the only thing the script accepts but it doesn't seem to work.

def OpenMaster1 = StochasticMomentumIndex(aggregationPeriod.FIFTEEN_MIN) > StochasticMomentumIndex(aggregationPeriod.FIFTEEN_MIN).AvgSMI;

if anyone could confirm that it's not possible for the 2min chart to reference a lower study from a longer time frame
I'd appreciate it!
thanks
Mike



[SleepyZ]

Not sure if my questioin got lost in the shuffle or just no way to do it.
I tried the following code and it's the only thing the script accepts but it doesn't seem to work.

def OpenMaster1 = StochasticMomentumIndex(aggregationPeriod.FIFTEEN_MIN) > StochasticMomentumIndex(aggregationPeriod.FIFTEEN_MIN).AvgSMI;

if anyone could confirm that it's not possible for the 2min chart to reference a lower study from a longer time frame
I'd appreciate it!
thanks
Mike

You can make a higher timeframe version of a lower indicator and use it in your code, but it is often not straight forward.

In your example, the parts of the code you needed to change are not available by a refernce to the aggregationperiod as you did. It went into the overbought portion of the StochasticMomentumIndex

What you need to be able to do is change the price values in the Indicator directly if these are not available to change as noted above..

In this case, I made a copy of the Indicator, added an input for agg , defaulted it to your 15m timeframe, added (period=agg) to the prices and changed the plots in the indicator to def statements. Then I made your condition for OpenMaster1.

input agg = aggregationPeriod.FIFTEEN_MIN;
input over_bought = 40.0;
input over_sold = -40.0;
input percentDLength = 3;
input percentKLength = 5;

def min_low = lowest(low(period=agg), percentKLength);
def max_high = highest(high(period=agg), percentKLength);
def rel_diff = close(period=agg) - (max_high + min_low)/2;
def diff = max_high - min_low;

def avgrel = expaverage(expaverage(rel_diff, percentDLength), percentDLength);
def avgdiff = expaverage(expaverage(diff, percentDLength), percentDLength);

def SMI = if avgdiff != 0 then avgrel / (avgdiff / 2) * 100 else 0;
def AvgSMI = expaverage(smi, percentDLength);
def overbought = over_bought;
def oversold = over_sold;

plot OpenMaster1 = if SMI > AvgSMI then 1 else 0;



[MFitz73]

Thank you @SleepyZ I need to go through your work with this to see if I can understand it. Will also put it into my code. Thank you! will report back
Mike



[themainman]

You can make a higher timeframe version of a lower indicator and use it in your code, but it is often not straight forward.

In your example, the parts of the code you needed to change are not available by a refernce to the aggregationperiod as you did. It went into the overbought portion of the StochasticMomentumIndex

What you need to be able to do is change the price values in the Indicator directly if these are not available to change as noted above..

In this case, I made a copy of the Indicator, added an input for agg , defaulted it to your 15m timeframe, added (period=agg) to the prices and changed the plots in the indicator to def statements. Then I made your condition for OpenMaster1.

Hi @SleepyZ.

I just so happened to stumble on this post while looking to implement a couple custom labels on my workspace. Essentially, I am looking to create a custom labels called "Overbought" and "Oversold" - utilizing the native TOS SMI study (Stochastic Momentum Index) across the 1m/3m/5m timeframes.

The goal of what I am trying to do is that the SMI study counts a value of >40 being "Overbought" and a value of <-40 to be "Oversold". I was trying to create a custom label to add to my chart that when the SMI on each the 1 minute, 3 minute, and 5 minute is >40 it changes the "Overbought" label to RED. On the flipside, when the SMI on each the 1 minute, 3 minute, 5 minute is <-40 it changes the "Oversold" label to GREEN. When neither conditions are met, the labels are just WHITE.

Currently one of my workspaces has a grid I'm always having to manually check the SMI lower study across timeframes (1m/3m/5m) for confluence when they are all either Overbought of Oversold.

The goal is that these 2 labels will fire either RED or GREEN when across all 3 timeframes (1m/3/5m) are either >40 or <-40. Quick confluence point when I am looking to scalp option contracts for SPX.

I've been messing with some of the codes, but as you mentioned I'm having issues with the aggregation period for each specific timeframe referencing the original SMI script. Then need to write the label to only fire the color change when the conditions are met across each of the three timeframes.

I've added the default TOS SMI study code below and would truly appreciate any insight or assistance you can provide.

#
# TD Ameritrade IP Company, Inc. (c) 2008-2022
#

declare lower;

input over_bought = 40.0;
input over_sold = -40.0;
input percentDLength = 3;
input percentKLength = 5;

def min_low = lowest(low, percentKLength);
def max_high = highest(high, percentKLength);
def rel_diff = close - (max_high + min_low)/2;
def diff = max_high - min_low;

def avgrel = expaverage(expaverage(rel_diff, percentDLength), percentDLength);
def avgdiff = expaverage(expaverage(diff, percentDLength), percentDLength);

plot SMI = if avgdiff != 0 then avgrel / (avgdiff / 2) * 100 else 0;
smi.setDefaultColor(getColor(1));

plot AvgSMI = expaverage(smi, percentDLength);
avgsmi.setDefaultColor(getcolor(5));

plot overbought = over_bought;
overbought.setDefaultColor(getcolor(5));

plot oversold = over_sold;
oversold.setDefaultColor(getcolor(5));



[SleepyZ]

Hi @SleepyZ.

I just so happened to stumble on this post while looking to implement a couple custom labels on my workspace. Essentially, I am looking to create a custom labels called "Overbought" and "Oversold" - utilizing the native TOS SMI study (Stochastic Momentum Index) across the 1m/3m/5m timeframes.

The goal of what I am trying to do is that the SMI study counts a value of >40 being "Overbought" and a value of <-40 to be "Oversold". I was trying to create a custom label to add to my chart that when the SMI on each the 1 minute, 3 minute, and 5 minute is >40 it changes the "Overbought" label to RED. On the flipside, when the SMI on each the 1 minute, 3 minute, 5 minute is <-40 it changes the "Oversold" label to GREEN. When neither conditions are met, the labels are just WHITE.

Currently one of my workspaces has a grid I'm always having to manually check the SMI lower study across timeframes (1m/3m/5m) for confluence when they are all either Overbought of Oversold.

The goal is that these 2 labels will fire either RED or GREEN when across all 3 timeframes (1m/3/5m) are either >40 or <-40. Quick confluence point when I am looking to scalp option contracts for SPX.

I've been messing with some of the codes, but as you mentioned I'm having issues with the aggregation period for each specific timeframe referencing the original SMI script. Then need to write the label to only fire the color change when the conditions are met across each of the three timeframes.

I've added the default TOS SMI study code below and would truly appreciate any insight or assistance you can provide.

script smi{
input agg = aggregationPeriod.MIN;
input over_bought = 40.0;
input over_sold = -40.0;
input percentDLength = 3;
input percentKLength = 5;

def min_low = lowest(low(period=agg), percentKLength);
def max_high = highest(high(period=agg), percentKLength);
def rel_diff = close(period=agg) - (max_high + min_low)/2;
def diff = max_high - min_low;

def avgrel = expaverage(expaverage(rel_diff, percentDLength), percentDLength);
def avgdiff = expaverage(expaverage(diff, percentDLength), percentDLength);

plot SMI = if avgdiff != 0 then avgrel / (avgdiff / 2) * 100 else 0;
smi.setDefaultColor(getColor(1));

plot AvgSMI = expaverage(smi, percentDLength);
avgsmi.setDefaultColor(getcolor(5));

plot overbought = over_bought;
overbought.setDefaultColor(getcolor(5));

plot oversold = over_sold;
oversold.setDefaultColor(getcolor(5));
}

def smi1 = smi(agg = "MIN");
def smi2 = smi(agg = "THREE_MIN");
def smi3 = smi(agg = "FIVE_MIN");

addlabel(1, "SMI " + if smi1>40 and smi2>40 and smi3>40
                     then "OverBought"
                     else if smi1<-40 and smi2<-40 and smi3<-40
                     then "OverSold"
                     else "Neutral",
                     if smi1>40 and smi2>40 and smi3>40
                     then color.red
                     else if smi1<-40 and smi2<-40 and smi3<-40
                     then color.green
                     else color.white);

This code uses the script function to create the smi for each timeframe.

script smi{
input agg = aggregationPeriod.MIN;
input over_bought = 40.0;
input over_sold = -40.0;
input percentDLength = 3;
input percentKLength = 5;

def min_low = lowest(low, percentKLength);
def max_high = highest(high, percentKLength);
def rel_diff = close - (max_high + min_low)/2;
def diff = max_high - min_low;

def avgrel = expaverage(expaverage(rel_diff, percentDLength), percentDLength);
def avgdiff = expaverage(expaverage(diff, percentDLength), percentDLength);

plot SMI = if avgdiff != 0 then avgrel / (avgdiff / 2) * 100 else 0;
smi.setDefaultColor(getColor(1));

plot AvgSMI = expaverage(smi, percentDLength);
avgsmi.setDefaultColor(getcolor(5));

plot overbought = over_bought;
overbought.setDefaultColor(getcolor(5));

plot oversold = over_sold;
oversold.setDefaultColor(getcolor(5));
}

def smi1 = smi(agg = "MIN");
def smi2 = smi(agg = "THREE_MIN");
def smi3 = smi(agg = "FIVE_MIN");

addlabel(1, "SMI " + if smi1>40 and smi2>40 and smi3>40
                     then "OverBought"
                     else if smi1<-40 and smi2<-40 and smi3<-40
                     then "OverSold"
                     else "Neutral",
                     if smi1>40 and smi2>40 and smi3>40
                     then color.red
                     else if smi1<-40 and smi2<-40 and smi3<-40
                     then color.green
                     else color.white);



[themainman]

@SleepyZ
Thank you so much!!!

Sorry one last thing, is there a way to add an alert ping anytime the Overbought or Oversold flag fire?



[SleepyZ]

Thank you so much!!! Is there a way I could please donate for your time?

Sorry one last thing, is there a way to add an alert ping anytime the Overbought or Oversold flag fire?

You're welcome! I do this because I like to.

Here is revised script with alert option

script smi {
    input agg = AggregationPeriod.MIN;
    input over_bought = 40.0;
    input over_sold = -40.0;
    input percentDLength = 3;
    input percentKLength = 5;

    def min_low = Lowest(low(period = agg), percentKLength);
    def max_high = Highest(high(period = agg), percentKLength);
    def rel_diff = close(period = agg) - (max_high + min_low) / 2;
    def diff = max_high - min_low;

    def avgrel = ExpAverage(ExpAverage(rel_diff, percentDLength), percentDLength);
    def avgdiff = ExpAverage(ExpAverage(diff, percentDLength), percentDLength);

    plot SMI = if avgdiff != 0 then avgrel / (avgdiff / 2) * 100 else 0;
    SMI.SetDefaultColor(GetColor(1));

    plot AvgSMI = ExpAverage(SMI, percentDLength);
    AvgSMI.SetDefaultColor(GetColor(5));

    plot overbought = over_bought;
    overbought.SetDefaultColor(GetColor(5));

    plot oversold = over_sold;
    oversold.SetDefaultColor(GetColor(5));
}

def smi1 = smi(agg = "MIN");
def smi2 = smi(agg = "THREE_MIN");
def smi3 = smi(agg = "FIVE_MIN");

def ob = smi1 > 40 and smi2 > 40 and smi3 > 40;
def os = smi1 < -40 and smi2 < -40 and smi3 < -40;

AddLabel(1, "SMI " + if ob
                     then "OverBought"
                     else if os
                     then "OverSold"
                     else "Neutral",
                     if ob
                     then Color.RED
                     else if os
                     then Color.GREEN
                     else Color.WHITE);


input alerts = yes;
Alert(!os[1] and os or !ob[1] and ob, "SMI" , Alert.BAR, Sound.Ding);
#



[themainman]

You're welcome! I do this because I like to.

Here is revised script with alert option

Thank you so much! The label is working as intended, much appreciated!!



[MFitz73]

just checking back on this and I have to say that @SleepyZ has opened an entire new world for me in terms of both scripts and also trading. I'm using the longer time frame information to help my scalping in the shorter time frame
window.
It's really great. thanks a lot!



[Cloudwood]

This code uses the script function to create the smi for each timeframe.

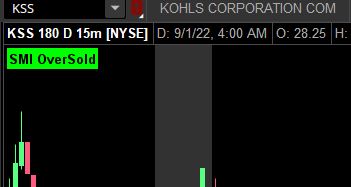

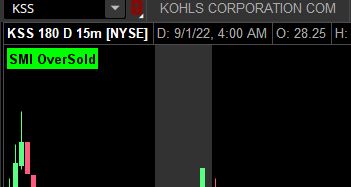

View attachment 3492

script smi{
input agg = aggregationPeriod.MIN;
input over_bought = 40.0;
input over_sold = -40.0;
input percentDLength = 3;
input percentKLength = 5;

def min_low = lowest(low, percentKLength);
def max_high = highest(high, percentKLength);
def rel_diff = close - (max_high + min_low)/2;
def diff = max_high - min_low;

def avgrel = expaverage(expaverage(rel_diff, percentDLength), percentDLength);
def avgdiff = expaverage(expaverage(diff, percentDLength), percentDLength);

plot SMI = if avgdiff != 0 then avgrel / (avgdiff / 2) * 100 else 0;
smi.setDefaultColor(getColor(1));

plot AvgSMI = expaverage(smi, percentDLength);
avgsmi.setDefaultColor(getcolor(5));

plot overbought = over_bought;
overbought.setDefaultColor(getcolor(5));

plot oversold = over_sold;
oversold.setDefaultColor(getcolor(5));
}

def smi1 = smi(agg = "MIN");
def smi2 = smi(agg = "THREE_MIN");
def smi3 = smi(agg = "FIVE_MIN");

addlabel(1, "SMI " + if smi1>40 and smi2>40 and smi3>40
                     then "OverBought"
                     else if smi1<-40 and smi2<-40 and smi3<-40
                     then "OverSold"
                     else "Neutral",
                     if smi1>40 and smi2>40 and smi3>40
                     then color.red
                     else if smi1<-40 and smi2<-40 and smi3<-40
                     then color.green
                     else color.white);

Thank you so much! The label is working as intended, much appreciated!!

Hi, the code is great. Seems like you don't have a problem, but one quick note is that you can't reference a lower timeframe in a study on a chart with a higher timeframe. Eg, if the chart timeframe is 15 minutes, the minimum aggregation period you could use in the study would be 15 minutes, while, say, a 5 min, 3 min or 1 min agg period would produce NA. To use 5,3 and 1 min agg periods in a study, then the chart timeframe should be 1 min. (You can reference higher timeframes than the chart in a study, eg, you can use a 5 min agg period in a study on a 1 min chart) Hope this is helpful.
