High/Low Anchored VWAP For ThinkOrSwim

[PAYtience]

The following code allows you to choose a range or the chart timeframe for the anchor to the high/low.

For a 6 month period on a daily chart, including today, then choose method as chart and chart timeframe setting as 6 months from the dropdown


For a user defined range, choose method as range and input the period_begin and period_end
Image is period from 0701/2024 through 12/31/2024

Code for above

Thanks a lot @SleepyZ



[rocketlightspeed]

@samer800 and/or @SleepyZ, can you add an option where we can anchor a HOD vwap and LOD vwap on a specific date instead of counting how many days ago as an input? I would like to anchor a vwap on an intraday TF on days that have "RED FOLDER" economic events.

Thank you for any help you can provide.



[SleepyZ]

@samer800 and/or @SleepyZ, can you add an option where we can anchor a HOD vwap and LOD vwap on a specific date instead of counting how many days ago as an input? I would like to anchor a vwap on an intraday TF on days that have "RED FOLDER" economic events.

Thank you for any help you can provide.

The following link allows the input of dates. Select range and period begin and end for the date
https://usethinkscript.com/threads/high-low-anchored-vwap-for-thinkorswim.12720/post-152091

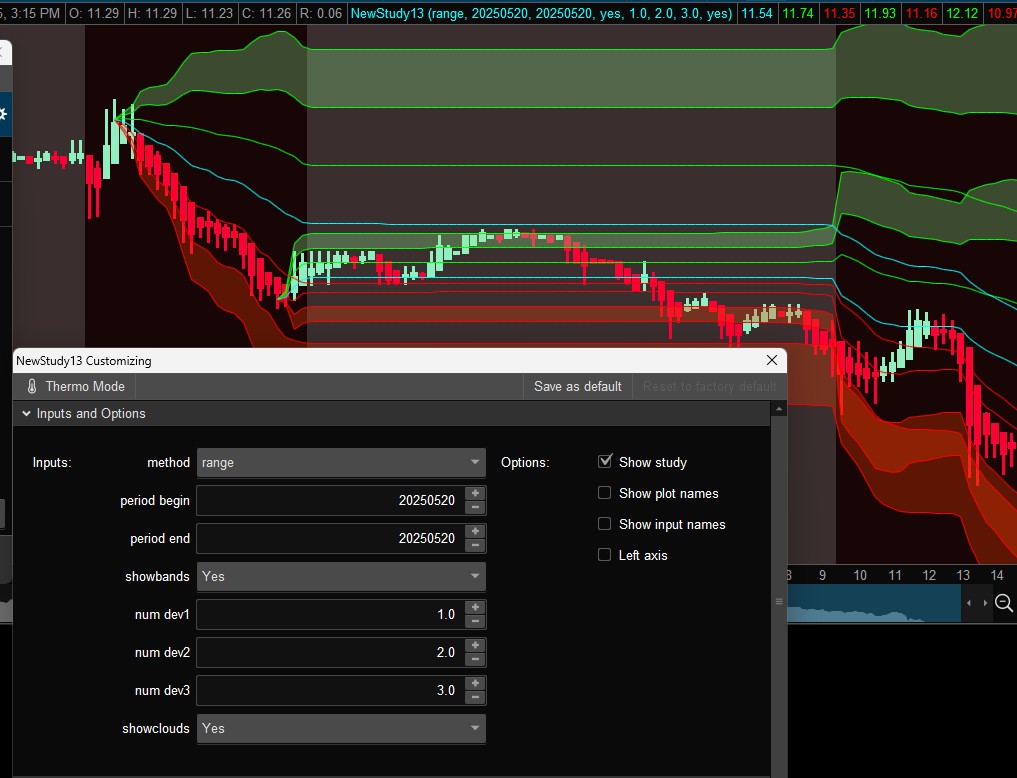

Image is for 5/20/2025 high/low anchored vwap



[rocketlightspeed]

The following link allows the input of dates. Select range and period begin and end for the date
https://usethinkscript.com/threads/high-low-anchored-vwap-for-thinkorswim.12720/post-152091

Image is for 5/20/2025 high/low anchored vwap

@SleepyZ as always thank you! I didn't realize you can do a single day range on that study. Sooo helpful!



[SleepyZ]

@SleepyZ as always thank you! I didn't realize you can do a single day range on that study. Sooo helpful!

Although what I posted above worked for my example, upon futher testing it failed in some instances.
So I have revised the script to work better.

#AnchoredVWAP_high_low

input method = {default chart, range};
input period_begin = 20240701;
input period_end   = 20241231;

def bn          = BarNumber();
def c           = close;
def v           = volume;
def vw          = vwap;
def anchorh;
def volumesumh;
def volumevwapsumh;
def volumevwap2sumh;
def priceh;
def deviationh;

def period_high = if GetYYYYMMDD()[1] < period_begin and GetYYYYMMDD() == period_begin then high else if GetYYYYMMDD() <= period_end and high > period_high[1] then high else period_high[1];

anchorh = if method == method.range and GetYYYYMMDD() <= period_end and high == period_high then bn else if method == method.chart and high == HighestAll(high) then bn else anchorh[1];

volumesumh      = if bn >= HighestAll(anchorh)  then volumesumh[1] + volume else 0;
volumevwapsumh  = if bn >= HighestAll(anchorh)  then volumevwapsumh[1] + volume * vwap else 0;
volumevwap2sumh = if bn >= HighestAll(anchorh)  then volumevwap2sumh[1] + volume * Sqr(vwap) else 0;
priceh          = volumevwapsumh / volumesumh;
deviationh      = Sqrt(Max(volumevwap2sumh / volumesumh - Sqr(priceh), 0));


plot VWAPh      = priceh;
VWAPh.SetDefaultColor(GetColor(0));

input showbands = yes;
input numDev1  = 1.0;
input numDev2  = 2.0;
input numDev3  = 3.0;

plot UpperBand1  = if !showbands then Double.NaN else VWAPh + numDev1 * deviationh;
plot LowerBand1  = if !showbands then Double.NaN else VWAPh - numDev1 * deviationh;
plot UpperBand2  = if !showbands then Double.NaN else VWAPh + numDev2 * deviationh;
plot LowerBand2  = if !showbands then Double.NaN else VWAPh - numDev2 * deviationh;
plot UpperBand3  = if !showbands then Double.NaN else VWAPh + numDev3 * deviationh;
plot LowerBand3  = if !showbands then Double.NaN else VWAPh - numDev3 * deviationh;

VWAPh.SetDefaultColor(Color.CYAN);
UpperBand1.SetDefaultColor(Color.GREEN);
LowerBand1.SetDefaultColor(Color.RED);
UpperBand2.SetDefaultColor(Color.GREEN);
LowerBand2.SetDefaultColor(Color.RED);
UpperBand3.SetDefaultColor(Color.GREEN);
LowerBand3.SetDefaultColor(Color.RED);
VWAPh.HideBubble();
UpperBand1.HideBubble();
LowerBand1.HideBubble();
UpperBand2.HideBubble();
LowerBand2.HideBubble();
UpperBand3.HideBubble();
LowerBand3.HideBubble();

input showclouds = yes;
AddCloud(if showclouds then UpperBand3 else Double.NaN, UpperBand2, Color.LIGHT_GREEN, Color.LIGHT_GREEN);
AddCloud(if showclouds then LowerBand3 else Double.NaN, LowerBand2, Color.LIGHT_RED, Color.LIGHT_RED);

#Lowest Low of Chart
def anchor1;
def volumesum1;
def volumevwapsum1;
def volumevwap2sum1;
def price1;
def deviation1;

def period_low = if GetYYYYMMDD()[1] < period_begin and GetYYYYMMDD() == period_begin then low else if GetYYYYMMDD() <= period_end and low < period_low[1] then low else period_low[1];

anchor1 = if method == method.range and GetYYYYMMDD() <= period_end and low == period_low then bn else if method == method.chart and low == LowestAll(low) then bn else anchor1[1];

volumesum1      = if bn >= HighestAll(anchor1)  then volumesum1[1] + volume else 0;
volumevwapsum1  = if bn >= HighestAll(anchor1)  then volumevwapsum1[1] + volume * vwap else 0;
volumevwap2sum1 = if bn >= HighestAll(anchor1)  then volumevwap2sum1[1] + volume * Sqr(vwap) else 0;
price1          = volumevwapsum1 / volumesum1;
deviation1      = Sqrt(Max(volumevwap2sum1 / volumesum1 - Sqr(price1), 0));


plot VWAP1      = price1;
VWAP1.SetDefaultColor(GetColor(0));

plot UpperBand11  = if !showbands then Double.NaN else VWAP1 + numDev1 * deviation1;
plot LowerBand11  = if !showbands then Double.NaN else VWAP1 - numDev1 * deviation1;
plot UpperBand21  = if !showbands then Double.NaN else VWAP1 + numDev2 * deviation1;
plot LowerBand21  = if !showbands then Double.NaN else VWAP1 - numDev2 * deviation1;
plot UpperBand31  = if !showbands then Double.NaN else VWAP1 + numDev3 * deviation1;
plot LowerBand31  = if !showbands then Double.NaN else VWAP1 - numDev3 * deviation1;

VWAP1.SetDefaultColor(Color.CYAN);
UpperBand11.SetDefaultColor(Color.GREEN);
LowerBand11.SetDefaultColor(Color.RED);
UpperBand21.SetDefaultColor(Color.GREEN);
LowerBand21.SetDefaultColor(Color.RED);
UpperBand31.SetDefaultColor(Color.GREEN);
LowerBand31.SetDefaultColor(Color.RED);
VWAP1.HideBubble();
UpperBand11.HideBubble();
LowerBand11.HideBubble();
UpperBand21.HideBubble();
LowerBand21.HideBubble();
UpperBand31.HideBubble();
LowerBand31.HideBubble();


AddCloud(if showclouds then UpperBand31 else Double.NaN, UpperBand21, Color.LIGHT_GREEN, Color.LIGHT_GREEN);
AddCloud(if showclouds then LowerBand31 else Double.NaN, LowerBand21, Color.LIGHT_RED, Color.LIGHT_RED);

;
