Cumulative Delta Volume Pressure - Mod by Sam4Cok for ThinkOrSwim

[samer800]

does this repaint? or will the shaded green/red area change or pop up after its already passed the candle?

shades on TOS need to confirm more than one candle in order to plot the color



[mtlyon23]

shades on TOS need to confirm more than one candle in order to plot the color

Okay cool. So if it’s on a 5min time frame. The shaded green/red could change up to 2 candles or 10min period then?



[IPA]

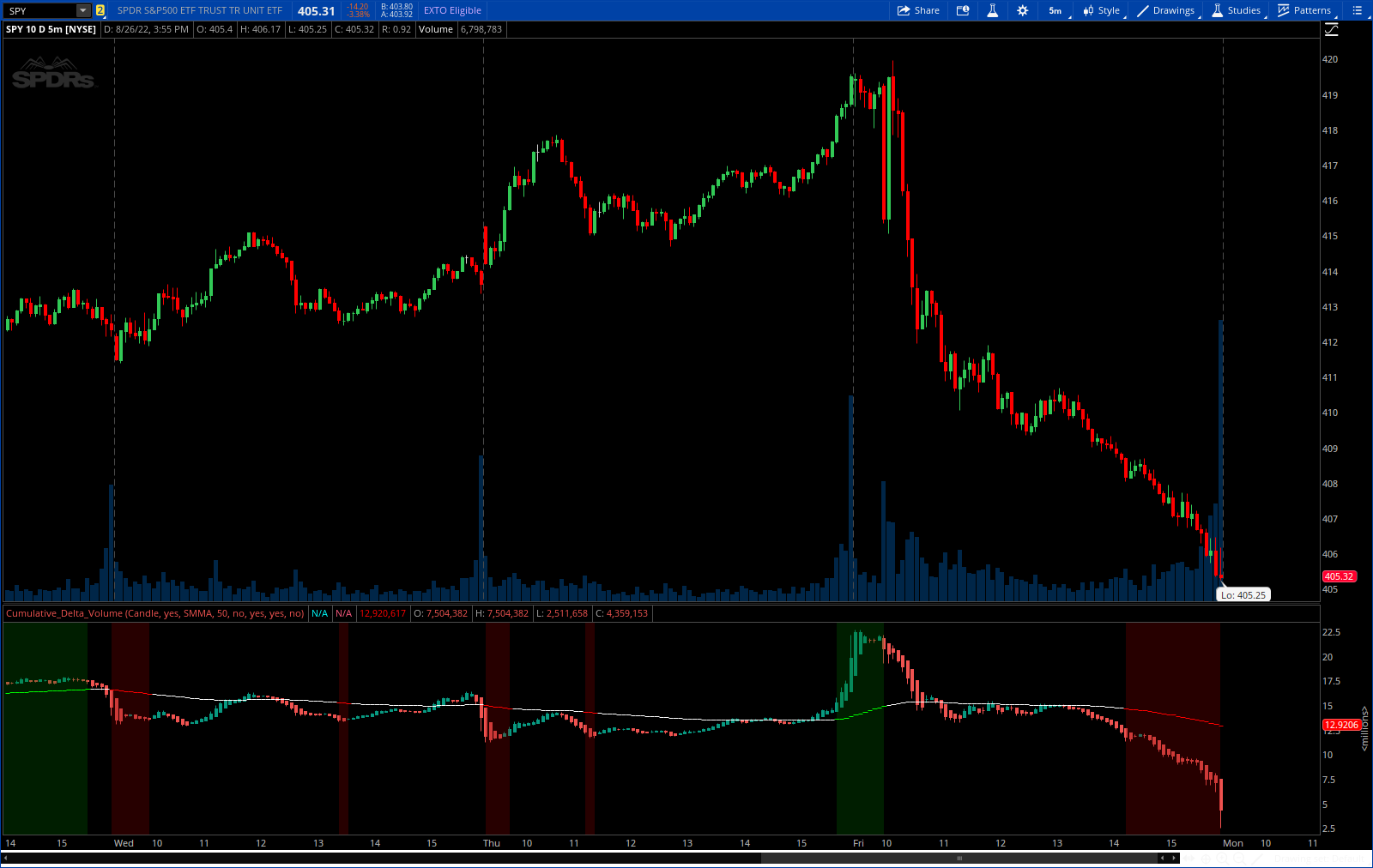

This is Cumulative Delta Volume script based on LonesomeTheBlue script. I added multiple options to identify the trend based on the standard deviation and moving average. You can use it along with your strategy to confirm the entry and exit referring to the delta volume (the difference between buying and selling volume at each price level.

CODE:

#study("Cumulative Delta Volume", "CDV")
#https://www.tradingview.com/script/vB1T3EMp-Cumulative-Delta-Volume/
# Created based on LonesomeTheBlue code link above - Sam4Cok @ 08/2022

declare lower;
input linestyle = {default Candle, Line};
input HeikinAshi = yes; #"Heikin Ashi Candles?")
input maType    =  {default "SMMA", "SMA", "HMA", "EMA", "WMA"};
input maLength  = 50;   #"MA Length"
input BarColor = no;
input BackgroundColor = yes;
input ShowMovAvg = yes;
input ShowBand = no;

def na = Double.NaN;

###############
script nz {
    input data         = 0;
    input replacement  = 0;
    def ret_val = if IsNaN(data) then replacement else data;
    plot return = ret_val;
}
#ma(source, length, type) =>
script ma {
    input source = close;
    input length = 0;
    input type   = "SMA";
    def ma;
ma = if type == "SMA" then SimpleMovingAvg(source, length) else
     if type == "EMA" then ExpAverage(source, length) else
     if type == "WMA" then WMA(source, length) else
     if type == "HMA" then WMA(2 * WMA(source, length / 2) - WMA(source, length), Round(Sqrt(length)))
       else if isNaN(ma[1]) then SimpleMovingAvg(source, length) else
             (ma[1] * (length - 1) + source) / length;
    plot result = ma;
}
#_rate(cond) =>
script _rate {
    input cond = 1;
    def criteria = if cond == 1 then open <= close else open > close;
    def tw = high - Max(open, close) ;
    def bw = Min(open, close) - low;
    def body = AbsValue(close - open);
    def ret  = 0.5 * (tw + bw + (if criteria then 2 * body else 0)) / (tw + bw + body);
    def rate = if nz(ret) == 0 then 0.5 else ret;
    plot Result = rate;
}
def deltaup   = volume * _rate(1);
def deltadown = volume * _rate(0);
def delta     = if close >= open then deltaup else -deltadown;
def cumdelta  = TotalSum(delta);

def o;
def h;
def l;
def c;
def ctl;

if linestyle == linestyle.Candle
then {
    o = cumdelta[1];
    h = Max(cumdelta, cumdelta[1]);
    l = Min(cumdelta, cumdelta[1]);
    c = cumdelta;
    ctl = na;
} else {
    o = na;
    h = na;
    l = na;
    c = na;
    ctl = cumdelta;
}
def LineClose = ExpAverage((cumdelta[1] + Max(cumdelta, cumdelta[1]) + Min(cumdelta, cumdelta[1]) + cumdelta) / 4, 5);
def LineOpen = ExpAverage(if IsNaN(LineOpen[1]) then (cumdelta[1] + cumdelta) / 2 else (LineOpen[1] + LineClose[1]) / 2, 5);

plot Line = ctl;
Line.AssignValueColor( if LineClose >= LineOpen then CreateColor(8,153,129) else
                       if LineClose < LineOpen  then CreateColor(239, 83, 80) else Color.GRAY);
Line.SetLineWeight(2);

##############
def _Close = (o + h + l + c) / 4;
def _Open = if IsNaN(_Open[1]) then (o + c) / 2 else (_Open[1] + _Close[1]) / 2;
def _High = Max(Max(h, _Open), _Close);
def _Low = Min(Min(l, _Open), _Close);

def haClose = if HeikinAshi then _Close else c;
def haOpen  = if HeikinAshi then _Open  else o;
def haHigh  = if HeikinAshi then _High  else h;
def haLow   = if HeikinAshi then _Low   else l;

def Color = if haClose >= haOpen then 1 else -1;

# Plot UP candle

def UpO;
def UpH;
def UpL;
def UpC;

if Color > 0
then {
    UpO = haOpen ;
    UpH = haHigh ;
    UpL = haLow ;
    UpC = haClose;
} else
{
    UpO = na;
    UpH = na;
    UpL = na;
    UpC = na;
}
# Plot DOWN candle
def DnO;
def DnH;
def DnL;
def DnC;
if Color < 0
then {
    DnO = haOpen ;
    DnH = haHigh ;
    DnL = haLow ;
    DnC = haClose;
} else
{
    DnO = na;
    DnH = na;
    DnL = na;
    DnC = na;
}

# Plot the new Chart
AddChart(high = UpH , low = UpL , open = UpC,  close = UpO,
         type = ChartType.CANDLE, growcolor =  CreateColor(8,153,129));

AddChart(high = DnH , low = DnL , open = DnO,  close = DnC,
         type = ChartType.CANDLE, growcolor =  CreateColor(239, 83, 80));

## Plot MA Lines
plot AvgLine = ma(ctl, maLength, maType);
AvgLine.SetPaintingStrategy(PaintingStrategy.DASHES);
AvgLine.SetHiding(!ShowMovAvg);

plot HaAvgLine = ma(haClose, maLength, maType);
HaAvgLine.SetPaintingStrategy(PaintingStrategy.DASHES);
HaAvgLine.SetHiding(!ShowMovAvg);

### Band
def offs = (1.6185 * stdev(if linestyle == linestyle.Candle then haClose else ctl, maLength));
def upBand = (if linestyle == linestyle.Candle then HaAvgLine else AvgLine) + offs;
def dnBand = (if linestyle == linestyle.Candle then HaAvgLine else AvgLine) - offs;

def BandColor = if (if linestyle == linestyle.Candle then haClose else ctl) > upBand then 1 else
 if (if linestyle == linestyle.Candle then haClose else ctl) < dnBand then -1 else 0;

plot Oband = upBand;
Oband.AssignValueColor(if BandColor > 0 then Color.GREEN else
                       if BandColor < 0 then Color.RED else CreateColor(100, 181, 246));
Oband.SetHiding(!ShowBand);

plot Sband = dnBand;
sband.AssignValueColor(if BandColor > 0 then Color.GREEN else
                       if BandColor < 0 then Color.RED else CreateColor(100, 181, 246));
Sband.SetHiding(!ShowBand);

AvgLine.AssignValueColor(if BandColor > 0 then Color.GREEN else
                       if BandColor < 0 then Color.RED else Color.WHITE);
HaAvgLine.AssignValueColor(if BandColor > 0 then Color.GREEN else
                       if BandColor < 0 then Color.RED else Color.WHITE);

### Background
addCloud(if BackgroundColor then
if(if linestyle == linestyle.Candle then haClose else ctl) > Oband then Double.POSITIVE_INFINITY else if
(if linestyle == linestyle.Candle then haClose else ctl) < Sband then Double.NEGATIVE_INFINITY else na else na,
if(if linestyle == linestyle.Candle then haClose else ctl) > Oband then Double.NEGATIVE_INFINITY else if
(if linestyle == linestyle.Candle then haClose else ctl) < Sband then Double.POSITIVE_INFINITY else na, Color.DARK_GREEN, Color.DARK_RED);

### Bar Color
def Exup = if linestyle == linestyle.Candle then (color > 0 and BandColor > 0)
           else (LineClose >= LineOpen and BandColor > 0);
def up   = if linestyle == linestyle.Candle then (color > 0 and BandColor <= 0)
           else (LineClose >= LineOpen and BandColor <= 0) ;
def Exdn = if linestyle == linestyle.Candle then (color < 0 and BandColor < 0)
           else (LineClose < LineOpen and BandColor < 0);
def dn   = if linestyle == linestyle.Candle then (color < 0 and BandColor >= 0)
           else (LineClose < LineOpen and BandColor >= 0);

AssignPriceColor(if BarColor then
                 if Exup then Color.GREEN else
                 if up   then CreateColor(0,80,80) else
                 if dn   then CreateColor(117,0,14) else
                 if Exdn then Color.RED else Color.GRAY else Color.CURRENT);

### END

What doe time frame do and or change?
Changing that option didn't seem to do anything. I'll just leave it.



[samer800]

Changing that option didn't seem to do anything. I'll just leave it.

change the the time frame will reset the calculation period. if you select DAY, the volume calculation will be based on daily, and if you select monthly, the calculation will be on monthly and so on. the difference can be notices when your chart on higher timeframe.
trust this clarify.



[dmillz]

Hey Sameer Anyway to Change the background color to match the MA Pressure line its a Bar off.. Thanks!



[samer800]

Hey Sameer Anyway to Change the background color to match the MA Pressure line its a Bar off.. Thanks!

yes background (AddCloud) function in TOS need at least 2 confirmed candles to be plot
