Trend Indicator A-V2 (Smoothed Heikin Ashi Cloud) for ThinkOrSwim

samer800

Moderator - Expert
VIP
Lifetime

Author Message:
Trend Indicator A-V2" and "Trend Indicator B-V2" are updated and improved versions of trend indicators. Totally rethinking the code, adding highs and lows in the calculations, including some more customisation through colour schemes.

In practice, this indicator uses EMAs and Heikin Ashi to provide an overall idea of the trend.
  • The "Trend Indicator A-V2" is an overlay showing “Smoothed Heikin Ashi”.
  • The "Trend Indicator B-V2" uses the same values in a different way to measure the momentum of the trend and identify potential trend rejections.

Please, take into account that it is a lagging indicator.

CODE:

CSS:
# https://www.tradingview.com/v/DTDQ3y76/
#// Author | © Dziwne
#study(title="Trend Indicator A-V2.2 [Dziwne]", shorttitle="Trend Indicator A-V2.2 [Dziwne]"
# Converted by Sam4Cok@Samer800        - 04/2023
input ColorBars = no;
input ma_type = {SMA, EMA, SMMA, WMA, default VWMA, RMS, DEMA, TEMA, ZLSMA, ZLDEMA, ZLTEMA, McGinley, HMA, SWMA, Gaussian, KAMA, MAV, LSMA};                         # "MA Type"
input ma_period = 20;               # "MA Period (Length)"
input ma_period_smoothing = 7;      # "MA Period smoothing (Length)"
input Show_Signals = yes;
input show_High_Low_cloud = yes;    # "Show (cloud)"
input show_High_Low_Lines = no;     # "Show (High & Low Lines)"
input show_Open_Close_Lines = no;   # "Show (Open & Close Lines)"

def na = Double.NaN;

#Color
DefineGlobalColor("pos" , CreateColor(42, 182, 169));
DefineGlobalColor("neg" , CreateColor(237, 60, 57));

#rms(source, length)=>
script rms {
    input source = close;
    input length = 14;
    def rms = Sqrt(Sum(Power(source, 2), length) / length);
    plot return = rms;
}
#mav (source, length) =>
script mav {
    input source = close;
    input length = 14;
    def mav = ((SimpleMovingAvg(source, length)[1] * (length - 1)) + source) / length;
    plot return = mav;
}
#kama(xPrice, Length)=>
script kama {
    input xPrice = close;
    input Length = 14;
    def xvnoise = AbsValue(xPrice - xPrice[1]);
    def nfastend = 0.666;
    def nslowend = 0.0645;
    def nsignal = AbsValue(xPrice - xPrice[Length]);
    def nnoise = Sum(xvnoise, Length);
    def nefratio = if nnoise != 0 then nsignal / nnoise else 0;
    def nsmooth = Power(nefratio * (nfastend - nslowend) + nslowend, 2);
    def nAMA;
    nAMA = CompoundValue(1, nAMA[1] + nsmooth * (xPrice - nAMA[1]), xPrice);
    plot returen = nAMA;
}
#Gaussianma(values, length) =>
script Gaussian {
    input values = close;
    input length = 20;
    def stddev = length / 4;
    def indices = length - 1;
    def weights = Exp(-0.5 * (Power((indices - length), 2) / Power(stddev, 2)));
    def sum = Sum(values * weights, length);
    def gMA = sum / Sum(weights, length);
    plot return = gMA;
}
#export zlSma(float src, simple int len) =>
script zlSma {
    input src = close;
    input len = 14;
    def lsma = Inertia(src, len);
    def lsma2 = Inertia(lsma, len);
    def eq = lsma - lsma2;
    def zlsma = lsma + eq;
    plot return = zlsma;
}
#export zlDema(float src, simple int len) =>
script zlDema {
    input src = close;
    input len = 14;
    def zdema1 = ExpAverage(src, len);
    def zdema2 = ExpAverage(zdema1, len);
    def dema1 = 2 * zdema1 - zdema2;
    def zdema12 = ExpAverage(dema1, len);
    def zdema22 = ExpAverage(zdema12, len);
    def zldema = 2 * zdema12 - zdema22;
    plot return = zldema;
}
#export zlTema(float src, simple int len) =>
script zlTema {
    input src = close;
    input len = 14;
    def ema1 = ExpAverage(src, len);
    def ema2 = ExpAverage(ema1, len);
    def ema3 = ExpAverage(ema2, len);
    def tema1 = 3 * (ema1 - ema2) + ema3;
    def ema1a = ExpAverage(tema1, len);
    def ema2a = ExpAverage(ema1a, len);
    def ema3a = ExpAverage(ema2a, len);
    def zltema = 3 * (ema1a - ema2a) + ema3a;
    plot return = zltema;
}
#export multiMa(float source, simple int length, string type) =>
script f_ma_type {
    input type = "SMA";
    input source = close;
    input length = 14;
    def w = WMA(source, length);
    def swma = source[3] * 1 / 6 + source[2] * 2 / 6 +  source[1] * 2 / 6 + source[0] * 1 / 6;
    def mg;
    def t = ExpAverage(source, length);
    mg = CompoundValue(1 , if IsNaN(mg[1]) then t else mg[1] + (source - mg[1]) / (length * Power(source / mg[1], 4)), t);
    def v = if volume==0 or isNaN(volume) then 1 else volume;
    def VWMA = SimpleMovingAvg(source * v, length) / SimpleMovingAvg(v, length);
    def multiMa =
        if type == "SMA"    then SimpleMovingAvg(source, length) else
        if type == "EMA"    then ExpAverage(source, length) else
        if type == "SMMA"   then CompoundValue(1, if IsNaN(w[1]) then Average(source, length) else
                                 (w[1] * (length - 1) + source) / length,  Average(source, length)) else
        if type == "WMA"    then WMA(source, length) else
        if type == "KAMA"   then KAMA(source, length) else
        if type == "MAV"    then MAV(source, length) else
        if type == "VWMA"   then VWMA else
        if type == "DEMA"   then DEMA(source, length) else
        if type == "TEMA"   then TEMA(source, length) else
        if type == "LSMA"   then Inertia(source, length) else
        if type == "RMS"    then RMS(source, length) else
        if type == "ZLSMA"  then zlSma(source, length) else
        if type == "ZLDEMA" then zlDema(source, length) else
        if type == "ZLTEMA" then zlTema(source, length) else
        if type == "McGinley" then mg else
        if type == "SWMA"   then swma else
        if type == "Gaussian"   then Gaussian(source, length) else
        if type == "HMA"    then  HullMovingAvg(source, length ) else Double.NaN;
    plot return = multiMa;
}
#// II.1. Calculations, MA
def o = f_ma_type(ma_type, open, ma_period);
def c = f_ma_type(ma_type, close, ma_period);
def h = f_ma_type(ma_type, high, ma_period);
def l = f_ma_type(ma_type, low, ma_period);

def ha_C = (o + h + l + c) / 4;
def ha_O = CompoundValue(1, (ha_O[1] + ha_C[1]) / 2, (o[1] + c[1]) / 2);
def ha_H = Max(Max(h, ha_O), ha_C);
def ha_L = Min(Min(l, ha_O), ha_C);

#// II.3. Calculations, MA (Smoothing)

def ha_o_smooth = f_ma_type(ma_type, ha_O, ma_period_smoothing);
def ha_c_smooth = f_ma_type(ma_type, ha_C, ma_period_smoothing);
def ha_h_smooth = f_ma_type(ma_type, ha_H, ma_period_smoothing);
def ha_l_smooth = f_ma_type(ma_type, ha_L, ma_period_smoothing);

#// III.1. Display, Colors

def trend = ha_c_smooth >= ha_o_smooth;
def o_line = ha_o_smooth;        # "Open line"
def c_line = ha_c_smooth;        # "Close line"

def h_line = if show_High_Low_cloud then ha_h_smooth else na;        # "High line"
def l_line = if show_High_Low_cloud then ha_l_smooth else na;        # "Low line"
AddCloud(c_line, o_line, GlobalColor("pos"), GlobalColor("neg"), show_Open_Close_Lines);
AddCloud(h_line, l_line, Color.DARK_GRAY, Color.DARK_GRAY, show_High_Low_Lines);

def crossUp = if (c_line>o_line and close > h_line) then crossUp[1]+1 else 0;
def crossDn = if (c_line<o_line and close < l_line) then crossDn[1]+1 else 0;

plot WedgUp = if Show_Signals and crossUp==2 then low else na;
plot WedgDn = if Show_Signals and crossDn==2 then high else na;
WedgUp.SetPaintingStrategy(PaintingStrategy.BOOLEAN_WEDGE_DOWN);
WedgDn.SetPaintingStrategy(PaintingStrategy.BOOLEAN_WEDGE_UP);
WedgUp.SetDefaultColor(Color.CYAN);
WedgDn.SetDefaultColor(Color.MAGENTA);

AssignPriceColor(if !ColorBars then Color.CURRENT else
                 if trend then Color.GREEN else Color.RED);

#-- Close of CODE

Last edited by a moderator:

Join useThinkScript to post your question to a community of 21,000+ developers and traders.

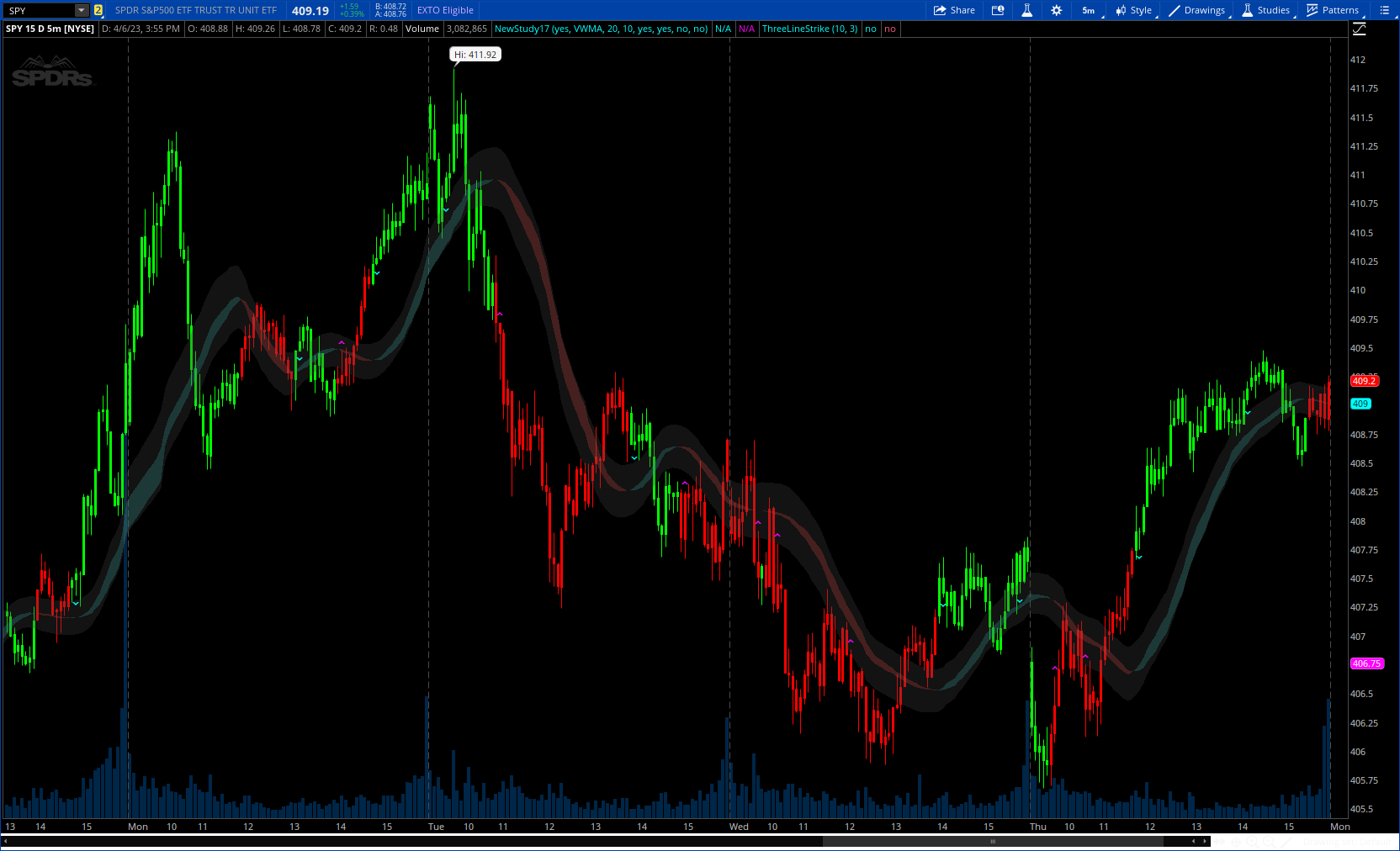

View attachment 18306
