Plot line at the low of consecutive green candle

SJP07

Member
I need help fixing my code that currently plots a horizontal line under each green candle. I want it to only show a line at the low of each consecutive green candle.

input length = 1;

def isUpCloseCandle = close > open;

plot UpCloseLine = if isUpCloseCandle
then low
else double.nan;

UpCloseLine.SetDefaultColor(color.Green);
UpCloseLine.SetPaintingStrategy(PaintingStrategy.HORIZONTAL);
UpCloseLine.SetLineWeight(1);

I need help fixing my code that currently plots a horizontal line under each green candle. I want it to only show a line at the low of each consecutive green candle.

input length = 1;

def isUpCloseCandle = close > open;

plot UpCloseLine = if isUpCloseCandle
then low
else double.nan;

UpCloseLine.SetDefaultColor(color.Green);
UpCloseLine.SetPaintingStrategy(PaintingStrategy.HORIZONTAL);
UpCloseLine.SetLineWeight(1);

This might do what you want to happen.

Screenshot 2023-10-05 092916.png
Code:
input length = 1;

def isUpCloseCandle = close > open;

plot UpCloseLine = if isUpCloseCandle and isupcloseCandle[1]
then low
else double.nan;

UpCloseLine.SetDefaultColor(color.Green);
UpCloseLine.SetPaintingStrategy(PaintingStrategy.HORIZONTAL);
UpCloseLine.SetLineWeight(1);

Thanks. This is very close to what I'm looking for, but not quite it.
I've included a screenshot as a

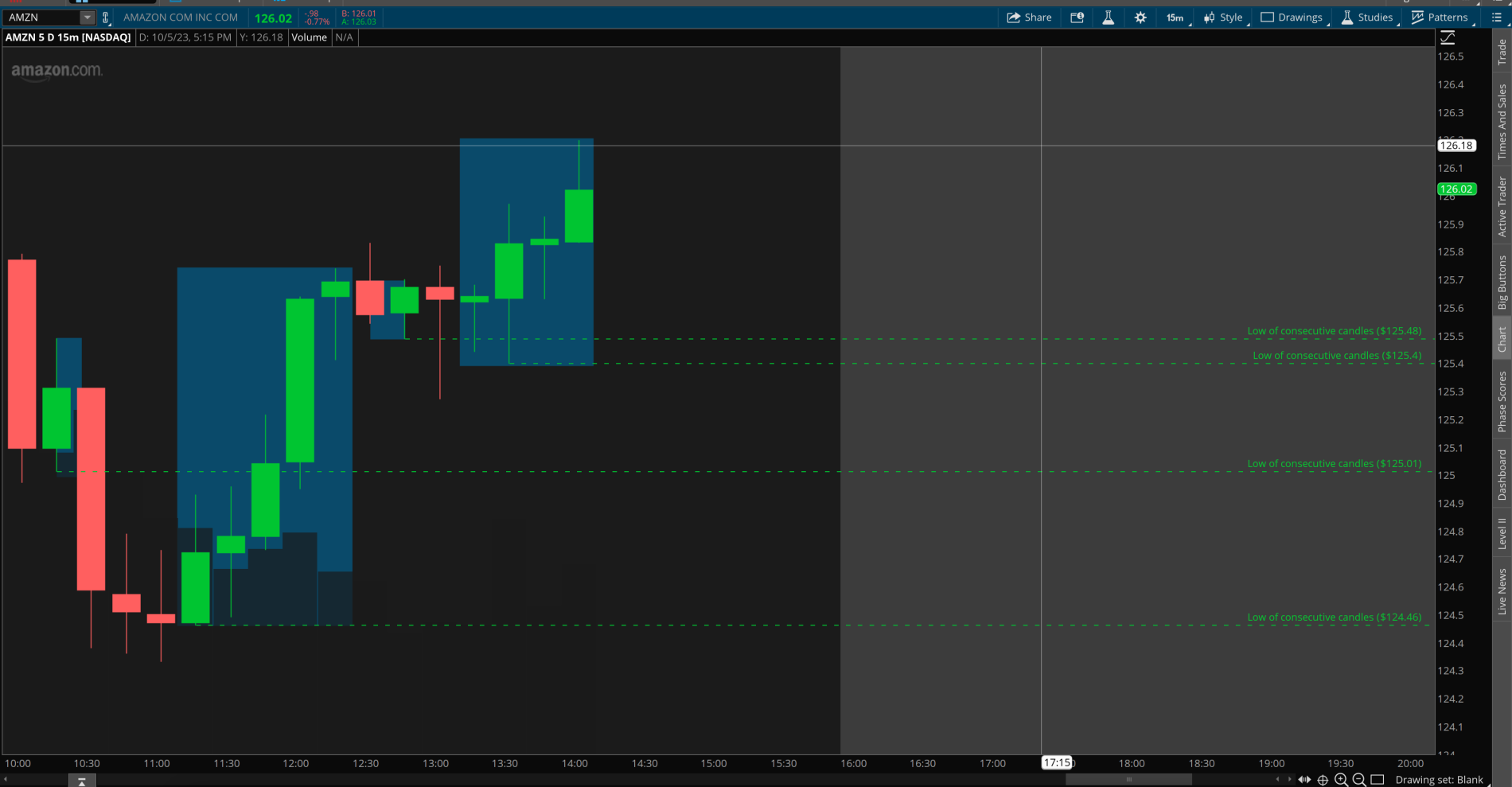

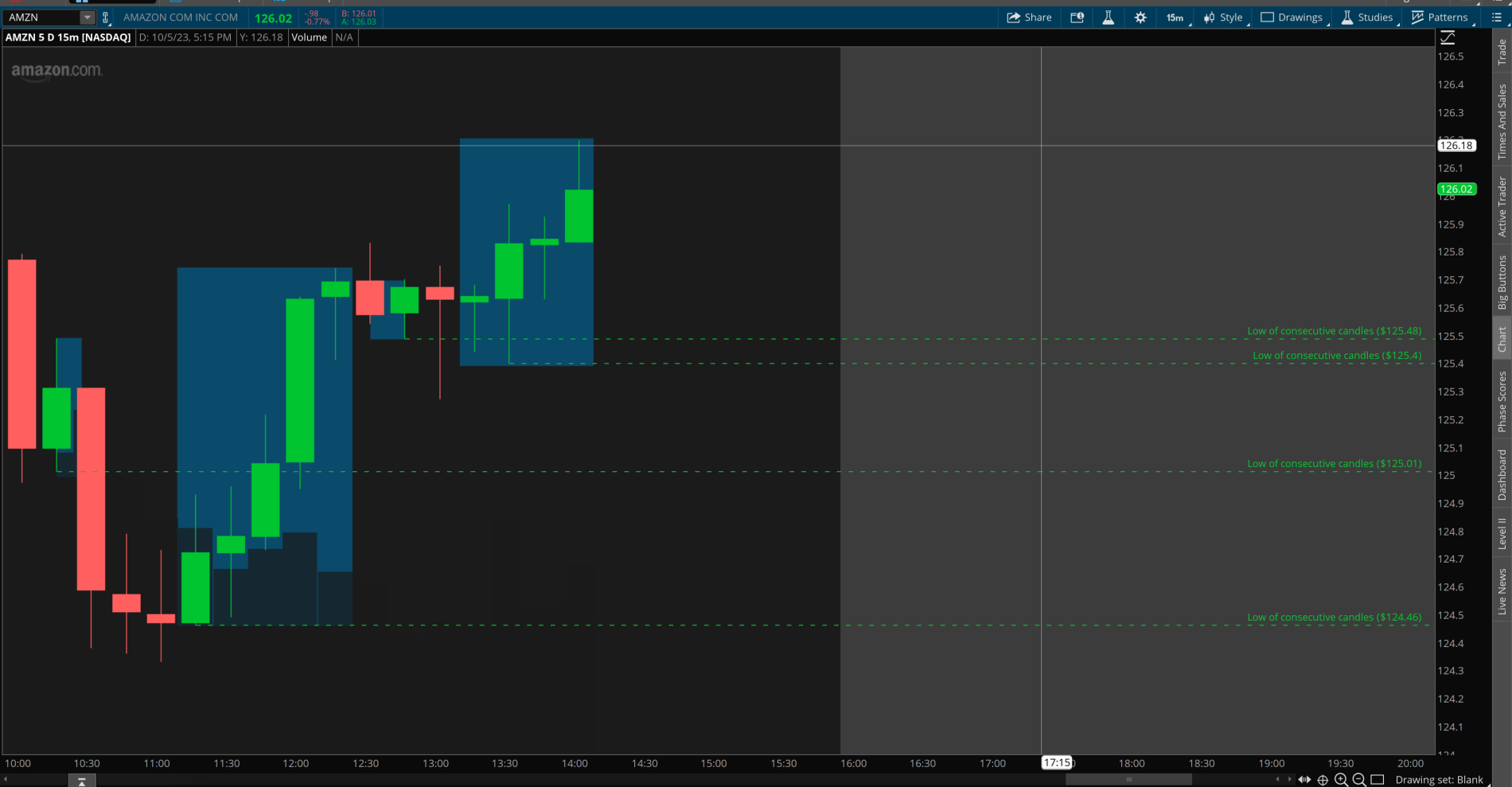

Screenshot 2023-10-05 at 2.15.41 PM.png
reference. I'd like it to show the last five occurrences and for the lines to extend.

Thanks. This is very close to what I'm looking for, but not quite it.
I've included a screenshot as a View attachment 19873reference. I'd like it to show the last five occurrences and for the lines to extend.

This looks like it might be what you want.

Screenshot 2023-10-19 153004.png
Code:
def isUpCloseCandle = close > open;
def count     = if !isUpCloseCandle
                then 0 else
                if !isUpCloseCandle[2] and isUpCloseCandle[1] and isUpCloseCandle and low[1] > low
                then 2 else
                if !isUpCloseCandle[1] and isUpCloseCandle and count[1] == 0
                then 1
                else 0;
def lowlength = if count == 2
                then low else
                if count[-1] != 2 and count == 1
                then low
                else lowlength[1];

input test = no;
AddChartBubble(test and between(count,1,2),low, count, Color.YELLOW, no);


def candles  = !IsNaN(close);
def capture  = candles and lowlength != lowlength[1];
def xCount   = CompoundValue(1, if capture then xCount[1] + 1 else xCount[1], 0);
def x        = (HighestAll(xCount) - xCount) + 1;

def upclose1  = if IsNaN(lowlength)
                then upclose1[1] else
                if x == 1
                then lowlength
                else upclose1[1];
plot u1 = upclose1;
u1.SetDefaultColor(Color.GREEN);
u1.SetPaintingStrategy(PaintingStrategy.DASHES);
u1.SetLineWeight(1);

def upclose2  = if IsNaN(lowlength)
                then upclose2[1] else
                if x == 2
                then lowlength
                else upclose2[1];
plot u2 = upclose2;
u2.SetDefaultColor(Color.GREEN);
u2.SetPaintingStrategy(PaintingStrategy.DASHES);
u2.SetLineWeight(1);

def upclose3  = if IsNaN(lowlength)
                then upclose3[1] else
                if x == 3
                then lowlength
                else upclose3[1];
plot u3 = upclose3;
u3.SetDefaultColor(Color.GREEN);
u3.SetPaintingStrategy(PaintingStrategy.DASHES);
u3.SetLineWeight(1);

def upclose4  = if IsNaN(lowlength)
                then upclose4[1] else
                if x == 4
                then lowlength
                else upclose4[1];
plot u4 = upclose4;
u4.SetDefaultColor(Color.GREEN);
u4.SetPaintingStrategy(PaintingStrategy.DASHES);
u4.SetLineWeight(1);

def upclose5  = if IsNaN(lowlength)
                then upclose5[1] else
                if x == 5
                then lowlength
                else upclose5[1];
plot u5 = upclose5;
u5.SetDefaultColor(Color.GREEN);
u5.SetPaintingStrategy(PaintingStrategy.DASHES);
u5.SetLineWeight(1);

defineGlobalColor("L", color.yellow);
input bubbles = yes;
input bubblemover = 3;
def b=bubblemover;
def b1=b+1;
addchartBubble(bubbles and isnan(close[b]) and !isnan(close[b1]), upclose1[b1], "Low 1:  " + asdollars(upclose1[b1]), globalColor("L"));
addchartBubble(bubbles and isnan(close[b]) and !isnan(close[b1]), upclose2[b1], "Low 2:  " + asdollars(upclose2[b1]), globalColor("L"));
addchartBubble(bubbles and isnan(close[b]) and !isnan(close[b1]), upclose3[b1], "Low 3:  " + asdollars(upclose3[b1]), globalColor("L"));
addchartBubble(bubbles and isnan(close[b]) and !isnan(close[b1]), upclose4[b1], "Low 4:  " + asdollars(upclose4[b1]), globalColor("L"));
addchartBubble(bubbles and isnan(close[b]) and !isnan(close[b1]), upclose5[b1], "Low 5:  " + asdollars(upclose5[b1]), globalColor("L"));

#
