# Moving Averages With Unwanted Signals.

#### renydiver

##### New member
Hello guys, I am working on a custom indicator based on moving averages and I need a little help getting rid of unwanted signals. Basically what I need is a way for the indicator to print only the first arrow(signal) when a trend is changing direction. Thank you so much for any help in advanced.
Ruby:
``````#Upper Line

input numDevUp = 0.10;
input numDevDn = -0.10;
input priceup = close;
input lengthup = 3;
input AverageType = AverageType.EXPONENTIAL;

def uptmp1 = if priceup > priceup[1] then priceup - priceup[1] else 0;
def uptmp2 = if priceup[1] > priceup then priceup[1] - priceup else 0;
def upd2 = sum(uptmp1, lengthup);
def upd4 = sum(uptmp2, lengthup);
def upcond = upd2 + upd4 == 0;
def upad3 = if upcond then 0 else (upd2 - upd4) / (upd2 + upd4) * 100;
def upcoeff = 2 / (lengthup + 1) * AbsValue(upad3) / 100;
def upasd = compoundValue("visible data" = upcoeff * priceup + (if IsNaN(upasd[1]) then 0 else upasd[1]) * (1 - upcoeff), "historical data" = priceup
);
plot VMAUP = MovingAverage (AverageType, upasd + numDevUp, LengthUP);
VMAUP.setDefaultColor(GetColor(5));

#Lower Line

input pricedn = close;
input lengthdn = 3;

def dntmp1 = if pricedn > pricedn[1] then pricedn - pricedn[1] else 0;
def dntmp2 = if pricedn[1] > pricedn then pricedn[1] - pricedn else 0;
def dnd2 = sum(dntmp1, lengthdn);
def dnd4 = sum(dntmp2, lengthdn);
def dncond = dnd2 + dnd4 == 0;
def dnad3 = if dncond then 0 else (dnd2 - dnd4) / (dnd2 + dnd4) * 100;
def dncoeff = 2 / (lengthdn + 1) * AbsValue(dnad3) / 100;
def dnasd = compoundValue("visible data" = dncoeff * pricedn + (if IsNaN(dnasd[1]) then 0 else dnasd[1]) * (1 - dncoeff), "historical data" = pricedn
);
plot VMADN = MovingAverage (AverageType, dnasd + NumDevDn, LengthDN);

#Center Signal Trigger

input priceT = close;
input lengthT = 1;

def Ttmp1 = if priceT > priceT[1] then priceT - priceT[1] else 0;
def Ttmp2 = if priceT[1] > priceT then priceT[1] - priceT else 0;
def Td2 = sum(Ttmp1, lengthT);
def Td4 = sum(Ttmp2, lengthT);
def Tcond = Td2 + Td4 == 0;
def Tad3 = if Tcond then 0 else (Td2 - Td4) / (Td2 + Td4) * 100;
def Tcoeff = 2 / (lengthT + 1) * AbsValue(Tad3) / 100;
def Tasd = compoundValue("visible data" = Tcoeff * priceT + (if IsNaN(Tasd[1]) then 0 else Tasd[1]) * (1 - Tcoeff), "historical data" = priceT
);
plot VMAT = Tasd;
VMAT.setDefaultColor(GetColor(3));

# Signal

input showBreakoutSignals = no;

plot UpSignal = VMAT crosses above VMAUP;
plot DownSignal = VMAT crosses below VMADN;

UpSignal.SetHiding(!showBreakoutSignals);
DownSignal.SetHiding(!showBreakoutSignals);

UpSignal.SetDefaultColor(Color.UPTICK);
UpSignal.SetPaintingStrategy(PaintingStrategy.BOOLEAN_ARROW_UP);
DownSignal.SetDefaultColor(Color.DOWNTICK);
DownSignal.SetPaintingStrategy(PaintingStrategy.BOOLEAN_ARROW_DOWN);

Last edited by a moderator:
Solution
@renydiver
Code:
``````#Upper Line

input numDevUp = 0.10;
input numDevDn = -0.10;
input priceup = close;
input lengthup = 3;
input AverageType = AverageType.EXPONENTIAL;

def uptmp1 = if priceup > priceup[1] then priceup - priceup[1] else 0;
def uptmp2 = if priceup[1] > priceup then priceup[1] - priceup else 0;
def upd2 = sum(uptmp1, lengthup);
def upd4 = sum(uptmp2, lengthup);
def upcond = upd2 + upd4 == 0;
def upad3 = if upcond then 0 else (upd2 - upd4) / (upd2 + upd4) * 100;
def upcoeff = 2 / (lengthup + 1) * AbsValue(upad3) / 100;
def upasd = compoundValue("visible data" = upcoeff * priceup + (if IsNaN(upasd[1]) then 0 else upasd[1]) * (1 - upcoeff), "historical data" = priceup
);
plot VMAUP = MovingAverage (AverageType, upasd +...``````
@renydiver It would appear that the script is doing exactly what you asked for. Given this is a trending indicator when there is sideways movement you will see a lot of arrows due to attempts to find trend.

Hello guys, I am working on a custom indicator based on moving averages and I need a little help getting rid of unwanted signals. Basically what I need is a way for the indicator to print only the first arrow(signal) when a trend is changing direction. Thank you so much for any help in advanced.
Ruby:
``````#Upper Line

input numDevUp = 0.10;
input numDevDn = -0.10;
input priceup = close;
input lengthup = 3;
input AverageType = AverageType.EXPONENTIAL;

def uptmp1 = if priceup > priceup[1] then priceup - priceup[1] else 0;
def uptmp2 = if priceup[1] > priceup then priceup[1] - priceup else 0;
def upd2 = sum(uptmp1, lengthup);
def upd4 = sum(uptmp2, lengthup);
def upcond = upd2 + upd4 == 0;
def upad3 = if upcond then 0 else (upd2 - upd4) / (upd2 + upd4) * 100;
def upcoeff = 2 / (lengthup + 1) * AbsValue(upad3) / 100;
def upasd = compoundValue("visible data" = upcoeff * priceup + (if IsNaN(upasd[1]) then 0 else upasd[1]) * (1 - upcoeff), "historical data" = priceup
);
plot VMAUP = MovingAverage (AverageType, upasd + numDevUp, LengthUP);
VMAUP.setDefaultColor(GetColor(5));

#Lower Line

input pricedn = close;
input lengthdn = 3;

def dntmp1 = if pricedn > pricedn[1] then pricedn - pricedn[1] else 0;
def dntmp2 = if pricedn[1] > pricedn then pricedn[1] - pricedn else 0;
def dnd2 = sum(dntmp1, lengthdn);
def dnd4 = sum(dntmp2, lengthdn);
def dncond = dnd2 + dnd4 == 0;
def dnad3 = if dncond then 0 else (dnd2 - dnd4) / (dnd2 + dnd4) * 100;
def dncoeff = 2 / (lengthdn + 1) * AbsValue(dnad3) / 100;
def dnasd = compoundValue("visible data" = dncoeff * pricedn + (if IsNaN(dnasd[1]) then 0 else dnasd[1]) * (1 - dncoeff), "historical data" = pricedn
);
plot VMADN = MovingAverage (AverageType, dnasd + NumDevDn, LengthDN);

#Center Signal Trigger

input priceT = close;
input lengthT = 1;

def Ttmp1 = if priceT > priceT[1] then priceT - priceT[1] else 0;
def Ttmp2 = if priceT[1] > priceT then priceT[1] - priceT else 0;
def Td2 = sum(Ttmp1, lengthT);
def Td4 = sum(Ttmp2, lengthT);
def Tcond = Td2 + Td4 == 0;
def Tad3 = if Tcond then 0 else (Td2 - Td4) / (Td2 + Td4) * 100;
def Tcoeff = 2 / (lengthT + 1) * AbsValue(Tad3) / 100;
def Tasd = compoundValue("visible data" = Tcoeff * priceT + (if IsNaN(Tasd[1]) then 0 else Tasd[1]) * (1 - Tcoeff), "historical data" = priceT
);
plot VMAT = Tasd;
VMAT.setDefaultColor(GetColor(3));

# Signal

input showBreakoutSignals = no;

plot UpSignal = VMAT crosses above VMAUP;
plot DownSignal = VMAT crosses below VMADN;

UpSignal.SetHiding(!showBreakoutSignals);
DownSignal.SetHiding(!showBreakoutSignals);

UpSignal.SetDefaultColor(Color.UPTICK);
UpSignal.SetPaintingStrategy(PaintingStrategy.BOOLEAN_ARROW_UP);
DownSignal.SetDefaultColor(Color.DOWNTICK);
DownSignal.SetPaintingStrategy(PaintingStrategy.BOOLEAN_ARROW_DOWN);

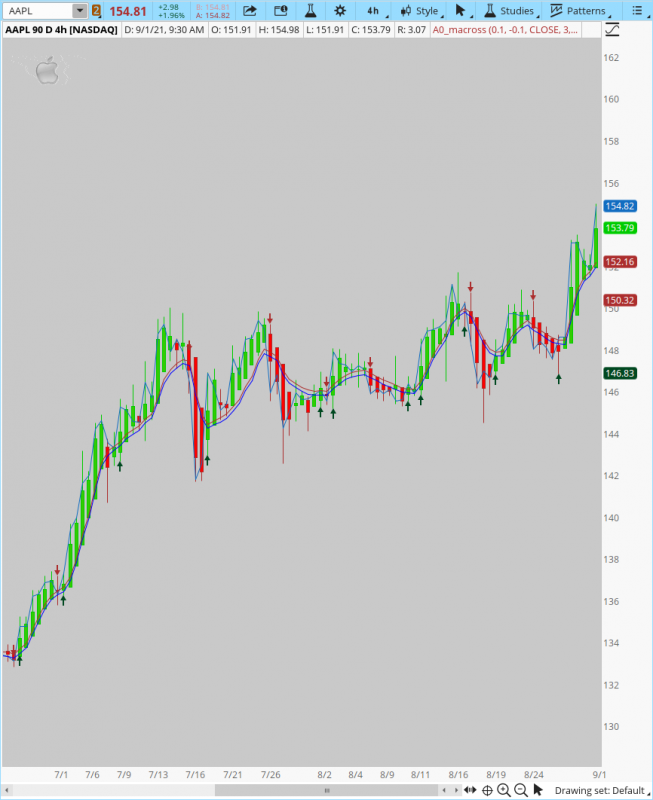

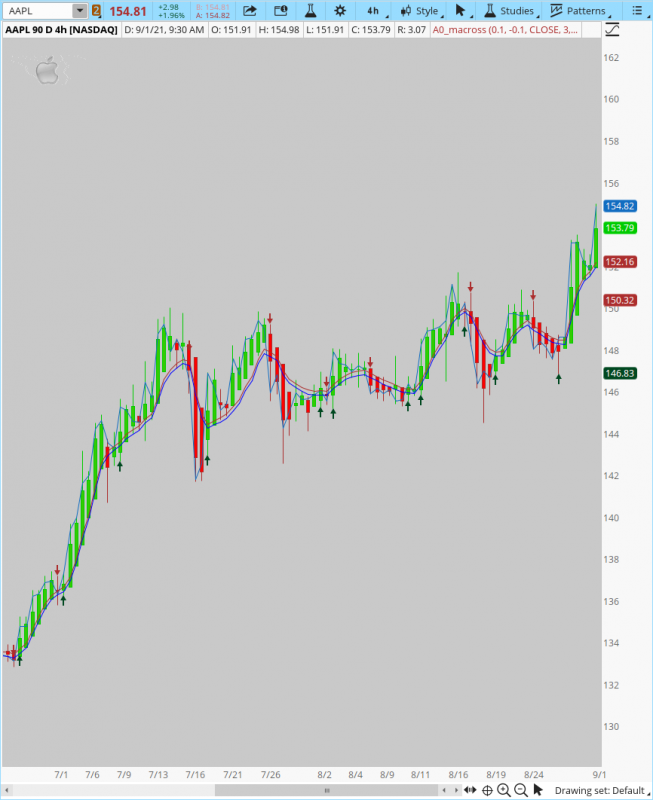

View attachment 864
Hello Ruby,

Thank you so much for the quick response. Yes, the only thing I would like it to do if is possible is that instead of printing a series of signal every time the average triggers the signal, to print a signal only if there is not a preceding same type of signal. For example, if there is already a bear(RED) arrow printed, do not print another RED arrow until after a Green arrow(signal) is printed. Excuse my grammar, I hope I'm explaining it in a way it can be understood(English is not my first language).

I installed the script and am seeing the indicator perform as expected, as @MerryDay stated... Modifying the code to perform as you suggest would negate the overall functionality... Those signals are meant to be paired with other confirmations and are not intended to be acted upon every time they fire... By your logic you might act on the wrong arrow and then miss the proper arrow that has better confirmation...

Last edited by a moderator:

Last edited by a moderator:
@renydiver
Code:
``````#Upper Line

input numDevUp = 0.10;
input numDevDn = -0.10;
input priceup = close;
input lengthup = 3;
input AverageType = AverageType.EXPONENTIAL;

def uptmp1 = if priceup > priceup[1] then priceup - priceup[1] else 0;
def uptmp2 = if priceup[1] > priceup then priceup[1] - priceup else 0;
def upd2 = sum(uptmp1, lengthup);
def upd4 = sum(uptmp2, lengthup);
def upcond = upd2 + upd4 == 0;
def upad3 = if upcond then 0 else (upd2 - upd4) / (upd2 + upd4) * 100;
def upcoeff = 2 / (lengthup + 1) * AbsValue(upad3) / 100;
def upasd = compoundValue("visible data" = upcoeff * priceup + (if IsNaN(upasd[1]) then 0 else upasd[1]) * (1 - upcoeff), "historical data" = priceup
);
plot VMAUP = MovingAverage (AverageType, upasd + numDevUp, LengthUP);
VMAUP.setDefaultColor(GetColor(5));

#Lower Line

input pricedn = close;
input lengthdn = 3;

def dntmp1 = if pricedn > pricedn[1] then pricedn - pricedn[1] else 0;
def dntmp2 = if pricedn[1] > pricedn then pricedn[1] - pricedn else 0;
def dnd2 = sum(dntmp1, lengthdn);
def dnd4 = sum(dntmp2, lengthdn);
def dncond = dnd2 + dnd4 == 0;
def dnad3 = if dncond then 0 else (dnd2 - dnd4) / (dnd2 + dnd4) * 100;
def dncoeff = 2 / (lengthdn + 1) * AbsValue(dnad3) / 100;
def dnasd = compoundValue("visible data" = dncoeff * pricedn + (if IsNaN(dnasd[1]) then 0 else dnasd[1]) * (1 - dncoeff), "historical data" = pricedn
);
plot VMADN = MovingAverage (AverageType, dnasd + NumDevDn, LengthDN);

#Center Signal Trigger

input priceT = close;
input lengthT = 1;

def Ttmp1 = if priceT > priceT[1] then priceT - priceT[1] else 0;
def Ttmp2 = if priceT[1] > priceT then priceT[1] - priceT else 0;
def Td2 = sum(Ttmp1, lengthT);
def Td4 = sum(Ttmp2, lengthT);
def Tcond = Td2 + Td4 == 0;
def Tad3 = if Tcond then 0 else (Td2 - Td4) / (Td2 + Td4) * 100;
def Tcoeff = 2 / (lengthT + 1) * AbsValue(Tad3) / 100;
def Tasd = compoundValue("visible data" = Tcoeff * priceT + (if IsNaN(Tasd[1]) then 0 else Tasd[1]) * (1 - Tcoeff), "historical data" = priceT
);
plot VMAT = Tasd;
VMAT.setDefaultColor(GetColor(3));

# Signal

input showBreakoutSignals = no;
def signal = if VMAT crosses above VMAUP then 1 else if VMAT crosses below VMADN then -1 else signal[1];
plot UpSignal = VMAT crosses above VMAUP and signal[1] == -1;
plot DownSignal = VMAT crosses below VMADN and signal[1] == 1;

UpSignal.SetHiding(!showBreakoutSignals);
DownSignal.SetHiding(!showBreakoutSignals);

UpSignal.SetDefaultColor(Color.UPTICK);
UpSignal.SetPaintingStrategy(PaintingStrategy.BOOLEAN_ARROW_UP);
DownSignal.SetDefaultColor(Color.DOWNTICK);
DownSignal.SetPaintingStrategy(PaintingStrategy.BOOLEAN_ARROW_DOWN);

Last edited by a moderator:
