Market Structure Trend Matrix [BigBeluga] for ThinkOrSwim

[chewie76]

Market Structure Trend Matrix [BigBeluga] is a comprehensive technical analysis framework engineered for traders who demand precision in identifying market regimes and trend expansions. By integrating automated Market Structure (MS) detection with volatility-adjusted risk parameters, this indicator provides a systematic roadmap for navigating complex price action.

NOTE: I CHANGED THE TARGET LEVELS FROM THE ORIGINAL INDICATOR. TOS DOESN'T CONVERT THE ORIGINAL TARGETS.

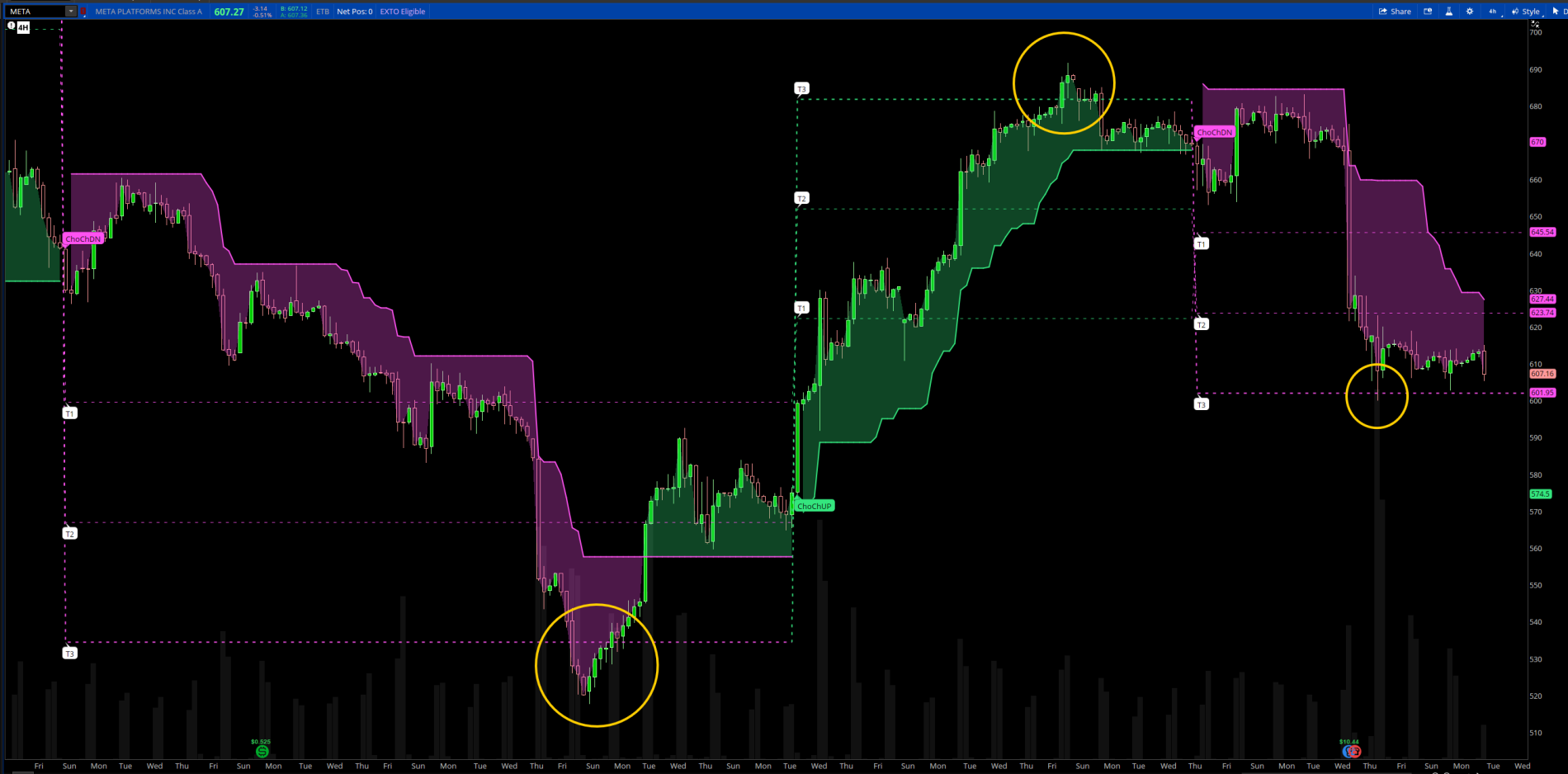

In the below picture of META on 4 hr chart, price hit the T3 target three times.

The tool focuses on the Change of Character (ChoCh)—the critical moment when a previous trend structure breaks and a new directional bias begins.

ARCHITECTURE & CORE LOGIC

• Automated Structure Mapping: The engine uses a sophisticated pivot-detection algorithm (MS Length) to scan for institutional-grade swing highs and lows. It ignores minor retail noise, drawing structural lines only when significant supply or demand zones are breached.
• The ChoCh Engine: When price crosses a recent pivot high or low, the indicator prints a "ChoCh" label. This represents a fundamental shift in market sentiment, signaling that the current trend has likely terminated and a new cycle has begun.

Volatility-Anchored Trailing Stop: To ensure professional-grade risk management, the indicator plots a dynamic ATR Trailing Stop. This line acts as a "ratchet" mechanism—it moves closer to price during the trend expansion but stays firm during minor pullbacks, providing a clear exit point if the trend truly fails.

CONCLUSION
Market Structure Trend Matrix [BigBeluga] is more than a signal tool; it is a visual framework for objective decision-making. By anchoring your trading to structural pivots and volatility-based targets, you remove the guesswork from trend following. Whether you are looking for a clean "ChoCh" entry or a systematic way to trail your profits during a massive expansion, the Trend Matrix provides the data and clarity required to trade like a professional.

# Market_Structure_Trend_Matrix
# Converted from "Market Structure Trend Matrix [BigBeluga]": https://www.tradingview.com/script/EdtttXPC-Market-Structure-Trend-Matrix-BigBeluga/
# Converted by Chewie 5/5/2026

# ═══════════════════════════════════════════════════════
# INPUTS
# ═══════════════════════════════════════════════════════

input msLen          = 10;
input atrLength      = 14;
input atrMult        = 4.0;
input TatrMult       = 2.0;
input targetStepMult = 2.0;
input showStop       = yes;
input bubble         = yes;
input alerts         = yes;

# Colors — defined as defs using CreateColor so they can be reused anywhere
# Bull = green (52, 230, 126) | Bear = magenta (255, 82, 241)
DefineGlobalColor("Bull", CreateColor(52, 230, 126));
DefineGlobalColor("Bear", CreateColor(255, 82, 241));

# ═══════════════════════════════════════════════════════
# PIVOT DETECTION
# ═══════════════════════════════════════════════════════

def ph = if high[msLen] == Highest(high, 2 * msLen + 1)[msLen] then high[msLen] else Double.NaN;
def pl = if low[msLen]  == Lowest(low,   2 * msLen + 1)[msLen] then low[msLen]  else Double.NaN;

def phVal = if !IsNaN(ph) then ph else phVal[1];
def plVal = if !IsNaN(pl) then pl else plVal[1];

# ═══════════════════════════════════════════════════════
# ATR
# ═══════════════════════════════════════════════════════

def atr = Average(TrueRange(high, close, low), atrLength);

# ═══════════════════════════════════════════════════════
# DIRECTION & STRUCTURE BREAKS (ChoCh)
# ═══════════════════════════════════════════════════════

def bullBreak = close crosses above phVal;
def bearBreak = close crosses below plVal;

def direction;
def entryPrice;

if bullBreak and !direction[1] {
    direction  = 1;
    entryPrice = phVal;
} else if bearBreak and direction[1] {
    direction  = 0;
    entryPrice = plVal;
} else {
    direction  = direction[1];
    entryPrice = entryPrice[1];
}

def directionChanged = direction != direction[1];

# ═══════════════════════════════════════════════════════
# ATR TRAILING STOP
# Bull: ratchet up  → max(prev, close - atr*mult)
# Bear: ratchet down → min(prev, close + atr*mult)
# ═══════════════════════════════════════════════════════

def atrTS;
if bullBreak and !direction[1] {
    atrTS = close - atr * atrMult;
} else if bearBreak and direction[1] {
    atrTS = close + atr * atrMult;
} else if direction {
    atrTS = Max(CompoundValue(1, atrTS[1], close - atr * atrMult),
                close - atr * atrMult);
} else {
    atrTS = Min(CompoundValue(1, atrTS[1], close + atr * atrMult),
                close + atr * atrMult);
}



# ═══════════════════════════════════════════════════════
# PLOTS — TRAILING STOP
# ═══════════════════════════════════════════════════════

plot TrailingStop = if showStop and !directionChanged then atrTS else Double.NaN;
TrailingStop.SetLineWeight(2);
TrailingStop.AssignValueColor(if direction then GlobalColor("Bull") else GlobalColor("Bear"));

plot PriceLine = if showStop then close else Double.NaN;
PriceLine.Hide();

AddCloud(PriceLine, TrailingStop, GlobalColor("Bull"), GlobalColor("Bear"));

# ═══════════════════════════════════════════════════════
# TARGET LEVELS
# Projected from entryPrice at atrMult * targetStepMult increments.
# Held until the next direction change clears them.
# ═══════════════════════════════════════════════════════

def targetStep = atr * TatrMult * targetStepMult;

def t1;
def t2;
def t3;

if directionChanged {
    t1 = if direction then entryPrice + 1 * targetStep
                      else entryPrice - 1 * targetStep;
    t2 = if direction then entryPrice + 2 * targetStep
                      else entryPrice - 2 * targetStep;
    t3 = if direction then entryPrice + 3 * targetStep
                      else entryPrice - 3 * targetStep;
} else {
    t1 = CompoundValue(1, t1[1], Double.NaN);
    t2 = CompoundValue(1, t2[1], Double.NaN);
    t3 = CompoundValue(1, t3[1], Double.NaN);
}

plot Target1 = t1;
plot Target2 = t2;
plot Target3 = t3;

Target1.SetStyle(Curve.SHORT_DASH);
Target2.SetStyle(Curve.SHORT_DASH);
Target3.SetStyle(Curve.SHORT_DASH);

Target1.SetLineWeight(1);
Target2.SetLineWeight(1);
Target3.SetLineWeight(2);

Target1.AssignValueColor(if direction then GlobalColor("Bull") else GlobalColor("Bear"));
Target2.AssignValueColor(if direction then GlobalColor("Bull") else GlobalColor("Bear"));
Target3.AssignValueColor(if direction then GlobalColor("Bull") else GlobalColor("Bear"));

AddChartBubble(directionChanged, if direction then t1 else t1, "T1", Color.WHITE, direction);
AddChartBubble(directionChanged, if direction then t2 else t2, "T2", Color.WHITE, direction);
AddChartBubble(directionChanged, if direction then t3 else t3, "T3", Color.WHITE, direction);

# ═══════════════════════════════════════════════════════
# PLOTS — ChoCh SIGNALS
# ═══════════════════════════════════════════════════════

plot ChoCh_Bull = if bullBreak and !direction[1] then low  else Double.NaN;
ChoCh_Bull.SetPaintingStrategy(PaintingStrategy.ARROW_UP);
ChoCh_Bull.SetDefaultColor(GlobalColor("Bull"));
ChoCh_Bull.SetLineWeight(3);

plot ChoCh_Bear = if bearBreak and direction[1] then high else Double.NaN;
ChoCh_Bear.SetPaintingStrategy(PaintingStrategy.ARROW_DOWN);
ChoCh_Bear.SetDefaultColor(GlobalColor("Bear"));
ChoCh_Bear.SetLineWeight(3);

AddChartBubble(bubble and bullBreak and !direction[1], low,  "ChoChUP", GlobalColor("Bull"), no);
AddChartBubble(bubble and bearBreak and direction[1],  high, "ChoChDN", GlobalColor("Bear"), yes);

# ═══════════════════════════════════════════════════════
# ALERTS
# ═══════════════════════════════════════════════════════

Alert(alerts and bullBreak and !direction[1], "ChoCh Up - Bullish Structure Break",  Alert.BAR, Sound.Chimes);
Alert(alerts and bearBreak and direction[1],  "ChoCh Down - Bearish Structure Break", Alert.BAR, Sound.Bell);
