Candle Equilibrium coding struggle

[perdelta]

I am someone that struggles with coding and am hoping there is an easy fix to my coding shortcomings.

I want a script that highlights the two candle that form what I refer to as equilibrium. Equilibrium for this example being when an up candle close and the very next down candle's open are exactly the same or when a down candle's close and the very next candle is a down candle's open are exactly the same.

Here's my current code: (almost exclusively used from halcyonguy's script in the post https://usethinkscript.com/threads/...g-inside-candle-formations.15820/#post-127558 (I hope my use of halcyonguy's script doesn't create offense. I found the thread to be incredibly interesting and helpful.)

#Candle Equilibrium

def bn = BarNumber();
def na = Double.NaN;
def o = open;
def h = high;
def l = low;
def c = close;
def barup = (c > o);
def bardwn = (c < o);
def equilibrium = open==close[1];

AssignPriceColor(if equilibrium
then color.light_orange
else color.current);

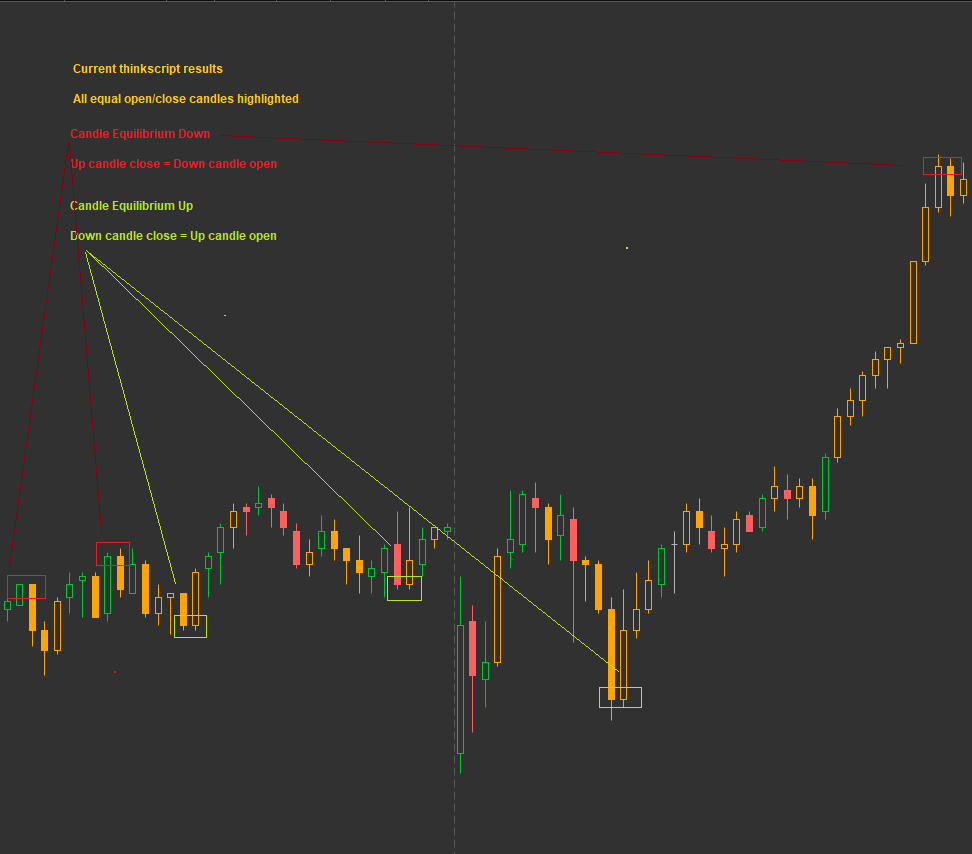

I have attached a chart for a better visual example.

Any assistance with this would be greatly appreciated.



[SleepyZ]

I am someone that struggles with coding and am hoping there is an easy fix to my coding shortcomings.

I want a script that highlights the two candle that form what I refer to as equilibrium. Equilibrium for this example being when an up candle close and the very next down candle's open are exactly the same or when a down candle's close and the very next candle is a down candle's open are exactly the same.

Here's my current code: (almost exclusively used from halcyonguy's script in the post https://usethinkscript.com/threads/...g-inside-candle-formations.15820/#post-127558 (I hope my use of halcyonguy's script doesn't create offense. I found the thread to be incredibly interesting and helpful.)

#Candle Equilibrium

def bn = BarNumber();
def na = Double.NaN;
def o = open;
def h = high;
def l = low;
def c = close;
def barup = (c > o);
def bardwn = (c < o);
def equilibrium = open==close[1];

AssignPriceColor(if equilibrium
then color.light_orange
else color.current);

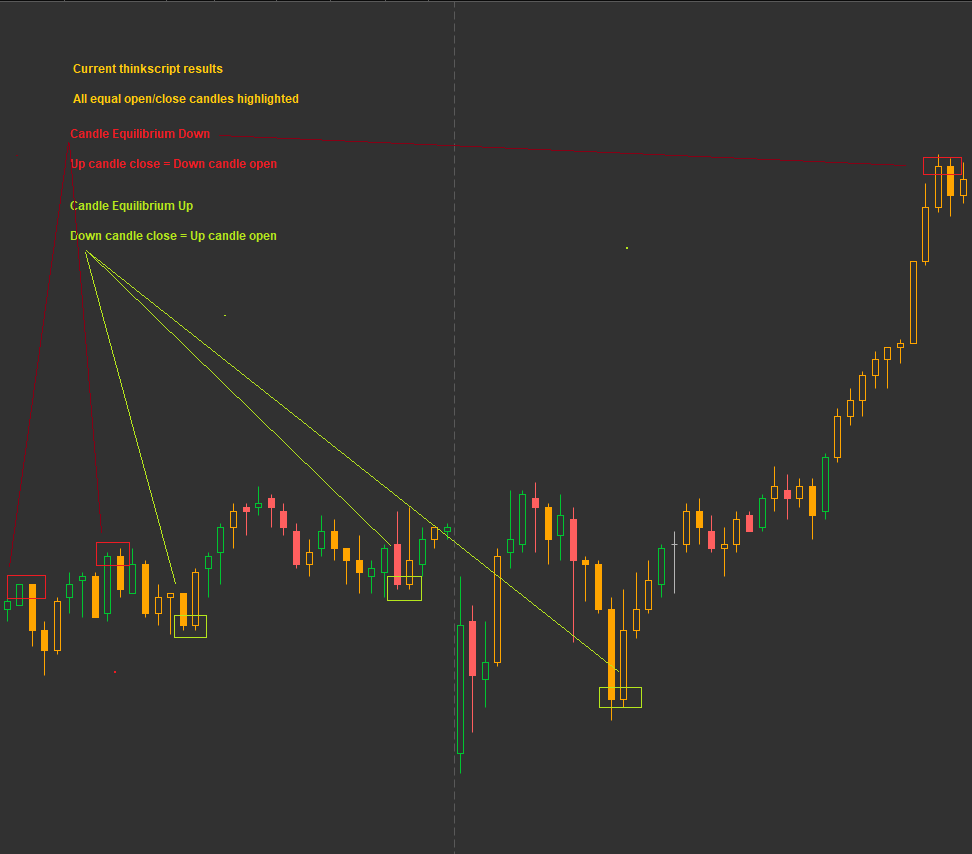

I have attached a chart for a better visual example.

Any assistance with this would be greatly appreciated.

View attachment 19090

This might work how you want:

If 2 bar then both are colored magenta, even if the prior is close[1] == open
If not 2 bar but close[1] == open then colored yellow
There is an option to isolate the above 2 by selecting test = yes to make all other bars colored gray
There is a bubble option to further test the resulting coloring

#Candle Equilibrium

def bn = BarNumber();
def na = Double.NaN;
def o = open;
def h = high;
def l = low;
def c = close;
def barup  = (c > o);
def bardwn = (c < o);
def equilibrium = barup[1] and bardwn and c[1] == o
                  or
                  bardwn[1] and barup and c[1] == o
                  ;

input pricecoloring = yes;
input test   = yes;
input bubble = yes;

AssignPriceColor(
if !pricecoloring
then Color.CURRENT
     else if equilibrium == 1
     then Color.MAGENTA
     else if equilibrium[-1] == 1
     then Color.MAGENTA
     else if equilibrium == 0 and c[1] == o
     then Color.YELLOW
     else if test and c[1] != o
     then Color.GRAY
else Color.CURRENT);

AddChartBubble(bubble or test, high * 1.005, "C1: " + c[1] + "\nO:  " + o + "\nC: " + c + "\nE: " + equilibrium, if equilibrium == 0 and c[1] == o then Color.YELLOW else if equilibrium then Color.MAGENTA else Color.GRAY);

#
