High & low of week& previous week Candle Study

[omfinancial]

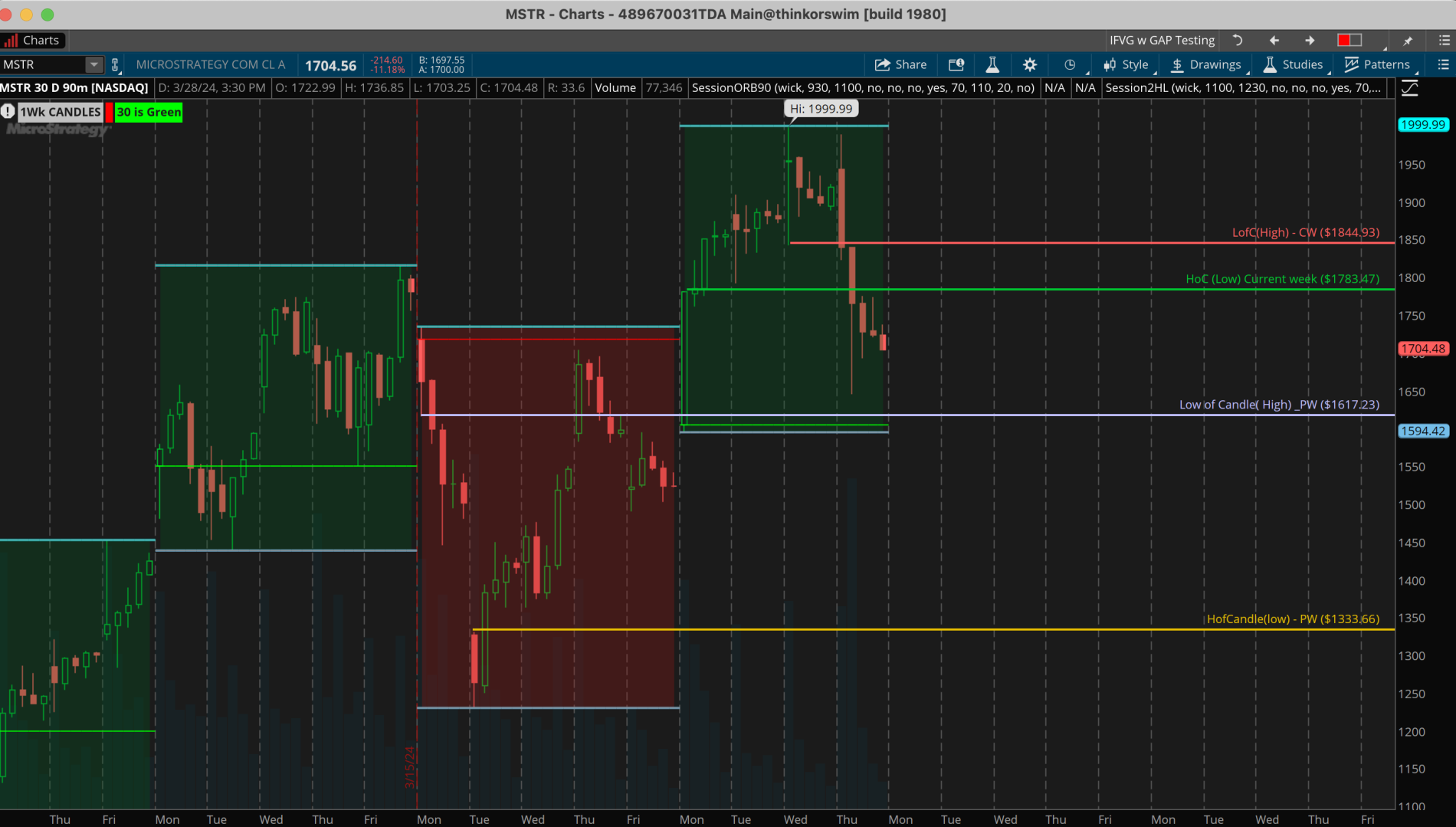

Greetings all! I hope q1 has gone to your liking- I am attempting to work on Better entries and A concept I am trying to vizualize via study is the High and Low of week Candle ( and previous week). I am writing to inquire if it is possible to have Think script Identify the High/Low of Week (& previous week) , and plot a horizontal line at the Low point of the Candle that makes the high, and at the High point of the candle that makes the Low. I have a screenshot attached.

Thanks again for this forum and its contributors.



[SleepyZ]

Greetings all! I hope q1 has gone to your liking- I am attempting to work on Better entries and A concept I am trying to vizualize via study is the High and Low of week Candle ( and previous week). I am writing to inquire if it is possible to have Think script Identify the High/Low of Week (& previous week) , and plot a horizontal line at the Low point of the Candle that makes the high, and at the High point of the candle that makes the Low. I have a screenshot attached.

Thanks again for this forum and its contributors.

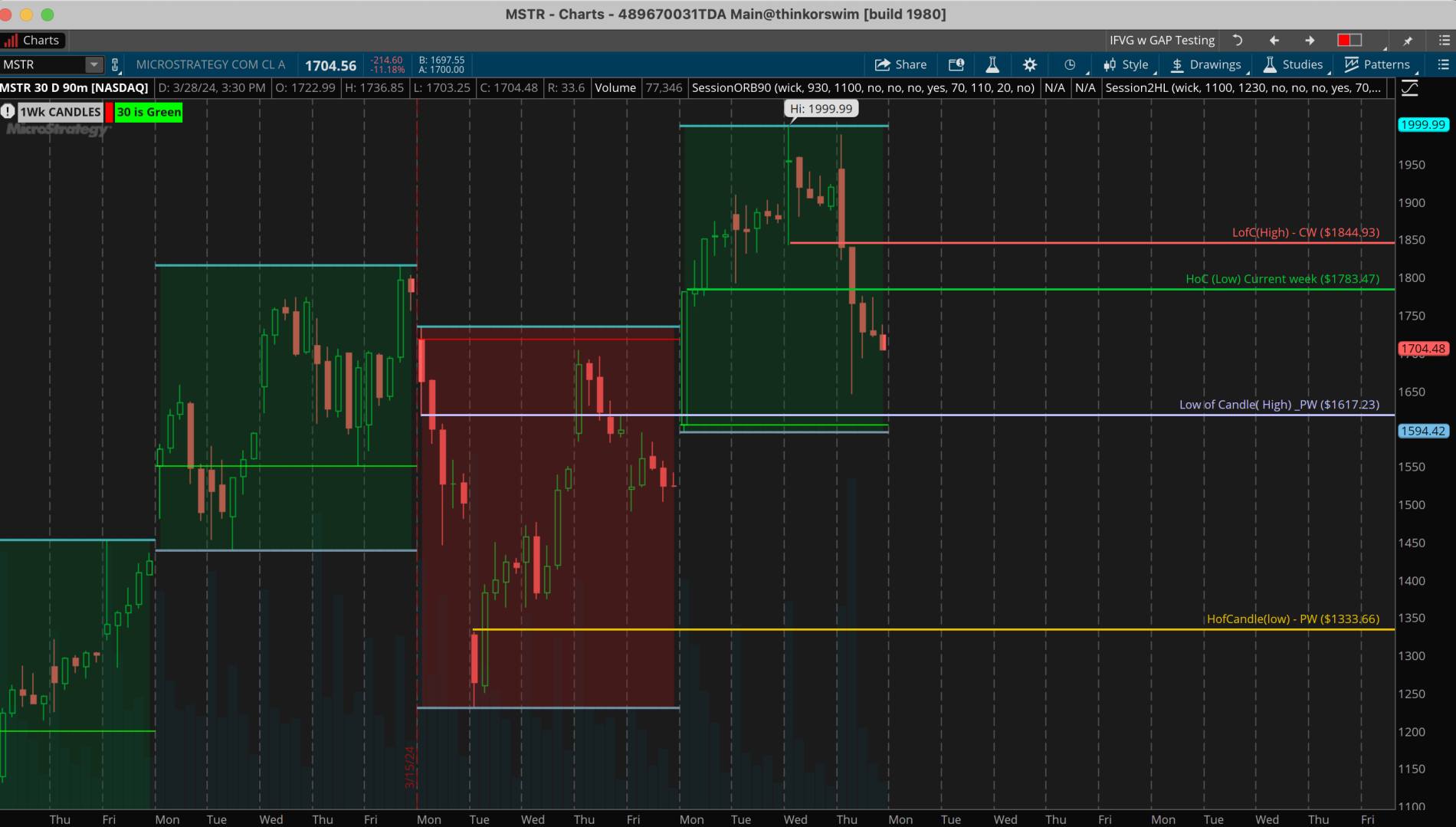

View attachment 21466

This plots the last 2 weeks HL data you requested.
Line colors can be changed at the input screen.
Optional bubbles can be moved sideways in expansion at input bubblemover

#High & low of week& previous week Candle Study
input showbubbles = yes;
input bubblemover = 2;

def count = if !IsNaN(close) and GetWeek() != GetWeek()[1] then count[1] + 1 else count[1];
def cond  = HighestAll(count) - count + 1;
def na    = Double.NaN;
DefineGlobalColor("HW", Color.WHITE);
DefineGlobalColor("LW", Color.WHITE);
DefineGlobalColor("LHW", Color.CYAN);
DefineGlobalColor("HLW", Color.YELLOW);

#Week 1 (Current)
plot hw1 = if cond == 1 then high(period = AggregationPeriod.WEEK) else na;
plot lw1 = if cond == 1 then low(period = AggregationPeriod.WEEK) else na;
hw1.SetPaintingStrategy(PaintingStrategy.HORIZONTAL);
lw1.SetPaintingStrategy(PaintingStrategy.HORIZONTAL);
hw1.SetDefaultColor(GlobalColor("HW"));
lw1.SetDefaultColor(GlobalColor("LW"));

def lhw1 = if IsNaN(close) then lhw1[1] else if high == hw1 then low else lhw1[1];
def hlw1 = if IsNaN(close) then hlw1[1] else if low == lw1 then high else hlw1[1];

plot lowofhighweek1 = if cond == 1 then lhw1 else na;
plot highoflowweek1 = if cond == 1 then hlw1 else na;
lowofhighweek1.SetPaintingStrategy(PaintingStrategy.HORIZONTAL);
highoflowweek1.SetPaintingStrategy(PaintingStrategy.HORIZONTAL);
lowofhighweek1.SetDefaultColor(GlobalColor("LHW"));
highoflowweek1.SetDefaultColor(GlobalColor("HLW"));

#Week 2 (Previous)
plot hw2 = if cond == 2 then high(period = AggregationPeriod.WEEK) else na;
plot lw2 = if cond == 2 then low(period = AggregationPeriod.WEEK) else na;
hw2.SetPaintingStrategy(PaintingStrategy.HORIZONTAL);
lw2.SetPaintingStrategy(PaintingStrategy.HORIZONTAL);
hw2.SetDefaultColor(GlobalColor("HW"));
lw2.SetDefaultColor(GlobalColor("LW"));

def lhw2 = if IsNaN(hw2) then lhw2[1] else if high == hw2 then low  else lhw2[1];
def hlw2 = if IsNaN(lw2) then hlw2[1] else if low == lw2 then high else hlw2[1];

plot lowofhighweek2 = if cond <= 2 then lhw2[1] else na;
plot highoflowweek2 = if cond <= 2 then hlw2 else na;

lowofhighweek2.SetPaintingStrategy(PaintingStrategy.HORIZONTAL);
highoflowweek2.SetPaintingStrategy(PaintingStrategy.HORIZONTAL);
lowofhighweek2.SetDefaultColor(GlobalColor("LHW"));
highoflowweek2.SetDefaultColor(GlobalColor("HLW"));

### Bubbles
def b = bubblemover;
def mover = showbubbles and IsNaN(close[b]) and !IsNaN(close[b + 1]);
AddChartBubble(mover, lowofhighweek1, "LHW1 " + AsText(lowofhighweek1), lowofhighweek1.TakeValueColor());
AddChartBubble(mover, highoflowweek1, "HLW1 " + AsText(highoflowweek1), highoflowweek1.TakeValueColor());
AddChartBubble(mover, lowofhighweek2, "LHW2 " + AsText(lowofhighweek2), lowofhighweek2.TakeValueColor());
AddChartBubble(mover, highoflowweek2, "HLW1 " + AsText(highoflowweek2), highoflowweek2.TakeValueColor());

#



[omfinancial]

This plots the last 2 weeks HL data you requested.
Line colors can be changed at the input screen.
Optional bubbles can be moved sideways in expansion at input bubblemover

Thank you for bringing this idea to life! I hope it may be helpful to someone out there!
