chewie76 said:
The Automatic Quadrant Lines is a trading strategy upper indicator that projects where price might go in the future. Use weekly/daily/4 hr chart for swing trading. Use 30 min or less for day trading. This indicator shows you the long entry and long target. It shows you a short entry and short target. In the indicator, L/E is Long Entry, and S/E is Short Entry. The targets show the price in the chart bubble. There is a break down target line (dark green) that indicates if price breaks lower than the support line, this is where price may break down to. The indicator includes an up and down arrow that indicates when price breaks through the Long or Short Entry line. There are also alerts built in when the arrows appear.

Long strategy lines are dashed and have a (2) weight while short strategy are solid and single weighted lines.

(NOTE: If price breaks down or up from the dark red support and resistance lines, a new set of lines will appear. There are no guarantees price will hit the target.)

Here are some examples.

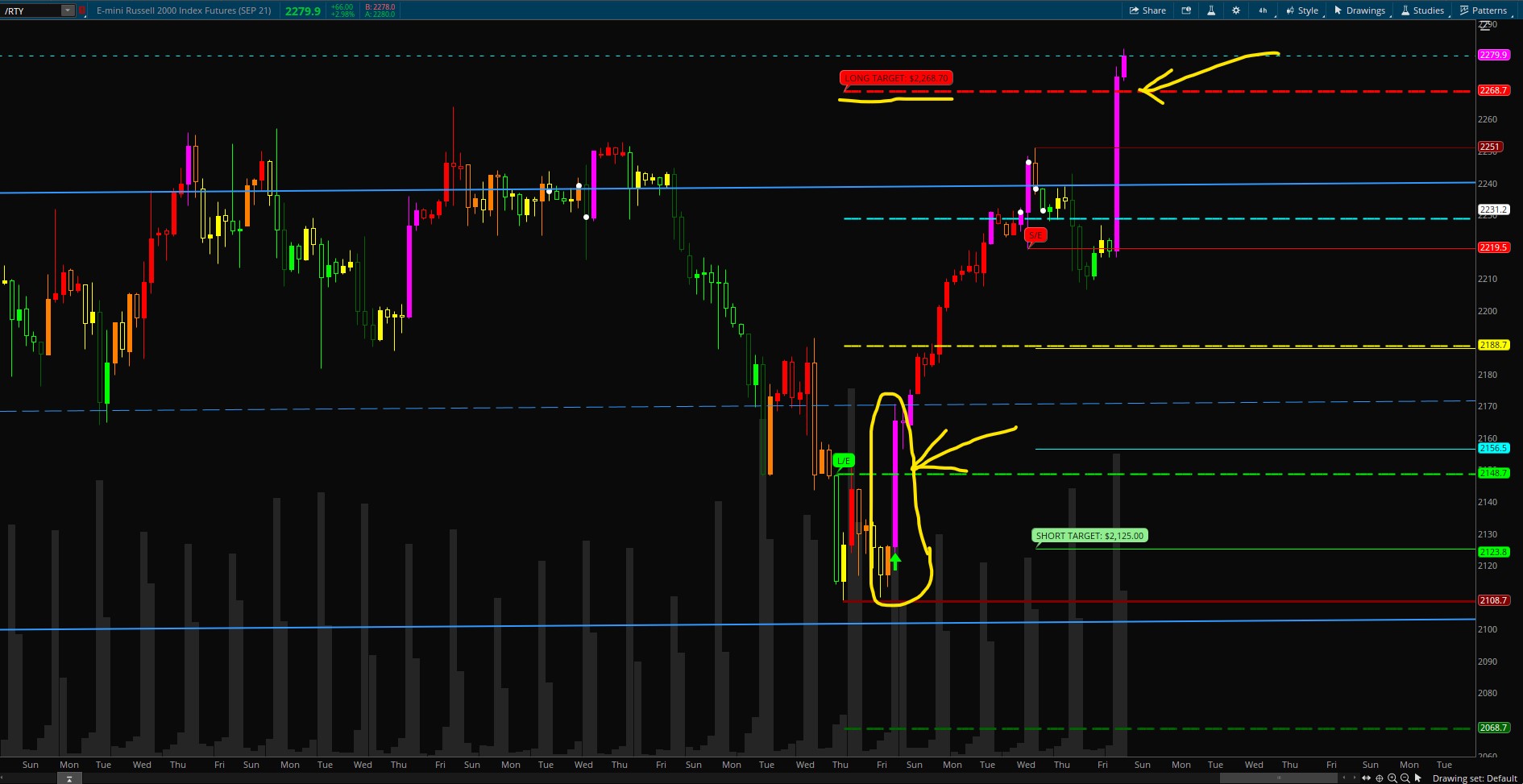

/RTY on 4 hr chart.

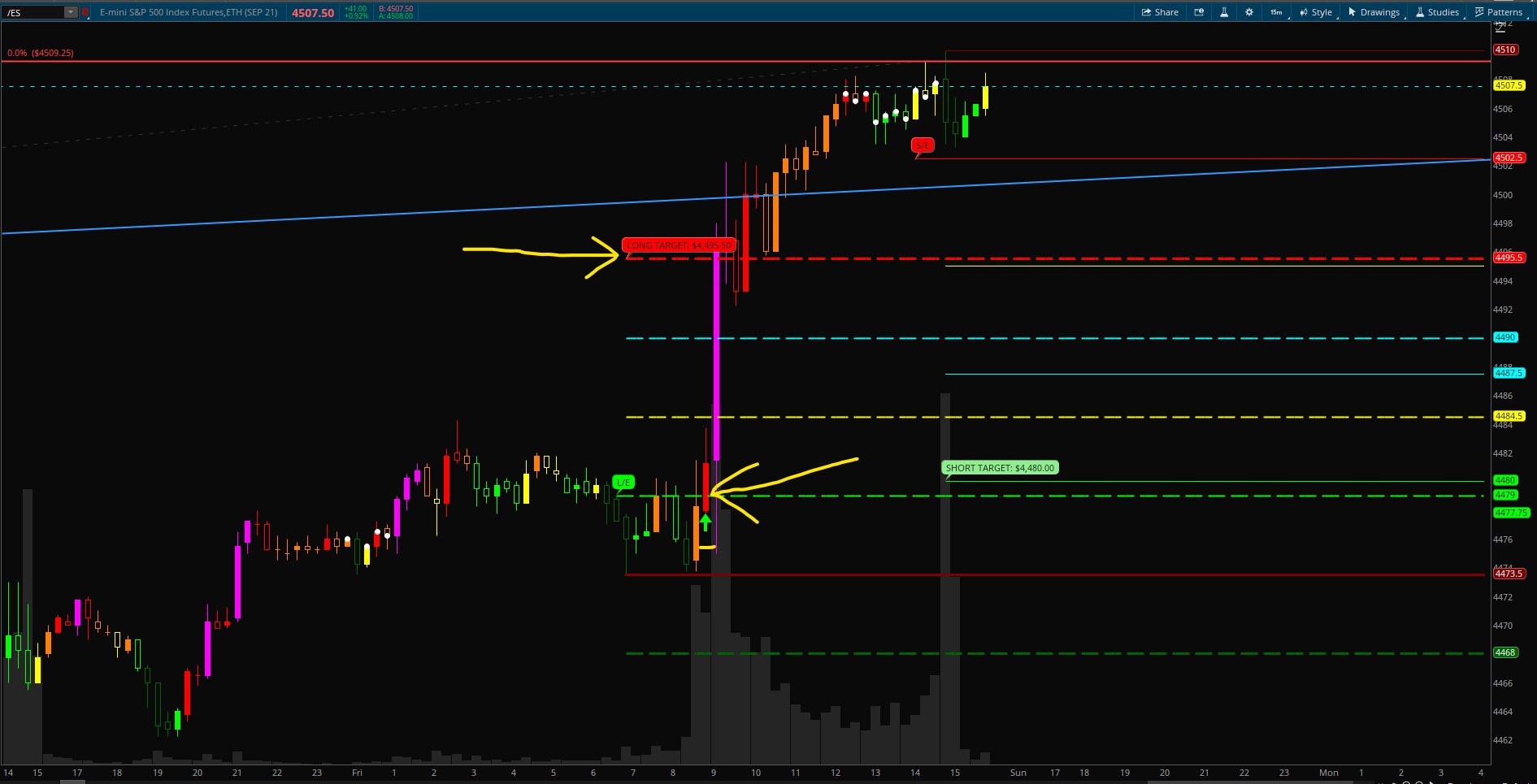

/ES on 15m chart. Price broke above target on FED news.

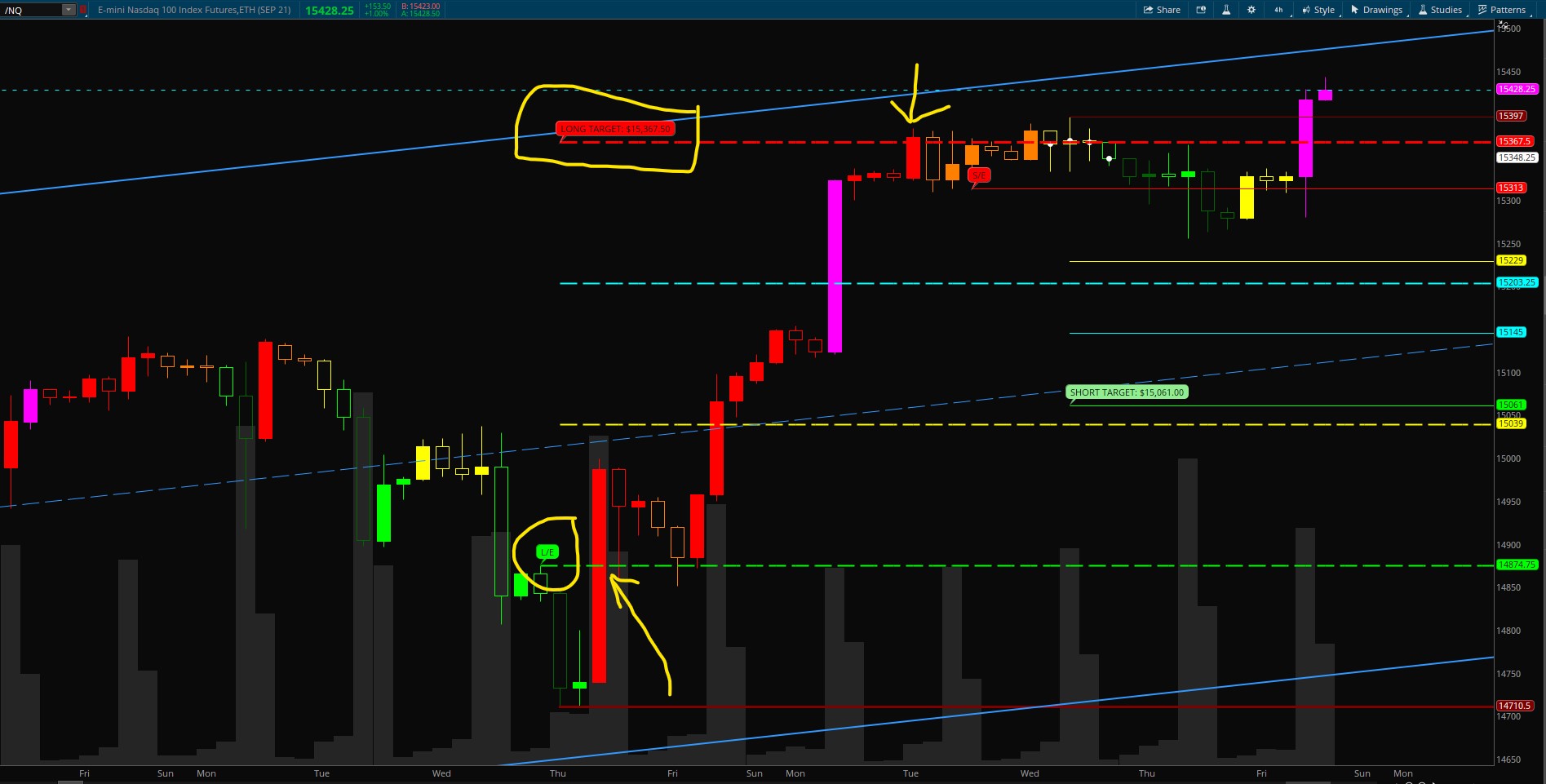

/NQ on 4 hr chart. Hit target.

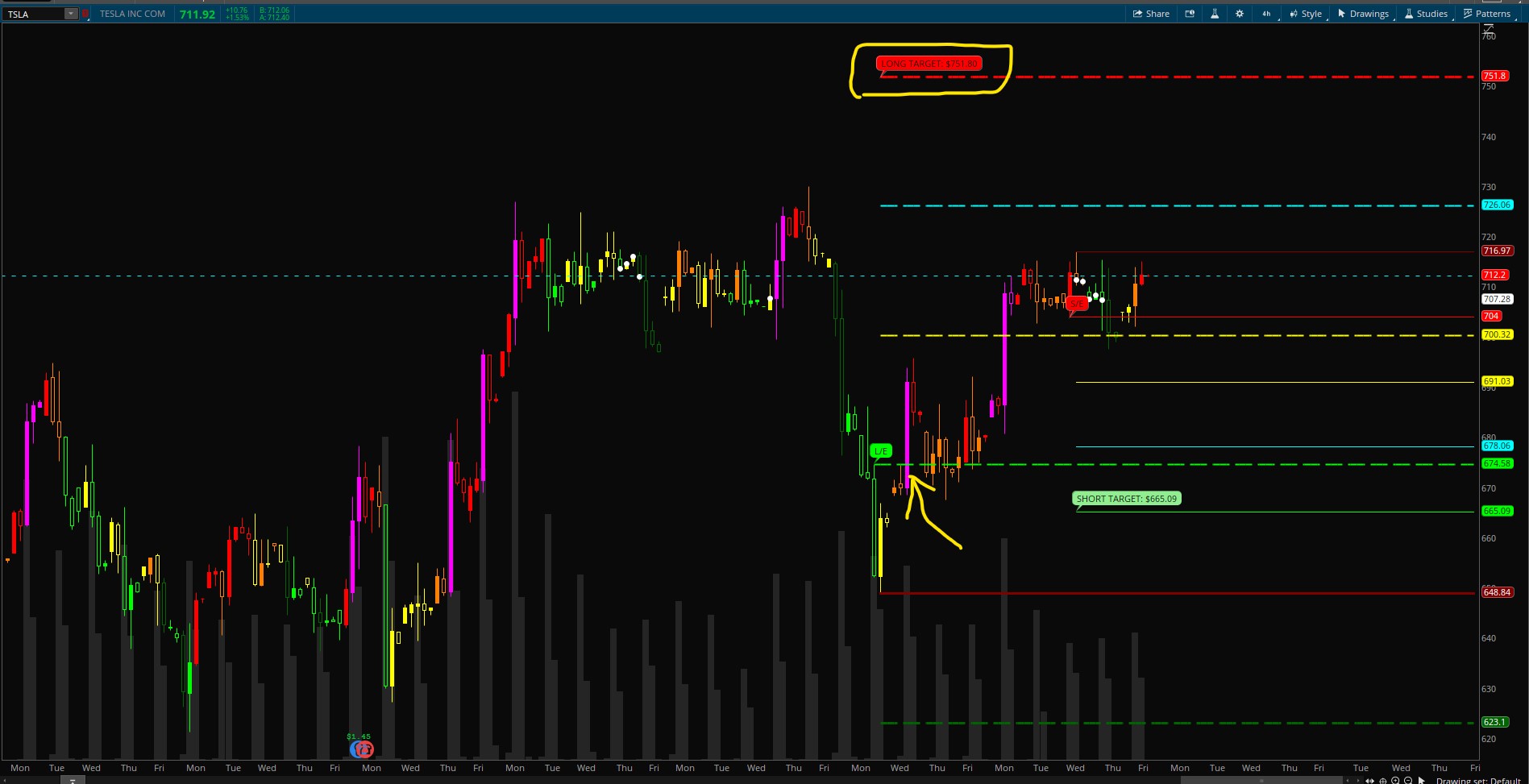

Tesla on 4 hr chart. Above the 50% line. Target at $751.80.

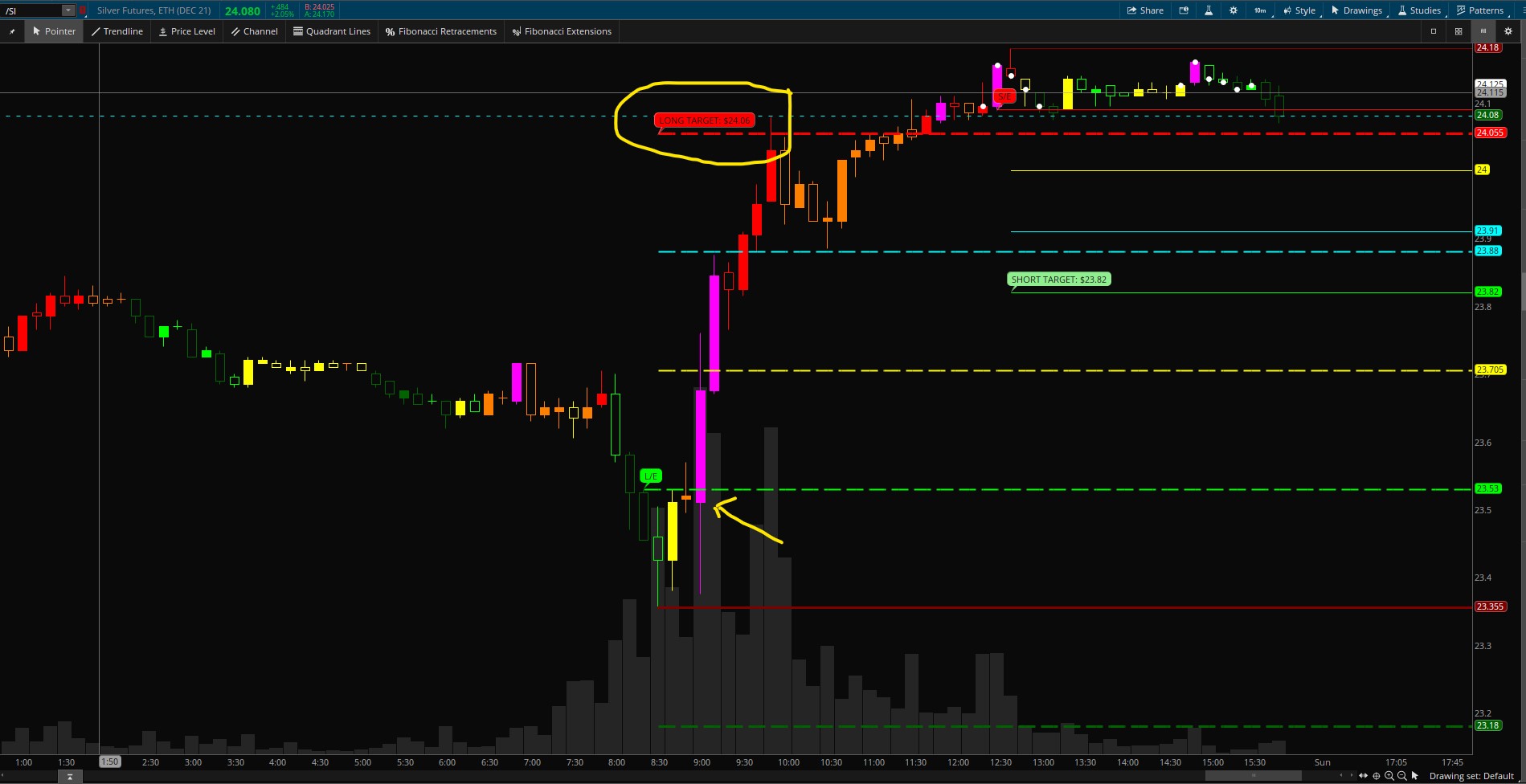

/SI on 10 min chart. Hit target.


Shareable Link:
http://tos.mx/2pnajoG

Long Entry Scan Alert
http://tos.mx/3Jppd0g

Short Entry Scan Alert
http://tos.mx/KGlOVLi

CODE:

Code:
#Automatic Quadrant Lines

#based on Mobius's Fractal Pivot Strategy

#developed by Chewie76 on 8/27/2021



# User Inputs

input n = 20;

input FractalEnergyLength = 8;

input FractalEnergyThreshold = .68;

input AtrMult = .70;

input nATR = 4;

input AvgType = AverageType.HULL;

input LabelsOn = yes;

input AlertsOn = yes;



# Variables

def o = open;

def h = high;

def l = low;

def c = close;

def bar = BarNumber();

def TS = TickSize();

def nan = double.nan;

def ATR = Round((MovingAverage(AvgType, TrueRange(h, c, l), nATR)) / TS, 0) * TS;

def risk = if Between(c, 0, 1500)

           then ATR

           else if Between(c, 1500, 3500)

           then 2

           else if Between(c, 3500, 5500)

                then 4

           else 6;

def FE = Log(Sum((Max(h, c[1]) - Min(l, c[1])), FractalEnergyLength) /

        (Highest(h, FractalEnergyLength) - Lowest(l, FractalEnergyLength)))

            / Log(FractalEnergyLength);

# Parent Aggregation Pivot High

# Pivot High Variables

def p_hh = fold i = 1 to n + 1

           with p = 1

           while p

           do h > GetValue(h, -1);

def p_PivotH = if (bar > n and

                   h == Highest(h, n) and

                   p_hh)

               then h

               else NaN;

def p_PHValue = if !IsNaN(p_PivotH)

                then p_PivotH

                else p_PHValue[1];

def p_PHBar = if !IsNaN(p_PivotH)

                    then bar

                    else nan;

# Pivot High and Pivot High Exit Variables

# Pivot High Variables

def hh = fold ii = 1 to n + 1

         with pp = 1

         while pp

         do h > GetValue(h, -1);

def PivotH = if (bar > n and

                 h == Highest(h, n) and

                 hh)

            then h

            else Double.NaN;

def PHValue = if !IsNaN(PivotH)

              then PivotH

              else PHValue[1];

def PHBar = if !IsNaN(PivotH)

                  then bar

                  else nan;

# Pivot High Exit Variables

def PHExit = if (bar > n and

              h == Highest(h, n) and

              hh)

             then if l[1] < l

                  then l[1]

                  else fold r = 0 to 20

                       with a = NaN

                       while IsNaN(a)

                       do if GetValue(l[1], r) < l

                          then GetValue(l[1], r)

                          else NaN

            else Double.NaN;

def PHExitValue = if !IsNaN(PHExit)

                  then PHExit

                  else PHExitValue[1];

def PHExitBar = if (bar > n and

                    h == Highest(h, n) and

                    hh)

                then if l[1] < l

                then bar - 1

                else fold d = 0 to 20

                     with y = NaN

                     while IsNaN(y)

                     do if GetValue(l[1], d) < l

                        then GetValue(bar - 1, d)

                        else NaN

                else NaN;

# Pivot Low and Pivot Low Entry Variables

# Parent Pivot Low Variables

def p_ll = fold j = 1 to n + 1

           with q = 1

           while q

           do l < GetValue(l, -1);

def p_PivotL = if (bar > n and

                 l == Lowest(l, n) and

                 p_ll)

             then l

             else NaN;

def p_PLValue = if !IsNaN(p_PivotL)

              then p_PivotL

              else p_PLValue[1];

def p_PLBar = if !IsNaN(p_PivotL)

              then bar

              else nan;



# Pivot Low Variables

def ll = fold jj = 1 to n + 1

         with qq = 1

         while qq

         do l < GetValue(l, -1);

def PivotL = if (bar > n and

                 l == Lowest(l, n) and

                 ll)

             then l

             else NaN;

def PLValue = if !IsNaN(PivotL)

              then PivotL

              else PLValue[1];

def PLBar = if !IsNaN(PivotL)

            then bar

            else nan;



# Pivot Low Entry Variables

def PLEntry = if (bar > n and

                  l == Lowest(l, n) and

                  ll)

              then if h[1] > h

              then h[1]

              else fold t = 0 to 20

                   with w = NaN

                   while IsNaN(w)

                   do if GetValue(h[1], t) > h

                      then GetValue(h[1], t)

                      else NaN

              else NaN;

def PLEntryValue = if !IsNaN(PLEntry)

                   then PLEntry

                   else PLEntryValue[1];

def PLEntryBar =  if (bar > n and

                  l == Lowest(l, n) and

                  ll)

                  then if h[1] > h

                       then bar - 1

                       else fold u = 0 to 20

                            with z = NaN

                            while IsNaN(z)

                            do if GetValue(h[1], u) > h

                               then GetValue(bar - 1, u)

                               else NaN

              else NaN;



# Plots



plot R1 = if bar >= HighestAll(PHBar)

          then HighestAll(if isNaN(close[-1])

                          then PHValue

                          else nan)

         else nan;

R1.SetDefaultColor(Color.dark_red);

R1.SetLineWeight(1);

plot ShortEntry = if bar >= HighestAll(PHexitBar)

                   then HighestAll(if isNaN(close[-1])

                                   then PHExitValue

                                   else nan)

                   else nan;

ShortEntry.SetDefaultColor(Color.red);

def SE =(if isNaN(ShortEntry[1]) then ShortEntry else Double.NaN);

addchartBubble(LabelsOn and ShortEntry, SE,"S/E",color.red);



plot S1 = if bar >= HighestAll(PLBar)

          then HighestAll(if isNaN(c[-1])

                          then PLValue

                          else nan)

          else nan;

S1.SetDefaultColor(Color.dark_red);

S1.SetLineWeight(3);

plot LongEntry = if bar >= HighestAll(PLEntryBar)

                    then HighestAll(if isNaN(c[-1])

                                    then PLEntryValue

                                    else nan)

                    else nan;

LongEntry.SetDefaultColor(Color.GREEN);

LongEntry.SetStyle(Curve.long_DASH);

LongEntry.SetLineWeight(2);

def LE =(if isNaN(LongEntry[1]) then LongEntry else Double.NaN);

addchartBubble(LabelsOn and LongEntry, LE,"L/E",color.green);


plot UpArrow = if c crosses above LongEntry and FE > .5

               then l

               else Double.NaN;

UpArrow.SetPaintingStrategy(PaintingStrategy.ARROW_UP);

UpArrow.SetLineWeight(5);

UpArrow.SetDefaultColor(Color.GREEN);

plot DnArrow = if c crosses below ShortEntry and ((FE > .618)

                or (FE < .382))

               then h

               else Double.NaN;

DnArrow.SetPaintingStrategy(PaintingStrategy.ARROW_DOWN);

DnArrow.SetLineWeight(5);

DnArrow.SetDefaultColor(Color.RED);



plot Fifty = (LongEntry - S1) + LongEntry;

Fifty.setdefaultcolor(color.yellow);

Fifty.SetStyle(Curve.long_DASH);

Fifty.setlineweight(2);



plot SeventyFive = (LongEntry - S1) + Fifty;

SeventyFive.setdefaultcolor(color.cyan);

SeventyFive.SetStyle(Curve.long_DASH);

SeventyFive.setlineweight(2);



plot Target = (LongEntry - S1) + SeventyFive;

Target.setdefaultcolor(color.red);

Target.SetStyle(Curve.long_DASH);

Target.setlineweight(3);

def LT =(if isNaN(TARGET[1]) then Target else Double.NaN);

addchartBubble(LabelsOn and Target, LT,"LONG TARGET: " + asDollars(LT),color.red);



plot BreakDownTarget = S1 -(LongEntry - S1);

BreakDownTarget.setdefaultcolor(color.dark_Green);

BreakDownTarget.SetStyle(Curve.long_DASH);

BreakDownTarget.setlineweight(3);



plot S_Fifty = ShortEntry - (R1 - ShortEntry);

S_Fifty.setdefaultcolor(color.yellow);

S_Fifty.setlineweight(1);



plot S_SeventyFive = S_Fifty - (R1 - ShortEntry);

S_SeventyFive.setdefaultcolor(color.cyan);

S_SeventyFive.setlineweight(1);



plot S_ShortTarget = S_SeventyFive - (R1 - ShortEntry);

S_ShortTarget.setdefaultcolor(color.green);

S_ShortTarget.setlineweight(1);

def ST =(if isNaN(S_ShortTarget[1]) then S_ShortTarget else Double.NaN);

addchartBubble(LabelsOn and S_ShortTarget, ST,"SHORT TARGET: " + asDollars(ST),color.light_green);



# Alerts

Alert(AlertsOn and UpArrow, " ", Alert.Bar, Sound.ding);

Alert(AlertsOn and DnArrow, " ", Alert.Bar, Sound.ding);
Click to expand...
can someone write the scan for SE and LE? Thanks,

Thanks for sharing!

If L/E is Long Entry, and S/E is Short Entry, then what is the significance of the Arrow? Sometimes the Arrow is produced; and sometimes it is not.
I usually wait for the Arrow and then miss the trade.

Tek said:
Thanks for sharing!

If L/E is Long Entry, and S/E is Short Entry, then what is the significance of the Arrow? Sometimes the Arrow is produced; and sometimes it is not.
I usually wait for the Arrow and then miss the trade.
Click to expand...
I have noticed that as well. I'm not sure why sometimes the arrow appears and sometimes it does not. It's supposed to every time.

iFrostyy said:
Im looking for something along these lines, this was done with the RSM indicator is it possible for this one?

  1. Provides chart labels (upper left corner of price chart) with current status of MTF RSM Trend for the following TF's
    • 1m, 2m, 3m, 4m, 5m, 10m, 15m, 20m, 30m, 1h, 2h, 4h, 1d, 2d, 3d, 4d, 1wk, 1mnth
    • Add indicator for each time frame you would like shown
    • https://imgur.com/p4lADl8
Ruby:
#START OF RSI/Stochastic/MACD Confluence Strategy for ThinkOrSwim
# RSM_MTF_Labels
#
#CHANGELOG
# 2020.12.30 V2.1 @SuryaKiranC - Fork from @cos251 Version, to reduce the number of lines in code and optimize for performance.
#
# 2020.12.11 V1.1 @cos251 - Added 2D, 3D, 4D, 1WK, 1MNTH Agg Period Labels
#
# 2020.12.02 V1.0 @cos251 - Added RSM signal calculation for following timeframes:
# - 1m, 2m, 5m, 15m, 30m, 1h, 2h, 4h, D
# - Label will be added to top of chart for every allowed TF
# - Label will read "TF:L(Long):S(Short):I(Idle)"
# - Label Color will be green, red or gray accordingly
#
#
#REQUIREMENTS - RSI Set to 7, EXPONENTIAL
# Stoch Slow 14 and 3 WILDERS
# MACD 12,26,9 WEIGHTED
#
#ORIGINAL REQUEST - @Joseph Patrick 18
# - Link: https://usethinkscript.com/threads/mimicking-power-x-strategy-by-markus-heitkoetter.4283/
#
#

input period = AggregationPeriod.DAY;

DefineGlobalColor("UpTrend", Color.Green);
DefineGlobalColor("DownTrend", Color.RED);
DefineGlobalColor("NoTrend", Color.GRAY);

script RSM_ {

input aP = AggregationPeriod.DAY;
# RSI
def lengthRSI = 7;
def averageTypeRSI = AverageType.EXPONENTIAL;
# Stochastic
def over_boughtSt = 80;
def over_soldSt = 20;
def KPeriod = 14;
def DPeriod = 3;
input averageTypeStoch = AverageType.WILDERS;
# MACD
def fastLength = 12;
def slowLength = 26;
def MACDLength = 9;
def averageTypeMACD = AverageType.WEIGHTED;

###############################################################
########## RSI #########
################################################################

def NetChgAvg = MovingAverage(averageTypeRSI, close(period = aP) - close(period = aP)[1], lengthRSI);
def TotChgAvg = MovingAverage(averageTypeRSI, AbsValue(close(period = aP) - close(period = aP)[1]), lengthRSI);
def ChgRatio = if TotChgAvg != 0 then NetChgAvg / TotChgAvg else 0;
def RSI_ = 50 * (ChgRatio + 1);

################################################################
########## Stochastic Slow #########
################################################################

def SlowK_ = reference StochasticFull(over_boughtSt, over_soldSt, KPeriod, DPeriod, high(period = aP), low(period = aP), close(period = aP), 3, if (averageTypeStoch == 1) then AverageType.SIMPLE else AverageType.EXPONENTIAL).FullK;
def SlowD_ = reference StochasticFull(over_boughtSt, over_soldSt, KPeriod, DPeriod, high(period = aP), low(period = aP), close(period = aP), 3, if (averageTypeStoch == 1) then AverageType.SIMPLE else AverageType.EXPONENTIAL).FullD;

################################################################
########## MACD ###########
################################################################

def Value_ = MovingAverage(averageTypeMACD, close(period = aP), fastLength) - MovingAverage(averageTypeMACD, close(period = aP), slowLength);
def Avg_ = MovingAverage(averageTypeMACD, Value_, MACDLength);
def Diff_ = Value_ - Avg_;

#################################################################
########## Trend & Labels #########
#################################################################
def UpTrend_ = if RSI_ >= 50 and SlowK_ >= 50 and Value_ > Avg_ then 1 else 0;
def DownTrend_ = if RSI_ < 50 and SlowK_ < 50 and Value_ < Avg_ then 1 else 0;
plot Trend_ = if UpTrend_ then 1 else if DownTrend_ then 0 else -1;

}

def currentPeriod = GetAggregationPeriod();
def RSM;

if period >= currentPeriod {
RSM = RSM_(aP = period);

} else {
RSM = Double.NaN;

}

AddLabel(!IsNaN(RSM), if period == AggregationPeriod.MONTH then "M"
else if period == AggregationPeriod.WEEK then "W"
else if period == AggregationPeriod.FOUR_DAYS then "4D"
else if period == AggregationPeriod.THREE_DAYS then "3D"
else if period == AggregationPeriod.TWO_DAYS then "2D"
else if period == AggregationPeriod.DAY then "D"
else if period == AggregationPeriod.FOUR_HOURS then "4H"
else if period == AggregationPeriod.TWO_HOURS then "2H"
else if period == AggregationPeriod.HOUR then "60m"
else if period == AggregationPeriod.THIRTY_MIN then "30m"
else if period == AggregationPeriod.TWENTY_MIN then "20m"
else if period == AggregationPeriod.FIFTEEN_MIN then "15m"
else if period == AggregationPeriod.TEN_MIN then "10m"
else if period == AggregationPeriod.FIVE_MIN then "5m"
else if period == AggregationPeriod.FOUR_MIN then "4m"
else if period == AggregationPeriod.THREE_MIN then "3m"
else if period == AggregationPeriod.TWO_MIN then "2m"
else if period == AggregationPeriod.MIN then "1m"
else "", if RSM == 1 then GlobalColor("UpTrend") else if RSM == 0 then GlobalColor("DownTrend") else GlobalColor("NoTrend"));
Click to expand...
I loaded this code and am having trouble getting it to show any results. I loaded as a strategy and as a study. separately (deleting what I loaded in between) nothing shows. Love the idea!! Can you help?

Juno (Best Day EVER) said:
I loaded this code and am having trouble getting it to show any results. I loaded as a strategy and as a study. separately (deleting what I loaded in between) nothing shows. Love the idea!! Can you help?
Click to expand...

Hey there! It sounds like you might be having some trouble and we want to help!
Your post doesn't have enough information to guess where you went astray.
Lets approach it from another direction.
Here is a shared chart link: http://tos.mx/s32JoCz Click here for --> Easiest way to load shared links
The above link will provide you with a chart that has the indicator already displayed.
It should open and look like this:

Awesome script, can someone make this Multi Time Frame, So I can see the long & short entry on the 15 or 30 min time frame on a smaller Time Frame like a 5 minute. Thank you in Advance.

stocksniper said:
Awesome script, can someone make this Multi Time Frame, So I can see the long & short entry on the 15 or 30 min time frame on a smaller Time Frame like a 5 minute. Thank you in Advance.
Click to expand...
You can try this code. Change input Period. 30 MIN is default.

Code:
#MTF Automatic Quadrant Lines
#based on Mobius's Fractal Pivot Strategy
#developed by Chewie76 on 8/27/2021

# User Inputs
input n = 20;
input FractalEnergyLength = 8;
input FractalEnergyThreshold = .68;
input AtrMult = .70;
input nATR = 4;
input AvgType = AverageType.HULL;
input LabelsOn = yes;
input AlertsOn = no;
input Period = aggregationPeriod.thirty_min;

# Variables
def o = open(period = Period);
def h = high(period = Period);
def l = low(period = Period);
def c = close(period = Period);
def bar = BarNumber();
def TS = TickSize();
def nan = double.nan;
def ATR = Round((MovingAverage(AvgType, TrueRange(h, c, l), nATR)) / TS, 0) * TS;
def risk = if Between(c, 0, 1500)
           then ATR
           else if Between(c, 1500, 3500)
           then 2
           else if Between(c, 3500, 5500)
                then 4
           else 6;
def FE = Log(Sum((Max(h, c[1]) - Min(l, c[1])), FractalEnergyLength) /
        (Highest(h, FractalEnergyLength) - Lowest(l, FractalEnergyLength)))
            / Log(FractalEnergyLength);
# Parent Aggregation Pivot High
# Pivot High Variables
def p_hh = fold i = 1 to n + 1
           with p = 1
           while p
           do h > GetValue(h, -1);
def p_PivotH = if (bar > n and
                   h == Highest(h, n) and
                   p_hh)
               then h
               else NaN;
def p_PHValue = if !IsNaN(p_PivotH)
                then p_PivotH
                else p_PHValue[1];
def p_PHBar = if !IsNaN(p_PivotH)
                    then bar
                    else nan;
# Pivot High and Pivot High Exit Variables
# Pivot High Variables
def hh = fold ii = 1 to n + 1
         with pp = 1
         while pp
         do h > GetValue(h, -1);
def PivotH = if (bar > n and
                 h == Highest(h, n) and
                 hh)
            then h
            else Double.NaN;
def PHValue = if !IsNaN(PivotH)
              then PivotH
              else PHValue[1];
def PHBar = if !IsNaN(PivotH)
                  then bar
                  else nan;
# Pivot High Exit Variables
def PHExit = if (bar > n and
              h == Highest(h, n) and
              hh)
             then if l[1] < l
                  then l[1]
                  else fold r = 0 to 20
                       with a = NaN
                       while IsNaN(a)
                       do if GetValue(l[1], r) < l
                          then GetValue(l[1], r)
                          else NaN
            else Double.NaN;
def PHExitValue = if !IsNaN(PHExit)
                  then PHExit
                  else PHExitValue[1];
def PHExitBar = if (bar > n and
                    h == Highest(h, n) and
                    hh)
                then if l[1] < l
                then bar - 1
                else fold d = 0 to 20
                     with y = NaN
                     while IsNaN(y)
                     do if GetValue(l[1], d) < l
                        then GetValue(bar - 1, d)
                        else NaN
                else NaN;
# Pivot Low and Pivot Low Entry Variables
# Parent Pivot Low Variables
def p_ll = fold j = 1 to n + 1
           with q = 1
           while q
           do l < GetValue(l, -1);
def p_PivotL = if (bar > n and
                 l == Lowest(l, n) and
                 p_ll)
             then l
             else NaN;
def p_PLValue = if !IsNaN(p_PivotL)
              then p_PivotL
              else p_PLValue[1];
def p_PLBar = if !IsNaN(p_PivotL)
              then bar
              else nan;

# Pivot Low Variables
def ll = fold jj = 1 to n + 1
         with qq = 1
         while qq
         do l < GetValue(l, -1);
def PivotL = if (bar > n and
                 l == Lowest(l, n) and
                 ll)
             then l
             else NaN;
def PLValue = if !IsNaN(PivotL)
              then PivotL
              else PLValue[1];
def PLBar = if !IsNaN(PivotL)
            then bar
            else nan;

# Pivot Low Entry Variables
def PLEntry = if (bar > n and
                  l == Lowest(l, n) and
                  ll)
              then if h[1] > h
              then h[1]
              else fold t = 0 to 20
                   with w = NaN
                   while IsNaN(w)
                   do if GetValue(h[1], t) > h
                      then GetValue(h[1], t)
                      else NaN
              else NaN;
def PLEntryValue = if !IsNaN(PLEntry)
                   then PLEntry
                   else PLEntryValue[1];
def PLEntryBar =  if (bar > n and
                  l == Lowest(l, n) and
                  ll)
                  then if h[1] > h
                       then bar - 1
                       else fold u = 0 to 20
                            with z = NaN
                            while IsNaN(z)
                            do if GetValue(h[1], u) > h
                               then GetValue(bar - 1, u)
                               else NaN
              else NaN;

# Plots

plot R1 = if bar >= HighestAll(PHBar)
          then HighestAll(if isNaN(close[-1])
                          then PHValue
                          else nan)
         else nan;
R1.SetDefaultColor(Color.dark_red);
R1.SetLineWeight(1);
plot ShortEntry = if bar >= HighestAll(PHexitBar)
                   then HighestAll(if isNaN(close[-1])
                                   then PHExitValue
                                   else nan)
                   else nan;
ShortEntry.SetDefaultColor(Color.red);
def SE =(if isNaN(ShortEntry[1]) then ShortEntry else Double.NaN);
addchartBubble(LabelsOn and ShortEntry, SE,"S/E",color.red);

plot S1 = if bar >= HighestAll(PLBar)
          then HighestAll(if isNaN(c[-1])
                          then PLValue
                          else nan)
          else nan;
S1.SetDefaultColor(Color.dark_red);
S1.SetLineWeight(3);
plot LongEntry = if bar >= HighestAll(PLEntryBar)
                    then HighestAll(if isNaN(c[-1])
                                    then PLEntryValue
                                    else nan)
                    else nan;
LongEntry.SetDefaultColor(Color.GREEN);
LongEntry.SetStyle(Curve.long_DASH);
LongEntry.SetLineWeight(2);
def LE =(if isNaN(LongEntry[1]) then LongEntry else Double.NaN);
addchartBubble(LabelsOn and LongEntry, LE,"L/E",color.green);

plot UpArrow = if c crosses above LongEntry and FE > .5
               then l
               else Double.NaN;
UpArrow.SetPaintingStrategy(PaintingStrategy.ARROW_UP);
UpArrow.SetLineWeight(5);
UpArrow.SetDefaultColor(Color.GREEN);
plot DnArrow = if c crosses below ShortEntry and ((FE > .618)
                or (FE < .382))
               then h
               else Double.NaN;
DnArrow.SetPaintingStrategy(PaintingStrategy.ARROW_DOWN);
DnArrow.SetLineWeight(5);
DnArrow.SetDefaultColor(Color.RED);

plot Fifty = (LongEntry - S1) + LongEntry;
Fifty.setdefaultcolor(color.yellow);
Fifty.SetStyle(Curve.long_DASH);
Fifty.setlineweight(2);

plot SeventyFive = (LongEntry - S1) + Fifty;
SeventyFive.setdefaultcolor(color.cyan);
SeventyFive.SetStyle(Curve.long_DASH);
SeventyFive.setlineweight(2);

plot Target = (LongEntry - S1) + SeventyFive;
Target.setdefaultcolor(color.red);
Target.SetStyle(Curve.long_DASH);
Target.setlineweight(3);
def LT =(if isNaN(TARGET[1]) then Target else Double.NaN);
addchartBubble(LabelsOn and Target, LT,"LONG TARGET: " + asDollars(LT),color.red);

plot BreakDownTarget = S1 -(LongEntry - S1);
BreakDownTarget.setdefaultcolor(color.dark_Green);
BreakDownTarget.SetStyle(Curve.long_DASH);
BreakDownTarget.setlineweight(3);

plot S_Fifty = ShortEntry - (R1 - ShortEntry);
S_Fifty.setdefaultcolor(color.yellow);
S_Fifty.setlineweight(1);

plot S_SeventyFive = S_Fifty - (R1 - ShortEntry);
S_SeventyFive.setdefaultcolor(color.cyan);
S_SeventyFive.setlineweight(1);

plot S_ShortTarget = S_SeventyFive - (R1 - ShortEntry);
S_ShortTarget.setdefaultcolor(color.green);
S_ShortTarget.setlineweight(1);
def ST =(if isNaN(S_ShortTarget[1]) then S_ShortTarget else Double.NaN);
addchartBubble(LabelsOn and S_ShortTarget, ST,"SHORT TARGET: " + asDollars(ST),color.light_green);

# Alerts
Alert(AlertsOn and UpArrow, " ", Alert.Bar, Sound.ding);
Alert(AlertsOn and DnArrow, " ", Alert.Bar, Sound.ding);

Love this script, I use it all the time. However, not sure if it's possible at all, but is there a way for past signals from this indicator to not disappear?

chewie76 said:
The Automatic Quadrant Lines is a trading strategy upper indicator that projects where price might go in the future. Use weekly/daily/4 hr chart for swing trading. Use 30 min or less for day trading. This indicator shows you the long entry and long target. It shows you a short entry and short target. In the indicator, L/E is Long Entry, and S/E is Short Entry. The targets show the price in the chart bubble. There is a break down target line (dark green) that indicates if price breaks lower than the support line, this is where price may break down to. The indicator includes an up and down arrow that indicates when price breaks through the Long or Short Entry line. There are also alerts built in when the arrows appear.

Long strategy lines are dashed and have a (2) weight while short strategy are solid and single weighted lines.

(NOTE: If price breaks down or up from the dark red support and resistance lines, a new set of lines will appear. There are no guarantees price will hit the target.)

Here are some examples.

/RTY on 4 hr chart.
View attachment 11711

/ES on 15m chart. Price broke above target on FED news.
View attachment 11712

/NQ on 4 hr chart. Hit target.
View attachment 11713

Tesla on 4 hr chart. Above the 50% line. Target at $751.80.
View attachment 11714

/SI on 10 min chart. Hit target.
View attachment 11715

Shareable Link:
http://tos.mx/2pnajoG

Long Entry Scan Alert
http://tos.mx/3Jppd0g

Short Entry Scan Alert
http://tos.mx/KGlOVLi

CODE:

Code:
#Automatic Quadrant Lines

#based on Mobius's Fractal Pivot Strategy

#developed by Chewie76 on 8/27/2021



# User Inputs

input n = 20;

input FractalEnergyLength = 8;

input FractalEnergyThreshold = .68;

input AtrMult = .70;

input nATR = 4;

input AvgType = AverageType.HULL;

input LabelsOn = yes;

input AlertsOn = yes;



# Variables

def o = open;

def h = high;

def l = low;

def c = close;

def bar = BarNumber();

def TS = TickSize();

def nan = double.nan;

def ATR = Round((MovingAverage(AvgType, TrueRange(h, c, l), nATR)) / TS, 0) * TS;

def risk = if Between(c, 0, 1500)

           then ATR

           else if Between(c, 1500, 3500)

           then 2

           else if Between(c, 3500, 5500)

                then 4

           else 6;

def FE = Log(Sum((Max(h, c[1]) - Min(l, c[1])), FractalEnergyLength) /

        (Highest(h, FractalEnergyLength) - Lowest(l, FractalEnergyLength)))

            / Log(FractalEnergyLength);

# Parent Aggregation Pivot High

# Pivot High Variables

def p_hh = fold i = 1 to n + 1

           with p = 1

           while p

           do h > GetValue(h, -1);

def p_PivotH = if (bar > n and

                   h == Highest(h, n) and

                   p_hh)

               then h

               else NaN;

def p_PHValue = if !IsNaN(p_PivotH)

                then p_PivotH

                else p_PHValue[1];

def p_PHBar = if !IsNaN(p_PivotH)

                    then bar

                    else nan;

# Pivot High and Pivot High Exit Variables

# Pivot High Variables

def hh = fold ii = 1 to n + 1

         with pp = 1

         while pp

         do h > GetValue(h, -1);

def PivotH = if (bar > n and

                 h == Highest(h, n) and

                 hh)

            then h

            else Double.NaN;

def PHValue = if !IsNaN(PivotH)

              then PivotH

              else PHValue[1];

def PHBar = if !IsNaN(PivotH)

                  then bar

                  else nan;

# Pivot High Exit Variables

def PHExit = if (bar > n and

              h == Highest(h, n) and

              hh)

             then if l[1] < l

                  then l[1]

                  else fold r = 0 to 20

                       with a = NaN

                       while IsNaN(a)

                       do if GetValue(l[1], r) < l

                          then GetValue(l[1], r)

                          else NaN

            else Double.NaN;

def PHExitValue = if !IsNaN(PHExit)

                  then PHExit

                  else PHExitValue[1];

def PHExitBar = if (bar > n and

                    h == Highest(h, n) and

                    hh)

                then if l[1] < l

                then bar - 1

                else fold d = 0 to 20

                     with y = NaN

                     while IsNaN(y)

                     do if GetValue(l[1], d) < l

                        then GetValue(bar - 1, d)

                        else NaN

                else NaN;

# Pivot Low and Pivot Low Entry Variables

# Parent Pivot Low Variables

def p_ll = fold j = 1 to n + 1

           with q = 1

           while q

           do l < GetValue(l, -1);

def p_PivotL = if (bar > n and

                 l == Lowest(l, n) and

                 p_ll)

             then l

             else NaN;

def p_PLValue = if !IsNaN(p_PivotL)

              then p_PivotL

              else p_PLValue[1];

def p_PLBar = if !IsNaN(p_PivotL)

              then bar

              else nan;



# Pivot Low Variables

def ll = fold jj = 1 to n + 1

         with qq = 1

         while qq

         do l < GetValue(l, -1);

def PivotL = if (bar > n and

                 l == Lowest(l, n) and

                 ll)

             then l

             else NaN;

def PLValue = if !IsNaN(PivotL)

              then PivotL

              else PLValue[1];

def PLBar = if !IsNaN(PivotL)

            then bar

            else nan;



# Pivot Low Entry Variables

def PLEntry = if (bar > n and

                  l == Lowest(l, n) and

                  ll)

              then if h[1] > h

              then h[1]

              else fold t = 0 to 20

                   with w = NaN

                   while IsNaN(w)

                   do if GetValue(h[1], t) > h

                      then GetValue(h[1], t)

                      else NaN

              else NaN;

def PLEntryValue = if !IsNaN(PLEntry)

                   then PLEntry

                   else PLEntryValue[1];

def PLEntryBar =  if (bar > n and

                  l == Lowest(l, n) and

                  ll)

                  then if h[1] > h

                       then bar - 1

                       else fold u = 0 to 20

                            with z = NaN

                            while IsNaN(z)

                            do if GetValue(h[1], u) > h

                               then GetValue(bar - 1, u)

                               else NaN

              else NaN;



# Plots



plot R1 = if bar >= HighestAll(PHBar)

          then HighestAll(if isNaN(close[-1])

                          then PHValue

                          else nan)

         else nan;

R1.SetDefaultColor(Color.dark_red);

R1.SetLineWeight(1);

plot ShortEntry = if bar >= HighestAll(PHexitBar)

                   then HighestAll(if isNaN(close[-1])

                                   then PHExitValue

                                   else nan)

                   else nan;

ShortEntry.SetDefaultColor(Color.red);

def SE =(if isNaN(ShortEntry[1]) then ShortEntry else Double.NaN);

addchartBubble(LabelsOn and ShortEntry, SE,"S/E",color.red);



plot S1 = if bar >= HighestAll(PLBar)

          then HighestAll(if isNaN(c[-1])

                          then PLValue

                          else nan)

          else nan;

S1.SetDefaultColor(Color.dark_red);

S1.SetLineWeight(3);

plot LongEntry = if bar >= HighestAll(PLEntryBar)

                    then HighestAll(if isNaN(c[-1])

                                    then PLEntryValue

                                    else nan)

                    else nan;

LongEntry.SetDefaultColor(Color.GREEN);

LongEntry.SetStyle(Curve.long_DASH);

LongEntry.SetLineWeight(2);

def LE =(if isNaN(LongEntry[1]) then LongEntry else Double.NaN);

addchartBubble(LabelsOn and LongEntry, LE,"L/E",color.green);


plot UpArrow = if c crosses above LongEntry and FE > .5

               then l

               else Double.NaN;

UpArrow.SetPaintingStrategy(PaintingStrategy.ARROW_UP);

UpArrow.SetLineWeight(5);

UpArrow.SetDefaultColor(Color.GREEN);

plot DnArrow = if c crosses below ShortEntry and ((FE > .618)

                or (FE < .382))

               then h

               else Double.NaN;

DnArrow.SetPaintingStrategy(PaintingStrategy.ARROW_DOWN);

DnArrow.SetLineWeight(5);

DnArrow.SetDefaultColor(Color.RED);



plot Fifty = (LongEntry - S1) + LongEntry;

Fifty.setdefaultcolor(color.yellow);

Fifty.SetStyle(Curve.long_DASH);

Fifty.setlineweight(2);



plot SeventyFive = (LongEntry - S1) + Fifty;

SeventyFive.setdefaultcolor(color.cyan);

SeventyFive.SetStyle(Curve.long_DASH);

SeventyFive.setlineweight(2);



plot Target = (LongEntry - S1) + SeventyFive;

Target.setdefaultcolor(color.red);

Target.SetStyle(Curve.long_DASH);

Target.setlineweight(3);

def LT =(if isNaN(TARGET[1]) then Target else Double.NaN);

addchartBubble(LabelsOn and Target, LT,"LONG TARGET: " + asDollars(LT),color.red);



plot BreakDownTarget = S1 -(LongEntry - S1);

BreakDownTarget.setdefaultcolor(color.dark_Green);

BreakDownTarget.SetStyle(Curve.long_DASH);

BreakDownTarget.setlineweight(3);



plot S_Fifty = ShortEntry - (R1 - ShortEntry);

S_Fifty.setdefaultcolor(color.yellow);

S_Fifty.setlineweight(1);



plot S_SeventyFive = S_Fifty - (R1 - ShortEntry);

S_SeventyFive.setdefaultcolor(color.cyan);

S_SeventyFive.setlineweight(1);



plot S_ShortTarget = S_SeventyFive - (R1 - ShortEntry);

S_ShortTarget.setdefaultcolor(color.green);

S_ShortTarget.setlineweight(1);

def ST =(if isNaN(S_ShortTarget[1]) then S_ShortTarget else Double.NaN);

addchartBubble(LabelsOn and S_ShortTarget, ST,"SHORT TARGET: " + asDollars(ST),color.light_green);



# Alerts

Alert(AlertsOn and UpArrow, " ", Alert.Bar, Sound.ding);

Alert(AlertsOn and DnArrow, " ", Alert.Bar, Sound.ding);
Click to expand...
On your ?NQ, /SI, and Tesla charts above, should Long arrows be paining? Thanks

You must log in or register to reply here.
Thread starter Similar threads Forum Replies Date
chewie76 Automatic Long and Short Fibonacci Level Indicators for ThinkorSwim Indicators 42
M Automatic patterns studies, Bull, Bear, Bullish only & Bearish only For ThinkOrSwim Indicators 8
Wiinii Previous Day High/Low/Close + Premarket High/Low + High/Low/Open of Day + ATR Lines for ThinkorSwim Indicators 89
Trader_Rich Auto Trend Lines For ThinkOrSwim Indicators 4
T Daily ATR Support/Resistance Lines for ThinkorSwim Indicators 32

Similar threads

Not the exact question you're looking for?

Start a new thread and receive assistance from our community.

87k+ Posts
412 Online
Create Post

Similar threads

Similar threads

The Market Trading Game Changer

Join 2,500+ subscribers inside the useThinkScript VIP Membership Club
  • Exclusive indicators
  • Proven strategies & setups
  • Private Discord community
  • ‘Buy The Dip’ signal alerts
  • Exclusive members-only content
  • Add-ons and resources
  • 1 full year of unlimited support
Try VIP Club Today

Frequently Asked Questions

What is useThinkScript?

useThinkScript is the #1 community of stock market investors using indicators and other tools to power their trading strategies. Traders of all skill levels use our forums to learn about scripting and indicators, help each other, and discover new ways to gain an edge in the markets.

How do I get started?

We get it. Our forum can be intimidating, if not overwhelming. With thousands of topics, tens of thousands of posts, our community has created an incredibly deep knowledge base for stock traders. No one can ever exhaust every resource provided on our site.

If you are new, or just looking for guidance, here are some helpful links to get you started.

What are the benefits of VIP Membership?
VIP members get exclusive access to these proven and tested premium indicators: Buy the Dip, Advanced Market Moves 2.0, Take Profit, and Volatility Trading Range. In addition, VIP members get access to over 50 VIP-only custom indicators, add-ons, and strategies, private VIP-only forums, private Discord channel to discuss trades and strategies in real-time, customer support, trade alerts, and much more. Learn all about VIP membership here.
How can I access the premium indicators?
To access the premium indicators, which are plug and play ready, sign up for VIP membership here.
Back
Top
