Show only the last occurrence of a condition

[argim]

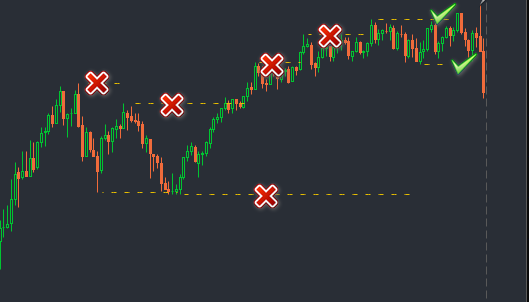

Hi, Say I have a study showing the highest high in the last X bars (drawings horizontal line)... That would fill my screen with many lines where the condition is satisfied. My question is what code should be added to show only the most recent line...

The highest high is only an example of course...

thanks
A



[armybender]

Here's an example. This keeps track of swing highs and lows, and there's a section (lines 52-55) that increments when it finds a new swing low or high, then keeps that value until a new one is plotted. Something like this could work well for what you're talking about.

The only downside is it uses the HighestAll() function, which means it will only update once per bar, so if you need something that updates while bars are forming I would not recommend this method.

declare upper;

# USER INPUTS
input show_points = no;
input dot_size = 1;
input dot_distance = 2;
input show_lines = yes;
input price_type = {default High_Low, Open_Close, Close_Only};
input swing_back = 9;
input swing_forward = 9;
input maxbars = 500;
input show_labels = no;
input show_only_last_swing = no;


# GLOBAL COLOR DEFINITIONS
DefineGlobalColor("Green", CreateColor(0, 155, 0));
DefineGlobalColor("Red", CreateColor(225, 105, 105));
DefineGlobalColor("Gray", CreateColor(192, 192, 192));


# CALCULATIONS
def sb = swing_back;
def sf = swing_forward;
def na = Double.NaN;

def PriceHigh =
    if price_type == price_type.High_Low then high
    else if price_type == price_type.Open_Close then Max(open, close)
    else if price_type == price_type.Close_Only then close
    else close
;
def PriceLow =
    if price_type == price_type.High_Low then low
    else if price_type == price_type.Open_Close then Min(open, close)
    else if price_type == price_type.Close_Only then close
    else close
;

def lfor = Lowest(PriceLow, sf)[-sf];
def lback = Lowest(PriceLow, sb)[1];
def hfor = Highest(PriceHigh, sf)[-sf];
def hback = Highest(PriceHigh, sb)[1];
def swinglow = if PriceLow < lfor and PriceLow <= lback then yes else no;
def swinghigh = if PriceHigh > hfor and PriceHigh >= hback then yes else no;

def lsl = if IsNaN(close[-sf]) then lsl[1] else if swinglow then PriceLow else lsl[1];
def lsh = if swinghigh then PriceHigh else lsh[1];
def lcount = if swinglow then 1 else lcount[1] + 1;
def hcount = if swinghigh then 1 else hcount[1] + 1;

def slcount = if swinglow then slcount[1] + 1 else slcount[1];
def shcount = if swinghigh then shcount[1] + 1 else shcount[1];
def onlylastslplotbar = slcount == HighestAll(slcount);
def onlylastshplotbar = shcount == HighestAll(shcount);


def lastlowdata =
    if lcount <= maxbars and IsNaN(close[-sf]) then lsl[1]
    else if lcount > maxbars then na
    else if lcount < 2 then na
    else lsl;
def lasthighdata =
    if hcount <= maxbars and IsNaN(close[-sf]) then lsh[1]
    else if hcount > maxbars then na
    else if hcount < 2 then na
    else lsh;


# PLOTS
plot sl = if swinglow then PriceLow - (dot_distance * TickSize()) else na;
plot sh = if swinghigh then PriceHigh + (dot_distance * TickSize()) else na;
plot lastlow =
    if show_only_last_swing then
        if onlylastslplotbar then
            lastlowdata
        else na
    else
        lastlowdata;
plot lasthigh =
    if show_only_last_swing then
        if onlylastshplotbar then
            lasthighdata
        else na
    else
        lasthighdata;


# FORMATTING
sh.SetStyle(curve.points);
sh.SetLineWeight(dot_size);
sh.assignvaluecolor(if SH > lasthigh[1] then GlobalColor("Green") else GlobalColor("Red"));
sh.SetHiding(show_points == No);
sh.HideBubble();
sh.HideTitle();

sl.SetStyle(curve.points);
sl.SetLineWeight(dot_size);
sl.assignvaluecolor(if SL < lastlow[1] then GlobalColor("Red") else GlobalColor("Green"));
sl.SetHiding(show_points == No);
sl.HideBubble();
sl.HideTitle();

lasthigh.SetStyle(curve.SHORT_DASH);
lasthigh.AssignValueColor(GlobalColor("Gray"));
lasthigh.SetHiding(show_lines == No);
lasthigh.HideBubble();
lasthigh.HideTitle();

lastlow.SetStyle(curve.sHORT_DASH);
lastlow.AssignValueColor(GlobalColor("Gray"));
lastlow.SetHiding(show_lines == No);
lastlow.HideBubble();
lastlow.HideTitle();



[argim]

Here's an example. This keeps track of swing highs and lows, and there's a section (lines 52-55) that increments when it finds a new swing low or high, then keeps that value until a new one is plotted. Something like this could work well for what you're talking about.

The only downside is it uses the HighestAll() function, which means it will only update once per bar, so if you need something that updates while bars are forming I would not recommend this method.

declare upper;

# USER INPUTS
input show_points = no;
input dot_size = 1;
input dot_distance = 2;
input show_lines = yes;
input price_type = {default High_Low, Open_Close, Close_Only};
input swing_back = 9;
input swing_forward = 9;
input maxbars = 500;
input show_labels = no;
input show_only_last_swing = no;


# GLOBAL COLOR DEFINITIONS
DefineGlobalColor("Green", CreateColor(0, 155, 0));
DefineGlobalColor("Red", CreateColor(225, 105, 105));
DefineGlobalColor("Gray", CreateColor(192, 192, 192));


# CALCULATIONS
def sb = swing_back;
def sf = swing_forward;
def na = Double.NaN;

def PriceHigh =
    if price_type == price_type.High_Low then high
    else if price_type == price_type.Open_Close then Max(open, close)
    else if price_type == price_type.Close_Only then close
    else close
;
def PriceLow =
    if price_type == price_type.High_Low then low
    else if price_type == price_type.Open_Close then Min(open, close)
    else if price_type == price_type.Close_Only then close
    else close
;

def lfor = Lowest(PriceLow, sf)[-sf];
def lback = Lowest(PriceLow, sb)[1];
def hfor = Highest(PriceHigh, sf)[-sf];
def hback = Highest(PriceHigh, sb)[1];
def swinglow = if PriceLow < lfor and PriceLow <= lback then yes else no;
def swinghigh = if PriceHigh > hfor and PriceHigh >= hback then yes else no;

def lsl = if IsNaN(close[-sf]) then lsl[1] else if swinglow then PriceLow else lsl[1];
def lsh = if swinghigh then PriceHigh else lsh[1];
def lcount = if swinglow then 1 else lcount[1] + 1;
def hcount = if swinghigh then 1 else hcount[1] + 1;

def slcount = if swinglow then slcount[1] + 1 else slcount[1];
def shcount = if swinghigh then shcount[1] + 1 else shcount[1];
def onlylastslplotbar = slcount == HighestAll(slcount);
def onlylastshplotbar = shcount == HighestAll(shcount);


def lastlowdata =
    if lcount <= maxbars and IsNaN(close[-sf]) then lsl[1]
    else if lcount > maxbars then na
    else if lcount < 2 then na
    else lsl;
def lasthighdata =
    if hcount <= maxbars and IsNaN(close[-sf]) then lsh[1]
    else if hcount > maxbars then na
    else if hcount < 2 then na
    else lsh;


# PLOTS
plot sl = if swinglow then PriceLow - (dot_distance * TickSize()) else na;
plot sh = if swinghigh then PriceHigh + (dot_distance * TickSize()) else na;
plot lastlow =
    if show_only_last_swing then
        if onlylastslplotbar then
            lastlowdata
        else na
    else
        lastlowdata;
plot lasthigh =
    if show_only_last_swing then
        if onlylastshplotbar then
            lasthighdata
        else na
    else
        lasthighdata;


# FORMATTING
sh.SetStyle(curve.points);
sh.SetLineWeight(dot_size);
sh.assignvaluecolor(if SH > lasthigh[1] then GlobalColor("Green") else GlobalColor("Red"));
sh.SetHiding(show_points == No);
sh.HideBubble();
sh.HideTitle();

sl.SetStyle(curve.points);
sl.SetLineWeight(dot_size);
sl.assignvaluecolor(if SL < lastlow[1] then GlobalColor("Red") else GlobalColor("Green"));
sl.SetHiding(show_points == No);
sl.HideBubble();
sl.HideTitle();

lasthigh.SetStyle(curve.SHORT_DASH);
lasthigh.AssignValueColor(GlobalColor("Gray"));
lasthigh.SetHiding(show_lines == No);
lasthigh.HideBubble();
lasthigh.HideTitle();

lastlow.SetStyle(curve.sHORT_DASH);
lastlow.AssignValueColor(GlobalColor("Gray"));
lastlow.SetHiding(show_lines == No);
lastlow.HideBubble();
lastlow.HideTitle();

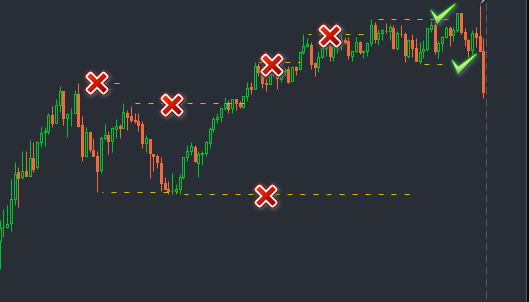

Unfortunately, it shows all the occurrences. At any time I want to show only the last one or "active"



[SleepyZ]

Unfortunately, it shows all the occurrences. At any time I want to show only the last one or "active" View attachment 19012

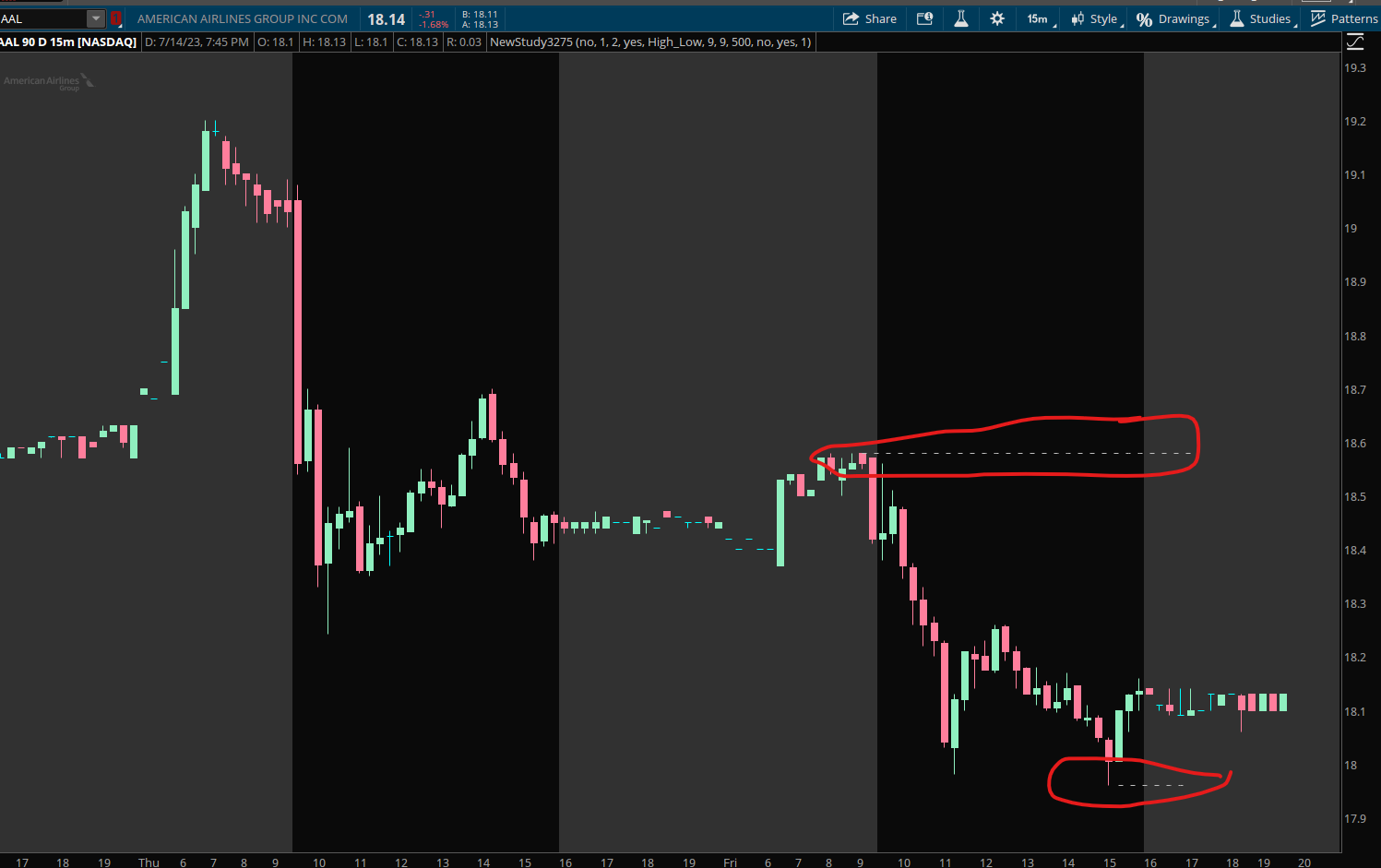

The script is modified with the following to limit the plot of the lines

input limit_plot = yes;
input plot_limited_to_last_x = 1;
def cond_h      = if !IsNaN(sh) then 1 else Double.NaN;
def dataCount_h = CompoundValue(1, if !IsNaN(cond_h) then dataCount_h[1] + 1 else dataCount_h[1], 0);
def cond_l      = if !IsNaN(sl) then 1 else Double.NaN;
def dataCount_l = CompoundValue(1, if !IsNaN(cond_l) then dataCount_l[1] + 1 else dataCount_l[1], 0);

plot lastlow =
    if limit_plot then
       if HighestAll(dataCount_l) - dataCount_l <= plot_limited_to_last_x - 1 then
          lastlowdata
        else na
    else lsl;

plot lasthigh =
    if limit_plot then
       if HighestAll(dataCount_h) - dataCount_h <= plot_limited_to_last_x - 1 then
          lasthighdata
        else na
    else
        lasthighdata;

Here is the full modified script

# USER INPUTS
input show_points = no;
input dot_size = 1;
input dot_distance = 2;
input show_lines = yes;
input price_type = {default High_Low, Open_Close, Close_Only};
input swing_back = 9;
input swing_forward = 9;
input maxbars = 500;
input show_labels = no;
input limit_plot = yes;
input plot_limited_to_last_x = 1;


# GLOBAL COLOR DEFINITIONS
DefineGlobalColor("Green", CreateColor(0, 155, 0));
DefineGlobalColor("Red", CreateColor(225, 105, 105));
DefineGlobalColor("Gray", CreateColor(192, 192, 192));


# CALCULATIONS
def sb = swing_back;
def sf = swing_forward;
def na = Double.NaN;

def PriceHigh =
    if price_type == price_type.High_Low then high
    else if price_type == price_type.Open_Close then Max(open, close)
    else if price_type == price_type.Close_Only then close
    else close
;
def PriceLow =
    if price_type == price_type.High_Low then low
    else if price_type == price_type.Open_Close then Min(open, close)
    else if price_type == price_type.Close_Only then close
    else close
;

def lfor = Lowest(PriceLow, sf)[-sf];
def lback = Lowest(PriceLow, sb)[1];
def hfor = Highest(PriceHigh, sf)[-sf];
def hback = Highest(PriceHigh, sb)[1];
def swinglow = if PriceLow < lfor and PriceLow <= lback then yes else no;
def swinghigh = if PriceHigh > hfor and PriceHigh >= hback then yes else no;

def lsl = if IsNaN(close[-sf]) then lsl[1] else if swinglow then PriceLow else lsl[1];
def lsh = if swinghigh then PriceHigh else lsh[1];
def lcount = if swinglow then 1 else lcount[1] + 1;
def hcount = if swinghigh then 1 else hcount[1] + 1;

def slcount = if swinglow then slcount[1] + 1 else slcount[1];
def shcount = if swinghigh then shcount[1] + 1 else shcount[1];
def onlylastslplotbar = slcount == HighestAll(slcount);
def onlylastshplotbar = shcount == HighestAll(shcount);


def lastlowdata =
    if lcount <= maxbars and IsNaN(close[-sf]) then lsl[1]
    else if lcount > maxbars then na
    else if lcount < 2 then na
    else lsl;
def lasthighdata =
    if hcount <= maxbars and IsNaN(close[-sf]) then lsh[1]
    else if hcount > maxbars then na
    else if hcount < 2 then na
    else lsh;


# PLOTS
plot sl = if swinglow then PriceLow - (dot_distance * TickSize()) else na;
plot sh = if swinghigh then PriceHigh + (dot_distance * TickSize()) else na;

def cond_h      = if !IsNaN(sh) then 1 else Double.NaN;
def dataCount_h = CompoundValue(1, if !IsNaN(cond_h) then dataCount_h[1] + 1 else dataCount_h[1], 0);
def cond_l      = if !IsNaN(sl) then 1 else Double.NaN;
def dataCount_l = CompoundValue(1, if !IsNaN(cond_l) then dataCount_l[1] + 1 else dataCount_l[1], 0);

plot lastlow =
    if limit_plot then
       if HighestAll(dataCount_l) - dataCount_l <= plot_limited_to_last_x - 1 then
          lastlowdata
        else na
    else lsl;

plot lasthigh =
    if limit_plot then
       if HighestAll(dataCount_h) - dataCount_h <= plot_limited_to_last_x - 1 then
          lasthighdata
        else na
    else
        lasthighdata;


# FORMATTING
sh.SetStyle(Curve.POINTS);
sh.SetLineWeight(dot_size);
sh.AssignValueColor(if sh > lasthigh[1] then GlobalColor("Green") else GlobalColor("Red"));
sh.SetHiding(show_points == no);
sh.HideBubble();
sh.HideTitle();

sl.SetStyle(Curve.POINTS);
sl.SetLineWeight(dot_size);
sl.AssignValueColor(if sl < lastlow[1] then GlobalColor("Red") else GlobalColor("Green"));
sl.SetHiding(show_points == no);
sl.HideBubble();
sl.HideTitle();

lasthigh.SetStyle(Curve.SHORT_DASH);
lasthigh.AssignValueColor(GlobalColor("Gray"));
lasthigh.SetHiding(show_lines == no);
lasthigh.HideBubble();
lasthigh.HideTitle();

lastlow.SetStyle(Curve.SHORT_DASH);
lastlow.AssignValueColor(GlobalColor("Gray"));
lastlow.SetHiding(show_lines == no);
lastlow.HideBubble();
lastlow.HideTitle();



[armybender]

Unfortunately, it shows all the occurrences. At any time I want to show only the last one or "active" View attachment 19012

Did you set the "show_only_last_swing" input to Yes? If not it's going to keep track of all of them.



[halcyonguy]

Did you set the "show_only_last_swing" input to Yes? If not it's going to keep track of all of them.

when making a study for someone, it should work as requested with the default values. they shouldn't have to change anything. some users may be unfamiliar with changing an input value.



[halcyonguy]

Hi, Say I have a study showing the highest high in the last X bars (drawings horizontal line)... That would fill my screen with many lines where the condition is satisfied. My question is what code should be added to show only the most recent line...

The highest high is only an example of course...

the studies above may be doing this, i didn't study them thoroughly.
thought i would list a couple steps

def signal = .... some true/false formula
# save the barnumbers of the signals
def sbn = if signal then barnumber() else 0;
# find the highest barnumber
def hibn = highestall(sbn);
# if a barnumber equals hibn then this is the most recent signal
def highest_signal = if barnumber() == hibn then 1 else 0;
