Inside and Up/Down box

[conmayne]

def insideBar = close < close[1] and close > open[1] or close < open[1] and close > close[1];
def InsideUp = insideBar[1] and close > high[1] ;
def InsideDown = insideBar[1] and close < low[1] ;

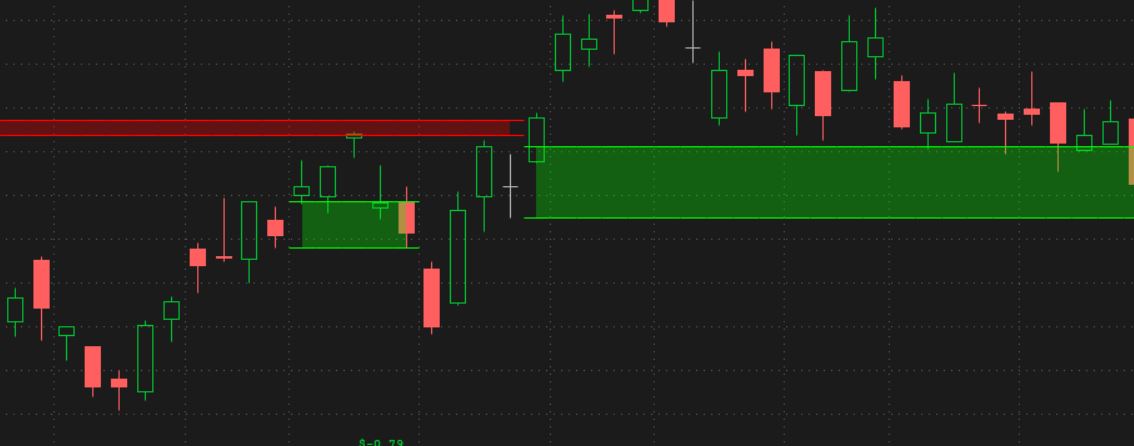

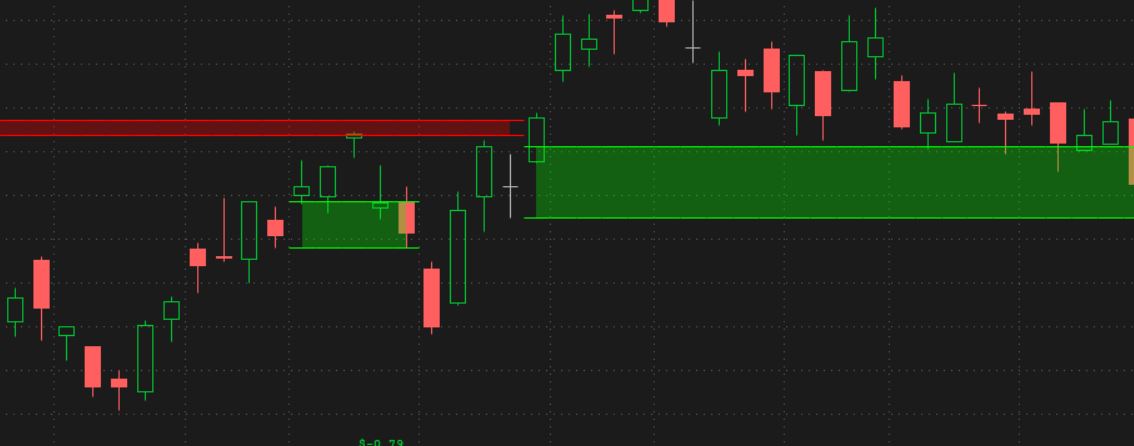

I'm trying to get TOS to plot a green box over any inside and ups that extends all the way to the right. vice versa for the inside and downs with a red highlighted box. Can anyone help me with that real quick? I want it to look like mobius pivot lines indicator boxes.



[halcyonguy]

def insideBar = close < close[1] and close > open[1] or close < open[1] and close > close[1];
def InsideUp = insideBar[1] and close > high[1] ;
def InsideDown = insideBar[1] and close < low[1] ;

I'm trying to get TOS to plot a green box over any inside and ups that extends all the way to the right. vice versa for the inside and downs with a red highlighted box. Can anyone help me with that real quick? I want it to look like mobius pivot lines indicator boxes.

i am not sure of your inside bar formula. ( maybe it's too late)
i left it in , but disabled it, so you could re-enable it if you want to.
i added my own inside bar formula.

i'm not familiar with mobius pivot boxes. if you want a study to influence a new study, post the code and a picture of it.

----------------------------------

there will probably be many, dozens , of inside bars on a chart.
to have lines extending from all of them, would require a unique set of supporting formulas and a separate plot formula for each one. not practical. this version plots lines from an up inside bar, until the next up bar. same for down inside bars.

take a look at this gap study, to give you an idea of having more than 1 line plotted on a bar. it can plot 4 sets of lines at a time.
https://usethinkscript.com/threads/...ses-into-it-for-thinkorswim.11186/#post-97764

---------------------------------

draw horizontal lines, from an inside bar,
when the next bar is higher or lower than the inside bar.

can choose price levels for inside bar, wicks or body.

can draw lines from the mother bar, the bigger one before the inside bar, for a few bars.

# inside_updown_box_0

input candle_levels = {default "wick" , "body" };
input show_big_bar_level_lines = yes;

def na = double.nan;

# choose price levels for inside bar , wicks or body
def highx;
def lowx;
def t;
switch (candle_levels) {
case "wick":
  highx = high;
  lowx = low;
  t = 1;
case "body":
  highx = Max( open, close);
  lowx = Min( open, close);
  t = 2;
}

addlabel(1, "Inside bar based on " + (if t == 1 then "Wick levels" else "Body levels"), color.yellow);


# ?? original code ,  body inside bar ?
#def insideBar = close < close[1] and close > open[1] or close < open[1] and close > close[1];

# 'normal' inside bar formula , wicks
#def insideBar = low[1] < low and high[1] > high;

def insideBar = lowx[1] < lowx and highx[1] > highx;

def InsideUp = insideBar[1] and close > highx[1] ;
def InsideDown = insideBar[1] and close < lowx[1] ;

def uphi = if InsideUp then highx[1] else if InsideUp[-1] then na else uphi[1];
def uplo = if InsideUp then lowx[1] else if InsideUp[-1] then na else uplo[1];
def dwnhi = if Insidedown then highx[1] else if Insidedown[-1] then na else dwnhi[1];
def dwnlo = if Insidedown then lowx[1] else if Insidedown[-1] then na else dwnlo[1];

plot zuphi = uphi;
zuphi.SetPaintingStrategy(PaintingStrategy.HORIZONTAL);
zuphi.SetDefaultColor(Color.light_green);
zuphi.hidebubble();

plot zuplo = uplo;
zuplo.SetPaintingStrategy(PaintingStrategy.HORIZONTAL);
zuplo.SetDefaultColor(Color.light_green);
zuplo.hidebubble();

plot zdwnhi = dwnhi;
zdwnhi.SetPaintingStrategy(PaintingStrategy.HORIZONTAL);
zdwnhi.SetDefaultColor(Color.light_red);
zdwnhi.hidebubble();

plot zdwnlo = dwnlo;
zdwnlo.SetPaintingStrategy(PaintingStrategy.HORIZONTAL);
zdwnlo.SetDefaultColor(Color.light_red);
zdwnlo.hidebubble();

addcloud(zuphi, zuplo, color.green, color.light_green);
addcloud(zdwnhi, zdwnlo, color.red, color.light_red);


# -------------------------
# show lines from mother bar ,big bar

def x = 4;
def biguphi = if InsideUp[-2] then highx[0] else if InsideUp[x] then na else biguphi[1];
def biguplo = if InsideUp[-2] then lowx[0] else if InsideUp[x] then na else biguplo[1];
def bigdwnhi = if Insidedown[-2] then highx[0] else if Insidedown[x] then na else bigdwnhi[1];
def bigdwnlo = if Insidedown[-2] then lowx[0] else if Insidedown[x] then na else bigdwnlo[1];

plot z1 = biguphi;
plot z2 = biguplo;
plot z3 = bigdwnhi;
plot z4 = bigdwnlo;

z1.SetPaintingStrategy(PaintingStrategy.HORIZONTAL);
z1.SetDefaultColor(Color.lime);
z1.hidebubble();
z1.SetHiding(!show_big_bar_level_lines);
z1.SetStyle(Curve.MEDIUM_DASH);

z2.SetPaintingStrategy(PaintingStrategy.HORIZONTAL);
z2.SetDefaultColor(Color.lime);
z2.hidebubble();
z2.SetHiding(!show_big_bar_level_lines);
z2.SetStyle(Curve.MEDIUM_DASH);

z3.SetPaintingStrategy(PaintingStrategy.HORIZONTAL);
z3.SetDefaultColor(Color.magenta);
z3.hidebubble();
z3.SetHiding(!show_big_bar_level_lines);
z3.SetStyle(Curve.MEDIUM_DASH);

z4.SetPaintingStrategy(PaintingStrategy.HORIZONTAL);
z4.SetDefaultColor(Color.magenta);
z4.hidebubble();
z4.SetHiding(!show_big_bar_level_lines);
z4.SetStyle(Curve.MEDIUM_DASH);


# --------------------------
# test stuff

input test_vertical_lines = no;
addverticalline(test_vertical_lines and insideup, "-", color.green);
addverticalline(test_vertical_lines and insidedown, "-", color.red);

#

wick levels



[conmayne]

Can you help me code a variation of this. I measure inside and up breakouts from the top of the body to the bottom of the wick for my box.



[halcyonguy]

i am not sure of your inside bar formula. ( maybe it's too late)
i left it in , but disabled it, so you could re-enable it if you want to.
i added my own inside bar formula.

patched code from post#2

i loaded my code from post2 and noticed sometimes there were lines at 0 during the first few bars.
i added a check , if barnumber 1 then na

# inside_updown_box_mod01b

# https://usethinkscript.com/threads/inside-and-up-down-box.11130/
# Inside and Up/Down box


input candle_levels = {default "wick" , "body" };
input show_big_bar_level_lines = yes;

def bn = barnumber();
def na = double.nan;

# choose price levels for inside bar , wicks or body
def highx;
def lowx;
def t;
switch (candle_levels) {
case "wick":
  highx = high;
  lowx = low;
  t = 1;
case "body":
  highx = Max( open, close);
  lowx = Min( open, close);
  t = 2;
}

addlabel(1, "Inside bar based on " + (if t == 1 then "Wick levels" else "Body levels"), color.yellow);


# ?? original code ,  body inside bar ?
#def insideBar = close < close[1] and close > open[1] or close < open[1] and close > close[1];

# 'normal' inside bar formula , wicks
#def insideBar = low[1] < low and high[1] > high;

def insideBar = lowx[1] < lowx and highx[1] > highx;

def InsideUp = insideBar[1] and close > highx[1] ;
def InsideDown = insideBar[1] and close < lowx[1] ;

def uphi = if bn == 1 then na else if InsideUp then highx[1] else if InsideUp[-1] then na else uphi[1];
def uplo = if bn == 1 then na else if InsideUp then lowx[1] else if InsideUp[-1] then na else uplo[1];
def dwnhi = if bn == 1 then na else if Insidedown then highx[1] else if Insidedown[-1] then na else dwnhi[1];
def dwnlo = if bn == 1 then na else if Insidedown then lowx[1] else if Insidedown[-1] then na else dwnlo[1];

plot zuphi = uphi;
zuphi.SetPaintingStrategy(PaintingStrategy.HORIZONTAL);
zuphi.SetDefaultColor(Color.light_green);
zuphi.hidebubble();

plot zuplo = uplo;
zuplo.SetPaintingStrategy(PaintingStrategy.HORIZONTAL);
zuplo.SetDefaultColor(Color.light_green);
zuplo.hidebubble();

plot zdwnhi = dwnhi;
zdwnhi.SetPaintingStrategy(PaintingStrategy.HORIZONTAL);
zdwnhi.SetDefaultColor(Color.light_red);
zdwnhi.hidebubble();

plot zdwnlo = dwnlo;
zdwnlo.SetPaintingStrategy(PaintingStrategy.HORIZONTAL);
zdwnlo.SetDefaultColor(Color.light_red);
zdwnlo.hidebubble();

addcloud(zuphi, zuplo, color.green, color.light_green);
addcloud(zdwnhi, zdwnlo, color.red, color.light_red);


# -------------------------
# show lines from mother bar ,big bar

def x = 4;
def biguphi = if bn == 1 then na else if InsideUp[-2] then highx[0] else if InsideUp[x] then na else biguphi[1];
def biguplo = if bn == 1 then na else if InsideUp[-2] then lowx[0] else if InsideUp[x] then na else biguplo[1];
def bigdwnhi = if bn == 1 then na else if Insidedown[-2] then highx[0] else if Insidedown[x] then na else bigdwnhi[1];
def bigdwnlo = if bn == 1 then na else if Insidedown[-2] then lowx[0] else if Insidedown[x] then na else bigdwnlo[1];

plot z1 = biguphi;
plot z2 = biguplo;
plot z3 = bigdwnhi;
plot z4 = bigdwnlo;

z1.SetPaintingStrategy(PaintingStrategy.HORIZONTAL);
z1.SetDefaultColor(Color.lime);
z1.hidebubble();
z1.SetHiding(!show_big_bar_level_lines);
z1.SetStyle(Curve.MEDIUM_DASH);

z2.SetPaintingStrategy(PaintingStrategy.HORIZONTAL);
z2.SetDefaultColor(Color.lime);
z2.hidebubble();
z2.SetHiding(!show_big_bar_level_lines);
z2.SetStyle(Curve.MEDIUM_DASH);

z3.SetPaintingStrategy(PaintingStrategy.HORIZONTAL);
z3.SetDefaultColor(Color.magenta);
z3.hidebubble();
z3.SetHiding(!show_big_bar_level_lines);
z3.SetStyle(Curve.MEDIUM_DASH);

z4.SetPaintingStrategy(PaintingStrategy.HORIZONTAL);
z4.SetDefaultColor(Color.magenta);
z4.hidebubble();
z4.SetHiding(!show_big_bar_level_lines);
z4.SetStyle(Curve.MEDIUM_DASH);


# --------------------------
# test stuff

addchartbubble(0, low,
 biguphi + "\n" +
 biguplo + "\n" +
 bigdwnhi + "\n" +
 bigdwnlo
, color.yellow, no);

input test_vertical_lines = no;
addverticalline(test_vertical_lines and insideup, "-", color.green);
addverticalline(test_vertical_lines and insidedown, "-", color.red);

#



[halcyonguy]

Can you help me code a variation of this. I measure inside and up breakouts from the top of the body to the bottom of the wick for my box.

i can try, but i don't understand, you will have to write out the rules , what happens , then do what?

are you saying, after an inside bar,
look for a bar with a low that is higher than the previous bar body top?



[conmayne]

i can try, but i don't understand, you will have to write out the rules , what happens , then do what?

are you saying, after an inside bar,
look for a bar with a low that is higher than the previous bar body top?

you made it better! Could it be mtf. Say I wanted to display the 30 min inside and downs/inside and ups on a 5 min chart?



[conmayne]

I also wanted them to extend all the way to the right if they have not been broken through yet. I see these as supply and demand levels for intraday trading and targets.



[conmayne]

https://imgur.com/e6rvUSO



[conmayne]

i can try, but i don't understand, you will have to write out the rules , what happens , then do what?

are you saying, after an inside bar,
look for a bar with a low that is higher than the previous bar body top?

posted the strategy in the image above. The green drawing is how I use the strategy and am trying to get the script to act on.



[halcyonguy]

posted the strategy in the image above. The green drawing is how I use the strategy and am trying to get the script to act on.

that picture helped to visualize what you want.
but it's hard to see what the horizontal lines are lining up with.
need to think in terms of defining the exact price levels, that can be used in formulas and write them out. (define a bar and a price level)

some guesses,
green top = inside bar , high
green bottom = inside bar , low


1. which bar and price level determine blue dash line? ( buy short level)
2. what determines green lines, my zone levels
3. do you want a shaded area between the green lines?
4. why is there a gray rectangle ? if it is to be drawn, what determines the top and bottom of it? what determines which bars to draw it on?
5. what determine red dash line? ( short stop)
6. what determines the target?



[Gymini]

def insideBar = close < close[1] and close > open[1] or close < open[1] and close > close[1];
def InsideUp = insideBar[1] and close > high[1] ;
def InsideDown = insideBar[1] and close < low[1] ;

I'm trying to get TOS to plot a green box over any inside and ups that extends all the way to the right. vice versa for the inside and downs with a red highlighted box. Can anyone help me with that real quick? I want it to look like mobius pivot lines indicator boxes.

I think you are talking about Trend pivots from Mobius



[conmayne]

that picture helped to visualize what you want.
but it's hard to see what the horizontal lines are lining up with.
need to think in terms of defining the exact price levels, that can be used in formulas and write them out. (define a bar and a price level)

some guesses,
green top = inside bar , high
green bottom = inside bar , low


1. which bar and price level determine blue dash line? ( buy short level)
2. what determines green lines, my zone levels
3. do you want a shaded area between the green lines?
4. why is there a gray rectangle ? if it is to be drawn, what determines the top and bottom of it? what determines which bars to draw it on?
5. what determine red dash line? ( short stop)
6. what determines the target?

Sorry for the confusion - the only lines I wanted to show you were the green I drew.

1. SO the green lines i drew- If its a bearish set up like in the photo - Bottom of the body of the first candle is first green line - top of the wick for the inside candle is the second green line. This would create a shaded area and remain shaded on the chart until buyers absorb the level. The same goes in reverse for a bullish set up.

There is no target since for me these are supply and demand levels. I identify them on my chart and use them as pivots. my targets would be the next supply or demand zone.



[conmayne]

I think you are talking about Trend pivots from Mobius

I know this study but it is different.



[conmayne]

that picture helped to visualize what you want.
but it's hard to see what the horizontal lines are lining up with.
need to think in terms of defining the exact price levels, that can be used in formulas and write them out. (define a bar and a price level)

some guesses,
green top = inside bar , high
green bottom = inside bar , low


1. which bar and price level determine blue dash line? ( buy short level)
2. what determines green lines, my zone levels
3. do you want a shaded area between the green lines?
4. why is there a gray rectangle ? if it is to be drawn, what determines the top and bottom of it? what determines which bars to draw it on?
5. what determine red dash line? ( short stop)
6. what determines the target?

This is an image of a30m SPX chart. I drew a bullish and bearish set up. Note that price hasn't broken either of these yet so they remain supply and deman.



[conmayne]

that picture helped to visualize what you want.
but it's hard to see what the horizontal lines are lining up with.
need to think in terms of defining the exact price levels, that can be used in formulas and write them out. (define a bar and a price level)

some guesses,
green top = inside bar , high
green bottom = inside bar , low


1. which bar and price level determine blue dash line? ( buy short level)
2. what determines green lines, my zone levels
3. do you want a shaded area between the green lines?
4. why is there a gray rectangle ? if it is to be drawn, what determines the top and bottom of it? what determines which bars to draw it on?
5. what determine red dash line? ( short stop)
6. what determines the target?

we're you able to check out the above^?



[halcyonguy]

Sorry for the confusion - the only lines I wanted to show you were the green I drew.

1. SO the green lines i drew- If its a bearish set up like in the photo - Bottom of the body of the first candle is first green line - top of the wick for the inside candle is the second green line. This would create a shaded area and remain shaded on the chart until buyers absorb the level. The same goes in reverse for a bullish set up.

There is no target since for me these are supply and demand levels. I identify them on my chart and use them as pivots. my targets would be the next supply or demand zone.

here is a study that follows the rules in post12
it draws green lines and red lines, separately

# inside_and_down_00

# https://usethinkscript.com/threads/inside-and-up-down-box.11130
# post12
#  the only lines I wanted to show you were the green I drew.

# 1. bearish set up , red lines
#  -- top of the wick of the inside candle
#  -- Bottom of the body of the candle before inside

# 2. bullish set up , green lines
#  -- bottom of the wick of the inside
#  -- top of the body of the candle before inside

#==========================================

def na = double.nan;
def bn = barnumber();

def isred = (close < open);
def isgreen = (close > open);
def inside = (high < high[1] and low > low[1]);

#------------------------------
# up
def upzonetop;
def upzonebtm;
if bn == 1 or isnan(close) then {
   upzonetop = na;
   upzonebtm = na;
} else if close[0] crosses below upzonebtm[1] then {
# cancel up
   upzonetop = na;
   upzonebtm = na;
} else if (inside[1] and isgreen[2] and close crosses above high[1]) then {
# up
   upzonetop = max(open[2], close[2]);
   upzonebtm = low[1];
} else {
   upzonetop = upzonetop[1];
   upzonebtm = upzonebtm[1];
}

#------------------------------
# down

def dwnzonetop;
def dwnzonebtm;
if bn == 1 or isnan(close) then {
   dwnzonetop = na;
   dwnzonebtm = na;
} else if close[0] crosses above dwnzonetop[1] then {
# cancel down
   dwnzonetop = na;
   dwnzonebtm = na;
} else if (inside[1] and isred[2] and close crosses below low[1]) then {
# down
   dwnzonetop = high[1];
   dwnzonebtm = min(open[2], close[2]);
} else {
   dwnzonetop = dwnzonetop[1];
   dwnzonebtm = dwnzonebtm[1];
}

#---------------------------

plot zut = upzonetop;
plot zub = upzonebtm;
zut.SetPaintingStrategy(PaintingStrategy.HORIZONTAL);
zub.SetPaintingStrategy(PaintingStrategy.HORIZONTAL);
zut.SetDefaultColor(Color.green);
zub.SetDefaultColor(Color.green);
zut.setlineweight(1);
zub.hidebubble();

plot zdt = dwnzonetop;
plot zdb = dwnzonebtm;
zdt.SetPaintingStrategy(PaintingStrategy.HORIZONTAL);
zdb.SetPaintingStrategy(PaintingStrategy.HORIZONTAL);
zdt.SetDefaultColor(Color.red);
zdb.SetDefaultColor(Color.red);
zdt.setlineweight(1);
zdb.hidebubble();

addcloud(zut, zub, color.green, color.magenta);
addcloud(zdt, zdb, color.red, color.magenta);
#
#

shows red lines stopping when price crossed above zone high
shows green lines stopping when price crosses below zone low



[Resiliencetrader]

This is what im looking for @halcyonguy ! can you make it MTF? Thank you



[Resiliencetrader]

here is a study that follows the rules in post12
it draws green lines and red lines, separately

# inside_and_down_00

# https://usethinkscript.com/threads/inside-and-up-down-box.11130
# post12
#  the only lines I wanted to show you were the green I drew.

# 1. bearish set up , red lines
#  -- top of the wick of the inside candle
#  -- Bottom of the body of the candle before inside

# 2. bullish set up , green lines
#  -- bottom of the wick of the inside
#  -- top of the body of the candle before inside

#==========================================

def na = double.nan;
def bn = barnumber();

def isred = (close < open);
def isgreen = (close > open);
def inside = (high < high[1] and low > low[1]);

#------------------------------
# up
def upzonetop;
def upzonebtm;
if bn == 1 or isnan(close) then {
   upzonetop = na;
   upzonebtm = na;
} else if close[0] crosses below upzonebtm[1] then {
# cancel up
   upzonetop = na;
   upzonebtm = na;
} else if (inside[1] and isgreen[2] and close crosses above high[1]) then {
# up
   upzonetop = max(open[2], close[2]);
   upzonebtm = low[1];
} else {
   upzonetop = upzonetop[1];
   upzonebtm = upzonebtm[1];
}

#------------------------------
# down

def dwnzonetop;
def dwnzonebtm;
if bn == 1 or isnan(close) then {
   dwnzonetop = na;
   dwnzonebtm = na;
} else if close[0] crosses above dwnzonetop[1] then {
# cancel down
   dwnzonetop = na;
   dwnzonebtm = na;
} else if (inside[1] and isred[2] and close crosses below low[1]) then {
# down
   dwnzonetop = high[1];
   dwnzonebtm = min(open[2], close[2]);
} else {
   dwnzonetop = dwnzonetop[1];
   dwnzonebtm = dwnzonebtm[1];
}

#---------------------------

plot zut = upzonetop;
plot zub = upzonebtm;
zut.SetPaintingStrategy(PaintingStrategy.HORIZONTAL);
zub.SetPaintingStrategy(PaintingStrategy.HORIZONTAL);
zut.SetDefaultColor(Color.green);
zub.SetDefaultColor(Color.green);
zut.setlineweight(1);
zub.hidebubble();

plot zdt = dwnzonetop;
plot zdb = dwnzonebtm;
zdt.SetPaintingStrategy(PaintingStrategy.HORIZONTAL);
zdb.SetPaintingStrategy(PaintingStrategy.HORIZONTAL);
zdt.SetDefaultColor(Color.red);
zdb.SetDefaultColor(Color.red);
zdt.setlineweight(1);
zdb.hidebubble();

addcloud(zut, zub, color.green, color.magenta);
addcloud(zdt, zdb, color.red, color.magenta);
#
#

shows red lines stopping when price crossed above zone high
shows green lines stopping when price crosses below zone low
View attachment 16011

Can you create the middle line between high and low of the box? and can you make an option for MTF? Thank you



[Mkirk]

Can someone convert this using the rules in the following link? https://usethinkscript.com/threads/...n-using-body-of-mother-candle-not-wick.14205/. The link just identifies the inside pattern with arrows and wedges, I would like the lines and clouds like this study has. Thanks. I'd like the lines on the high and low of the first candle of the pattern.



[Mkirk]

Can someone help with this? Thanks.
