How do I code a sequence of events?

B

british43

Member
VIP
I am trying to code the sequence of events: ST then UR then LS as seen below with horizontal lines. If the sequence does not occur nothing gets plot on the chart. I have post the script and looking for some tips to do this. Thanks!




Ruby:
def priceH = high;
def priceL = low;
def priceC = close;

def o = open;
def h = high;
def l = low;
def c = close;

input percentageReversal = 2;
input absoluteReversal = 0.0;
input atrLength = 2;
input atrReversal = 1;
input tickReversal = 0;

Assert(percentageReversal >= 0, "'percentage reversal' must not be negative: " + percentageReversal);
Assert(absoluteReversal >= 0, "'absolute reversal' must not be negative: " + absoluteReversal);
Assert(atrReversal >= 0, "'atr reversal' must not be negative: " + atrReversal);
Assert(tickReversal >= 0, "'ticks' must not be negative: " + tickReversal);
Assert(percentageReversal != 0 or absoluteReversal != 0 or atrReversal != 0 or tickReversal != 0, "Either 'percentage reversal' or 'absolute reversal' or 'atr reversal' or 'tick reversal' must not be zero");

def absReversal;
if (absoluteReversal != 0) {
    absReversal = absoluteReversal;
} else {
    absReversal =  tickReversal * TickSize();
}

def hlPivot;
if (atrReversal != 0) {
    hlPivot = percentageReversal / 100 + WildersAverage(TrueRange(high, close, low), atrLength) / close * atrReversal;
} else {
    hlPivot = percentageReversal / 100;
}


def state = {default init, undefined, uptrend, downtrend};
def maxPriceH;
def minPriceL;
def newMax;
def newMin;
def prevMaxH = GetValue(maxPriceH, 1);
def prevMinL = GetValue(minPriceL, 1);

if GetValue(state, 1) == GetValue(state.init, 0) {
    maxPriceH = priceH;
    minPriceL = priceL;
    newMax = yes;
    newMin = yes;
    state = state.undefined;
} else if GetValue(state, 1) == GetValue(state.undefined, 0) {
    if priceH >= prevMaxH {
        state = state.uptrend;
        maxPriceH = priceH;
        minPriceL = prevMinL;
        newMax = yes;
        newMin = no;
    } else if priceL <= prevMinL {
        state = state.downtrend;
        maxPriceH = prevMaxH;
        minPriceL = priceL;
        newMax = no;
        newMin = yes;
    } else {
        state = state.undefined;
        maxPriceH = prevMaxH;
        minPriceL = prevMinL;
        newMax = no;
        newMin = no;
    }
} else if GetValue(state, 1) == GetValue(state.uptrend, 0) {
    if priceL <= prevMaxH - prevMaxH * hlPivot - absReversal {
        state = state.downtrend;
        maxPriceH = prevMaxH;
        minPriceL = priceL;
        newMax = no;
        newMin = yes;
    } else {
        state = state.uptrend;
        if (priceH >= prevMaxH) {
            maxPriceH = priceH;
            newMax = yes;
        } else {
            maxPriceH = prevMaxH;
            newMax = no;
        }
        minPriceL = prevMinL;
        newMin = no;
    }
} else {
    if priceH >= prevMinL + prevMinL * hlPivot + absReversal {
        state = state.uptrend;
        maxPriceH = priceH;
        minPriceL = prevMinL;
        newMax = yes;
        newMin = no;
    } else {
        state = state.downtrend;
        maxPriceH = prevMaxH;
        newMax = no;
        if (priceL <= prevMinL) {
            minPriceL = priceL;
            newMin = yes;
        } else {
            minPriceL = prevMinL;
            newMin = no;
        }
    }
}



def barNumber = BarNumber();
def barCount = HighestAll(If(IsNaN(priceH), 0, barNumber));
def newState = GetValue(state, 0) != GetValue(state, 1);
def offset = barCount - barNumber + 1;
def highPoint = state == state.uptrend and priceH == maxPriceH;
def lowPoint = state == state.downtrend and priceL == minPriceL;

def lastH;
if highPoint and offset > 1 {
    lastH = fold iH = 1 to offset with tH = priceH while !IsNaN(tH) and !GetValue(newState, -iH) do if GetValue(newMax, -iH) or iH == offset - 1 and GetValue(priceH, -iH) == tH then Double.NaN else tH;
} else {
    lastH = Double.NaN;
}


def lastL;
if lowPoint and offset > 1 {
    lastL = fold iL = 1 to offset with tL = priceL while !IsNaN(tL) and !GetValue(newState, -iL) do if GetValue(newMin, -iL) or iL == offset - 1 and GetValue(priceL, -iL) == tL then Double.NaN else tL;
} else {
    lastL = Double.NaN;
}


plot ZZ;
if barNumber == 1 {
    ZZ = fold iF = 1 to offset with tP = Double.NaN while IsNaN(tP) do if GetValue(state, -iF) == GetValue(state.uptrend, 0) then priceL else if GetValue(state, -iF) == GetValue(state.downtrend, 0) then priceH else Double.NaN;
} else if barNumber == barCount {
    ZZ = if highPoint or state == state.downtrend and priceL > minPriceL then priceH else if lowPoint or state == state.uptrend and priceH < maxPriceH then priceL else Double.NaN;
} else {
    ZZ = if !IsNaN(lastH) then lastH else if !IsNaN(lastL) then lastL else Double.NaN;
}
ZZ.SetDefaultColor(GetColor(1));
ZZ.EnableApproximation();



input toggle = yes;
input reversalamount = 8.0;

def ATRSave = if  !IsNaN(ZZ) then ZZ else GetValue(ATRSave, 1);
def ATRSave1 = if ATRSave != ATRSave[1] then ATRSave[1] else GetValue(ATRSave1, 1);
def ATRSave2 = if ATRSave != ATRSave then ATRSave else GetValue(ATRSave1, 1);
def ATRSave3 = if  ATRSave2 != ATRSave2[1] then ATRSave2[1] else GetValue(ATRSave3, 1);
def ATRSave4 = if  ATRSave3 != ATRSave3[1] then ATRSave3[1] else GetValue(ATRSave4, 1);
def ATRSave5 = if  ATRSave4 != ATRSave4[1] then ATRSave4[1] else GetValue(ATRSave5, 1);
def ATRSave6 = if  ATRSave5 != ATRSave5[1] then ATRSave5[1] else GetValue(ATRSave6, 1);
def ATRSave7 = if  ATRSave6 != ATRSave6[1] then ATRSave6[1] else GetValue(ATRSave7, 1);

#########################################################################################
#Trend
#########################################################################################
rec fiveDaysSma = CompoundValue(5, Average(close, 5)[0], Double.NaN);
def LongTermTrendSlope = LinearRegressionSlope(price = fiveDaysSma, length = 40)[0];
def MiddleTermTrendSlope = LinearRegressionSlope(price = fiveDaysSma, length = 15)[0];
def ShortTermTrendSlope = LinearRegressionSlope(price = fiveDaysSma, length = 5)[0];

#########################################################################################
#Sequence 1
#########################################################################################
input length = 20;
input trendSetup = 2;
input error = .90;

def ErrMargin = error * Average(BodyHeight(), length);
def IsWhite = open < close;
def IsAlmostEqual = AbsValue(ATRSave - ATRSave2) <= ErrMargin and IsDescending(ATRSave, trendSetup);

def LR =   isAlmostEqual;

plot Test =  if LR then (low - 3 * TickSize()) else Double.NaN;
Test.SetPaintingStrategy(PaintingStrategy.LINE_VS_POINTS);
Test.SetStyle(Curve.POINTS);
Test.SetDefaultColor(Color.white);
Test.HideBubble();
Test.HideTitle();

#########################################################################################
#Sequence 2
#########################################################################################
def Upper_ID = ATRSave > ATRSave1 && ATRSave > ATRSAve2 && ATRSave > ATRSave3 && ATRSave2 > ATRSave1 && ATRSave2 > ATRSave3 && (ATRSave1 > ATRSave3 or ATRSave3 > ATRSave1) ;

plot Upper_Resistance =  if Upper_ID then (high + 3 * TickSize()) else Double.NaN;
Upper_Resistance.SetPaintingStrategy(PaintingStrategy.LINE_VS_POINTS);
Upper_Resistance.SetStyle(Curve.POINTS);
Upper_Resistance.SetDefaultColor(Color.RED);
Upper_Resistance.HideBubble();
Upper_Resistance.HideTitle();

#########################################################################################
#Sequence 3
#########################################################################################
def Lower_ID = ATRSave1 > ATRSave && ATRSave1 > ATRSAve2 && ATRSave1 > ATRSave3 && ATRSave1 > ATRSave4 && ATRSave3 > ATRSave && ATRSave3 > ATRSave2 && ATRSave3 > ATRSave4 && ATRSave4 > ATRSave && (ATRSave4 > ATRSave2 or ATRSave2 > ATRSave4) && ATRSave2 > ATRSave;

plot Lower_Range =  if Lower_ID then (low - 3 * TickSize()) else Double.NaN;
Lower_Range.SetPaintingStrategy(PaintingStrategy.LINE_VS_POINTS);
Lower_Range.SetStyle(Curve.POINTS);
Lower_Range.SetDefaultColor(Color.GREEN);
Lower_Range.HideBubble();
Lower_Range.HideTitle();

#########################################################################################
#Chartbubble
#########################################################################################
addchartBubble(toggle, Test, "ST", color.WHITE, no);
addchartBubble(toggle, Upper_Resistance, "UR", color.RED, yes);
addchartBubble(toggle, Lower_Range, "LS", color.GREEN, no);

#########################################################################################
#Horizontal Lines
#########################################################################################
input lineLength = 5;
def BN = BarNumber();
def barCount1 = Highestall(If(IsNaN(test), 0.0, BN));
def closeLine = if BN == 1 then Double.NaN
                else if BN == barCount1 - linelength
                then test[-lineLength]
                else closeLine[1];
plot x = closeline;


def barCount2 = Highestall(If(IsNaN(Upper_Resistance), 0.0, BN));
def closeLine2 = if BN == 1 then Double.NaN
                else if BN == barCount2 - linelength
                then Upper_Resistance[-lineLength]
                else closeLine2[1];
plot x2 = closeline2;

def barCount3 = Highestall(If(IsNaN(Lower_Range), 0.0, BN));
def closeLine3 = if BN == 1 then Double.NaN
                else if BN == barCount3 - linelength
                then Lower_Range[-lineLength]
                else closeLine3[1];
plot x3 = closeline3;

Solution
halcyonguy
british43 said:
I am trying to code the sequence of events: ST then UR then LS as seen below with horizontal lines. If the sequence does not occur nothing gets plot on the chart. I have post the script and looking for some tips to do this. Thanks!
Click to expand...

this will find a patten, a specific sequence of variables: ST, then UR, then LS.

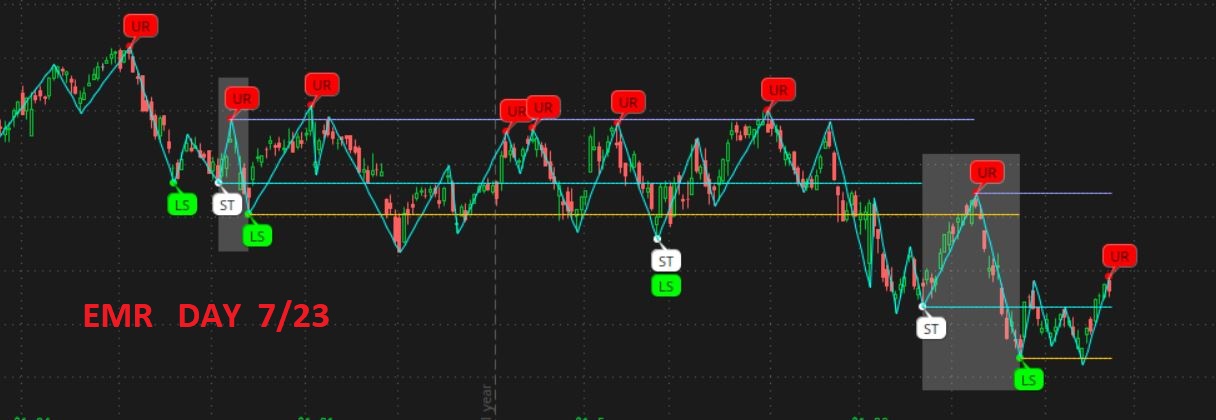

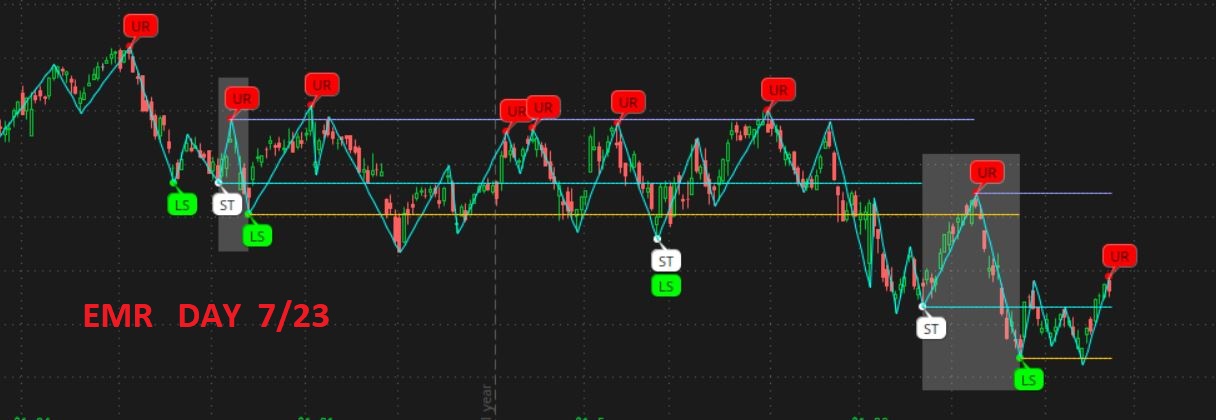

it will draw a gray cloud over each pattern and draw lines from 3 points in each pattern.

it looks for a ST signal. when it finds one, it runs a loop to look at future bars, to see if UR and LS are the next 2 signals.

i started with the original study, disabled some original plots, and added code.
i didn't analyze the original code.


i used orginal variables from these 3 sets of formulas. it seems to work, so i...
Sort by date Sort by votes
british43 said:
I am trying to code the sequence of events: ST then UR then LS as seen below with horizontal lines. If the sequence does not occur nothing gets plot on the chart. I have post the script and looking for some tips to do this. Thanks!
Click to expand...

this will find a patten, a specific sequence of variables: ST, then UR, then LS.
it will draw a gray cloud over each pattern and draw lines from 3 points in each pattern.

it looks for a ST signal. when it finds one, it runs a loop to look at future bars, to see if UR and LS are the next 2 signals.

i started with the original study, disabled some original plots, and added code.
i didn't analyze the original code.


i used orginal variables from these 3 sets of formulas. it seems to work, so i didn't change them.
these find the most recent occurance of a variable having a desired value.

def barCount1 = Highestall(If(IsNaN(test), 0.0, BN));
def closeLine = if BN == 1 then Double.NaN
else if BN == barCount1 - linelength
then test[-lineLength]
else closeLine[1];

i created new variables, with names that included one of the 3 main points, ST, UR, LS. this makes it easier to read through the code,
ex,
this variable name makes is easy to guess what the value is,
st_bn
this variable doesn't tell us much,
barCount1


Ruby:
# seq_peaks_valleys_01d

# https://usethinkscript.com/threads/how-do-i-code-a-sequence-of-events.11956/
# I am trying to code the sequence of events: ST then UR then LS as seen below with horizontal lines. If the sequence does not occur nothing gets plot on the chart. I have post the script and looking for some tips to do this. Thanks!

def bn = barnumber();
def na = double.nan;

def lastbn = HighestAll(If(IsNaN(close), 0, bn));
def lastbar = if (bn == lastbn) then 1 else 0;

def hibn = HighestAll(bn);
#def lastbar = !isnan(close[0]) and isnan(close[-1]);

def priceH = high;
def priceL = low;
def priceC = close;

def o = open;
def h = high;
def l = low;
def c = close;

input percentageReversal = 2;
input absoluteReversal = 0.0;
input atrLength = 2;
input atrReversal = 1;
input tickReversal = 0;

Assert(percentageReversal >= 0, "'percentage reversal' must not be negative: " + percentageReversal);
Assert(absoluteReversal >= 0, "'absolute reversal' must not be negative: " + absoluteReversal);
Assert(atrReversal >= 0, "'atr reversal' must not be negative: " + atrReversal);
Assert(tickReversal >= 0, "'ticks' must not be negative: " + tickReversal);
Assert(percentageReversal != 0 or absoluteReversal != 0 or atrReversal != 0 or tickReversal != 0, "Either 'percentage reversal' or 'absolute reversal' or 'atr reversal' or 'tick reversal' must not be zero");

def absReversal;
if (absoluteReversal != 0) {
    absReversal = absoluteReversal;
} else {
    absReversal =  tickReversal * TickSize();
}

def hlPivot;
if (atrReversal != 0) {
    hlPivot = percentageReversal / 100 + WildersAverage(TrueRange(high, close, low), atrLength) / close * atrReversal;
} else {
    hlPivot = percentageReversal / 100;
}


def state = {default init, undefined, uptrend, downtrend};
def maxPriceH;
def minPriceL;
def newMax;
def newMin;
def prevMaxH = GetValue(maxPriceH, 1);
def prevMinL = GetValue(minPriceL, 1);

if GetValue(state, 1) == GetValue(state.init, 0) {
    maxPriceH = priceH;
    minPriceL = priceL;
    newMax = yes;
    newMin = yes;
    state = state.undefined;
} else if GetValue(state, 1) == GetValue(state.undefined, 0) {
    if priceH >= prevMaxH {
        state = state.uptrend;
        maxPriceH = priceH;
        minPriceL = prevMinL;
        newMax = yes;
        newMin = no;
    } else if priceL <= prevMinL {
        state = state.downtrend;
        maxPriceH = prevMaxH;
        minPriceL = priceL;
        newMax = no;
        newMin = yes;
    } else {
        state = state.undefined;
        maxPriceH = prevMaxH;
        minPriceL = prevMinL;
        newMax = no;
        newMin = no;
    }
} else if GetValue(state, 1) == GetValue(state.uptrend, 0) {
    if priceL <= prevMaxH - prevMaxH * hlPivot - absReversal {
        state = state.downtrend;
        maxPriceH = prevMaxH;
        minPriceL = priceL;
        newMax = no;
        newMin = yes;
    } else {
        state = state.uptrend;
        if (priceH >= prevMaxH) {
            maxPriceH = priceH;
            newMax = yes;
        } else {
            maxPriceH = prevMaxH;
            newMax = no;
        }
        minPriceL = prevMinL;
        newMin = no;
    }
} else {
    if priceH >= prevMinL + prevMinL * hlPivot + absReversal {
        state = state.uptrend;
        maxPriceH = priceH;
        minPriceL = prevMinL;
        newMax = yes;
        newMin = no;
    } else {
        state = state.downtrend;
        maxPriceH = prevMaxH;
        newMax = no;
        if (priceL <= prevMinL) {
            minPriceL = priceL;
            newMin = yes;
        } else {
            minPriceL = prevMinL;
            newMin = no;
        }
    }
}



def barNumber = BarNumber();
def barCount = HighestAll(If(IsNaN(priceH), 0, barNumber));
def newState = GetValue(state, 0) != GetValue(state, 1);
def offset = barCount - barNumber + 1;
def highPoint = state == state.uptrend and priceH == maxPriceH;
def lowPoint = state == state.downtrend and priceL == minPriceL;

def lastH;
if highPoint and offset > 1 {
    lastH = fold iH = 1 to offset with tH = priceH while !IsNaN(tH) and !GetValue(newState, -iH) do if GetValue(newMax, -iH) or iH == offset - 1 and GetValue(priceH, -iH) == tH then Double.NaN else tH;
} else {
    lastH = Double.NaN;
}


def lastL;
if lowPoint and offset > 1 {
    lastL = fold iL = 1 to offset with tL = priceL while !IsNaN(tL) and !GetValue(newState, -iL) do if GetValue(newMin, -iL) or iL == offset - 1 and GetValue(priceL, -iL) == tL then Double.NaN else tL;
} else {
    lastL = Double.NaN;
}


plot ZZ;
if barNumber == 1 {
    ZZ = fold iF = 1 to offset with tP = Double.NaN while IsNaN(tP) do if GetValue(state, -iF) == GetValue(state.uptrend, 0) then priceL else if GetValue(state, -iF) == GetValue(state.downtrend, 0) then priceH else Double.NaN;
} else if barNumber == barCount {
    ZZ = if highPoint or state == state.downtrend and priceL > minPriceL then priceH else if lowPoint or state == state.uptrend and priceH < maxPriceH then priceL else Double.NaN;
} else {
    ZZ = if !IsNaN(lastH) then lastH else if !IsNaN(lastL) then lastL else Double.NaN;
}
ZZ.SetDefaultColor(GetColor(1));
ZZ.EnableApproximation();



input toggle = yes;
input reversalamount = 8.0;

def ATRSave = if  !IsNaN(ZZ) then ZZ else GetValue(ATRSave, 1);
def ATRSave1 = if ATRSave != ATRSave[1] then ATRSave[1] else GetValue(ATRSave1, 1);
def ATRSave2 = if ATRSave != ATRSave then ATRSave else GetValue(ATRSave1, 1);
def ATRSave3 = if  ATRSave2 != ATRSave2[1] then ATRSave2[1] else GetValue(ATRSave3, 1);
def ATRSave4 = if  ATRSave3 != ATRSave3[1] then ATRSave3[1] else GetValue(ATRSave4, 1);
def ATRSave5 = if  ATRSave4 != ATRSave4[1] then ATRSave4[1] else GetValue(ATRSave5, 1);
def ATRSave6 = if  ATRSave5 != ATRSave5[1] then ATRSave5[1] else GetValue(ATRSave6, 1);
def ATRSave7 = if  ATRSave6 != ATRSave6[1] then ATRSave6[1] else GetValue(ATRSave7, 1);

#########################################################################################
#Trend
#########################################################################################
rec fiveDaysSma = CompoundValue(5, Average(close, 5)[0], Double.NaN);
def LongTermTrendSlope = LinearRegressionSlope(price = fiveDaysSma, length = 40)[0];
def MiddleTermTrendSlope = LinearRegressionSlope(price = fiveDaysSma, length = 15)[0];
def ShortTermTrendSlope = LinearRegressionSlope(price = fiveDaysSma, length = 5)[0];




#########################################################################################
#Sequence 1
#########################################################################################
input length = 20;
input trendSetup = 2;
input error = .90;

def ErrMargin = error * Average(BodyHeight(), length);
def IsWhite = open < close;
def IsAlmostEqual = AbsValue(ATRSave - ATRSave2) <= ErrMargin and IsDescending(ATRSave, trendSetup);

#def LR = isAlmostEqual;
def st1 = isAlmostEqual;


#plot test =  if st1 or st1[1] or st1[2] then (low - 3 * TickSize()) else Double.NaN;
plot test =  if st1 then (low - 3 * TickSize()) else Double.NaN;
Test.SetPaintingStrategy(PaintingStrategy.LINE_VS_POINTS);
Test.SetStyle(Curve.POINTS);
Test.SetDefaultColor(Color.white);
Test.HideBubble();
Test.HideTitle();

#########################################################################################
#Sequence 2
#########################################################################################
def Upper_ID = ATRSave > ATRSave1 && ATRSave > ATRSAve2 && ATRSave > ATRSave3 && ATRSave2 > ATRSave1 && ATRSave2 > ATRSave3 && (ATRSave1 > ATRSave3 or ATRSave3 > ATRSave1) ;

plot Upper_Resistance =  if Upper_ID then (high + 3 * TickSize()) else Double.NaN;
Upper_Resistance.SetPaintingStrategy(PaintingStrategy.LINE_VS_POINTS);
Upper_Resistance.SetStyle(Curve.POINTS);
Upper_Resistance.SetDefaultColor(Color.RED);
Upper_Resistance.HideBubble();
Upper_Resistance.HideTitle();

#########################################################################################
#Sequence 3
#########################################################################################
def Lower_ID = ATRSave1 > ATRSave && ATRSave1 > ATRSAve2 && ATRSave1 > ATRSave3 && ATRSave1 > ATRSave4 && ATRSave3 > ATRSave && ATRSave3 > ATRSave2 && ATRSave3 > ATRSave4 && ATRSave4 > ATRSave && (ATRSave4 > ATRSave2 or ATRSave2 > ATRSave4) && ATRSave2 > ATRSave;

plot Lower_Range =  if Lower_ID then (low - 3 * TickSize()) else Double.NaN;
Lower_Range.SetPaintingStrategy(PaintingStrategy.LINE_VS_POINTS);
Lower_Range.SetStyle(Curve.POINTS);
Lower_Range.SetDefaultColor(Color.GREEN);
Lower_Range.HideBubble();
Lower_Range.HideTitle();

#########################################################################################
#Chartbubble
#########################################################################################
addchartBubble(toggle, Test, "ST", color.WHITE, no);
addchartBubble(toggle, Upper_Resistance, "UR", color.RED, yes);
addchartBubble(toggle, Lower_Range, "LS", color.GREEN, no);

#########################################################################################


#
#

#   chg , disable these plots
#########################################################################################
#Horizontal Lines , most recent
#########################################################################################
input lineLength = 5;
#def BN = BarNumber();
def barCount1 = Highestall(If(IsNaN(test), 0.0, BN));
def closeLine = if BN == 1 then Double.NaN
                else if BN == barCount1 - linelength
                then test[-lineLength]
                else closeLine[1];
#plot x = closeline;


def barCount2 = Highestall(If(IsNaN(Upper_Resistance), 0.0, BN));
def closeLine2 = if BN == 1 then Double.NaN
                else if BN == barCount2 - linelength
                then Upper_Resistance[-lineLength]
                else closeLine2[1];
#plot x2 = closeline2;

def barCount3 = Highestall(If(IsNaN(Lower_Range), 0.0, BN));
def closeLine3 = if BN == 1 then Double.NaN
                else if BN == barCount3 - linelength
                then Lower_Range[-lineLength]
                else closeLine3[1];
#plot x3 = closeline3;


#-------------------------------------------------------------------
#-------------------------------------------------------------------
#-------------------------------------------------------------------

# check for the seq of 3 vars , ST , then UR, then LS

#chg vars
def st = test;
def ur = Upper_Resistance;
def ls = Lower_Range;

def st_bn = barCount1;
def ur_bn = barCount2;
def ls_bn = barCount3;

def st_lvl = closeLine;
def ur_lvl = closeLine2;
def ls_lvl = closeLine3;

#---------------------------

def st_bn2 = if st_bn != st_bn[1] then st_bn else st_bn[1];

def signal_bn = if st then st_bn
  else if ur then ur_bn
  else if ls then ls_bn
  else signal_bn[1];

def sigchg = if signal_bn[1] != signal_bn then 1 else 0;


def lines_en = if bn == 1 then 0
  else if bn == st_bn then
  fold i = 1 to (lastbn - bn +1)
    with p
    do p + (if (bn == getvalue(ur_bn, -i) or bn == getvalue(ls_bn, -i)) then 1 else 0)
  else lines_en[1];


def st2 = st1;

def ur2 = if bn == 1 then 0
  else if isnan(ur) then 0
  else if ur then 1
  else ur2[1];

def ls2 = if bn == 1 then 0
  else if isnan(ls) then 0
  else if ls then 1
  else ls2[1];


# cyan line peaks/valleys
def zz2 = if bn == 1 then 0
  else if isnan(zz) then 0
  else zz;

# var with values, that determine when a pattern is found
# when a value of 3 occurs, a full pattern exists , ST, UR, LS
def signals = if bn == 1 then 0
  else if st2 and signals[1] != 0 then 0
  else if ur2 and signals[1] != 1 then 0
  else if ls2 and signals[1] != 2 then 0
  else if signals[1] == 3 then 0
  else if st2 then 1
  else if ur2 and signals[1] == 1 then 2
  else if ls2 and signals[1] == 2 then 3
# if a non labeled peak or valley then 0
  else if (zz2 > 0 and (!st2 or !ur2 or !ls2)) then 0
  else signals[1];


def ls2_off = if bn == 1 then 0
  else if lastbar then 0
  else if st2 then fold j = 1 to ( (hibn+1) - bn)
    with q
    while !isnan(getvalue(close, -j)) and getvalue(signals, -j) > 0
    do ( if getvalue(signals, -(j-1)) == 2 and getvalue(signals, -j) == 3 then j else q)
  else if ls2_off[1] == 0 then 0
  else ls2_off[1] - 1;


def st2_bn = if bn == 1 then 0
  else if st2 and ls2_off > 0 then bn
  else if signals > 0 then st2_bn[1]
  else 0;

def ur2_bn = If bn == 1 then 0
  else if ur2 and ls2_off > 0 then bn
  else if signals > 0 then ur2_bn[1]
  else 0;

def ls2_bn = if st2 then (bn + ls2_off)
  else if signals > 0 then ls2_bn[1]
  else 0;

def pattern = if bn == 1 then 0
  else if (bn >= st2_bn and bn <= ls2_bn) then 1
  else 0;

#-----------------------------

# find high of pattern rng
def rnghi = if (bn == st2_bn and ls2_bn > 0) then
  Fold k = 0 to 100
  with r
  while getvalue(pattern, -k) > 0
  do if getvalue(high, -k) > r  then getvalue(high, -k) else r
else if pattern > 0 then rnghi[1]
else na;
#plot yy = rnghi;
#yy.SetPaintingStrategy(PaintingStrategy.HORIZONTAL);


def rnglo = if (bn == st2_bn and ls2_bn > 0) then
  fold m = 0 to 100
  with s = 99999
  while getvalue(pattern, -m) > 0
  do if getvalue(low, -m) < s  then getvalue(low, -m) else s
else if pattern > 0 then rnglo[1]
else na;
#plot ww = rnglo;
#ww.SetPaintingStrategy(PaintingStrategy.HORIZONTAL);


input show_clouds = yes;
def factor_percent = 4.0;
def top = if show_clouds then (1+(factor_percent/100))*rnghi else na;
def bot = if show_clouds then (1-(factor_percent/100))*rnglo else na;
addcloud(top, bot, color.light_gray, color.light_gray);


#plot zp = if pattern then high * 1.05 else na;
#zp.setdefaultcolor(color.cyan);
#zp.setlineweight(4);

# ---------------------------------------


#########################################################################################
#Horizontal Lines , most recent
#   chg to be when a pattern happens
#########################################################################################
#input lineLength = 5;
#def BN = BarNumber();
#def barCount1 = Highestall(If(IsNaN(test), 0.0, BN));


# plot test =  if st1 then (low - 3 * TickSize()) else Double.NaN;
def diplvl = low - (3 * TickSize());
def peaklvl = high + (3 * TickSize());

def st_line = if BN == 1 then 0
  else if bn == st2_bn and ls2_bn > 0 then diplvl
  else st_line[1];
plot stx = if st_line > 0 then st_line else na;
stx.setdefaultcolor(color.cyan);
#stx.setlineweight(4);
stx.SetPaintingStrategy(PaintingStrategy.HORIZONTAL);

Def ur_Line = if BN == 1 then Double.NaN
  else if BN == ur2_bn and ls2_bn > 0 then peaklvl
  else ur_line[1];
plot urx = if ur_line > 0 then ur_line else na;
urx.setdefaultcolor(color.violet);
urx.SetPaintingStrategy(PaintingStrategy.HORIZONTAL);

def ls_line = if BN == 1 then Double.NaN
  else if BN == ls2_bn and signals[1] == 2 then diplvl
  else ls_line[1];
plot lsx = if ls_line > 0 then ls_line else na;
lsx.setdefaultcolor(color.orange);
lsx.SetPaintingStrategy(PaintingStrategy.HORIZONTAL);


#--------------------------------------------

#  LR = true on st valley
input test1 = no;
addchartbubble(test1, 100,
st1 + " LR\n" +
(low - 3 * TickSize()) + "\n" +
ticksize()
#+
#test
, (if st1 then color.yellow else color.gray), no);


addchartbubble(0, low*0.88,
bn + "\n" +
st2_bn + "\n" +
st_line + "\n" +

ur2_bn + "\n" +
ls2_bn + "\n" +
signals  + "\n" +

# na
#test[-lineLength] + "\n" +
pattern + "\n" +
diplvl
# cause fold error
#pattern[-lineLength]
, color.yellow, no);


#-----------------------------------------------

addchartbubble(0, low*0.96 ,
#addchartbubble(signals > 0, low*0.96 ,
bn + " \n" +
( lastbn - bn) + "\n" +
ls2_off + " off\n" +
(bn + ls2_off) + " LS bn\n" +
zz2 + " zz\n" +
st2 + " st2\n" +
ur2 + " ur2\n" +
ls2 + " ls2\n" +
signals + "\n" +
ls2_bn
, color.yellow, no);

#addverticalline( signals == 3 , "-", color.cyan);

#

EMR day

hal_seq

Last edited:
Upvote 0 Downvote
Solution
@halcyonguy I noticed that the higher timeframes (i.e., Monthly) the script doesn't plot the lines correctly. Look at CAT on the monthly timeframe. Also see the LS line plot without having the sequence look at META on daily chart

Upvote 0 Downvote
You must log in or register to reply here.

Join useThinkScript to post your question to a community of 21,000+ developers and traders.

SIGN UP NOW LEARN MORE
Thread starter Similar threads Forum Replies Date
T Help Code Strategy Code SPX ODE profitable System Questions 0
R % difference code Questions 2
M Code to Stop Trading for the day Once a Profit Order is executed Questions 0
W Removing price bubbles in Fibonacci code Questions 1
W Represent code as a bar Questions 1

Similar threads

Not the exact question you're looking for?

Start a new thread and receive assistance from our community.

87k+ Posts
406 Online
Create Post

Similar threads

Similar threads

The Market Trading Game Changer

Join 2,500+ subscribers inside the useThinkScript VIP Membership Club
  • Exclusive indicators
  • Proven strategies & setups
  • Private Discord community
  • ‘Buy The Dip’ signal alerts
  • Exclusive members-only content
  • Add-ons and resources
  • 1 full year of unlimited support
Try VIP Club Today

Frequently Asked Questions

What is useThinkScript?

useThinkScript is the #1 community of stock market investors using indicators and other tools to power their trading strategies. Traders of all skill levels use our forums to learn about scripting and indicators, help each other, and discover new ways to gain an edge in the markets.

How do I get started?

We get it. Our forum can be intimidating, if not overwhelming. With thousands of topics, tens of thousands of posts, our community has created an incredibly deep knowledge base for stock traders. No one can ever exhaust every resource provided on our site.

If you are new, or just looking for guidance, here are some helpful links to get you started.

What are the benefits of VIP Membership?
VIP members get exclusive access to these proven and tested premium indicators: Buy the Dip, Advanced Market Moves 2.0, Take Profit, and Volatility Trading Range. In addition, VIP members get access to over 50 VIP-only custom indicators, add-ons, and strategies, private VIP-only forums, private Discord channel to discuss trades and strategies in real-time, customer support, trade alerts, and much more. Learn all about VIP membership here.
How can I access the premium indicators?
To access the premium indicators, which are plug and play ready, sign up for VIP membership here.
Back
Top
