How can I add MTF arrows to my 5 min charts

robopro

New member
VIP
This is the script...can you please add the code that would make 15 min arrows appear on my 5 min charts. Thank you

input accelerationFactor = 0.02;
input accelerationLimit = 0.2;

def sar = ParabolicSAR(accelerationFactor=accelerationFactor, accelerationLimit=accelerationLimit);
def signalDown = sar crosses above close;;
def signalUp = sar crosses below close;
def mode = if signalUp then 1 else if signalDown then 0 else mode[1];

plot upArrow = if signalUp then low else double.nan;
plot downArrow = if signalDown then high else double.nan;

upArrow.setPaintingStrategy(PaintingStrategy.ARROW_UP);
downArrow.setPaintingStrategy(PaintingStrategy.ARROW_DOWN);

This is the script...can you please add the code that would make 15 min arrows appear on my 5 min charts. Thank you

input accelerationFactor = 0.02;
input accelerationLimit = 0.2;

def sar = ParabolicSAR(accelerationFactor=accelerationFactor, accelerationLimit=accelerationLimit);
def signalDown = sar crosses above close;;
def signalUp = sar crosses below close;
def mode = if signalUp then 1 else if signalDown then 0 else mode[1];

plot upArrow = if signalUp then low else double.nan;
plot downArrow = if signalDown then high else double.nan;

upArrow.setPaintingStrategy(PaintingStrategy.ARROW_UP);
downArrow.setPaintingStrategy(PaintingStrategy.ARROW_DOWN);

Place this indicator on a five minute chart, and select the PSAR_Timeframe of 15m.

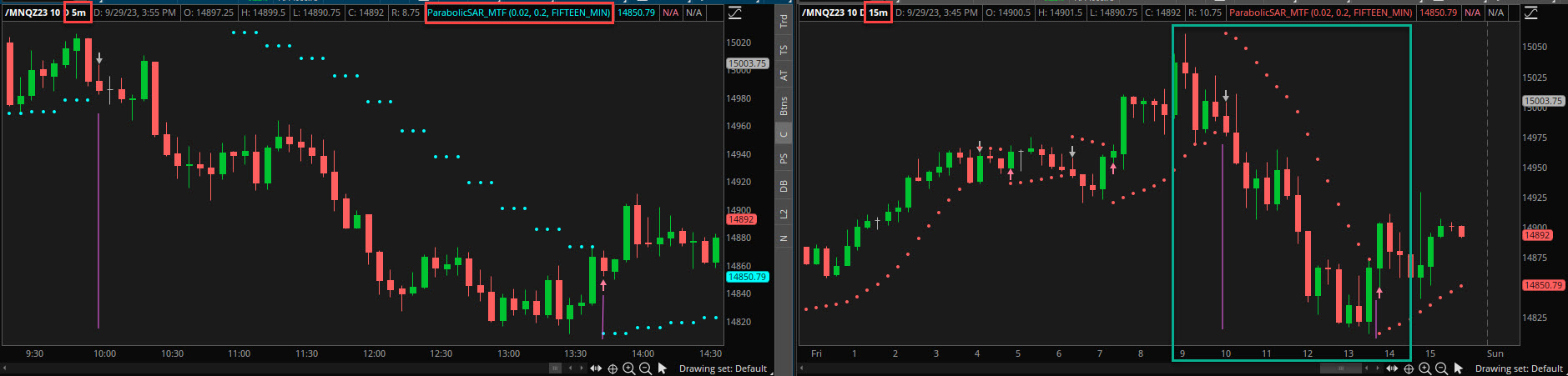

The 5m bars on the left are from the boxed area shown on the 15m chart on the right. On the 5m chart, you will see three dots per 15m bar. The signals shown were at 10:00 and 13:45.



PSAR_MTF

Code:
#
# PSAR_MTF by @mark.917
#

input accelerationFactor = 0.02;
input accelerationLimit = 0.2;

assert(accelerationFactor > 0, "'acceleration factor' must be positive: " + accelerationFactor);
assert(accelerationLimit >= accelerationFactor, "'acceleration limit' (" + accelerationLimit + ") must be greater than or equal to 'acceleration factor' (" + accelerationFactor + ")");

def state = {default init, long, short};
def extreme;
def SAR;
def acc;

input PSAR_Timeframe = AggregationPeriod.FIFTEEN_MIN;

def high = high(period = PSAR_Timeframe);
def low = low(period = PSAR_Timeframe);

switch (state[1]) {
case init:
    state = state.long;
    acc = accelerationFactor;
    extreme = high;
    SAR = low;
case short:
    if (SAR[1] < high)
    then {
        state = state.long;
        acc = accelerationFactor;
        extreme = high;
        SAR = extreme[1];
    } else {
        state = state.short;
        if (low < extreme[1])
        then {
            acc = min(acc[1] + accelerationFactor, accelerationLimit);
            extreme = low;
        } else {
            acc = acc[1];
            extreme = extreme[1];
        }
        SAR = max(max(high, high[1]), SAR[1] + acc * (extreme - SAR[1]));
    }
case long:
    if (SAR[1] > low)
    then {
        state = state.short;
        acc = accelerationFactor;
        extreme = low;
        SAR = extreme[1];
    } else {
        state = state.long;
        if (high > extreme[1])
        then {
            acc = min(acc[1] + accelerationFactor, accelerationLimit);
            extreme = high;
        } else {
            acc = acc[1];
            extreme = extreme[1];
        }
        SAR = min(min(low, low[1]), SAR[1] + acc * (extreme - SAR[1]));
    }
}

plot parSAR = SAR;
parSAR.SetPaintingStrategy(PaintingStrategy.POINTS);
parSAR.SetDefaultColor(GetColor(5));

def signalDown = sar crosses above close;;
def signalUp = sar crosses below close;
def mode = if signalUp then 1 else if signalDown then 0 else mode[1];

plot upArrow = if signalUp then low else double.nan;
plot downArrow = if signalDown then high else double.nan;

upArrow.setPaintingStrategy(PaintingStrategy.ARROW_UP);
downArrow.setPaintingStrategy(PaintingStrategy.ARROW_DOWN);


Join useThinkScript to post your question to a community of 21,000+ developers and traders.

Place this indicator on a five minute chart, and select the PSAR_Timeframe of 15m.

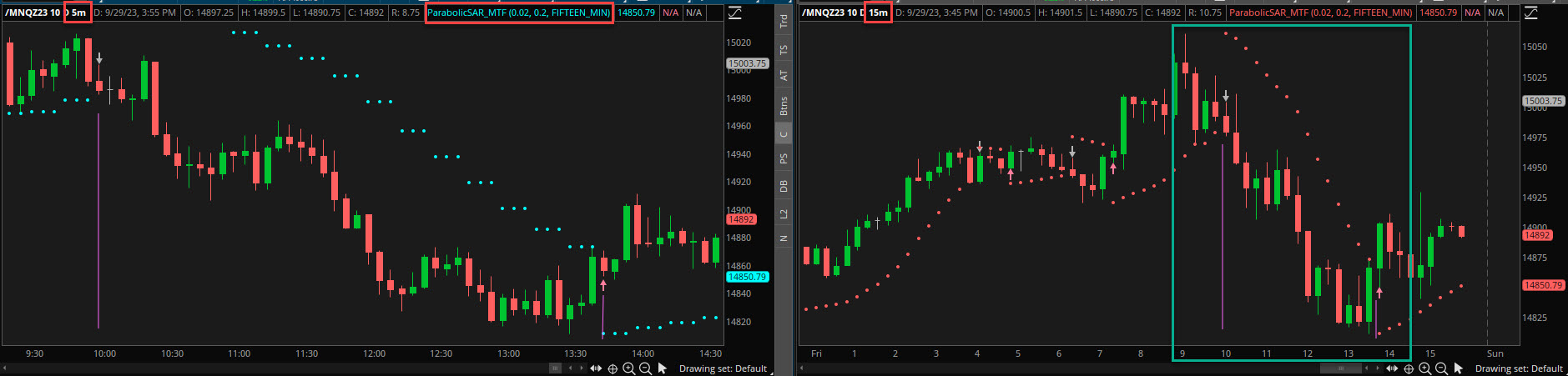

The 5m bars on the left are from the boxed area shown on the 15m chart on the right. On the 5m chart, you will see three dots per 15m bar. The signals shown were at 10:00 and 13:45.

View attachment 19832

PSAR_MTF

Code:
#
# PSAR_MTF by @mark.917
#

input accelerationFactor = 0.02;
input accelerationLimit = 0.2;

assert(accelerationFactor > 0, "'acceleration factor' must be positive: " + accelerationFactor);
assert(accelerationLimit >= accelerationFactor, "'acceleration limit' (" + accelerationLimit + ") must be greater than or equal to 'acceleration factor' (" + accelerationFactor + ")");

def state = {default init, long, short};
def extreme;
def SAR;
def acc;

input PSAR_Timeframe = AggregationPeriod.FIFTEEN_MIN;

def high = high(period = PSAR_Timeframe);
def low = low(period = PSAR_Timeframe);

switch (state[1]) {
case init:
    state = state.long;
    acc = accelerationFactor;
    extreme = high;
    SAR = low;
case short:
    if (SAR[1] < high)
    then {
        state = state.long;
        acc = accelerationFactor;
        extreme = high;
        SAR = extreme[1];
    } else {
        state = state.short;
        if (low < extreme[1])
        then {
            acc = min(acc[1] + accelerationFactor, accelerationLimit);
            extreme = low;
        } else {
            acc = acc[1];
            extreme = extreme[1];
        }
        SAR = max(max(high, high[1]), SAR[1] + acc * (extreme - SAR[1]));
    }
case long:
    if (SAR[1] > low)
    then {
        state = state.short;
        acc = accelerationFactor;
        extreme = low;
        SAR = extreme[1];
    } else {
        state = state.long;
        if (high > extreme[1])
        then {
            acc = min(acc[1] + accelerationFactor, accelerationLimit);
            extreme = high;
        } else {
            acc = acc[1];
            extreme = extreme[1];
        }
        SAR = min(min(low, low[1]), SAR[1] + acc * (extreme - SAR[1]));
    }
}

plot parSAR = SAR;
parSAR.SetPaintingStrategy(PaintingStrategy.POINTS);
parSAR.SetDefaultColor(GetColor(5));

def signalDown = sar crosses above close;;
def signalUp = sar crosses below close;
def mode = if signalUp then 1 else if signalDown then 0 else mode[1];

plot upArrow = if signalUp then low else double.nan;
plot downArrow = if signalDown then high else double.nan;

upArrow.setPaintingStrategy(PaintingStrategy.ARROW_UP);
downArrow.setPaintingStrategy(PaintingStrategy.ARROW_DOWN);
Its' Perfect...Thank you Mark

Place this indicator on a five minute chart, and select the PSAR_Timeframe of 15m.

The 5m bars on the left are from the boxed area shown on the 15m chart on the right. On the 5m chart, you will see three dots per 15m bar. The signals shown were at 10:00 and 13:45.

View attachment 19832

PSAR_MTF

Code:
#
# PSAR_MTF by @mark.917
#

input accelerationFactor = 0.02;
input accelerationLimit = 0.2;

assert(accelerationFactor > 0, "'acceleration factor' must be positive: " + accelerationFactor);
assert(accelerationLimit >= accelerationFactor, "'acceleration limit' (" + accelerationLimit + ") must be greater than or equal to 'acceleration factor' (" + accelerationFactor + ")");

def state = {default init, long, short};
def extreme;
def SAR;
def acc;

input PSAR_Timeframe = AggregationPeriod.FIFTEEN_MIN;

def high = high(period = PSAR_Timeframe);
def low = low(period = PSAR_Timeframe);

switch (state[1]) {
case init:
    state = state.long;
    acc = accelerationFactor;
    extreme = high;
    SAR = low;
case short:
    if (SAR[1] < high)
    then {
        state = state.long;
        acc = accelerationFactor;
        extreme = high;
        SAR = extreme[1];
    } else {
        state = state.short;
        if (low < extreme[1])
        then {
            acc = min(acc[1] + accelerationFactor, accelerationLimit);
            extreme = low;
        } else {
            acc = acc[1];
            extreme = extreme[1];
        }
        SAR = max(max(high, high[1]), SAR[1] + acc * (extreme - SAR[1]));
    }
case long:
    if (SAR[1] > low)
    then {
        state = state.short;
        acc = accelerationFactor;
        extreme = low;
        SAR = extreme[1];
    } else {
        state = state.long;
        if (high > extreme[1])
        then {
            acc = min(acc[1] + accelerationFactor, accelerationLimit);
            extreme = high;
        } else {
            acc = acc[1];
            extreme = extreme[1];
        }
        SAR = min(min(low, low[1]), SAR[1] + acc * (extreme - SAR[1]));
    }
}

plot parSAR = SAR;
parSAR.SetPaintingStrategy(PaintingStrategy.POINTS);
parSAR.SetDefaultColor(GetColor(5));

def signalDown = sar crosses above close;;
def signalUp = sar crosses below close;
def mode = if signalUp then 1 else if signalDown then 0 else mode[1];

plot upArrow = if signalUp then low else double.nan;
plot downArrow = if signalDown then high else double.nan;

upArrow.setPaintingStrategy(PaintingStrategy.ARROW_UP);
downArrow.setPaintingStrategy(PaintingStrategy.ARROW_DOWN);
