DEEPWATER_THE ONE For ThinkOrSwim

Deepwater said:
I call this study THE ONE. It is basically throw everything but the kitchen sink into one study that would help both a new trader and an experienced trader, Alerts me to things gapping, stocks suddenly seeing large volume, stocks with RSIs in extreme ranges. There are so many widgets of script in here that I look forward to others trying to improve it for the group. It is my payback to all of you who taught me so much and were unselfish with your knowledge and code. This is the one study I can not live without. I have 3 monitors and 30 charts I watch and "THE ONE" is the only indicator under each chart. I recently added what I call cumulative RSI extreme to it. What it does is if RSI goes overbought or oversold it starts cumulating and incrementing a count that seems to give a pretty good sell or buy signal. I have never seen this done and it is some neat code. I also look at MACD as it rounds over the top or bottom to trigger buy or sell signals. I do this with Spikes. Spikes from the top down are sells. Spikes from the Bottom up are buys. IT MAY BE THE EASIEST STUDY AS FAR AS SIGNALING. IF SOMETHING IS IN ALERT AND NEEDS A LOOK YOU GET AN ALERT. EASY FOR NOVICE and NEWBIES. Just load it and watch it for a week. This is not financial advice. it is a tool to help you make your own decisions.

P.S. The code will give signals a bit differently on different time scales so always look at charts that are say 1D 1Min, 2D 5Min and 10D 30Min (these are only examples) and compare the buy and sell signals it's giving you. I am Also running BillWilliams Indicator and Christpher84 ConfirmationCandles (without the arrows) upper and CC Candles Lower Indicators plus I also am running RSI with a RSI Avg only on my main screen chart.
5/17/2021 Added a stronger Buy indicator discriminator for Yellow/Green Buy Spikes.
5/20/2021 Added a stronger buy signal (taller) if a second buy comes within 14 candles of a previous strong buy. Changed Line Width to 2 or 3 to sharpen signal visibility. Reordered plot of yellow line to be after plot of stronger Green buys therefore you should only see Yellow Spike for over sold and only a larger Green Spike for the Strong Buy. No more yellow/Green Spikes.
5/27/2021 Rev 4 Changed RSI threashholds to 65 from 68 and 70 so a Strong Sell Signal should be generated more often at the Tops. changed the 10X volume jump to a 30X volume Jump and set the 5X Volume jump from 8x (mistake) back to 5X.

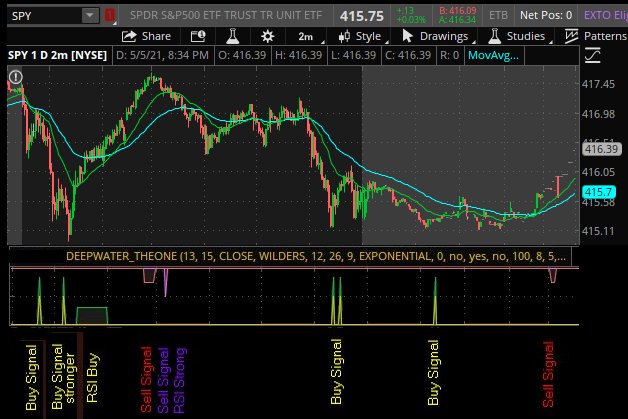

Note: The Words BUY SIGNAL SELL SIGNAL RSI BUY are added to the graphic for clarification and DO NOT Appear in the study


Code:
#DEEPWATER_THE ONE 5/27/2021 revision 4
#https://usethinkscript.com/threads/deepwater_the-one.6518/
declare lower;
input length = 20;
input length2 = 15;
input price = close;
input averageType = AverageType.WILDERS;

input fastLength = 12;
input slowLength = 26;
input MACDLength = 9;
input averageTypeMACD = AverageType.EXPONENTIAL;

def Diff = MACD(fastLength, slowLength, MACDLength, averageTypeMACD).Diff;

def NetChgAvg = MovingAverage(averageType, price - price[1], length);
def TotChgAvg = MovingAverage(averageType, AbsValue(price - price[1]), length);
def ChgRatio = if TotChgAvg != 0 then NetChgAvg / TotChgAvg else 0;

def RSI = 50 * (ChgRatio + 1);
def RSIAvg3 = MovingAverage(averageType, (RSI), 3);
def RSIAvg5 = MovingAverage(averageType, (RSI), 5);
def RSI3OverSoldpivit = RSIAvg3 > RSIAvg3[1] and RSIAvg3[1] > RSIAvg3[2] and RSIAvg3[2] < RSIAvg3[3] and RSIAvg3[3] < RSIAvg3 [4];
def RSI3OverBoughtpivit = RSIAvg3 < RSIAvg3[1] and RSIAvg3[1] < RSIAvg3[2] and RSIAvg3[2] > RSIAvg3[3] and RSIAvg3[3] > RSIAvg3 [4];
#--------------------5 day MA
input displace = 0;
input showBreakoutSignals = no;
def MAvgExp14 = ExpAverage(price[-displace], 14);
#--------------------oversold
def twoBarPivotMACD = Diff > Diff[1] and Diff[1] > Diff[2] and Diff[2] < Diff[3] and Diff[3] < Diff [4];

def overSoldRSI = RSI <= 32;
def overSoldRSIHeavy = RSI <= 30 and Diff < 0 and (close < close[7]);
def TrendReversalalert = (twoBarPivotMACD and Highest(overSoldRSI, 6) > 0) / 3;

Alert(TrendReversalalert, "Buy Alert");
plot TrendReversal1 = (twoBarPivotMACD and RSIAvg3 < 45 and Highest(overSoldRSIHeavy, 6) > 0) / 1.4;
plot TrendReversalstrongbuy = ((TrendReversal1[1] > 0 or TrendReversal1[2] > 0 or TrendReversal1[3] > 0 or TrendReversal1[4] > 0 or TrendReversal1[5] > 0 or TrendReversal1[6] > 0 or TrendReversal1[7] > 0 or TrendReversal1[8] > 0 or TrendReversal1[9] > 0 or TrendReversal1[10] > 0 or TrendReversal1[11] > 0 or TrendReversal1[12] > 0 or TrendReversal1[13] > 0 or TrendReversal1[14] > 0) and twoBarPivotMACD and RSIAvg3 < 45 and Highest(overSoldRSIHeavy, 6) > 0) / 1.1;
plot TrendReversal = (twoBarPivotMACD and TrendReversalstrongbuy < 1 and Highest(overSoldRSI, 6) > 0) / 3;

TrendReversal.SetDefaultColor(GetColor(4));#yellow
TrendReversal1.SetDefaultColor(GetColor(6));#green
TrendReversalstrongbuy.SetDefaultColor(GetColor(6));#green
TrendReversalstrongbuy.SetLineWeight(3);
TrendReversal1.SetLineWeight(2);


AddLabel(yes, if  TrendReversal > 0 then "Buy" else "");
Alert( TrendReversalalert > 0,  "Chart is now Oversold ", Alert.BAR, Sound.Ring);
AddLabel(TrendReversalalert > 0
, "Chart is now Oversold ", Color.LIME);
#-----------------------Overbought
def twoBarPivotMACD1 = Diff < Diff[1] and Diff[1] < Diff[2] and Diff[2] > Diff[3] and Diff[3] > Diff [4];

def overboughtRSI = RSIAvg3 >= 65 and Diff > 0;
def TrendReversalalert20 = (twoBarPivotMACD1 and Highest(overboughtRSI[1], 7) > 0);
plot TrendReversal20 = 1 - (((RSIAvg3 >= 65 and RSI < RSIAvg3[2]) and RSI3OverBoughtpivit)/ 1.5) ;
plot TrendReversal20a = 1 - ((((RSIAvg3 >= 60 and RSIAvg3 < 65 )and RSI < RSIAvg3[2]) and RSI3OverBoughtpivit) / 4) ;

TrendReversal20.SetDefaultColor(GetColor(5)); #Red
TrendReversal20a.SetDefaultColor(GetColor(2)); #lt Red
TrendReversal20a.SetLineWeight(2);
TrendReversal20.SetLineWeight(3);
plot TrendReversal50 = 1 - ((RSIAvg5 >= 65 and close < MAvgExp14) / 2) ;
TrendReversal50.SetDefaultColor(GetColor(0)); #Red
TrendReversal50.SetLineWeight(3);
AddLabel(yes, if  TrendReversal20 < 1 then "Sell" else "");
Alert( TrendReversal20 < 1 ,  "Chart is now Overbought ", Alert.BAR, Sound.Ring);
AddLabel(TrendReversal20 < 1, "Chart is now Overbought ", Color.LIME);
input show_label = yes;
input show_bubble = no;
#--------------------------- Large 5X and 30X Volume Alert
input AverageLength = 100;
input VolumeMultiplier = 8;
input VolumeMultiplier2 = 5;
input MinutesAfterOpen = 30;

def AvgVol = Average(volume, AverageLength);
def VolX = (volume > AvgVol * VolumeMultiplier2) ;
def Vol30X = (volume > AvgVol * 30) ;

Alert(VolX, Concat(GetSymbolPart(), " has a large volume spike." ), Alert.BAR, Sound.Chimes);
AddLabel(VolX > 0,  " Has 5X Volume Spike ", Color.LIGHT_GREEN);
Alert(Vol30X, Concat(GetSymbolPart(), " has a large volume spike." ), Alert.BAR, Sound.Chimes);
AddLabel(Vol30X > 0,  " Has 30X Volume Spike ", Color.LIGHT_GREEN);
#-------------------------------------GAP UP Price
def IsUp = close > open;
def IsDown = close < open;
def IsDoji = IsDoji();
def avgRange = 0.05 * Average(high - low, 20);
def GapUp =
    IsUp[1] and
    IsUp[0] and
    high[1] < low[0] and
    high[1] < open[0] and
(volume > AvgVol * 5) ;
Alert(GapUp, Concat(GetSymbolPart(), " GAPUP" ), Alert.BAR, Sound.Ring);
AddLabel(GapUp > 0,  " GAP Up  ", Color.LIGHT_GREEN);

#---------------------------------Large Price change 3%
def Priceup =
    IsUp[1] and
    IsUp[0] and
    high[1] < high[0] and
    high[2] * 1.02 < high[0] and
    high[3] * 1.03 < high[0] and
(volume > AvgVol * 3) ;
Alert(Priceup, Concat(GetSymbolPart(), " Price JUMP" ), Alert.BAR, Sound.Bell);
AddLabel(Priceup > 0,  " Price JUMP  ", Color.CYAN);

#---------------------------------HugePrice change 6%
def Priceup2 =
    IsUp[1] and
    IsUp[0] and
    high[1] < high[0] and
    high[3] * 1.04 < high[0] and
    high[4] * 1.06 < high[0] and
(volume > AvgVol * 3) ;
Alert(Priceup2, Concat(GetSymbolPart(), " JUMP! JUMP! JUMP" ), Alert.BAR, Sound.Chimes);
AddLabel(Priceup2 > 0,  " JUMP! JUMP! JUMP  ", Color.LIGHT_RED);

#-----------------------------------------------------------------------------------------
#--------------------------RSI cumulative running total
def MAvgExp7 = ExpAverage(price[-displace], 7);
def RSICalc = 50 * (ChgRatio + 1);
def RSICalc1 = if RSI > 70 then  3 else if RSI < 30 then  -3 else 0;
def RSICalc2 = if RSI[1] > 70 then  2 else if RSI[1] < 30 then  -2 else 0;
def RSICalc3 = if RSI[2] > 70 then  1 else if RSI[2] < 30 then  -1 else 0;
def RSICalc4 = if RSI[3] > 70 then  1 else if RSI[3] < 30 then  -1 else 0;
def RSICalc5 = if RSI[4] > 70 then  1 else if RSI[4] < 30 then  -1 else 0;
def RSICalc6 = if RSI[5] > 70 then  1 else if RSI[5] < 30 then  -1 else 0;
def RSICalc7 = if RSI[6] > 70 then  1 else if RSI[6] < 30 then  -1 else 0;
def RSICalc8 = if RSI[7] > 70 then  1 else if RSI[7] < 30 then  -1 else 0;
def RSICalc9 = if RSI[8] > 70 then  1 else if RSI[8] < 30 then  -1 else 0;
def RSICalc10 = if RSI[9] > 70 then  1 else if RSI[9] < 30 then  -1 else 0;
def RSICalc11 = if RSI[10] > 70 then  1 else if RSI[10] < 30 then  -1 else 0;
def RSICalc12 = if RSI[11] > 70 then  1 else if RSI[11] < 30 then  -1 else 0;
def RSICalc13 = if RSI[12] > 70 then  1 else if RSI[12] < 30 then  -1 else 0;
def RSICalc14 = if RSI[13] > 70 then  1 else if RSI[13] < 30 then  -1 else 0;
def RSICalc15 = if RSI[14] > 70 then  1 else if RSI[14] < 30 then  -1 else 0;
def RSICalc16 = if RSI[15] > 70 then  1 else if RSI[15] < 30 then  -1 else 0;
def RSICalc17 = if RSI[16] > 70 then  1 else if RSI[16] < 30 then  -1 else 0;
def RSICalc18 = if RSI[17] > 70 then  1 else if RSI[17] < 30 then  -1 else 0;
def RSICalc19 = if RSI[18] > 70 then  1 else if RSI[18] < 30 then  -1 else 0;
def RSICalc20 = if RSI[19] > 70 then  1 else if RSI[19] < 30 then  -1 else 0;
def RSICalc21 = if RSI[20] > 70 then  1 else if RSI[20] < 30 then  -1 else 0;
def RSICalc22 = if RSI[21] > 70 then  1 else if RSI[21] < 30 then  -1 else 0;
def RSICalc23 = if RSI[22] > 70 then  1 else if RSI[22] < 30 then  -1 else 0;
def RSICalc24 = if RSI[23] > 70 then  1 else if RSI[23] < 30 then  -1 else 0;
def RSICalc25 = if RSI[24] > 70 then  1 else if RSI[24] < 30 then  -1 else 0;
def RSICalc26 = if RSI[25] > 70 then  1 else if RSI[25] < 30 then  -1 else 0;
def RSICalc27 = if RSI[26] > 70 then  1 else if RSI[26] < 30 then  -1 else 0;
def RSICalc28 = if RSI[27] > 70 then  1 else if RSI[27] < 30 then  -1 else 0;
def RSICalc29 = if RSI[28] > 70 then  1 else if RSI[28] < 30 then  -1 else 0;
def RSICalc30 = if RSI[29] > 70 then  1 else if RSI[29] < 30 then  -1 else 0;

def RSI30DayAvg = RSICalc1 + RSICalc2 + RSICalc3 + RSICalc4 + RSICalc5 + RSICalc6 + RSICalc7 + RSICalc8 + RSICalc9 + RSICalc10 + RSICalc11 + RSICalc12 + RSICalc13 + RSICalc14 + RSICalc15 + RSICalc16 + RSICalc17 + RSICalc18 + RSICalc19 + RSICalc20 + RSICalc21 + RSICalc22 + RSICalc23 + RSICalc24 + RSICalc25 + RSICalc26 + RSICalc27 + RSICalc28 + RSICalc29 + RSICalc30;
AddLabel(RSI30DayAvg >= 10 and RSI30DayAvg < 20, " RSI SELL: " + RSI30DayAvg + "   ",  Color.ORANGE);
AddLabel(RSI30DayAvg >= 20, " RSI SELL: " + RSI30DayAvg + "   ",  Color.RED);
AddLabel(RSI30DayAvg <= -10 and RSI30DayAvg > -20, " RSI BUY: " + RSI30DayAvg + "   ",  Color.LIME);
AddLabel(RSI30DayAvg <= -20, " RSI BUY: " + RSI30DayAvg + "   ",  Color.DARK_GREEN);
plot TrendReversal5 = 1 - (((RSI30DayAvg >= 10 and RSI30DayAvg < 15) and close < MAvgExp7) / 2) ;
TrendReversal5.SetDefaultColor(GetColor(0)); #magenta
plot TrendReversal5a = 1 - (((RSI30DayAvg >= 16  and RSI30DayAvg < 25) and close < MAvgExp7) / 1.3) ;
TrendReversal5a.SetDefaultColor(GetColor(0)); #magenta
plot TrendReversal5b = 1 - ((RSI30DayAvg >= 25 and close < MAvgExp7) / 1.05) ;
TrendReversal5b.SetDefaultColor(GetColor(0)); #magenta
plot TrendReversal6 = ((RSI30DayAvg <= -15 and close > MAvgExp7 ) * .3) ;
TrendReversal6.SetDefaultColor(GetColor(6)); #green
plot TrendReversal6a = (((RSI30DayAvg <= -20 and RSI30DayAvg > -30) and close > MAvgExp7) * .85) ;
TrendReversal6a.SetDefaultColor(GetColor(6)); #green
TrendReversal6a.SetLineWeight(3);
TrendReversal5b.SetLineWeight(3);
TrendReversal6.SetLineWeight(2);
TrendReversal5a.SetLineWeight(2);
#End Code
Click to expand...
Love the Deepwater indicator great job. Question I trade forex and can not get it to work at all any suggestions. Thanks again

BJ1951 said:
Love the Deepwater indicator great job. Question I trade forex and can not get it to work at all any suggestions. Thanks again
Click to expand...
Thanks BJ, Can you get RSI or MACD to work with your Forex? You use the FOREX TRADER menu item under TRADE vice the ACTIVE TRADER?
I have never done Forex so I am curious what TA Indicators or Studies you can use

Yes use both and some others B4 and Thermo Lookback bars and change all settings on all indicators.I was interested in Deep Water but something in the script causes it to not work.

I remember someone saying that thinkorswim doesn't like volume in studies for certain things (like FOREX) so I stripped out the volume alerts.
DEEPWATER_THE ONE_FOREX (Also works with SPY and other index funds)
Code:
#DEEPWATER_THE ONE_FOREX 8/19/2021 revision 4forex No Volume
#https://usethinkscript.com/threads/deepwater_the-one.6518/
declare lower;
input length = 20;
input length2 = 15;
input price = close;
input averageType = AverageType.WILDERS;

input fastLength = 12;
input slowLength = 26;
input MACDLength = 9;
input averageTypeMACD = AverageType.EXPONENTIAL;

def Diff = MACD(fastLength, slowLength, MACDLength, averageTypeMACD).Diff;

def NetChgAvg = MovingAverage(averageType, price - price[1], length);
def TotChgAvg = MovingAverage(averageType, AbsValue(price - price[1]), length);
def ChgRatio = if TotChgAvg != 0 then NetChgAvg / TotChgAvg else 0;

def RSI = 50 * (ChgRatio + 1);
def RSIAvg3 = MovingAverage(averageType, (RSI), 3);
def RSIAvg5 = MovingAverage(averageType, (RSI), 5);
def RSI3OverSoldpivit = RSIAvg3 > RSIAvg3[1] and RSIAvg3[1] > RSIAvg3[2] and RSIAvg3[2] < RSIAvg3[3] and RSIAvg3[3] < RSIAvg3 [4];
def RSI3OverBoughtpivit = RSIAvg3 < RSIAvg3[1] and RSIAvg3[1] < RSIAvg3[2] and RSIAvg3[2] > RSIAvg3[3] and RSIAvg3[3] > RSIAvg3 [4];
#--------------------5 day MA
input displace = 0;
input showBreakoutSignals = no;
def MAvgExp14 = ExpAverage(price[-displace], 14);
#--------------------oversold
def twoBarPivotMACD = Diff > Diff[1] and Diff[1] > Diff[2] and Diff[2] < Diff[3] and Diff[3] < Diff [4];

def overSoldRSI = RSI <= 32;
def overSoldRSIHeavy = RSI <= 30 and Diff < 0 and (close < close[7]);
def TrendReversalalert = (twoBarPivotMACD and Highest(overSoldRSI, 6) > 0) / 3;

Alert(TrendReversalalert, "Buy Alert");
plot TrendReversal1 = (twoBarPivotMACD and RSIAvg3 < 45 and Highest(overSoldRSIHeavy, 6) > 0) / 1.4;
plot TrendReversalstrongbuy = ((TrendReversal1[1] > 0 or TrendReversal1[2] > 0 or TrendReversal1[3] > 0 or TrendReversal1[4] > 0 or TrendReversal1[5] > 0 or TrendReversal1[6] > 0 or TrendReversal1[7] > 0 or TrendReversal1[8] > 0 or TrendReversal1[9] > 0 or TrendReversal1[10] > 0 or TrendReversal1[11] > 0 or TrendReversal1[12] > 0 or TrendReversal1[13] > 0 or TrendReversal1[14] > 0) and twoBarPivotMACD and RSIAvg3 < 45 and Highest(overSoldRSIHeavy, 6) > 0) / 1.1;
plot TrendReversal = (twoBarPivotMACD and TrendReversalstrongbuy < 1 and Highest(overSoldRSI, 6) > 0) / 3;

TrendReversal.SetDefaultColor(GetColor(4));#yellow
TrendReversal1.SetDefaultColor(GetColor(6));#green
TrendReversalstrongbuy.SetDefaultColor(GetColor(6));#green
TrendReversalstrongbuy.SetLineWeight(3);
TrendReversal1.SetLineWeight(2);


AddLabel(yes, if  TrendReversal > 0 then "Buy" else "");
Alert( TrendReversalalert > 0,  "Chart is now Oversold ", Alert.BAR, Sound.Ring);
AddLabel(TrendReversalalert > 0
, "Chart is now Oversold ", Color.LIME);
#-----------------------Overbought
def twoBarPivotMACD1 = Diff < Diff[1] and Diff[1] < Diff[2] and Diff[2] > Diff[3] and Diff[3] > Diff [4];

def overboughtRSI = RSIAvg3 >= 65 and Diff > 0;
def TrendReversalalert20 = (twoBarPivotMACD1 and Highest(overboughtRSI[1], 7) > 0);
plot TrendReversal20 = 1 - (((RSIAvg3 >= 68 and RSI < RSIAvg3[2]) and RSI3OverBoughtpivit)/ 1.5) ;
plot TrendReversal20a = 1 - ((((RSIAvg3 >= 60 and RSIAvg3 < 65 )and RSI < RSIAvg3[2]) and RSI3OverBoughtpivit) / 4) ;

TrendReversal20.SetDefaultColor(GetColor(5)); #Red
TrendReversal20a.SetDefaultColor(GetColor(2)); #lt Red
TrendReversal20a.SetLineWeight(2);
TrendReversal20.SetLineWeight(3);
plot TrendReversal50 = 1 - ((RSIAvg5 >= 65 and close < MAvgExp14) / 2) ;
TrendReversal50.SetDefaultColor(GetColor(0)); #Red
TrendReversal50.SetLineWeight(3);
AddLabel(yes, if  TrendReversal20 < 1 then "Sell" else "");
Alert( TrendReversal20 < 1 ,  "Chart is now Overbought ", Alert.BAR, Sound.Ring);
AddLabel(TrendReversal20 < 1, "Chart is now Overbought ", Color.LIME);
input show_label = yes;
input show_bubble = no;


#--------------------------RSI cumulative running total
def MAvgExp7 = ExpAverage(price[-displace], 7);
def RSICalc = 50 * (ChgRatio + 1);
def RSICalc1 = if RSI > 70 then  3 else if RSI < 30 then  -3 else 0;
def RSICalc2 = if RSI[1] > 70 then  2 else if RSI[1] < 30 then  -2 else 0;
def RSICalc3 = if RSI[2] > 70 then  1 else if RSI[2] < 30 then  -1 else 0;
def RSICalc4 = if RSI[3] > 70 then  1 else if RSI[3] < 30 then  -1 else 0;
def RSICalc5 = if RSI[4] > 70 then  1 else if RSI[4] < 30 then  -1 else 0;
def RSICalc6 = if RSI[5] > 70 then  1 else if RSI[5] < 30 then  -1 else 0;
def RSICalc7 = if RSI[6] > 70 then  1 else if RSI[6] < 30 then  -1 else 0;
def RSICalc8 = if RSI[7] > 70 then  1 else if RSI[7] < 30 then  -1 else 0;
def RSICalc9 = if RSI[8] > 70 then  1 else if RSI[8] < 30 then  -1 else 0;
def RSICalc10 = if RSI[9] > 70 then  1 else if RSI[9] < 30 then  -1 else 0;
def RSICalc11 = if RSI[10] > 70 then  1 else if RSI[10] < 30 then  -1 else 0;
def RSICalc12 = if RSI[11] > 70 then  1 else if RSI[11] < 30 then  -1 else 0;
def RSICalc13 = if RSI[12] > 70 then  1 else if RSI[12] < 30 then  -1 else 0;
def RSICalc14 = if RSI[13] > 70 then  1 else if RSI[13] < 30 then  -1 else 0;
def RSICalc15 = if RSI[14] > 70 then  1 else if RSI[14] < 30 then  -1 else 0;
def RSICalc16 = if RSI[15] > 70 then  1 else if RSI[15] < 30 then  -1 else 0;
def RSICalc17 = if RSI[16] > 70 then  1 else if RSI[16] < 30 then  -1 else 0;
def RSICalc18 = if RSI[17] > 70 then  1 else if RSI[17] < 30 then  -1 else 0;
def RSICalc19 = if RSI[18] > 70 then  1 else if RSI[18] < 30 then  -1 else 0;
def RSICalc20 = if RSI[19] > 70 then  1 else if RSI[19] < 30 then  -1 else 0;
def RSICalc21 = if RSI[20] > 70 then  1 else if RSI[20] < 30 then  -1 else 0;
def RSICalc22 = if RSI[21] > 70 then  1 else if RSI[21] < 30 then  -1 else 0;
def RSICalc23 = if RSI[22] > 70 then  1 else if RSI[22] < 30 then  -1 else 0;
def RSICalc24 = if RSI[23] > 70 then  1 else if RSI[23] < 30 then  -1 else 0;
def RSICalc25 = if RSI[24] > 70 then  1 else if RSI[24] < 30 then  -1 else 0;
def RSICalc26 = if RSI[25] > 70 then  1 else if RSI[25] < 30 then  -1 else 0;
def RSICalc27 = if RSI[26] > 70 then  1 else if RSI[26] < 30 then  -1 else 0;
def RSICalc28 = if RSI[27] > 70 then  1 else if RSI[27] < 30 then  -1 else 0;
def RSICalc29 = if RSI[28] > 70 then  1 else if RSI[28] < 30 then  -1 else 0;
def RSICalc30 = if RSI[29] > 70 then  1 else if RSI[29] < 30 then  -1 else 0;

def RSI30DayAvg = RSICalc1 + RSICalc2 + RSICalc3 + RSICalc4 + RSICalc5 + RSICalc6 + RSICalc7 + RSICalc8 + RSICalc9 + RSICalc10 + RSICalc11 + RSICalc12 + RSICalc13 + RSICalc14 + RSICalc15 + RSICalc16 + RSICalc17 + RSICalc18 + RSICalc19 + RSICalc20 + RSICalc21 + RSICalc22 + RSICalc23 + RSICalc24 + RSICalc25 + RSICalc26 + RSICalc27 + RSICalc28 + RSICalc29 + RSICalc30;
def RSIAvgpercent = AbsValue((RSI30DayAvg / 32) * 100);
AddLabel(RSI30DayAvg >= 10 and RSI30DayAvg < 20, " RSI SELL: " + RSIAvgpercent + " Strength   ",  Color.ORANGE);
AddLabel(RSI30DayAvg >= 20, " RSI STRONG SELL: " +  RSIAvgpercent + " LOOK TO SELL   ",  Color.RED);

AddLabel(RSI30DayAvg <= -10 and RSI30DayAvg > -20, " RSI BUY: " + RSIAvgpercent + " Strength    ",  Color.LIME);
AddLabel(RSI30DayAvg <= -20, " RSI STRONG BUY: " +  RSIAvgpercent + " LOOK TO BUY   ",  Color.DARK_GREEN);
plot TrendReversal5 = 1 - (((RSI30DayAvg >= 10 and RSI30DayAvg < 15) and close < MAvgExp7) / 2) ;
TrendReversal5.SetDefaultColor(GetColor(0)); #magenta
plot TrendReversal5a = 1 - (((RSI30DayAvg >= 16  and RSI30DayAvg < 25) and close < MAvgExp7) / 1.3) ;
TrendReversal5a.SetDefaultColor(GetColor(0)); #magenta
plot TrendReversal5b = 1 - ((RSI30DayAvg >= 25 and close < MAvgExp7) / 1.05) ;
TrendReversal5b.SetDefaultColor(GetColor(0)); #magenta
plot TrendReversal6 = ((RSI30DayAvg <= -15 and close > MAvgExp7 ) * .3) ;
TrendReversal6.SetDefaultColor(GetColor(6)); #green
plot TrendReversal6a = (((RSI30DayAvg <= -20 and RSI30DayAvg > -30) and close > MAvgExp7) * .85) ;
TrendReversal6a.SetDefaultColor(GetColor(6)); #green
TrendReversal6a.SetLineWeight(3);
TrendReversal5b.SetLineWeight(3);
TrendReversal6.SetLineWeight(2);
TrendReversal5a.SetLineWeight(2);
#End Code
{/CODE}

Last edited:
BJ1951 said:
Yes use both and some others B4 and Thermo Lookback bars and change all settings on all indicators.I was interested in Deep Water but something in the script causes it to not work.
Click to expand...
BJ, Try the code I posted for forex above

Last edited:
thatsben said:
Wow, great job. I just stared using the 1min timeframe and think your spot on with your changes. Do you mind sharing you grid. @ImKidKid Thank you.
Click to expand...
Did you know that by clicking on a member's name, you can easily check when they were last seen on the uTS forum? It's a great way to keep track of who's been around recently, and who hasn't. Speaking of which, it looks like @ImKidKid is no longer active. :(

I just loaded DEEPWATER_THE ONE 2/4/2022 revision 5. All I can get to display is shown below. All plots are set to Show plot.


Attachments

  • 2024-08-10 10_08_11-SPY - Charts - 49644359SCHW Main@thinkorswim [build 1981].png
    2024-08-10 10_08_11-SPY - Charts - 49644359SCHW Main@thinkorswim [build 1981].png
    72.5 KB · Views: 163
Deepwater said:
I call this study THE ONE. It is basically throw everything but the kitchen sink into one study that would help both a new trader and an experienced trader, Alerts me to things gapping, stocks suddenly seeing large volume, stocks with RSIs in extreme ranges. There are so many widgets of script in here that I look forward to others trying to improve it for the group. It is my payback to all of you who taught me so much and were unselfish with your knowledge and code. This is the one study I can not live without. I have 3 monitors and 30 charts I watch and "THE ONE" is the only indicator under each chart. I recently added what I call cumulative RSI extreme to it. What it does is if RSI goes overbought or oversold it starts cumulating and incrementing a count that seems to give a pretty good sell or buy signal. I have never seen this done and it is some neat code. I also look at MACD as it rounds over the top or bottom to trigger buy or sell signals. I do this with Spikes. Spikes from the top down are sells. Spikes from the Bottom up are buys. IT MAY BE THE EASIEST STUDY AS FAR AS SIGNALING. IF SOMETHING IS IN ALERT AND NEEDS A LOOK YOU GET AN ALERT. EASY FOR NOVICE and NEWBIES. Just load it and watch it for a week. This is not financial advice. it is a tool to help you make your own decisions.

FOREX or SPX type Indexes use code on page 10

P.S. The code will give signals a bit differently on different time scales so always look at charts that are say 1D 1Min, 2D 5Min and 10D 30Min (these are only examples) and compare the buy and sell signals it's giving you. I am Also running BillWilliams Indicator and Christpher84 ConfirmationCandles (without the arrows) upper and CC Candles Lower Indicators plus I also am running RSI with a RSI Avg only on my main screen chart.
5/17/2021 Added a stronger Buy indicator discriminator for Yellow/Green Buy Spikes.
5/20/2021 Added a stronger buy signal (taller) if a second buy comes within 14 candles of a previous strong buy. Changed Line Width to 2 or 3 to sharpen signal visibility. Reordered plot of yellow line to be after plot of stronger Green buys therefore you should only see Yellow Spike for over sold and only a larger Green Spike for the Strong Buy. No more yellow/Green Spikes.
5/27/2021 Rev 4 Changed RSI threashholds to 65 from 68 and 70 so a Strong Sell Signal should be generated more often at the Tops. changed the 10X volume jump to a 30X volume Jump and set the 5X Volume jump from 8x (mistake) back to 5X.
2/4/2022 revision 5 Changed this line from 100 to 2000; input AverageLength = 2000;

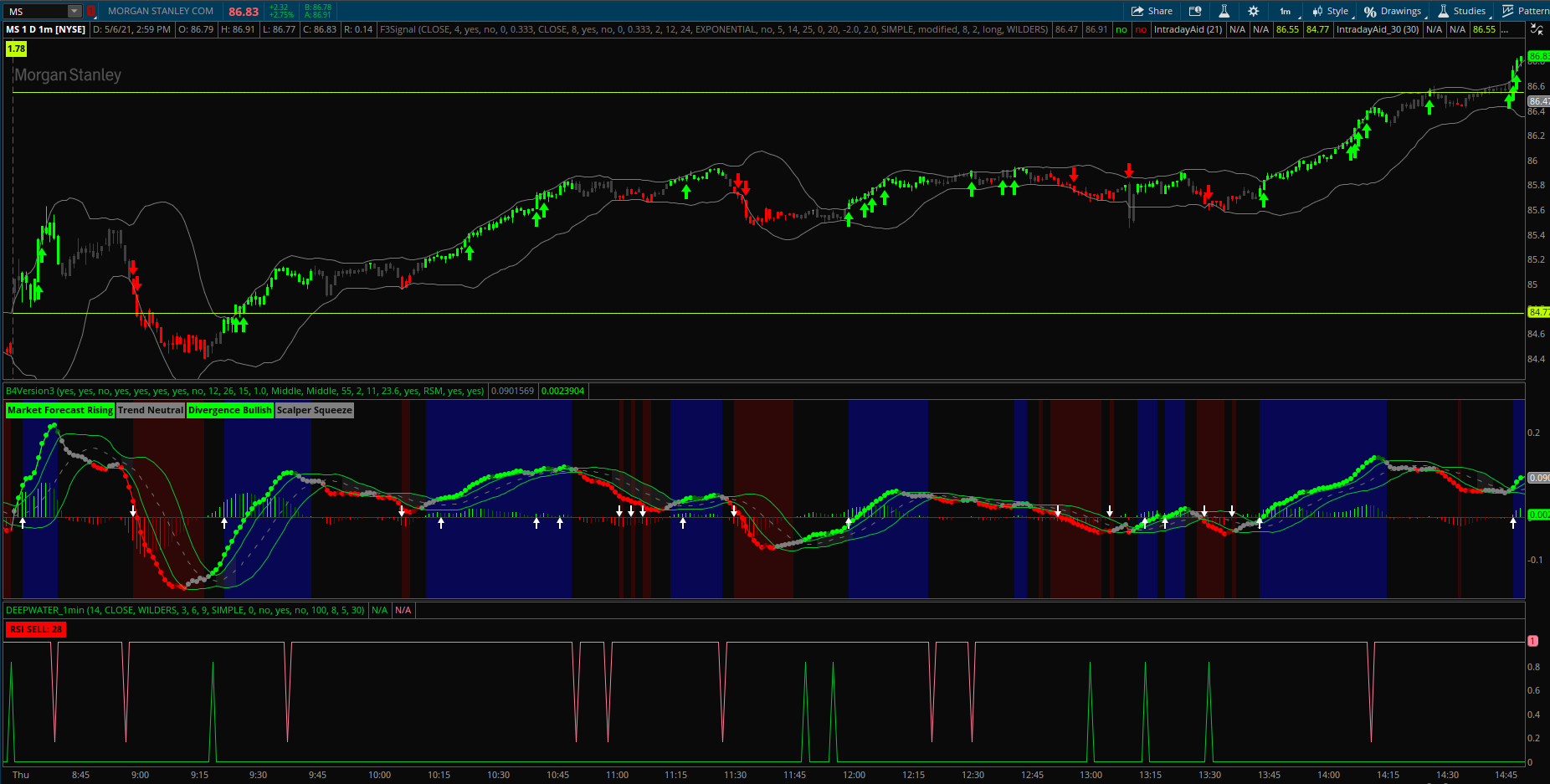

View attachment 2258
Note: The Words BUY SIGNAL SELL SIGNAL RSI BUY are added to the graphic for clarification and DO NOT Appear in the study


Code:
#DEEPWATER_THE ONE 2/4/2022 revision 5
#https://usethinkscript.com/threads/deepwater_the-one.6518/
declare lower;
input length = 20;
input length2 = 15;
input price = close;
input averageType = AverageType.WILDERS;

input fastLength = 12;
input slowLength = 26;
input MACDLength = 9;
input averageTypeMACD = AverageType.EXPONENTIAL;

def Diff = MACD(fastLength, slowLength, MACDLength, averageTypeMACD).Diff;

def NetChgAvg = MovingAverage(averageType, price - price[1], length);
def TotChgAvg = MovingAverage(averageType, AbsValue(price - price[1]), length);
def ChgRatio = if TotChgAvg != 0 then NetChgAvg / TotChgAvg else 0;

def RSI = 50 * (ChgRatio + 1);
def RSIAvg3 = MovingAverage(averageType, (RSI), 3);
def RSIAvg5 = MovingAverage(averageType, (RSI), 5);
def RSI3OverSoldpivit = RSIAvg3 > RSIAvg3[1] and RSIAvg3[1] > RSIAvg3[2] and RSIAvg3[2] < RSIAvg3[3] and RSIAvg3[3] < RSIAvg3 [4];
def RSI3OverBoughtpivit = RSIAvg3 < RSIAvg3[1] and RSIAvg3[1] < RSIAvg3[2] and RSIAvg3[2] > RSIAvg3[3] and RSIAvg3[3] > RSIAvg3 [4];
#--------------------5 day MA
input displace = 0;
input showBreakoutSignals = no;
def MAvgExp14 = ExpAverage(price[-displace], 14);
#--------------------oversold
def twoBarPivotMACD = Diff > Diff[1] and Diff[1] > Diff[2] and Diff[2] < Diff[3] and Diff[3] < Diff [4];

def overSoldRSI = RSI <= 32;
def overSoldRSIHeavy = RSI <= 30 and Diff < 0 and (close < close[7]);
def TrendReversalalert = (twoBarPivotMACD and Highest(overSoldRSI, 6) > 0) / 3;

Alert(TrendReversalalert, "Buy Alert");
plot TrendReversal1 = (twoBarPivotMACD and RSIAvg3 < 45 and Highest(overSoldRSIHeavy, 6) > 0) / 1.4;
plot TrendReversalstrongbuy = ((TrendReversal1[1] > 0 or TrendReversal1[2] > 0 or TrendReversal1[3] > 0 or TrendReversal1[4] > 0 or TrendReversal1[5] > 0 or TrendReversal1[6] > 0 or TrendReversal1[7] > 0 or TrendReversal1[8] > 0 or TrendReversal1[9] > 0 or TrendReversal1[10] > 0 or TrendReversal1[11] > 0 or TrendReversal1[12] > 0 or TrendReversal1[13] > 0 or TrendReversal1[14] > 0) and twoBarPivotMACD and RSIAvg3 < 45 and Highest(overSoldRSIHeavy, 6) > 0) / 1.1;
plot TrendReversal = (twoBarPivotMACD and TrendReversalstrongbuy < 1 and Highest(overSoldRSI, 6) > 0) / 3;

TrendReversal.SetDefaultColor(GetColor(4));#yellow
TrendReversal1.SetDefaultColor(GetColor(6));#green
TrendReversalstrongbuy.SetDefaultColor(GetColor(6));#green
TrendReversalstrongbuy.SetLineWeight(3);
TrendReversal1.SetLineWeight(2);


AddLabel(yes, if  TrendReversal > 0 then "Buy" else "");
Alert( TrendReversalalert > 0,  "Chart is now Oversold ", Alert.BAR, Sound.Ring);
AddLabel(TrendReversalalert > 0
, "Chart is now Oversold ", Color.LIME);
#-----------------------Overbought
def twoBarPivotMACD1 = Diff < Diff[1] and Diff[1] < Diff[2] and Diff[2] > Diff[3] and Diff[3] > Diff [4];

def overboughtRSI = RSIAvg3 >= 65 and Diff > 0;
def TrendReversalalert20 = (twoBarPivotMACD1 and Highest(overboughtRSI[1], 7) > 0);
plot TrendReversal20 = 1 - (((RSIAvg3 >= 65 and RSI < RSIAvg3[2]) and RSI3OverBoughtpivit)/ 1.5) ;
plot TrendReversal20a = 1 - ((((RSIAvg3 >= 60 and RSIAvg3 < 65 )and RSI < RSIAvg3[2]) and RSI3OverBoughtpivit) / 4) ;

TrendReversal20.SetDefaultColor(GetColor(5)); #Red
TrendReversal20a.SetDefaultColor(GetColor(2)); #lt Red
TrendReversal20a.SetLineWeight(2);
TrendReversal20.SetLineWeight(3);
plot TrendReversal50 = 1 - ((RSIAvg5 >= 65 and close < MAvgExp14) / 2) ;
TrendReversal50.SetDefaultColor(GetColor(0)); #Red
TrendReversal50.SetLineWeight(3);
AddLabel(yes, if  TrendReversal20 < 1 then "Sell" else "");
Alert( TrendReversal20 < 1 ,  "Chart is now Overbought ", Alert.BAR, Sound.Ring);
AddLabel(TrendReversal20 < 1, "Chart is now Overbought ", Color.LIME);
input show_label = yes;
input show_bubble = no;
#--------------------------- Large 5X and 30X Volume Alert
input AverageLength = 2000;
input VolumeMultiplier = 10;
input VolumeMultiplier2 = 5;
input MinutesAfterOpen = 30;

def AvgVol = Average(volume, AverageLength);
def Vol5X = (volume > AvgVol * VolumeMultiplier2);
def Vol10X = (volume > AvgVol * VolumeMultiplier);
def Vol30X = (volume > AvgVol * 30) ;

Alert(Vol5X, Concat(GetSymbolPart(), " has a large volume spike." ), Alert.BAR, Sound.Chimes);
AddLabel(Vol5X > 0,  " Has 5X Volume Spike ", Color.LIGHT_GREEN);
Alert(Vol10X, Concat(GetSymbolPart(), " has a large volume spike." ), Alert.BAR, Sound.Chimes);
AddLabel(Vol10X > 0,  " Has 10X Volume Spike ", Color.LIGHT_GREEN);
Alert(Vol30X, Concat(GetSymbolPart(), " has a large volume spike." ), Alert.BAR, Sound.Chimes);
AddLabel(Vol30X > 0,  " Has 30X Volume Spike ", Color.LIGHT_GREEN);
#-------------------------------------GAP UP Price
def IsUp = close > open;
def IsDown = close < open;
def IsDoji = IsDoji();
def avgRange = 0.05 * Average(high - low, 20);
def GapUp =
    IsUp[1] and
    IsUp[0] and
    high[1] < low[0] and
    high[1] < open[0] and
(volume > AvgVol * 5) ;
Alert(GapUp, Concat(GetSymbolPart(), " GAPUP" ), Alert.BAR, Sound.Ring);
AddLabel(GapUp > 0,  " GAP Up  ", Color.LIGHT_GREEN);

#---------------------------------Large Price change 3%
def Priceup =
    IsUp[1] and
    IsUp[0] and
    high[1] < high[0] and
    high[2] * 1.02 < high[0] and
    high[3] * 1.03 < high[0] and
(volume > AvgVol * 3) ;
Alert(Priceup, Concat(GetSymbolPart(), " Price JUMP" ), Alert.BAR, Sound.Bell);
AddLabel(Priceup > 0,  " Price JUMP  ", Color.CYAN);

#---------------------------------HugePrice change 6%
def Priceup2 =
    IsUp[1] and
    IsUp[0] and
    high[1] < high[0] and
    high[3] * 1.04 < high[0] and
    high[4] * 1.06 < high[0] and
(volume > AvgVol * 3) ;
Alert(Priceup2, Concat(GetSymbolPart(), " JUMP! JUMP! JUMP" ), Alert.BAR, Sound.Chimes);
AddLabel(Priceup2 > 0,  " JUMP! JUMP! JUMP  ", Color.LIGHT_RED);

#-----------------------------------------------------------------------------------------
#--------------------------RSI cumulative running total
def MAvgExp7 = ExpAverage(price[-displace], 7);
def RSICalc = 50 * (ChgRatio + 1);
def RSICalc1 = if RSI > 70 then  3 else if RSI < 30 then  -3 else 0;
def RSICalc2 = if RSI[1] > 70 then  2 else if RSI[1] < 30 then  -2 else 0;
def RSICalc3 = if RSI[2] > 70 then  1 else if RSI[2] < 30 then  -1 else 0;
def RSICalc4 = if RSI[3] > 70 then  1 else if RSI[3] < 30 then  -1 else 0;
def RSICalc5 = if RSI[4] > 70 then  1 else if RSI[4] < 30 then  -1 else 0;
def RSICalc6 = if RSI[5] > 70 then  1 else if RSI[5] < 30 then  -1 else 0;
def RSICalc7 = if RSI[6] > 70 then  1 else if RSI[6] < 30 then  -1 else 0;
def RSICalc8 = if RSI[7] > 70 then  1 else if RSI[7] < 30 then  -1 else 0;
def RSICalc9 = if RSI[8] > 70 then  1 else if RSI[8] < 30 then  -1 else 0;
def RSICalc10 = if RSI[9] > 70 then  1 else if RSI[9] < 30 then  -1 else 0;
def RSICalc11 = if RSI[10] > 70 then  1 else if RSI[10] < 30 then  -1 else 0;
def RSICalc12 = if RSI[11] > 70 then  1 else if RSI[11] < 30 then  -1 else 0;
def RSICalc13 = if RSI[12] > 70 then  1 else if RSI[12] < 30 then  -1 else 0;
def RSICalc14 = if RSI[13] > 70 then  1 else if RSI[13] < 30 then  -1 else 0;
def RSICalc15 = if RSI[14] > 70 then  1 else if RSI[14] < 30 then  -1 else 0;
def RSICalc16 = if RSI[15] > 70 then  1 else if RSI[15] < 30 then  -1 else 0;
def RSICalc17 = if RSI[16] > 70 then  1 else if RSI[16] < 30 then  -1 else 0;
def RSICalc18 = if RSI[17] > 70 then  1 else if RSI[17] < 30 then  -1 else 0;
def RSICalc19 = if RSI[18] > 70 then  1 else if RSI[18] < 30 then  -1 else 0;
def RSICalc20 = if RSI[19] > 70 then  1 else if RSI[19] < 30 then  -1 else 0;
def RSICalc21 = if RSI[20] > 70 then  1 else if RSI[20] < 30 then  -1 else 0;
def RSICalc22 = if RSI[21] > 70 then  1 else if RSI[21] < 30 then  -1 else 0;
def RSICalc23 = if RSI[22] > 70 then  1 else if RSI[22] < 30 then  -1 else 0;
def RSICalc24 = if RSI[23] > 70 then  1 else if RSI[23] < 30 then  -1 else 0;
def RSICalc25 = if RSI[24] > 70 then  1 else if RSI[24] < 30 then  -1 else 0;
def RSICalc26 = if RSI[25] > 70 then  1 else if RSI[25] < 30 then  -1 else 0;
def RSICalc27 = if RSI[26] > 70 then  1 else if RSI[26] < 30 then  -1 else 0;
def RSICalc28 = if RSI[27] > 70 then  1 else if RSI[27] < 30 then  -1 else 0;
def RSICalc29 = if RSI[28] > 70 then  1 else if RSI[28] < 30 then  -1 else 0;
def RSICalc30 = if RSI[29] > 70 then  1 else if RSI[29] < 30 then  -1 else 0;

def RSI30DayAvg = RSICalc1 + RSICalc2 + RSICalc3 + RSICalc4 + RSICalc5 + RSICalc6 + RSICalc7 + RSICalc8 + RSICalc9 + RSICalc10 + RSICalc11 + RSICalc12 + RSICalc13 + RSICalc14 + RSICalc15 + RSICalc16 + RSICalc17 + RSICalc18 + RSICalc19 + RSICalc20 + RSICalc21 + RSICalc22 + RSICalc23 + RSICalc24 + RSICalc25 + RSICalc26 + RSICalc27 + RSICalc28 + RSICalc29 + RSICalc30;
AddLabel(RSI30DayAvg >= 10 and RSI30DayAvg < 20, " RSI SELL: " + RSI30DayAvg + "   ",  Color.ORANGE);
AddLabel(RSI30DayAvg >= 20, " RSI SELL: " + RSI30DayAvg + "   ",  Color.RED);
AddLabel(RSI30DayAvg <= -10 and RSI30DayAvg > -20, " RSI BUY: " + RSI30DayAvg + "   ",  Color.LIME);
AddLabel(RSI30DayAvg <= -20, " RSI BUY: " + RSI30DayAvg + "   ",  Color.DARK_GREEN);
plot TrendReversal5 = 1 - (((RSI30DayAvg >= 10 and RSI30DayAvg < 15) and close < MAvgExp7) / 2) ;
TrendReversal5.SetDefaultColor(GetColor(0)); #magenta
plot TrendReversal5a = 1 - (((RSI30DayAvg >= 16  and RSI30DayAvg < 25) and close < MAvgExp7) / 1.3) ;
TrendReversal5a.SetDefaultColor(GetColor(0)); #magenta
plot TrendReversal5b = 1 - ((RSI30DayAvg >= 25 and close < MAvgExp7) / 1.05) ;
TrendReversal5b.SetDefaultColor(GetColor(0)); #magenta
plot TrendReversal6 = ((RSI30DayAvg <= -15 and close > MAvgExp7 ) * .3) ;
TrendReversal6.SetDefaultColor(GetColor(6)); #green
plot TrendReversal6a = (((RSI30DayAvg <= -20 and RSI30DayAvg > -30) and close > MAvgExp7) * .85) ;
TrendReversal6a.SetDefaultColor(GetColor(6)); #green
TrendReversal6a.SetLineWeight(3);
TrendReversal5b.SetLineWeight(3);
TrendReversal6.SetLineWeight(2);
TrendReversal5a.SetLineWeight(2);
#End Code
Click to expand...
great job! question it is possible to get the buy and sell signal in the upper chart with arrow? thank you in advance!

You must log in or register to reply here.

Join useThinkScript to post your question to a community of 21,000+ developers and traders.

SIGN UP NOW LEARN MORE
Thread starter Similar threads Forum Replies Date
D Wave Trend Oscillator with Fractal Energy & Divergences For ThinkOrSwim Strategies & Chart Setups 0
Ajordan930 Heikin Ashi all in one in ThinkOrSwim Strategies & Chart Setups 7
R Repaints Slingshot Relative Volume & Zones Setup For ThinkOrSwim Strategies & Chart Setups 3
C Repaints AGAIG Extra Profit from Credit Spreads in ThinkOrSwim Strategies & Chart Setups 8
C Repaints AGAIG Visual Options Trading Chart for ThinkOrSwim Strategies & Chart Setups 20

Similar threads

Not the exact question you're looking for?

Start a new thread and receive assistance from our community.

87k+ Posts
418 Online
Create Post

Similar threads

Similar threads

The Market Trading Game Changer

Join 2,500+ subscribers inside the useThinkScript VIP Membership Club
  • Exclusive indicators
  • Proven strategies & setups
  • Private Discord community
  • ‘Buy The Dip’ signal alerts
  • Exclusive members-only content
  • Add-ons and resources
  • 1 full year of unlimited support
Try VIP Club Today

Frequently Asked Questions

What is useThinkScript?

useThinkScript is the #1 community of stock market investors using indicators and other tools to power their trading strategies. Traders of all skill levels use our forums to learn about scripting and indicators, help each other, and discover new ways to gain an edge in the markets.

How do I get started?

We get it. Our forum can be intimidating, if not overwhelming. With thousands of topics, tens of thousands of posts, our community has created an incredibly deep knowledge base for stock traders. No one can ever exhaust every resource provided on our site.

If you are new, or just looking for guidance, here are some helpful links to get you started.

What are the benefits of VIP Membership?
VIP members get exclusive access to these proven and tested premium indicators: Buy the Dip, Advanced Market Moves 2.0, Take Profit, and Volatility Trading Range. In addition, VIP members get access to over 50 VIP-only custom indicators, add-ons, and strategies, private VIP-only forums, private Discord channel to discuss trades and strategies in real-time, customer support, trade alerts, and much more. Learn all about VIP membership here.
How can I access the premium indicators?
To access the premium indicators, which are plug and play ready, sign up for VIP membership here.
Back
Top
