Adding Input for Average Type

[Ricky_005]

I've added a Input for Average Type for the PPO MacD created by North Vanhooser. The issue is when set to Exponential it's no where near matching the signal of Exponential comparing it to the standard TOS MacD study, MacD line, Signal line and Historgram is way off. Change it to Simple MA its a match. Anyhow was hoping someone could help me out to get the problem solved.

# PPO - North Vanhooser
declare lower;

input fastPeriod   = 12;
input slowPeriod   = 26;
input signalPeriod = 9;
input price        = close;

input avgType = {
    default EXPONENTIAL,
    SIMPLE,
    WEIGHTED,
    WILDERS,
    HULL
};

input histoColorStyle = {
    default Original,
    Green_Red,
    Cyan_Blue
};

def fastMA   = MovingAverage(avgType, price, fastPeriod);
def slowMA   = MovingAverage(avgType, price, slowPeriod);
def periodOK = fastPeriod < slowPeriod;

AddLabel(!periodOK, "ERROR: fastPeriod MUST be less than slowPeriod", Color.YELLOW);

def ppo      = if periodOK then ((fastMA - slowMA) / slowMA) * 100 else Double.NaN;
def signal   = MovingAverage(avgType, ppo, signalPeriod);
def histo    = ppo - signal;

plot PpoLine     = ppo;
PpoLine.SetDefaultColor(Color.BLUE);
PpoLine.HideBubble();

plot SignalLine  = signal;
SignalLine.SetDefaultColor(Color.CYAN);
SignalLine.HideBubble();

plot ZeroLine = 0;
ZeroLine.SetDefaultColor(Color.BLACK);
ZeroLine.HideBubble();

plot HistoPlot = histo;
HistoPlot.SetPaintingStrategy(PaintingStrategy.HISTOGRAM);
HistoPlot.SetLineWeight(3);

# === Slope Detection
def isUp   = histo > histo[1];
def isDown = histo < histo[1];

# === Define color index for styles
def colorIndex =
    if histoColorStyle == histoColorStyle.Original then
        if isUp then 1
        else if isDown then 2
        else 3
    else if histoColorStyle == histoColorStyle.Green_Red then
        if isUp and histo > 0 then 4          # Green
        else if isDown and histo > 0 then 5   # Dark Green
        else if isDown and histo < 0 then 6   # Red
        else if isUp and histo < 0 then 7     # Dark Red
        else 3
    else if histoColorStyle == histoColorStyle.Cyan_Blue then
        if isUp then 8
        else if isDown then 9
        else 3
    else 3;

# === Assign color once
HistoPlot.AssignValueColor(
    if colorIndex == 1 then Color.UPTICK
    else if colorIndex == 2 then Color.DOWNTICK
    else if colorIndex == 3 then Color.GRAY
    else if colorIndex == 4 then Color.GREEN
    else if colorIndex == 5 then Color.DARK_GREEN
    else if colorIndex == 6 then Color.RED
    else if colorIndex == 7 then Color.DARK_RED
    else if colorIndex == 8 then Color.CYAN
    else if colorIndex == 9 then Color.BLUE
    else Color.LIGHT_GRAY
);



[Carl-not-Karl]

The issue may have something to do with the order of the average types.

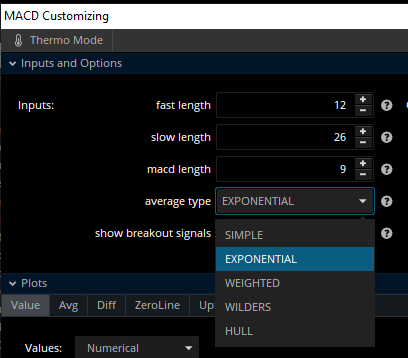

This is the order in the tos MACD study:

Changing your code to the following and the issue was resolved:

input avgType = {
    SIMPLE,
    default EXPONENTIAL,
    WEIGHTED,
    WILDERS,
    HULL
};



[Joshua]

Im posting from my phone at the moment, but I believe you can just assign the input directly to an average type constant. Which ever one you pick will serve as the default, and the others will auto populate in the indicator's settings. Recreating the enumerated variable yourself is not necessary in these cases. It should work for all enumerated constants with the exception of, I believe, the color constants.



[halcyonguy]

I've added a Input for Average Type for the PPO MacD created by North Vanhooser. The issue is when set to Exponential it's no where near matching the signal of Exponential comparing it to the standard TOS MacD study, MacD line, Signal line and Historgram is way off. Change it to Simple MA its a match. Anyhow was hoping someone could help me out to get the problem solved.

# PPO - North Vanhooser
declare lower;

input fastPeriod   = 12;
input slowPeriod   = 26;
input signalPeriod = 9;
input price        = close;

input avgType = {
    default EXPONENTIAL,
    SIMPLE,
    WEIGHTED,
    WILDERS,
    HULL
};

input histoColorStyle = {
    default Original,
    Green_Red,
    Cyan_Blue
};

def fastMA   = MovingAverage(avgType, price, fastPeriod);
def slowMA   = MovingAverage(avgType, price, slowPeriod);
def periodOK = fastPeriod < slowPeriod;

AddLabel(!periodOK, "ERROR: fastPeriod MUST be less than slowPeriod", Color.YELLOW);

def ppo      = if periodOK then ((fastMA - slowMA) / slowMA) * 100 else Double.NaN;
def signal   = MovingAverage(avgType, ppo, signalPeriod);
def histo    = ppo - signal;

plot PpoLine     = ppo;
PpoLine.SetDefaultColor(Color.BLUE);
PpoLine.HideBubble();

plot SignalLine  = signal;
SignalLine.SetDefaultColor(Color.CYAN);
SignalLine.HideBubble();

plot ZeroLine = 0;
ZeroLine.SetDefaultColor(Color.BLACK);
ZeroLine.HideBubble();

plot HistoPlot = histo;
HistoPlot.SetPaintingStrategy(PaintingStrategy.HISTOGRAM);
HistoPlot.SetLineWeight(3);

# === Slope Detection
def isUp   = histo > histo[1];
def isDown = histo < histo[1];

# === Define color index for styles
def colorIndex =
    if histoColorStyle == histoColorStyle.Original then
        if isUp then 1
        else if isDown then 2
        else 3
    else if histoColorStyle == histoColorStyle.Green_Red then
        if isUp and histo > 0 then 4          # Green
        else if isDown and histo > 0 then 5   # Dark Green
        else if isDown and histo < 0 then 6   # Red
        else if isUp and histo < 0 then 7     # Dark Red
        else 3
    else if histoColorStyle == histoColorStyle.Cyan_Blue then
        if isUp then 8
        else if isDown then 9
        else 3
    else 3;

# === Assign color once
HistoPlot.AssignValueColor(
    if colorIndex == 1 then Color.UPTICK
    else if colorIndex == 2 then Color.DOWNTICK
    else if colorIndex == 3 then Color.GRAY
    else if colorIndex == 4 then Color.GREEN
    else if colorIndex == 5 then Color.DARK_GREEN
    else if colorIndex == 6 then Color.RED
    else if colorIndex == 7 then Color.DARK_RED
    else if colorIndex == 8 then Color.CYAN
    else if colorIndex == 9 then Color.BLUE
    else Color.LIGHT_GRAY
);

i suspect this line
def ppo = if periodOK then ((fastMA - slowMA) / slowMA) * 100 else Double.NaN;

turn off extended hours and see how it compares
