Adding Arrows to lower study (Cumulative Tick)

khpro59

Expert Trader
VIP
I rely heavily on the usage of the TICK index, normally I just have a $TICK chart pulled up on a seperate monitor and view it that way, although lately I have discovered (a few) lower cumulative TICK studies that I really like. I even made a post about this study on how I can make it easier to read, I think arrows would really help.

What I would like help with:

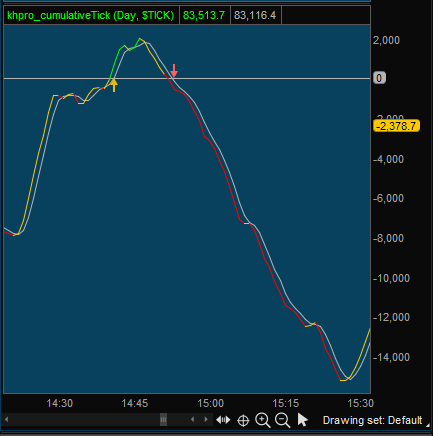

I want to add arrows whenever there is a crossover in this study. Currently it will only alert a cross above or below the 0 line, which, in itself is very valuable (screen shot below). But I have also found through back testing with my scalping strategy that any old crossover tends to produce an "actionable" event.

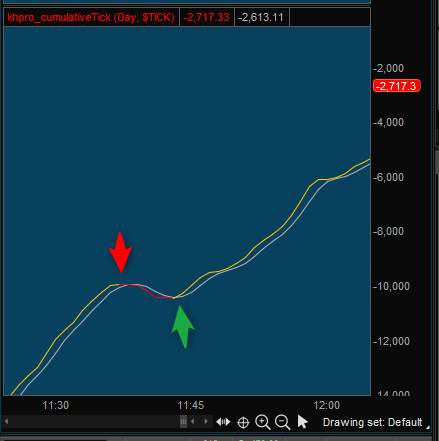

Here are arrows I have drawn in myself where I would like them. Whenever the Cumulative Tick line crosses above or below the avg tick line, as seen below. I would actually like to keep the arrows at the 0 line, but perhaps make them purple to stand out (instead of color coded red green, they can just be up/down arrows but in purple). While the crossovers in averages can be dashboard style (Green = bullish ; Red = Bearish) Like I have below.


Sincerely appreciate ANYONES help, I like to always try and give it a go my-self, but I can never get it the way I would like it and would learn a thing or two from someone else who could code this, which on the surface seems pretty rudimentary. Thanks in advance everyone!

Code:
#Ctick by @Dalebru 10/24/2015
#Cumulative tick.
#https://futures.io/thinkorswim/41392-cumulative-tick-script-2.html
#Can reset to start at beginning of Day, Week, Month, Year, Chart
#Thanks to futures.io @rmejia for similar code in VWAP_Bands
# interesting code fore rolling periods
#skynetgen: coloration and explicit signals

declare lower;
input TimeFrame = {default Day, Week, Month, Year, Chart};
input symbol = "$TICK";
def isInvalid = IsNan(hlc3(symbol));
def price = if (isInvalid, 0, hlc3(symbol));

def cap = GetAggregationPeriod();
def errorInAggregation =
    timeFrame == timeFrame.Day and cap >= AggregationPeriod.WEEK or
    timeFrame == timeFrame.Week and cap >= AggregationPeriod.MONTH;
Assert(!errorInAggregation, "timeFrame should be not less than current chart aggregation period");
def yyyyMmDd = GetYYYYMMDD();
def year = GetYear();
def periodIndx;
switch (timeFrame)
{
case Chart:
    periodIndx = 0;
case Day:
    periodIndx = yyyyMmDd;
case Week:
    periodIndx = Floor((daysFromDate(first(yyyyMmDd)) + getDayOfWeek(first(yyyyMmDd))) / 7);
case Month:
    periodIndx = roundDown(yyyyMmDd / 100, 0);
case Year:
    periodIndx = Floor(year - First(year));
}
def isPeriodRolled = CompoundValue(1, periodIndx != periodIndx[1], yes);
def cum;
if (isPeriodRolled)
{
    cum = price;
}
else
{
    cum = cum[1] + price;
}
plot CumTick = if isInvalid then Double.NaN else cum;
CumTick.SetPaintingStrategy(PaintingStrategy.Line);
#CumTick.SetLineWeight(3);
CumTick.DefineColor("PosAndUp", Color.Green);
CumTick.DefineColor("PosAndDn", Color.Orange);
CumTick.DefineColor("NegAndDn", Color.Red);
CumTick.DefineColor("NegAndUP", Color.orange);


CumTick.AssignValueColor(
    if Cumtick>0 then
       ( if cumtick>cumtick[1] then CumTick.color("PosAndUp") else CumTick.color("PosAndDN"))
    else
      ( if cumtick>cumtick[1] then CumTick.color("NegAndUp") else CumTick.color("NegAndDN")));
#CumTick.SetHiding(isInvalid);

plot zero = 0;
zero.AssignValueColor(GetColor(3)); zero.hidetitle();
plot avgtick=average(cumtick,3);
plot xup=if avgtick crosses above 0 then 0 else double.nan;
plot xdn=if avgtick crosses below 0 then 0 else double.nan;
xup.setpaintingStrategy(paintingStrategy.ARROW_UP);xup.hideTitle();
xdn.setpaintingStrategy(paintingStrategy.ARROW_DowN);xdn.hideTitle();

I rely heavily on the usage of the TICK index, normally I just have a $TICK chart pulled up on a seperate monitor and view it that way, although lately I have discovered (a few) lower cumulative TICK studies that I really like. I even made a post about this study on how I can make it easier to read, I think arrows would really help.

What I would like help with:

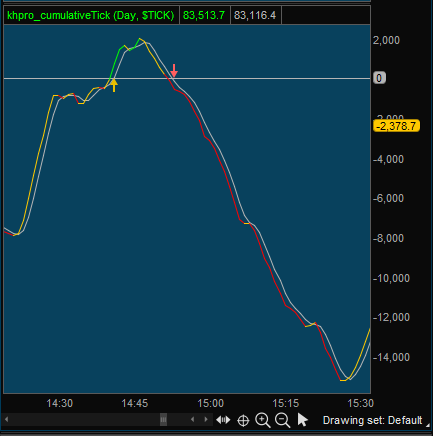

I want to add arrows whenever there is a crossover in this study. Currently it will only alert a cross above or below the 0 line, which, in itself is very valuable (screen shot below). But I have also found through back testing with my scalping strategy that any old crossover tends to produce an "actionable" event.

View attachment 20661

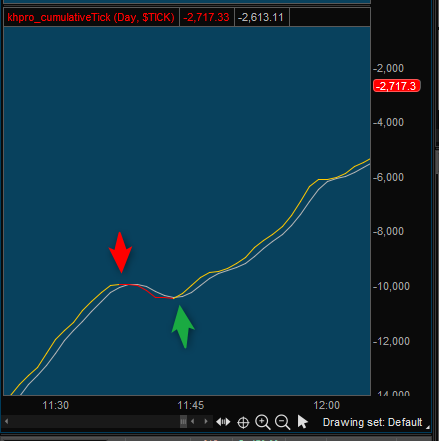

Here are arrows I have drawn in myself where I would like them. Whenever the Cumulative Tick line crosses above or below the avg tick line, as seen below. I would actually like to keep the arrows at the 0 line, but perhaps make them purple to stand out (instead of color coded red green, they can just be up/down arrows but in purple). While the crossovers in averages can be dashboard style (Green = bullish ; Red = Bearish) Like I have below.
View attachment 20662

Sincerely appreciate ANYONES help, I like to always try and give it a go my-self, but I can never get it the way I would like it and would learn a thing or two from someone else who could code this, which on the surface seems pretty rudimentary. Thanks in advance everyone!

Code:
#Ctick by @Dalebru 10/24/2015
#Cumulative tick.
#https://futures.io/thinkorswim/41392-cumulative-tick-script-2.html
#Can reset to start at beginning of Day, Week, Month, Year, Chart
#Thanks to futures.io @rmejia for similar code in VWAP_Bands
# interesting code fore rolling periods
#skynetgen: coloration and explicit signals

declare lower;
input TimeFrame = {default Day, Week, Month, Year, Chart};
input symbol = "$TICK";
def isInvalid = IsNan(hlc3(symbol));
def price = if (isInvalid, 0, hlc3(symbol));

def cap = GetAggregationPeriod();
def errorInAggregation =
    timeFrame == timeFrame.Day and cap >= AggregationPeriod.WEEK or
    timeFrame == timeFrame.Week and cap >= AggregationPeriod.MONTH;
Assert(!errorInAggregation, "timeFrame should be not less than current chart aggregation period");
def yyyyMmDd = GetYYYYMMDD();
def year = GetYear();
def periodIndx;
switch (timeFrame)
{
case Chart:
    periodIndx = 0;
case Day:
    periodIndx = yyyyMmDd;
case Week:
    periodIndx = Floor((daysFromDate(first(yyyyMmDd)) + getDayOfWeek(first(yyyyMmDd))) / 7);
case Month:
    periodIndx = roundDown(yyyyMmDd / 100, 0);
case Year:
    periodIndx = Floor(year - First(year));
}
def isPeriodRolled = CompoundValue(1, periodIndx != periodIndx[1], yes);
def cum;
if (isPeriodRolled)
{
    cum = price;
}
else
{
    cum = cum[1] + price;
}
plot CumTick = if isInvalid then Double.NaN else cum;
CumTick.SetPaintingStrategy(PaintingStrategy.Line);
#CumTick.SetLineWeight(3);
CumTick.DefineColor("PosAndUp", Color.Green);
CumTick.DefineColor("PosAndDn", Color.Orange);
CumTick.DefineColor("NegAndDn", Color.Red);
CumTick.DefineColor("NegAndUP", Color.orange);


CumTick.AssignValueColor(
    if Cumtick>0 then
       ( if cumtick>cumtick[1] then CumTick.color("PosAndUp") else CumTick.color("PosAndDN"))
    else
      ( if cumtick>cumtick[1] then CumTick.color("NegAndUp") else CumTick.color("NegAndDN")));
#CumTick.SetHiding(isInvalid);

plot zero = 0;
zero.AssignValueColor(GetColor(3)); zero.hidetitle();
plot avgtick=average(cumtick,3);
plot xup=if avgtick crosses above 0 then 0 else double.nan;
plot xdn=if avgtick crosses below 0 then 0 else double.nan;
xup.setpaintingStrategy(paintingStrategy.ARROW_UP);xup.hideTitle();
xdn.setpaintingStrategy(paintingStrategy.ARROW_DowN);xdn.hideTitle();

See if this helps.

Screenshot 2024-01-09 141058.png
Code:
#Ctick by @Dalebru 10/24/2015
#Cumulative tick.
#https://futures.io/thinkorswim/41392-cumulative-tick-script-2.html
#Can reset to start at beginning of Day, Week, Month, Year, Chart
#Thanks to futures.io @rmejia for similar code in VWAP_Bands
# interesting code fore rolling periods
#skynetgen: coloration and explicit signals

declare lower;
input TimeFrame = {default Day, Week, Month, Year, Chart};
input symbol = "$TICK";
def isInvalid = IsNaN(hlc3(symbol));
def price = If (isInvalid, 0, hlc3(symbol));

def cap = GetAggregationPeriod();
def errorInAggregation =
    TimeFrame == TimeFrame.Day and cap >= AggregationPeriod.WEEK or
    TimeFrame == TimeFrame.Week and cap >= AggregationPeriod.MONTH;
Assert(!errorInAggregation, "timeFrame should be not less than current chart aggregation period");
def yyyyMmDd = GetYYYYMMDD();
def year = GetYear();
def periodIndx;
switch (TimeFrame)
{
case Chart:
    periodIndx = 0;
case Day:
    periodIndx = yyyyMmDd;
case Week:
    periodIndx = Floor((DaysFromDate(First(yyyyMmDd)) + GetDayOfWeek(First(yyyyMmDd))) / 7);
case Month:
    periodIndx = RoundDown(yyyyMmDd / 100, 0);
case Year:
    periodIndx = Floor(year - First(year));
}
def isPeriodRolled = CompoundValue(1, periodIndx != periodIndx[1], yes);
def cum;
if (isPeriodRolled)
{
    cum = price;
}
else
{
    cum = cum[1] + price;
}
plot CumTick = if isInvalid then Double.NaN else cum;
CumTick.SetPaintingStrategy(PaintingStrategy.LINE);
#CumTick.SetLineWeight(3);
CumTick.DefineColor("PosAndUp", Color.GREEN);
CumTick.DefineColor("PosAndDn", Color.ORANGE);
CumTick.DefineColor("NegAndDn", Color.RED);
CumTick.DefineColor("NegAndUP", Color.ORANGE);


CumTick.AssignValueColor(
    if CumTick > 0 then
       ( if CumTick > CumTick[1] then CumTick.Color("PosAndUp") else CumTick.Color("PosAndDN"))
    else
      ( if CumTick > CumTick[1] then CumTick.Color("NegAndUp") else CumTick.Color("NegAndDN")));
#CumTick.SetHiding(isInvalid);

plot zero = 0;
zero.AssignValueColor(GetColor(3));
zero.HideTitle();
plot avgtick = Average(CumTick, 3);
plot xup = if avgtick crosses above 0 then 0 else Double.NaN;
plot xdn = if avgtick crosses below 0 then 0 else Double.NaN;
xup.SetPaintingStrategy(PaintingStrategy.ARROW_UP);
xup.setdefaultColor(color.magenta);
xup.setlineWeight(2);
xup.HideTitle();
xdn.SetPaintingStrategy(PaintingStrategy.ARROW_DOWN);
xdn.setdefaultColor(color.magenta);
xdn.setlineWeight(2);
xdn.HideTitle();

plot arrowup = if avgtick crosses below cumtick then max(avgtick,cumtick) else double.nan;
plot arrowdn = if cumtick crosses below avgtick then max(avgtick,cumtick) else double.nan;
arrowup.SetPaintingStrategy(PaintingStrategy.ARROW_UP);
arrowup.setlineWeight(3);
arrowup.HideTitle();
arrowup.setdefaultColor(color.green);
arrowdn.SetPaintingStrategy(PaintingStrategy.ARROW_DOWN);
arrowdn.setlineWeight(3);
arrowdn.HideTitle();
arrowdn.setdefaultColor(color.red);
