volume profile

[Clib]

Any script that calculates the furthest point to the poc and projects a horizontal line as in the image?



[SleepyZ]

Any script that calculates the furthest point to the poc and projects a horizontal line as in the image?

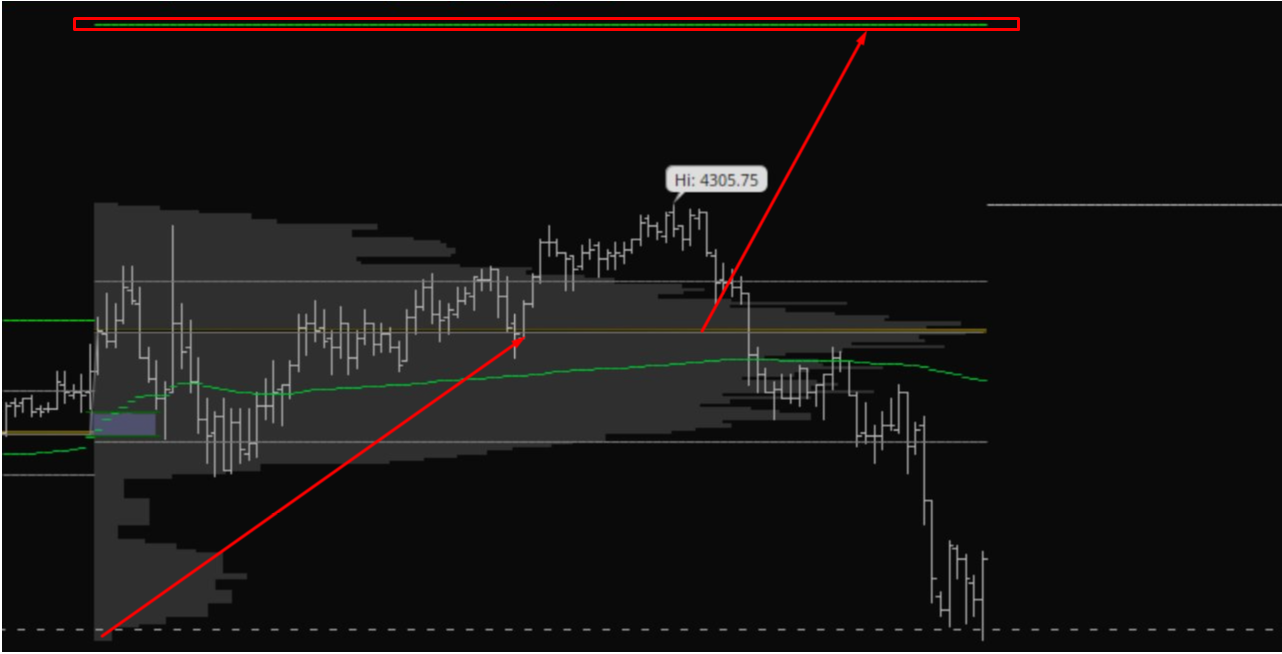

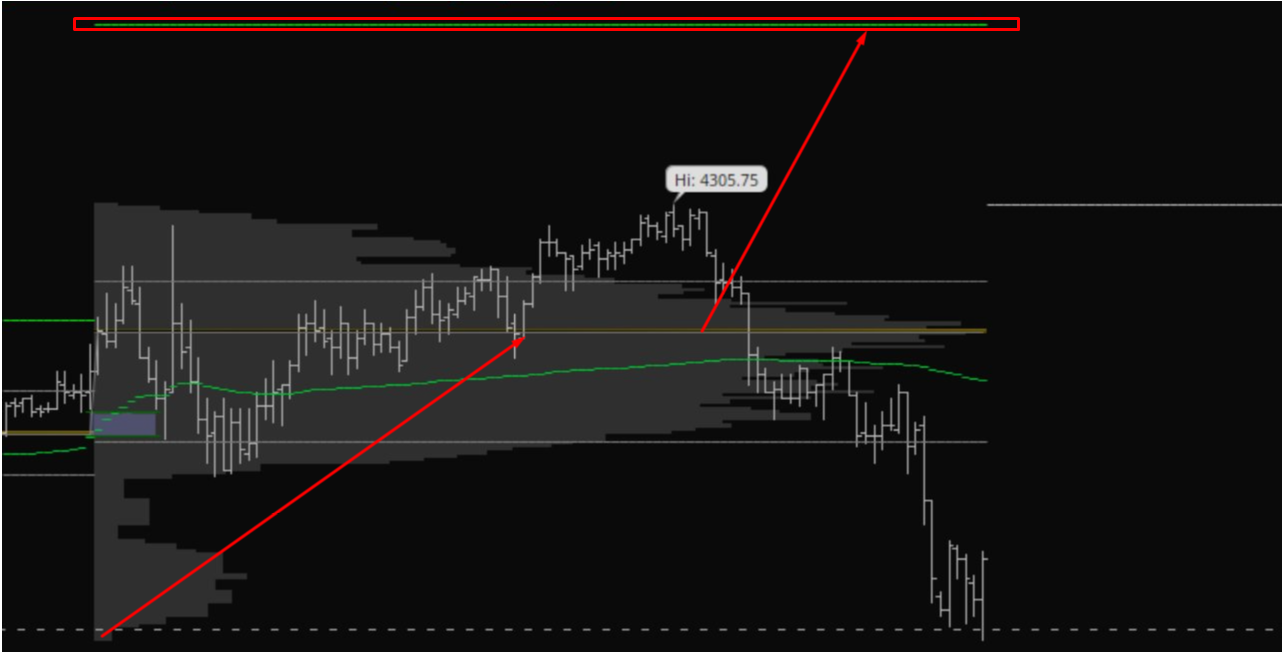

View attachment 18938

The image helps explain your prior request, so I think this now does what you want.

The image includes the code below and a volumeprofile indicator.

profile vol = VolumeProfile(startnewprofile = GetYYYYMMDD() != GetYYYYMMDD()[1], pricePerRow = PricePerRow.TICKSIZE, onExpansion = no, numberOfProfiles = 1);
vol.Show();

def poc  = if IsNaN(vol.GetPointOfControl()) then poc[1] else vol.GetPointOfControl();
def hday = if IsNaN(vol.GetHighest()) then hday[1] else vol.GetHighest();
def lday = if IsNaN(vol.GetLowest())  then lday[1] else vol.GetLowest();

def hdiff = hday - poc;
def ldiff = poc - lday;

AddLabel(1, hdiff + " " + poc + " " + ldiff, Color.YELLOW);

def line = if IsNaN(close) then line[1] else if hdiff > ldiff then poc - hdiff else poc + ldiff;
plot extendedline = line;
extendedline.SetPaintingStrategy(PaintingStrategy.DASHES);



[Clib]

The image helps explain your prior request, so I think this now does what you want.

The image includes the code below and a volumeprofile indicator.

thank you so much,Is there a way to have it for each volume profile?



[SleepyZ]

thank you so much,Is there a way to have it for each volume profile?

The numberofprofiles in the referenced indicator controls how many will be displayed. I added an input so that you can change this rather than doing it within the code.

input numberofprofiles_to_display = 20;
profile vol = VolumeProfile(startnewprofile = GetYYYYMMDD() != GetYYYYMMDD()[1], pricePerRow = PricePerRow.TICKSIZE, onExpansion = no, numberOfProfiles = numberofprofiles_to_display);
vol.Show(color = Color.GRAY);

def poc  = if IsNaN(vol.GetPointOfControl()) then poc[1] else vol.GetPointOfControl();
def hday = if IsNaN(vol.GetHighest()) then hday[1] else vol.GetHighest();
def lday = if IsNaN(vol.GetLowest())  then lday[1] else vol.GetLowest();

def hdiff = hday - poc;
def ldiff = poc - lday;

AddLabel(1, hdiff + " " + poc + " " + ldiff, Color.YELLOW);

def line = if IsNaN(close) then line[1] else if hdiff > ldiff then poc - hdiff else poc + ldiff;
plot extendedline = line;
extendedline.SetPaintingStrategy(PaintingStrategy.DASHES);
extendedline.assignvalueColor(if hdiff > ldiff then color.magenTA else color.cyan);



[Clib]

The numberofprofiles in the referenced indicator controls how many will be displayed. I added an input so that you can change this rather than doing it within the code.

Thank you very much!!, I was looking for it for months. Is it possible to configure the code so that I can change the colors and options like the one that comes by default?
