Trend Speed Analyzer (Zeiierman) for ThinkOrSwim

samer800

samer800

Moderator - Expert
VIP
Lifetime


Author MEssage:

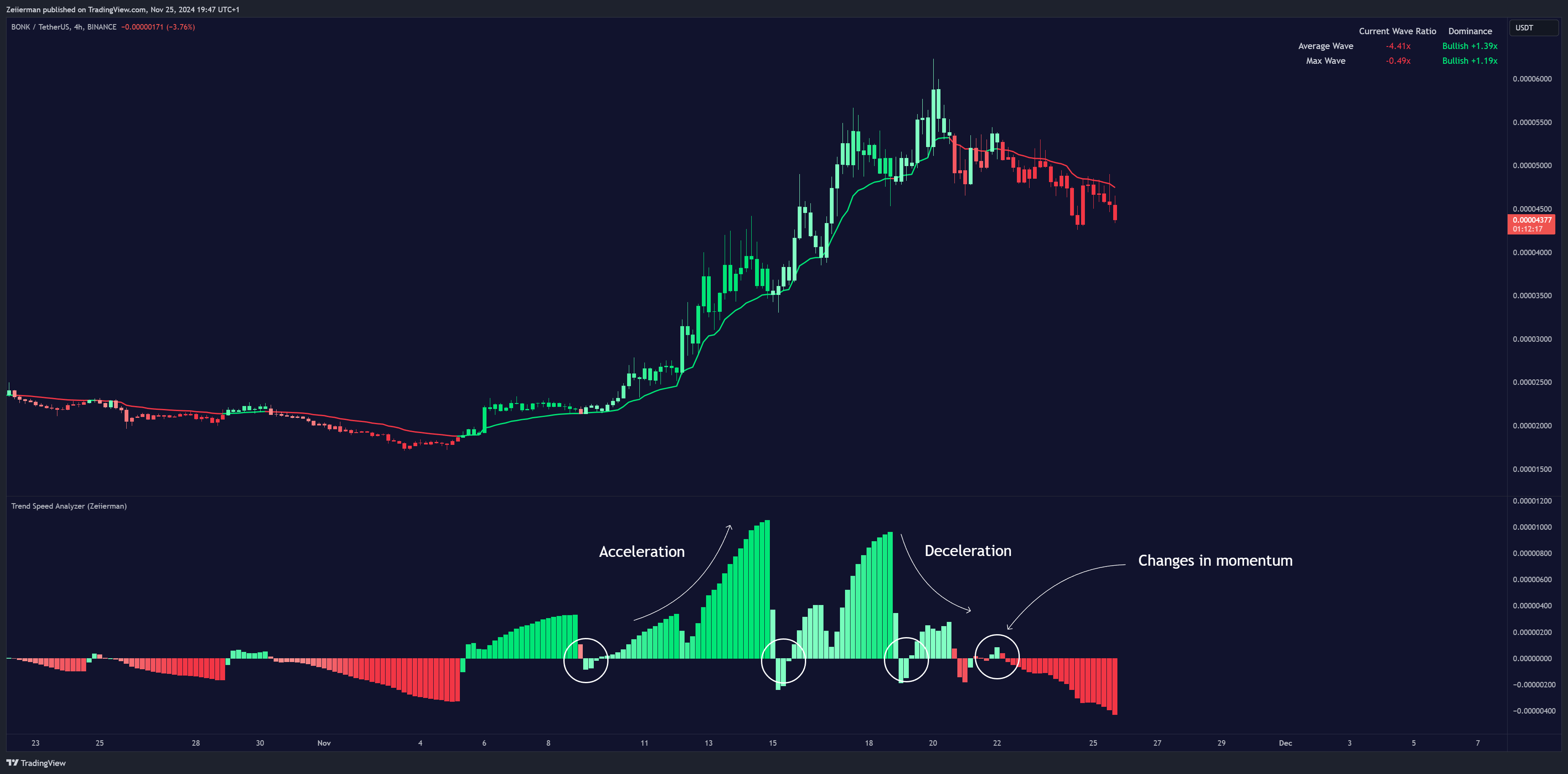

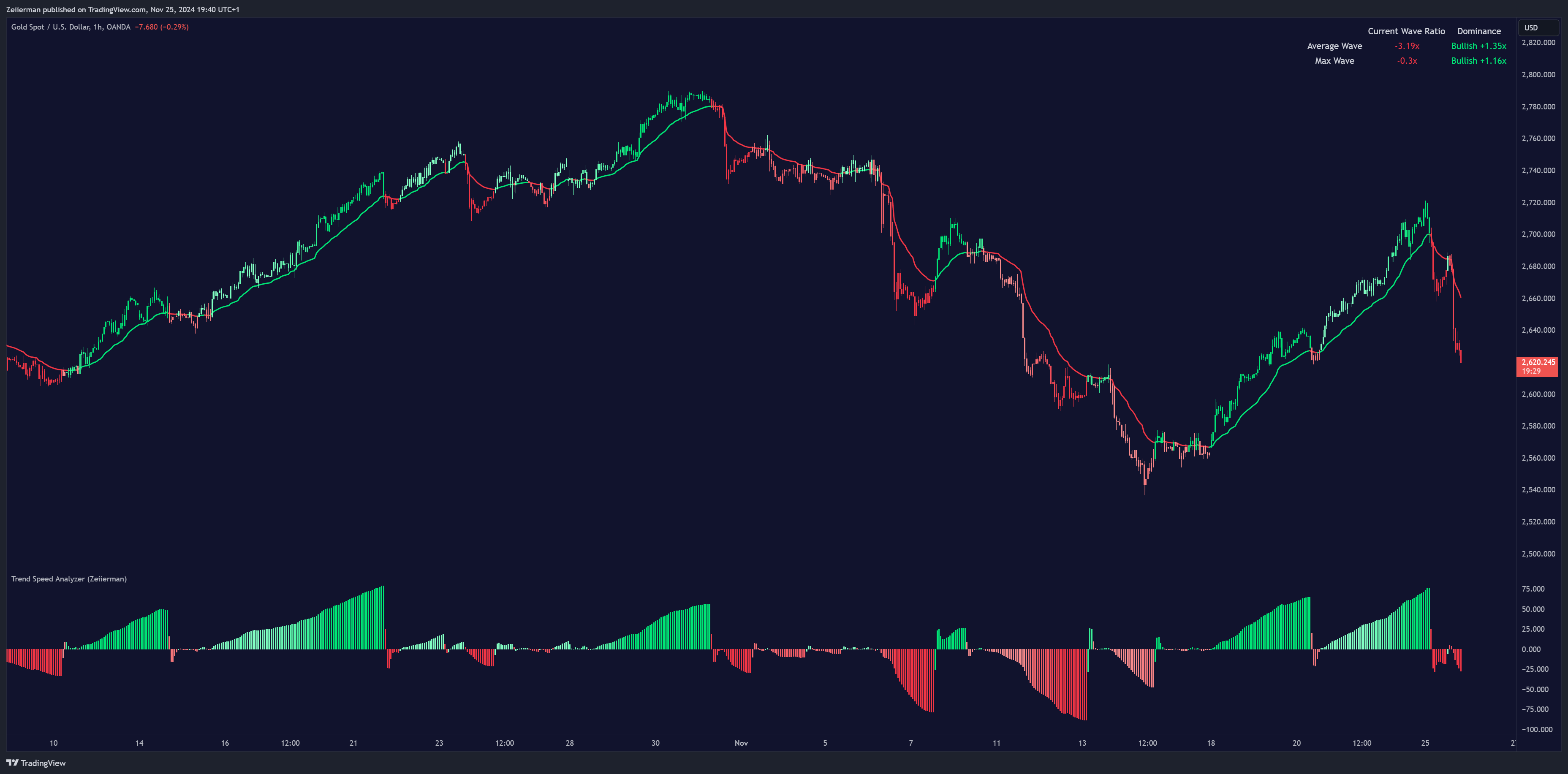

The Trend Speed Analyzer by Zeiierman is designed to measure the strength and speed of market trends, providing traders with actionable insights into momentum dynamics. By combining a dynamic moving average with wave and speed analysis, it visually highlights shifts in trend direction, market strength, and potential reversals. This tool is ideal for identifying breakout opportunities, gauging trend consistency, and understanding the dominance of bullish or bearish forces over various timeframes.

Upper Study:
CSS:
#// Indicator for TOS
#// © Zeiierman {
#Hint MaximumLength: This parameter sets the upper limit for the number of bars considered in the dynamic moving average. A higher value smooths out the trend line, making it less reactive to minor fluctuations but slower to adapt to sudden price movements. Use higher values for long-term trend analysis and lower values for faster-moving markets.
#Hint AcceleratorMultiplier: Adjusts the responsiveness of the dynamic moving average to price changes. A larger value makes the trend more reactive but can introduce noise in choppy markets. Lower values create a smoother trend but may lag behind rapid price movements. This is particularly useful in volatile markets where precise sensitivity is needed.
#Hint CollectionPeriod: Defines the number of bars used to normalize trend speed values. A higher value includes a broader historical range, smoothing out the speed calculation. Lower values make the speed analysis more sensitive to recent price changes, ideal for short-term trading.
#indicator('Trend Speed Analyzer (Zeiierman)', overlay = false)
# Converted by Sam4Cok@Samer800    - 02/2025

input EnableTable          = yes;  # 'Enable Table'
input colorBars = yes;             # 'Enable Candles'
input source = close;
input MaximumLength = 50;          # 'Maximum Length'
input AcceleratorMultiplier = 5.0; # 'Accelerator Multiplier'
input CollectionPeriod = 100;      # 'Collection Period'

def na = Double.NaN;
def last = IsNaN(close);

#// ~~  Dynamic Average {
def max_abs_counts_diff = Highest(source, 200);
def counts_diff_norm    = (source + max_abs_counts_diff) / (2 * max_abs_counts_diff);
def dyn_length          = 5 + counts_diff_norm * (MaximumLength - 5);

##// ~~ Gradient Coloring {
Script gradient_color {
input src = close;
input minVal = 0;
input maxVal = 1;
input loR = 173;
input loG = 216;
input loB = 230;
input hiR = 41;
input hiG = 98;
input hiB = 255;
    def value = if isNaN(src) then 0 else src;
    def clamped_value = max(min(value, maxVal), minVal);
    def normalized_value = (clamped_value - minVal) / (maxVal - minVal);
    def re = floor(loR + (hiR - loR) * normalized_value);
    def gr = floor(loG + (hiG - loG) * normalized_value);
    def bl = floor(loB + (hiB - loB) * normalized_value);
    plot r = re;
    plot g = gr;
    plot b = bl;
}

Script calc_accel_factor {
input counts_diff = close;
input prev_counts_diff = close;
    def delta_counts_diff = AbsValue(counts_diff - prev_counts_diff);
    def max_delta = highest(delta_counts_diff, 200);
    def max_delta_counts_diff = if max_delta == 0 then 1 else max_delta;
    def accel_factor = delta_counts_diff / max_delta_counts_diff;
    plot out = accel_factor;
}
Script adjust_alpha {
input dyn_length = 1;
input accel_factor = 1;
input accel_multiplier = 5;
    def alpha_base = 2 / (dyn_length + 1);
    def alpha_ = alpha_base * (1 + accel_factor * accel_multiplier);
    def alpha = min(1, alpha_); #  // Ensure alpha does not exceed 1
    plot out = alpha;
}
#// ~~ Accelerator Factor
def accel_factor = calc_accel_factor(source, source[1]);
def alpha        = adjust_alpha(dyn_length, accel_factor, AcceleratorMultiplier);
#// ~~ Compute dynamic Ema
def dyn_ema = if isNaN(dyn_ema[1]) then close else if !dyn_ema[1] then close else alpha * close + (1 - alpha) * dyn_ema[1];

#// ~~ Trend Speed {
def trend = dyn_ema;
def c = WildersAverage(close, 10);
def o = WildersAverage(open, 10);

#// ~~ Trend direction {
def speed; def speed1; def xBear; def xBull;
def bullish; def bearish; def bearish_recent; def bullish_recent;
def maxx; def minn;
if  (close > trend and close[1] <= trend) {
    bearish = Min(if !bearish[1] then c - o else bearish[1], (if !minn[1] then c - o else minn[1]));
    bearish_recent = bearish_recent[1] + (if !minn[1] then c - o else minn[1]);
    bullish_recent = bullish_recent[1];
    bullish = bullish[1];
    xBear   = xBear[1] + 1;
    xBull   = xBull[1];
    speed1 = c - o;
    minn = if !minn[1] then speed1 else minn[1];
    maxx = Max(speed1, maxx[1]);
} else if (close < trend and close[1] >= trend) {
    bullish = Max(bullish[1], (if !maxx[1] then c - o else maxx[1]));
    bearish = if !bearish[1] then c - o else bearish[1];
    bearish_recent = bearish_recent[1];
    bullish_recent = bullish_recent[1] + (if !maxx[1] then c - o else maxx[1]);
    xBear   = xBear[1];
    xBull   = xBull[1] + 1;
    speed1 = c - o;
    minn = if !minn[1] then speed1 else Min(minn[1], speed1);
    maxx = maxx[1];
} else {
    bearish = if !bearish[1] then c - o else bearish[1];
    bullish = if !bullish[1] then c - o else bullish[1];
    bearish_recent = bearish_recent[1];
    bullish_recent = bullish_recent[1];
    xBear = xBear[1];
    xBull = xBull[1];
    speed1 = speed[1];
    minn = if !minn[1] then speed1 else if close < trend then Min(minn[1], speed1) else minn[1];
    maxx = if close > trend then Max(maxx[1], speed1) else maxx[1];
}
speed = speed1 + c - o;

#Color
def min_speed = lowest(speed, CollectionPeriod);
def max_speed = highest(speed, CollectionPeriod);
def normalized_speed = (speed - min_speed) / (max_speed - min_speed);
def rDn = gradient_color(normalized_speed, 0, 0.5, 255, 0, 0, 249, 164, 164).r;
def gDn = gradient_color(normalized_speed, 0, 0.5, 255, 0, 0, 249, 164, 164).g;
def bDn = gradient_color(normalized_speed, 0, 0.5, 255, 0, 0, 249, 164, 164).b;
def rUp = gradient_color(normalized_speed, 0.5, 1, 156, 255, 207, 0, 255, 0).r;
def gUp = gradient_color(normalized_speed, 0.5, 1, 156, 255, 207, 0, 255, 0).g;
def bUp = gradient_color(normalized_speed, 0.5, 1, 156, 255, 207, 0, 255, 0).b;


# -- plot

plot DynamicEMA = if !last then dyn_ema else na;
DynamicEMA.SetLineWeight(2);
DynamicEMA.AssignValueColor(if speed < 0 then CreateColor(rDn, gDn, bDn) else CreateColor(rUp, gUp, bUp));

#-- Bar Color
AssignPriceColor(if !colorBars then Color.CURRENT else
                 if speed < 0 then CreateColor(rDn, gDn, bDn) else CreateColor(rUp, gUp, bUp));

#// ~~ Table {
#// Calculate stats
def bull_max = highest(bullish, 200);
def bear_max = lowest(bearish, 200);
def bull_avg = bullish_recent / xBull;
def bear_avg = bearish_recent / xBear;
#// Calculate wave size ratios for max and average wave heights
def wave_size_ratio_avg = bull_avg / AbsValue(bear_avg);
def wave_Round_avg = Round(wave_size_ratio_avg, 2);
def wave_size_ratio_max = bull_max / AbsValue(bear_max);
def wave_Round_max = Round(wave_size_ratio_max, 2);
#// Current wave calculations
def current_wave       = speed;
def current_ratio_avg = if current_wave > 0 then current_wave / bull_avg else current_wave / AbsValue(bear_avg);
def current_ratio_max = if current_wave > 0 then current_wave / bull_max else current_wave / AbsValue(bear_max);
def current_Round_avg = Round(current_ratio_avg, 2);
def current_Round_max = Round(current_ratio_max, 2);
#// Dominance calculation
def dominance_avg_value = bull_avg - AbsValue(bear_avg);
def dominance_max_value = bull_max - AbsValue(bear_max);

AddLabel(EnableTable, "Current Wave Ratio:", Color.WHITE);
AddLabel(EnableTable, "AvgWave(" + current_Round_avg + "x)", if current_ratio_avg > 0 then Color.GREEN else Color.RED);
AddLabel(EnableTable, "MaxWave(" + current_Round_max + "x)", if current_ratio_max > 0 then Color.GREEN else Color.RED);
AddLabel(EnableTable, "Dominance:", Color.WHITE);
AddLabel(EnableTable, "AvgWave(" + if dominance_avg_value > 0 then "Bullish +" + wave_Round_avg + "x" else
         "Bearish -" + Round(1 / wave_size_ratio_avg, 2) + "x)", if dominance_avg_value>0 then Color.GREEN else Color.RED);
AddLabel(EnableTable, "MaxWave(" + if dominance_max_value > 0 then "Bullish +" + wave_Round_max + "x" else
         "Bearish -" + Round(1 / wave_size_ratio_max, 2) + "x)", if dominance_max_value>0 then Color.GREEN else Color.RED);


#-- END of CODE

Lower Study:

CSS:
#// Indicator for TOS
#// © Zeiierman
#Hint MaximumLength: This parameter sets the upper limit for the number of bars considered in the dynamic moving average. A higher value smooths out the trend line, making it less reactive to minor fluctuations but slower to adapt to sudden price movements. Use higher values for long-term trend analysis and lower values for faster-moving markets.
#Hint AcceleratorMultiplier: Adjusts the responsiveness of the dynamic moving average to price changes. A larger value makes the trend more reactive but can introduce noise in choppy markets. Lower values create a smoother trend but may lag behind rapid price movements. This is particularly useful in volatile markets where precise sensitivity is needed.
#Hint CollectionPeriod: Defines the number of bars used to normalize trend speed values. A higher value includes a broader historical range, smoothing out the speed calculation. Lower values make the speed analysis more sensitive to recent price changes, ideal for short-term trading.
#indicator('Trend Speed Analyzer (Zeiierman)', overlay = false)
# Converted by Sam4Cok@Samer800    - 02/2025

declare lower;

input EnableTable          = yes;  # 'Enable Table'
input colorBars = yes;             # 'Enable Candles'
input source = close;
input MaximumLength = 50;          # 'Maximum Length'
input AcceleratorMultiplier = 5.0; # 'Accelerator Multiplier'
input CollectionPeriod = 100;      # 'Collection Period'

def na = Double.NaN;
def last = IsNaN(close);

#// ~~  Dynamic Average {
def max_abs_counts_diff = Highest(source, 200);
def counts_diff_norm    = (source + max_abs_counts_diff) / (2 * max_abs_counts_diff);
def dyn_length          = 5 + counts_diff_norm * (MaximumLength - 5);

##// ~~ Gradient Coloring {
Script gradient_color {
input src = close;
input minVal = 0;
input maxVal = 1;
input loR = 173;
input loG = 216;
input loB = 230;
input hiR = 41;
input hiG = 98;
input hiB = 255;
    def value = if isNaN(src) then 0 else src;
    def clamped_value = max(min(value, maxVal), minVal);
    def normalized_value = (clamped_value - minVal) / (maxVal - minVal);
    def re = floor(loR + (hiR - loR) * normalized_value);
    def gr = floor(loG + (hiG - loG) * normalized_value);
    def bl = floor(loB + (hiB - loB) * normalized_value);
    plot r = re;
    plot g = gr;
    plot b = bl;
}

Script calc_accel_factor {
input counts_diff = close;
input prev_counts_diff = close;
    def delta_counts_diff = AbsValue(counts_diff - prev_counts_diff);
    def max_delta = highest(delta_counts_diff, 200);
    def max_delta_counts_diff = if max_delta == 0 then 1 else max_delta;
    def accel_factor = delta_counts_diff / max_delta_counts_diff;
    plot out = accel_factor;
}
Script adjust_alpha {
input dyn_length = 1;
input accel_factor = 1;
input accel_multiplier = 5;
    def alpha_base = 2 / (dyn_length + 1);
    def alpha_ = alpha_base * (1 + accel_factor * accel_multiplier);
    def alpha = min(1, alpha_); #  // Ensure alpha does not exceed 1
    plot out = alpha;
}
#// ~~ Accelerator Factor
def accel_factor = calc_accel_factor(source, source[1]);
def alpha        = adjust_alpha(dyn_length, accel_factor, AcceleratorMultiplier);
#// ~~ Compute dynamic Ema
def dyn_ema = if isNaN(dyn_ema[1]) then close else if !dyn_ema[1] then close else alpha * close + (1 - alpha) * dyn_ema[1];

#// ~~ Trend Speed {
def trend = dyn_ema;
def c = WildersAverage(close, 10);
def o = WildersAverage(open, 10);

#// ~~ Trend direction {
def speed; def speed1; def xBear; def xBull;
def bullish; def bearish; def bearish_recent; def bullish_recent;
def maxx; def minn;
if  (close > trend and close[1] <= trend) {
    bearish = Min(if !bearish[1] then c - o else bearish[1], (if !minn[1] then c - o else minn[1]));
    bearish_recent = bearish_recent[1] + (if !minn[1] then c - o else minn[1]);
    bullish_recent = bullish_recent[1];
    bullish = bullish[1];
    xBear   = xBear[1] + 1;
    xBull   = xBull[1];
    speed1 = c - o;
    minn = if !minn[1] then speed1 else minn[1];
    maxx = Max(speed1, maxx[1]);
} else if (close < trend and close[1] >= trend) {
    bullish = Max(bullish[1], (if !maxx[1] then c - o else maxx[1]));
    bearish = if !bearish[1] then c - o else bearish[1];
    bearish_recent = bearish_recent[1];
    bullish_recent = bullish_recent[1] + (if !maxx[1] then c - o else maxx[1]);
    xBear   = xBear[1];
    xBull   = xBull[1] + 1;
    speed1 = c - o;
    minn = if !minn[1] then speed1 else Min(minn[1], speed1);
    maxx = maxx[1];
} else {
    bearish = if !bearish[1] then c - o else bearish[1];
    bullish = if !bullish[1] then c - o else bullish[1];
    bearish_recent = bearish_recent[1];
    bullish_recent = bullish_recent[1];
    xBear = xBear[1];
    xBull = xBull[1];
    speed1 = speed[1];
    minn = if !minn[1] then speed1 else if close < trend then Min(minn[1], speed1) else minn[1];
    maxx = if close > trend then Max(maxx[1], speed1) else maxx[1];
}
speed = speed1 + c - o;
def trendspeed = HullMovingAvg(speed, 5);

#Color
def min_speed = lowest(speed, CollectionPeriod);
def max_speed = highest(speed, CollectionPeriod);
def normalized_speed = (speed - min_speed) / (max_speed - min_speed);
def rDn = gradient_color(normalized_speed, 0, 0.5, 255, 0, 0, 249, 164, 164).r;
def gDn = gradient_color(normalized_speed, 0, 0.5, 255, 0, 0, 249, 164, 164).g;
def bDn = gradient_color(normalized_speed, 0, 0.5, 255, 0, 0, 249, 164, 164).b;
def rUp = gradient_color(normalized_speed, 0.5, 1, 156, 255, 207, 0, 255, 0).r;
def gUp = gradient_color(normalized_speed, 0.5, 1, 156, 255, 207, 0, 255, 0).g;
def bUp = gradient_color(normalized_speed, 0.5, 1, 156, 255, 207, 0, 255, 0).b;


# -- plot

plot DynamicEMA = if !last then trendspeed else na;
DynamicEMA.SetLineWeight(3);
DynamicEMA.SetPaintingStrategy(PaintingStrategy.HISTOGRAM);
DynamicEMA.AssignValueColor(if speed < 0 then CreateColor(rDn, gDn, bDn) else CreateColor(rUp, gUp, bUp));
AssignPriceColor(if !colorBars then Color.CURRENT else
                 if speed < 0 then CreateColor(rDn, gDn, bDn) else CreateColor(rUp, gUp, bUp));

#// ~~ Table {
#// Calculate stats
def bull_max = highest(bullish, 200);
def bear_max = lowest(bearish, 200);
def bull_avg = bullish_recent / xBull;
def bear_avg = bearish_recent / xBear;
#// Calculate wave size ratios for max and average wave heights
def wave_size_ratio_avg = bull_avg / AbsValue(bear_avg);
def wave_Round_avg = Round(wave_size_ratio_avg, 2);
def wave_size_ratio_max = bull_max / AbsValue(bear_max);
def wave_Round_max = Round(wave_size_ratio_max, 2);
#// Current wave calculations
def current_wave       = speed;
def current_ratio_avg = if current_wave > 0 then current_wave / bull_avg else current_wave / AbsValue(bear_avg);
def current_ratio_max = if current_wave > 0 then current_wave / bull_max else current_wave / AbsValue(bear_max);
def current_Round_avg = Round(current_ratio_avg, 2);
def current_Round_max = Round(current_ratio_max, 2);
#// Dominance calculation
def dominance_avg_value = bull_avg - AbsValue(bear_avg);
def dominance_max_value = bull_max - AbsValue(bear_max);

AddLabel(EnableTable, "Current Wave Ratio:", Color.WHITE);
AddLabel(EnableTable, "AvgWave(" + current_Round_avg + "x)", if current_ratio_avg > 0 then Color.GREEN else Color.RED);
AddLabel(EnableTable, "MaxWave(" + current_Round_max + "x)", if current_ratio_max > 0 then Color.GREEN else Color.RED);
AddLabel(EnableTable, "Dominance:", Color.WHITE);
AddLabel(EnableTable, "AvgWave(" + if dominance_avg_value > 0 then "Bullish +" + wave_Round_avg + "x" else
         "Bearish -" + Round(1 / wave_size_ratio_avg, 2) + "x)", if dominance_avg_value>0 then Color.GREEN else Color.RED);
AddLabel(EnableTable, "MaxWave(" + if dominance_max_value > 0 then "Bullish +" + wave_Round_max + "x" else
         "Bearish -" + Round(1 / wave_size_ratio_max, 2) + "x)", if dominance_max_value>0 then Color.GREEN else Color.RED);


#-- END of CODE

samer800 said:


Author MEssage:

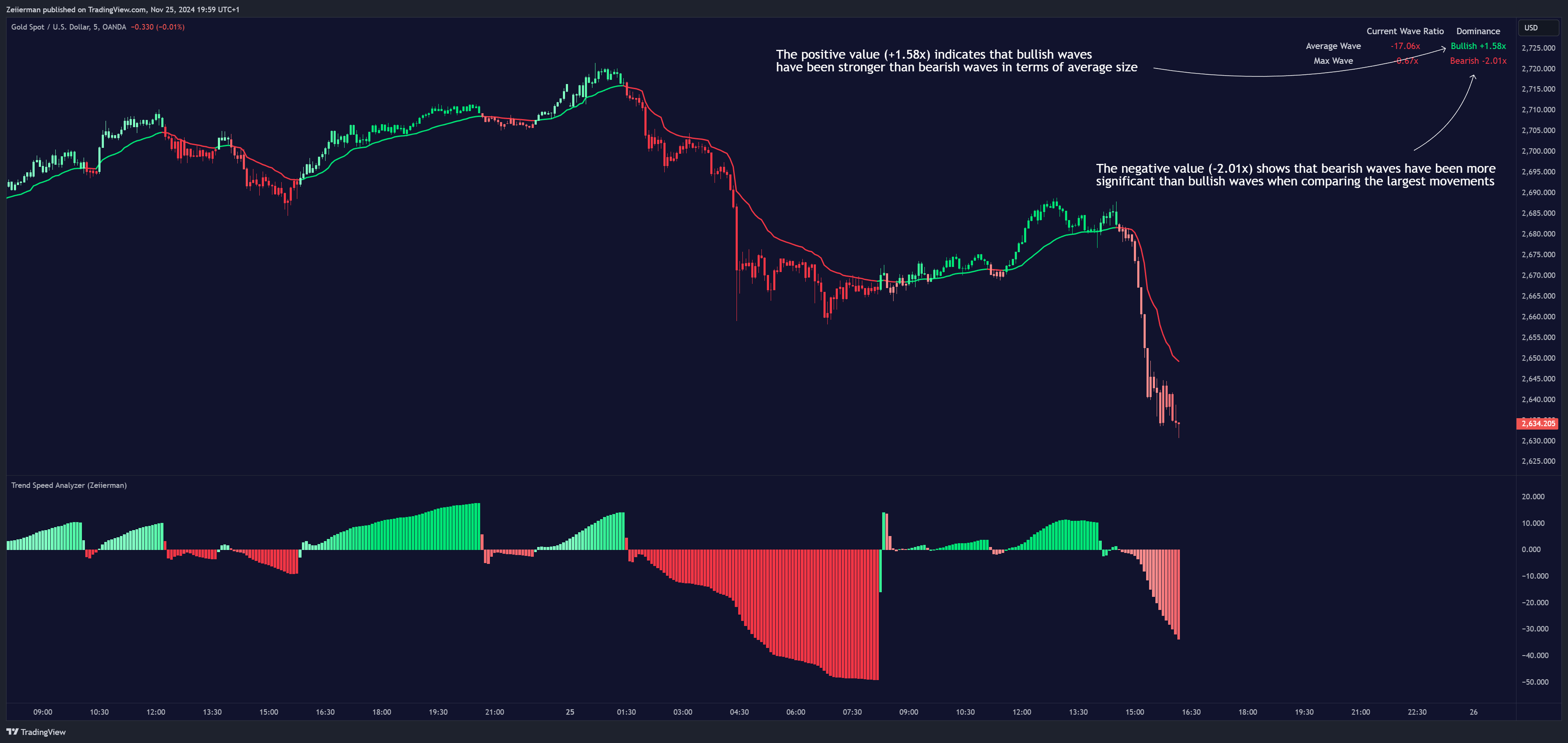

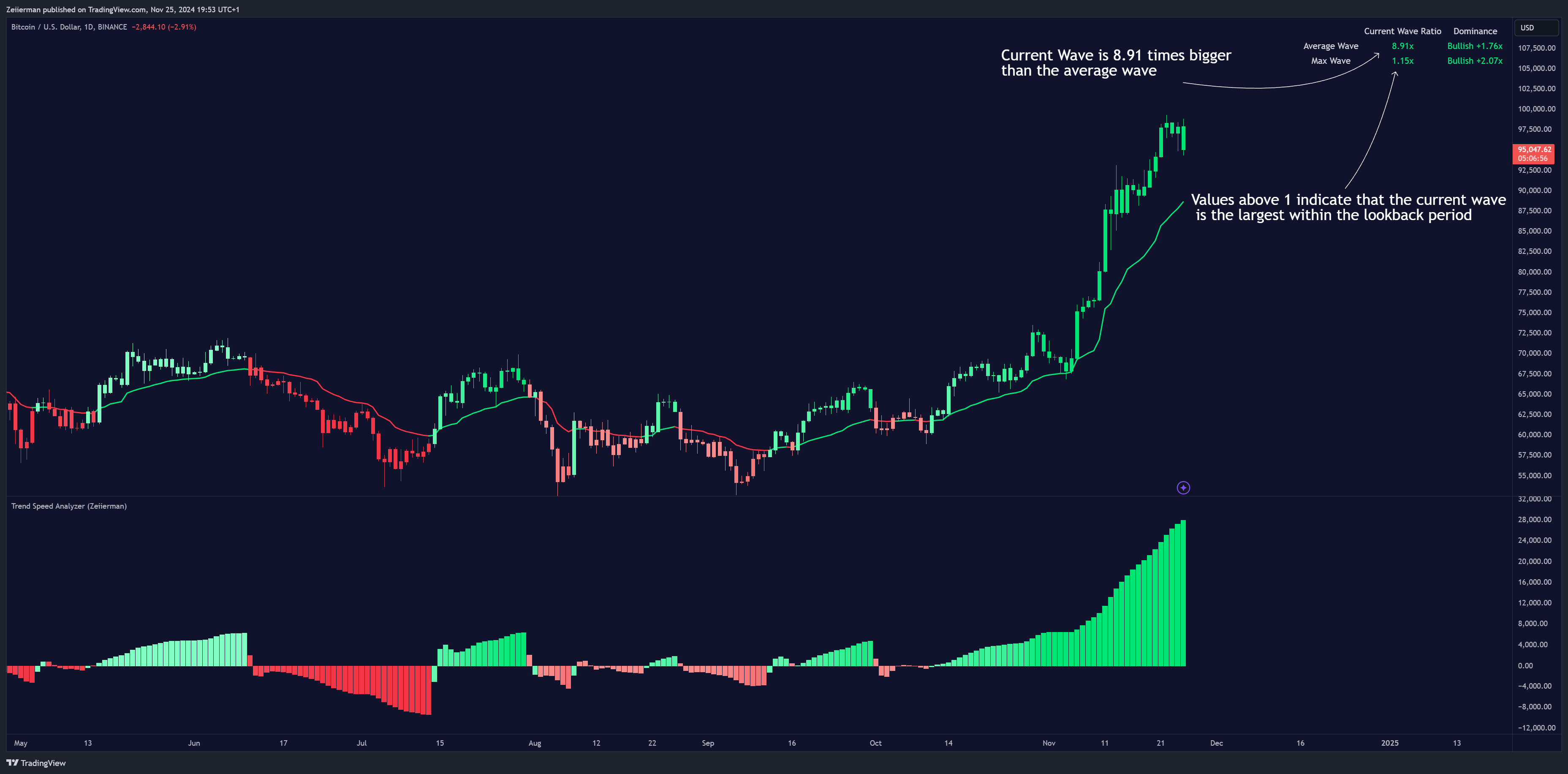

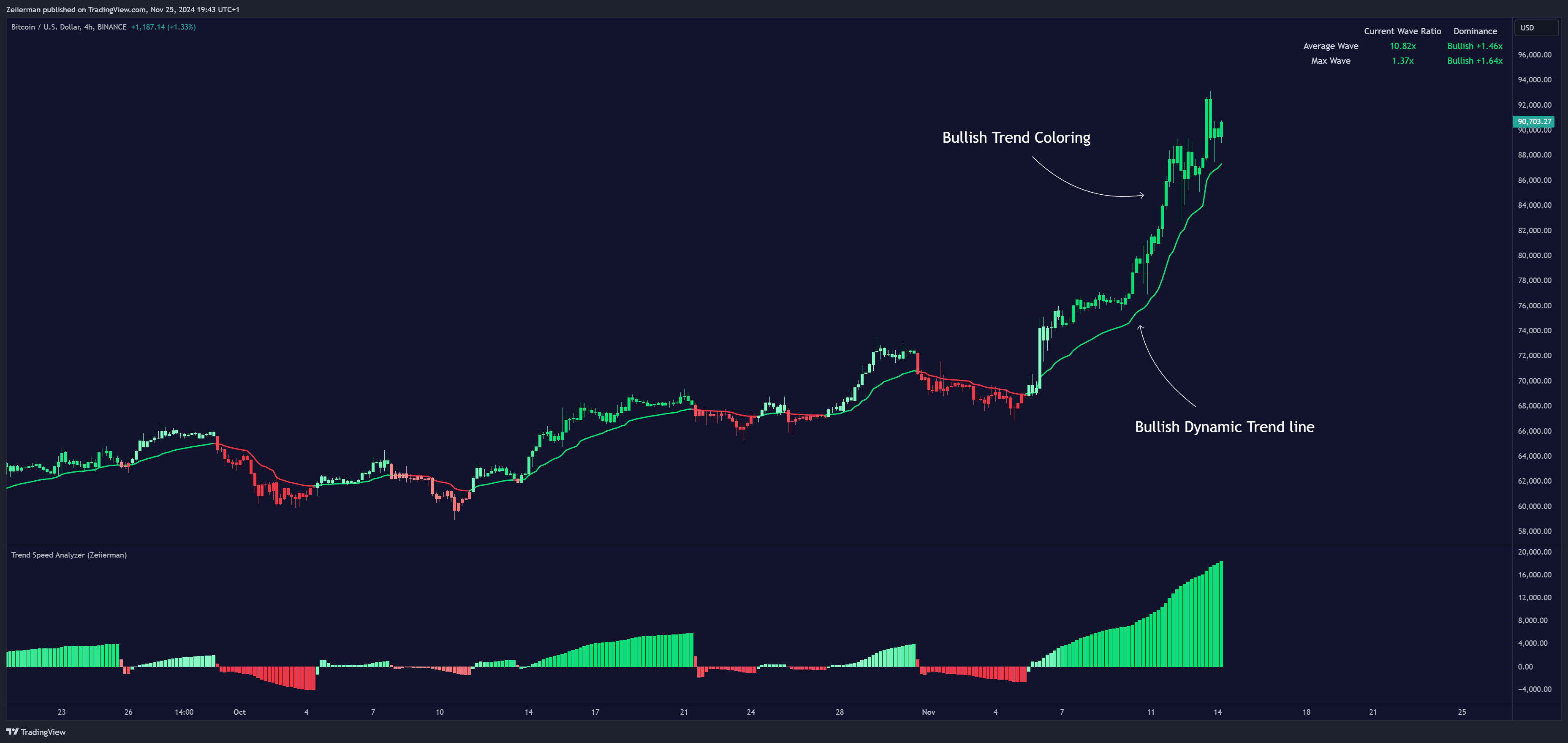

The Trend Speed Analyzer by Zeiierman is designed to measure the strength and speed of market trends, providing traders with actionable insights into momentum dynamics. By combining a dynamic moving average with wave and speed analysis, it visually highlights shifts in trend direction, market strength, and potential reversals. This tool is ideal for identifying breakout opportunities, gauging trend consistency, and understanding the dominance of bullish or bearish forces over various timeframes.

Upper Study:
CSS:
#// Indicator for TOS
#// © Zeiierman {
#Hint MaximumLength: This parameter sets the upper limit for the number of bars considered in the dynamic moving average. A higher value smooths out the trend line, making it less reactive to minor fluctuations but slower to adapt to sudden price movements. Use higher values for long-term trend analysis and lower values for faster-moving markets.
#Hint AcceleratorMultiplier: Adjusts the responsiveness of the dynamic moving average to price changes. A larger value makes the trend more reactive but can introduce noise in choppy markets. Lower values create a smoother trend but may lag behind rapid price movements. This is particularly useful in volatile markets where precise sensitivity is needed.
#Hint CollectionPeriod: Defines the number of bars used to normalize trend speed values. A higher value includes a broader historical range, smoothing out the speed calculation. Lower values make the speed analysis more sensitive to recent price changes, ideal for short-term trading.
#indicator('Trend Speed Analyzer (Zeiierman)', overlay = false)
# Converted by Sam4Cok@Samer800    - 02/2025

input EnableTable          = yes;  # 'Enable Table'
input colorBars = yes;             # 'Enable Candles'
input source = close;
input MaximumLength = 50;          # 'Maximum Length'
input AcceleratorMultiplier = 5.0; # 'Accelerator Multiplier'
input CollectionPeriod = 100;      # 'Collection Period'

def na = Double.NaN;
def last = IsNaN(close);

#// ~~  Dynamic Average {
def max_abs_counts_diff = Highest(source, 200);
def counts_diff_norm    = (source + max_abs_counts_diff) / (2 * max_abs_counts_diff);
def dyn_length          = 5 + counts_diff_norm * (MaximumLength - 5);

##// ~~ Gradient Coloring {
Script gradient_color {
input src = close;
input minVal = 0;
input maxVal = 1;
input loR = 173;
input loG = 216;
input loB = 230;
input hiR = 41;
input hiG = 98;
input hiB = 255;
    def value = if isNaN(src) then 0 else src;
    def clamped_value = max(min(value, maxVal), minVal);
    def normalized_value = (clamped_value - minVal) / (maxVal - minVal);
    def re = floor(loR + (hiR - loR) * normalized_value);
    def gr = floor(loG + (hiG - loG) * normalized_value);
    def bl = floor(loB + (hiB - loB) * normalized_value);
    plot r = re;
    plot g = gr;
    plot b = bl;
}

Script calc_accel_factor {
input counts_diff = close;
input prev_counts_diff = close;
    def delta_counts_diff = AbsValue(counts_diff - prev_counts_diff);
    def max_delta = highest(delta_counts_diff, 200);
    def max_delta_counts_diff = if max_delta == 0 then 1 else max_delta;
    def accel_factor = delta_counts_diff / max_delta_counts_diff;
    plot out = accel_factor;
}
Script adjust_alpha {
input dyn_length = 1;
input accel_factor = 1;
input accel_multiplier = 5;
    def alpha_base = 2 / (dyn_length + 1);
    def alpha_ = alpha_base * (1 + accel_factor * accel_multiplier);
    def alpha = min(1, alpha_); #  // Ensure alpha does not exceed 1
    plot out = alpha;
}
#// ~~ Accelerator Factor
def accel_factor = calc_accel_factor(source, source[1]);
def alpha        = adjust_alpha(dyn_length, accel_factor, AcceleratorMultiplier);
#// ~~ Compute dynamic Ema
def dyn_ema = if isNaN(dyn_ema[1]) then close else if !dyn_ema[1] then close else alpha * close + (1 - alpha) * dyn_ema[1];

#// ~~ Trend Speed {
def trend = dyn_ema;
def c = WildersAverage(close, 10);
def o = WildersAverage(open, 10);

#// ~~ Trend direction {
def speed; def speed1; def xBear; def xBull;
def bullish; def bearish; def bearish_recent; def bullish_recent;
def maxx; def minn;
if  (close > trend and close[1] <= trend) {
    bearish = Min(if !bearish[1] then c - o else bearish[1], (if !minn[1] then c - o else minn[1]));
    bearish_recent = bearish_recent[1] + (if !minn[1] then c - o else minn[1]);
    bullish_recent = bullish_recent[1];
    bullish = bullish[1];
    xBear   = xBear[1] + 1;
    xBull   = xBull[1];
    speed1 = c - o;
    minn = if !minn[1] then speed1 else minn[1];
    maxx = Max(speed1, maxx[1]);
} else if (close < trend and close[1] >= trend) {
    bullish = Max(bullish[1], (if !maxx[1] then c - o else maxx[1]));
    bearish = if !bearish[1] then c - o else bearish[1];
    bearish_recent = bearish_recent[1];
    bullish_recent = bullish_recent[1] + (if !maxx[1] then c - o else maxx[1]);
    xBear   = xBear[1];
    xBull   = xBull[1] + 1;
    speed1 = c - o;
    minn = if !minn[1] then speed1 else Min(minn[1], speed1);
    maxx = maxx[1];
} else {
    bearish = if !bearish[1] then c - o else bearish[1];
    bullish = if !bullish[1] then c - o else bullish[1];
    bearish_recent = bearish_recent[1];
    bullish_recent = bullish_recent[1];
    xBear = xBear[1];
    xBull = xBull[1];
    speed1 = speed[1];
    minn = if !minn[1] then speed1 else if close < trend then Min(minn[1], speed1) else minn[1];
    maxx = if close > trend then Max(maxx[1], speed1) else maxx[1];
}
speed = speed1 + c - o;

#Color
def min_speed = lowest(speed, CollectionPeriod);
def max_speed = highest(speed, CollectionPeriod);
def normalized_speed = (speed - min_speed) / (max_speed - min_speed);
def rDn = gradient_color(normalized_speed, 0, 0.5, 255, 0, 0, 249, 164, 164).r;
def gDn = gradient_color(normalized_speed, 0, 0.5, 255, 0, 0, 249, 164, 164).g;
def bDn = gradient_color(normalized_speed, 0, 0.5, 255, 0, 0, 249, 164, 164).b;
def rUp = gradient_color(normalized_speed, 0.5, 1, 156, 255, 207, 0, 255, 0).r;
def gUp = gradient_color(normalized_speed, 0.5, 1, 156, 255, 207, 0, 255, 0).g;
def bUp = gradient_color(normalized_speed, 0.5, 1, 156, 255, 207, 0, 255, 0).b;


# -- plot

plot DynamicEMA = if !last then dyn_ema else na;
DynamicEMA.SetLineWeight(2);
DynamicEMA.AssignValueColor(if speed < 0 then CreateColor(rDn, gDn, bDn) else CreateColor(rUp, gUp, bUp));

#-- Bar Color
AssignPriceColor(if !colorBars then Color.CURRENT else
                 if speed < 0 then CreateColor(rDn, gDn, bDn) else CreateColor(rUp, gUp, bUp));

#// ~~ Table {
#// Calculate stats
def bull_max = highest(bullish, 200);
def bear_max = lowest(bearish, 200);
def bull_avg = bullish_recent / xBull;
def bear_avg = bearish_recent / xBear;
#// Calculate wave size ratios for max and average wave heights
def wave_size_ratio_avg = bull_avg / AbsValue(bear_avg);
def wave_Round_avg = Round(wave_size_ratio_avg, 2);
def wave_size_ratio_max = bull_max / AbsValue(bear_max);
def wave_Round_max = Round(wave_size_ratio_max, 2);
#// Current wave calculations
def current_wave       = speed;
def current_ratio_avg = if current_wave > 0 then current_wave / bull_avg else current_wave / AbsValue(bear_avg);
def current_ratio_max = if current_wave > 0 then current_wave / bull_max else current_wave / AbsValue(bear_max);
def current_Round_avg = Round(current_ratio_avg, 2);
def current_Round_max = Round(current_ratio_max, 2);
#// Dominance calculation
def dominance_avg_value = bull_avg - AbsValue(bear_avg);
def dominance_max_value = bull_max - AbsValue(bear_max);

AddLabel(EnableTable, "Current Wave Ratio:", Color.WHITE);
AddLabel(EnableTable, "AvgWave(" + current_Round_avg + "x)", if current_ratio_avg > 0 then Color.GREEN else Color.RED);
AddLabel(EnableTable, "MaxWave(" + current_Round_max + "x)", if current_ratio_max > 0 then Color.GREEN else Color.RED);
AddLabel(EnableTable, "Dominance:", Color.WHITE);
AddLabel(EnableTable, "AvgWave(" + if dominance_avg_value > 0 then "Bullish +" + wave_Round_avg + "x" else
         "Bearish -" + Round(1 / wave_size_ratio_avg, 2) + "x)", if dominance_avg_value>0 then Color.GREEN else Color.RED);
AddLabel(EnableTable, "MaxWave(" + if dominance_max_value > 0 then "Bullish +" + wave_Round_max + "x" else
         "Bearish -" + Round(1 / wave_size_ratio_max, 2) + "x)", if dominance_max_value>0 then Color.GREEN else Color.RED);


#-- END of CODE

Lower Study:

CSS:
#// Indicator for TOS
#// © Zeiierman
#Hint MaximumLength: This parameter sets the upper limit for the number of bars considered in the dynamic moving average. A higher value smooths out the trend line, making it less reactive to minor fluctuations but slower to adapt to sudden price movements. Use higher values for long-term trend analysis and lower values for faster-moving markets.
#Hint AcceleratorMultiplier: Adjusts the responsiveness of the dynamic moving average to price changes. A larger value makes the trend more reactive but can introduce noise in choppy markets. Lower values create a smoother trend but may lag behind rapid price movements. This is particularly useful in volatile markets where precise sensitivity is needed.
#Hint CollectionPeriod: Defines the number of bars used to normalize trend speed values. A higher value includes a broader historical range, smoothing out the speed calculation. Lower values make the speed analysis more sensitive to recent price changes, ideal for short-term trading.
#indicator('Trend Speed Analyzer (Zeiierman)', overlay = false)
# Converted by Sam4Cok@Samer800    - 02/2025

declare lower;

input EnableTable          = yes;  # 'Enable Table'
input colorBars = yes;             # 'Enable Candles'
input source = close;
input MaximumLength = 50;          # 'Maximum Length'
input AcceleratorMultiplier = 5.0; # 'Accelerator Multiplier'
input CollectionPeriod = 100;      # 'Collection Period'

def na = Double.NaN;
def last = IsNaN(close);

#// ~~  Dynamic Average {
def max_abs_counts_diff = Highest(source, 200);
def counts_diff_norm    = (source + max_abs_counts_diff) / (2 * max_abs_counts_diff);
def dyn_length          = 5 + counts_diff_norm * (MaximumLength - 5);

##// ~~ Gradient Coloring {
Script gradient_color {
input src = close;
input minVal = 0;
input maxVal = 1;
input loR = 173;
input loG = 216;
input loB = 230;
input hiR = 41;
input hiG = 98;
input hiB = 255;
    def value = if isNaN(src) then 0 else src;
    def clamped_value = max(min(value, maxVal), minVal);
    def normalized_value = (clamped_value - minVal) / (maxVal - minVal);
    def re = floor(loR + (hiR - loR) * normalized_value);
    def gr = floor(loG + (hiG - loG) * normalized_value);
    def bl = floor(loB + (hiB - loB) * normalized_value);
    plot r = re;
    plot g = gr;
    plot b = bl;
}

Script calc_accel_factor {
input counts_diff = close;
input prev_counts_diff = close;
    def delta_counts_diff = AbsValue(counts_diff - prev_counts_diff);
    def max_delta = highest(delta_counts_diff, 200);
    def max_delta_counts_diff = if max_delta == 0 then 1 else max_delta;
    def accel_factor = delta_counts_diff / max_delta_counts_diff;
    plot out = accel_factor;
}
Script adjust_alpha {
input dyn_length = 1;
input accel_factor = 1;
input accel_multiplier = 5;
    def alpha_base = 2 / (dyn_length + 1);
    def alpha_ = alpha_base * (1 + accel_factor * accel_multiplier);
    def alpha = min(1, alpha_); #  // Ensure alpha does not exceed 1
    plot out = alpha;
}
#// ~~ Accelerator Factor
def accel_factor = calc_accel_factor(source, source[1]);
def alpha        = adjust_alpha(dyn_length, accel_factor, AcceleratorMultiplier);
#// ~~ Compute dynamic Ema
def dyn_ema = if isNaN(dyn_ema[1]) then close else if !dyn_ema[1] then close else alpha * close + (1 - alpha) * dyn_ema[1];

#// ~~ Trend Speed {
def trend = dyn_ema;
def c = WildersAverage(close, 10);
def o = WildersAverage(open, 10);

#// ~~ Trend direction {
def speed; def speed1; def xBear; def xBull;
def bullish; def bearish; def bearish_recent; def bullish_recent;
def maxx; def minn;
if  (close > trend and close[1] <= trend) {
    bearish = Min(if !bearish[1] then c - o else bearish[1], (if !minn[1] then c - o else minn[1]));
    bearish_recent = bearish_recent[1] + (if !minn[1] then c - o else minn[1]);
    bullish_recent = bullish_recent[1];
    bullish = bullish[1];
    xBear   = xBear[1] + 1;
    xBull   = xBull[1];
    speed1 = c - o;
    minn = if !minn[1] then speed1 else minn[1];
    maxx = Max(speed1, maxx[1]);
} else if (close < trend and close[1] >= trend) {
    bullish = Max(bullish[1], (if !maxx[1] then c - o else maxx[1]));
    bearish = if !bearish[1] then c - o else bearish[1];
    bearish_recent = bearish_recent[1];
    bullish_recent = bullish_recent[1] + (if !maxx[1] then c - o else maxx[1]);
    xBear   = xBear[1];
    xBull   = xBull[1] + 1;
    speed1 = c - o;
    minn = if !minn[1] then speed1 else Min(minn[1], speed1);
    maxx = maxx[1];
} else {
    bearish = if !bearish[1] then c - o else bearish[1];
    bullish = if !bullish[1] then c - o else bullish[1];
    bearish_recent = bearish_recent[1];
    bullish_recent = bullish_recent[1];
    xBear = xBear[1];
    xBull = xBull[1];
    speed1 = speed[1];
    minn = if !minn[1] then speed1 else if close < trend then Min(minn[1], speed1) else minn[1];
    maxx = if close > trend then Max(maxx[1], speed1) else maxx[1];
}
speed = speed1 + c - o;
def trendspeed = HullMovingAvg(speed, 5);

#Color
def min_speed = lowest(speed, CollectionPeriod);
def max_speed = highest(speed, CollectionPeriod);
def normalized_speed = (speed - min_speed) / (max_speed - min_speed);
def rDn = gradient_color(normalized_speed, 0, 0.5, 255, 0, 0, 249, 164, 164).r;
def gDn = gradient_color(normalized_speed, 0, 0.5, 255, 0, 0, 249, 164, 164).g;
def bDn = gradient_color(normalized_speed, 0, 0.5, 255, 0, 0, 249, 164, 164).b;
def rUp = gradient_color(normalized_speed, 0.5, 1, 156, 255, 207, 0, 255, 0).r;
def gUp = gradient_color(normalized_speed, 0.5, 1, 156, 255, 207, 0, 255, 0).g;
def bUp = gradient_color(normalized_speed, 0.5, 1, 156, 255, 207, 0, 255, 0).b;


# -- plot

plot DynamicEMA = if !last then trendspeed else na;
DynamicEMA.SetLineWeight(3);
DynamicEMA.SetPaintingStrategy(PaintingStrategy.HISTOGRAM);
DynamicEMA.AssignValueColor(if speed < 0 then CreateColor(rDn, gDn, bDn) else CreateColor(rUp, gUp, bUp));
AssignPriceColor(if !colorBars then Color.CURRENT else
                 if speed < 0 then CreateColor(rDn, gDn, bDn) else CreateColor(rUp, gUp, bUp));

#// ~~ Table {
#// Calculate stats
def bull_max = highest(bullish, 200);
def bear_max = lowest(bearish, 200);
def bull_avg = bullish_recent / xBull;
def bear_avg = bearish_recent / xBear;
#// Calculate wave size ratios for max and average wave heights
def wave_size_ratio_avg = bull_avg / AbsValue(bear_avg);
def wave_Round_avg = Round(wave_size_ratio_avg, 2);
def wave_size_ratio_max = bull_max / AbsValue(bear_max);
def wave_Round_max = Round(wave_size_ratio_max, 2);
#// Current wave calculations
def current_wave       = speed;
def current_ratio_avg = if current_wave > 0 then current_wave / bull_avg else current_wave / AbsValue(bear_avg);
def current_ratio_max = if current_wave > 0 then current_wave / bull_max else current_wave / AbsValue(bear_max);
def current_Round_avg = Round(current_ratio_avg, 2);
def current_Round_max = Round(current_ratio_max, 2);
#// Dominance calculation
def dominance_avg_value = bull_avg - AbsValue(bear_avg);
def dominance_max_value = bull_max - AbsValue(bear_max);

AddLabel(EnableTable, "Current Wave Ratio:", Color.WHITE);
AddLabel(EnableTable, "AvgWave(" + current_Round_avg + "x)", if current_ratio_avg > 0 then Color.GREEN else Color.RED);
AddLabel(EnableTable, "MaxWave(" + current_Round_max + "x)", if current_ratio_max > 0 then Color.GREEN else Color.RED);
AddLabel(EnableTable, "Dominance:", Color.WHITE);
AddLabel(EnableTable, "AvgWave(" + if dominance_avg_value > 0 then "Bullish +" + wave_Round_avg + "x" else
         "Bearish -" + Round(1 / wave_size_ratio_avg, 2) + "x)", if dominance_avg_value>0 then Color.GREEN else Color.RED);
AddLabel(EnableTable, "MaxWave(" + if dominance_max_value > 0 then "Bullish +" + wave_Round_max + "x" else
         "Bearish -" + Round(1 / wave_size_ratio_max, 2) + "x)", if dominance_max_value>0 then Color.GREEN else Color.RED);


#-- END of CODE
Click to expand...
@samer800 , Thanks for the script, how to disable/remove ones in the attachment?


Attachments

  • Screenshot 2025-02-04 170652.jpg
    Screenshot 2025-02-04 170652.jpg
    22.1 KB · Views: 31
hballa said:
@samer800 , Thanks for the script, how to disable/remove ones in the attachment?
Click to expand...

When you have a label that you don't want. You can comment it out by putting a hashtag # in front of it.
It appears that you don't want the "Current Wave Ratio:" or the last "MaxWave("

replace this code snippet:
AddLabel(EnableTable, "Current Wave Ratio:", Color.WHITE);
AddLabel(EnableTable, "AvgWave(" + current_Round_avg + "x)", if current_ratio_avg > 0 then Color.GREEN else Color.RED);
AddLabel(EnableTable, "MaxWave(" + current_Round_max + "x)", if current_ratio_max > 0 then Color.GREEN else Color.RED);
AddLabel(EnableTable, "Dominance:", Color.WHITE);
AddLabel(EnableTable, "AvgWave(" + if dominance_avg_value > 0 then "Bullish +" + wave_Round_avg + "x" else
"Bearish -" + Round(1 / wave_size_ratio_avg, 2) + "x)", if dominance_avg_value>0 then Color.GREEN else Color.RED);
AddLabel(EnableTable, "MaxWave(" + if dominance_max_value > 0 then "Bullish +" + wave_Round_max + "x" else
"Bearish -" + Round(1 / wave_size_ratio_max, 2) + "x)", if dominance_max_value>0 then Color.GREEN else Color.RED);
Click to expand...

with this code snippet
#AddLabel(EnableTable, "Current Wave Ratio:", Color.WHITE);
AddLabel(EnableTable, "AvgWave(" + current_Round_avg + "x)", if current_ratio_avg > 0 then Color.GREEN else Color.RED);
AddLabel(EnableTable, "MaxWave(" + current_Round_max + "x)", if current_ratio_max > 0 then Color.GREEN else Color.RED);
AddLabel(EnableTable, "Dominance:", Color.WHITE);
AddLabel(EnableTable, "AvgWave(" + if dominance_avg_value > 0 then "Bullish +" + wave_Round_avg + "x" else
"Bearish -" + Round(1 / wave_size_ratio_avg, 2) + "x)", if dominance_avg_value>0 then Color.GREEN else Color.RED);
#AddLabel(EnableTable, "MaxWave(" + if dominance_max_value > 0 then "Bullish +" + wave_Round_max + "x" else
"Bearish -" + Round(1 / wave_size_ratio_max, 2) + "x)", if dominance_max_value>0 then Color.GREEN else Color.RED);
Click to expand...

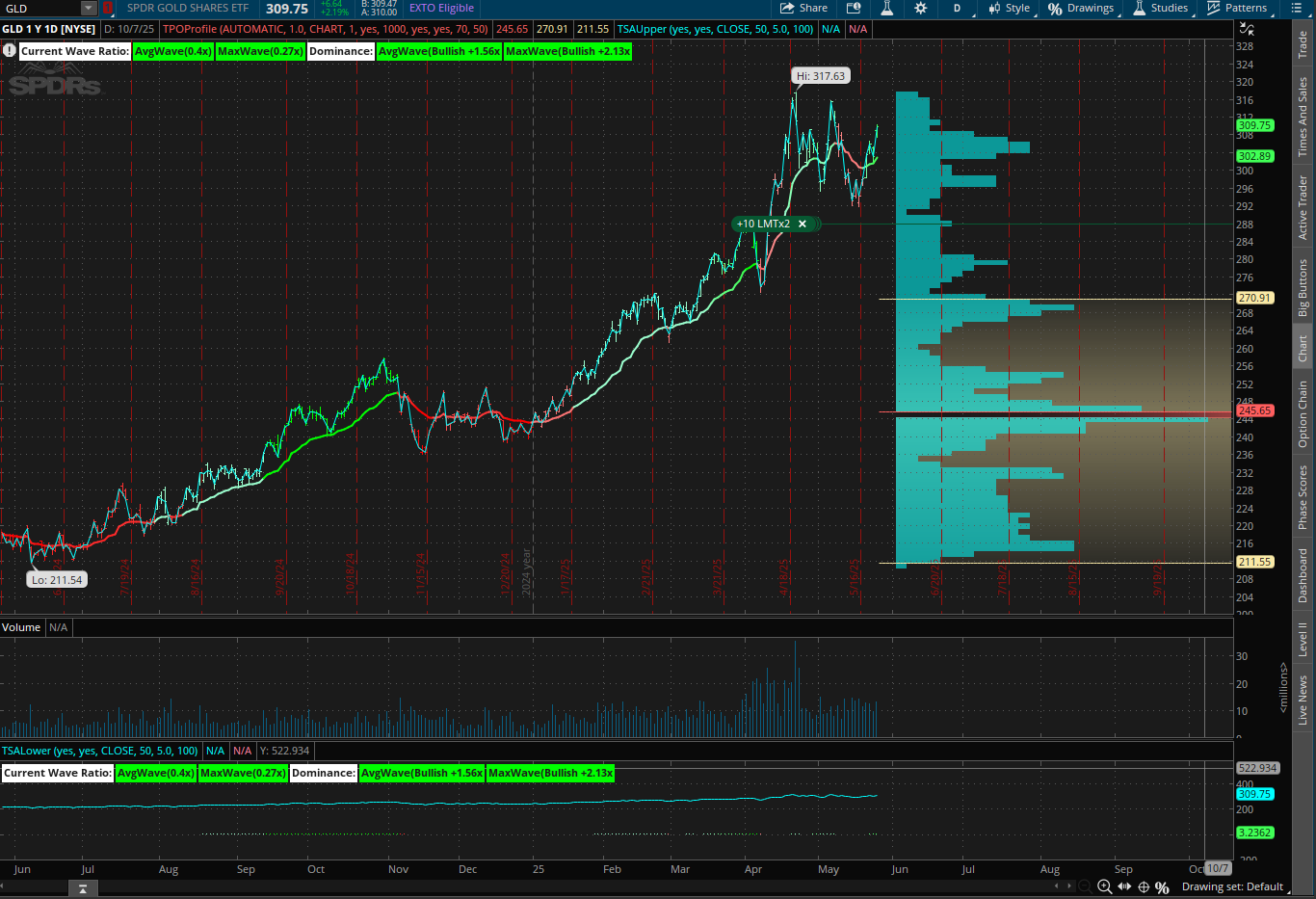

@useThinkScript I was able to remove "Current Wave ratio only", getting error for the remaining.

wanted to remove all these labels.


Attachments

  • Screenshot 2025-02-04 175055.jpg
    Screenshot 2025-02-04 175055.jpg
    64.3 KB · Views: 11
  • Screenshot 2025-02-04 175322.jpg
    Screenshot 2025-02-04 175322.jpg
    14.5 KB · Views: 12
You must log in or register to reply here.

Join useThinkScript to post your question to a community of 21,000+ developers and traders.

SIGN UP NOW LEARN MORE
Thread starter Similar threads Forum Replies Date
samer800 Half-Trend Channel [BigBeluga] for ThinkOrSwim Custom 0
samer800 Trend Filter (2-pole) [BigBeluga] for ThinkOrSwim Custom 0
samer800 Fibonacci Trend [ChartPrime] for ThinkOrSwim Custom 0
samer800 Trend Reversal Probability [Algoalpha] for ThinkOrSwim Custom 0
samer800 Smoothed Gaussian Trend Filter [AlgoAlpha] for ThinkOrSwim Custom 0

Similar threads

Not the exact question you're looking for?

Start a new thread and receive assistance from our community.

87k+ Posts
377 Online
Create Post

Similar threads

Similar threads

The Market Trading Game Changer

Join 2,500+ subscribers inside the useThinkScript VIP Membership Club
  • Exclusive indicators
  • Proven strategies & setups
  • Private Discord community
  • ‘Buy The Dip’ signal alerts
  • Exclusive members-only content
  • Add-ons and resources
  • 1 full year of unlimited support
Try VIP Club Today

Frequently Asked Questions

What is useThinkScript?

useThinkScript is the #1 community of stock market investors using indicators and other tools to power their trading strategies. Traders of all skill levels use our forums to learn about scripting and indicators, help each other, and discover new ways to gain an edge in the markets.

How do I get started?

We get it. Our forum can be intimidating, if not overwhelming. With thousands of topics, tens of thousands of posts, our community has created an incredibly deep knowledge base for stock traders. No one can ever exhaust every resource provided on our site.

If you are new, or just looking for guidance, here are some helpful links to get you started.

What are the benefits of VIP Membership?
VIP members get exclusive access to these proven and tested premium indicators: Buy the Dip, Advanced Market Moves 2.0, Take Profit, and Volatility Trading Range. In addition, VIP members get access to over 50 VIP-only custom indicators, add-ons, and strategies, private VIP-only forums, private Discord channel to discuss trades and strategies in real-time, customer support, trade alerts, and much more. Learn all about VIP membership here.
How can I access the premium indicators?
To access the premium indicators, which are plug and play ready, sign up for VIP membership here.
Back
Top
