Market Confluence Direction - Color Bar Heikin Ashi Trend

[quijanoj44]

Hi, I would like to create a color bar indicator to compile the Heikin Ashi trend of the top three market drivers tickers for /ES and /NQ which are (AAPL, NVDA, MSFT) and see the overall trend of them. If all are uptrend, then colorBar green, if all are downtrend then color bar red else orange. I have this code, but still needs to fix to do that:

declare upper;

input colorBars = yes;

# APPLE HEIKIN ASHI
def haCloseAAPL = ohlc4("AAPL");
def haOpenAAPL = (haOpenAAPL[1] + haCloseAAPL[1]) / 2;
def haTrendUpAAPL = if haCloseAAPL >= haOpenAAPL then 1 else 0;
def haTrendDnAAPL = if haCloseAAPL < haOpenAAPL then 1 else 0;

# NVIDIA  HEIKIN ASHI
def haCloseNVDA = ohlc4("NVDA");
def haOpenNVDA = (haOpenNVDA[1] + haCloseNVDA[1]) / 2;
def haTrendUpNVDA = if haCloseNVDA >= haOpenNVDA then 1 else 0;
def haTrendDnNVDA = if haCloseNVDA < haOpenNVDA then 1 else 0;


# MICROSOFT HEIKIN ASHI
def haCloseMSFT = ohlc4("MSFT");
def haOpenMSFT = (haOpenMSFT[1] + haCloseMSFT[1]) / 2;
def haTrendUpMSFT = if haCloseMSFT >= haOpenMSFT then 1 else 0;
def haTrendDnMSFT = if haCloseMSFT < haOpenMSFT then 1 else 0;


def haSignal =
if ((haTrendUpAAPL == 1 and haTrendUpAAPL[1] == 1) and
(haTrendUpNVDA == 1 and haTrendUpNVDA[1] == 1) and
(haTrendUpMSFT == 1 and haTrendUpMSFT[1] == 1)) then 1
else
if ((haTrendDnAAPL == 1 and haTrendDnAAPL[1] == 1) and
(haTrendDnNVDA == 1 and haTrendDnNVDA[1] == 1) and
(haTrendDnMSFT == 1 and haTrendDnMSFT[1] == 1))
then -1 else 0;

DefineGlobalColor("UpTrend", Color.GREEN);
DefineGlobalColor("DnTrend", Color.RED);
DefineGlobalColor("Transition", Color.DARK_ORANGE);


AssignPriceColor(if colorBars then
  if haSignal == 1 then GlobalColor("UpTrend")
  else if haSignal == -1 then GlobalColor("DnTrend")
  else GlobalColor("Transition")
  else color.current
);

If someone can help to achieve this will help me a lot. The idea is to see all three top tickers confluence in the same direction so that I can open a trade based on that.

Thanks for your help

@samer800 @chewie76 @rad14733

@MerryDay



[samer800]

Hi, I would like to create a color bar indicator to compile the Heikin Ashi trend of the top three market drivers tickers for /ES and /NQ which are (AAPL, NVDA, MSFT) and see the overall trend of them. If all are uptrend, then colorBar green, if all are downtrend then color bar red else orange. I have this code, but still needs to fix to do that:

declare upper;

input colorBars = yes;

# APPLE HEIKIN ASHI
def haCloseAAPL = ohlc4("AAPL");
def haOpenAAPL = (haOpenAAPL[1] + haCloseAAPL[1]) / 2;
def haTrendUpAAPL = if haCloseAAPL >= haOpenAAPL then 1 else 0;
def haTrendDnAAPL = if haCloseAAPL < haOpenAAPL then 1 else 0;

# NVIDIA  HEIKIN ASHI
def haCloseNVDA = ohlc4("NVDA");
def haOpenNVDA = (haOpenNVDA[1] + haCloseNVDA[1]) / 2;
def haTrendUpNVDA = if haCloseNVDA >= haOpenNVDA then 1 else 0;
def haTrendDnNVDA = if haCloseNVDA < haOpenNVDA then 1 else 0;


# MICROSOFT HEIKIN ASHI
def haCloseMSFT = ohlc4("MSFT");
def haOpenMSFT = (haOpenMSFT[1] + haCloseMSFT[1]) / 2;
def haTrendUpMSFT = if haCloseMSFT >= haOpenMSFT then 1 else 0;
def haTrendDnMSFT = if haCloseMSFT < haOpenMSFT then 1 else 0;


def haSignal =
if ((haTrendUpAAPL == 1 and haTrendUpAAPL[1] == 1) and
(haTrendUpNVDA == 1 and haTrendUpNVDA[1] == 1) and
(haTrendUpMSFT == 1 and haTrendUpMSFT[1] == 1)) then 1
else
if ((haTrendDnAAPL == 1 and haTrendDnAAPL[1] == 1) and
(haTrendDnNVDA == 1 and haTrendDnNVDA[1] == 1) and
(haTrendDnMSFT == 1 and haTrendDnMSFT[1] == 1))
then -1 else 0;

DefineGlobalColor("UpTrend", Color.GREEN);
DefineGlobalColor("DnTrend", Color.RED);
DefineGlobalColor("Transition", Color.DARK_ORANGE);


AssignPriceColor(if colorBars then
  if haSignal == 1 then GlobalColor("UpTrend")
  else if haSignal == -1 then GlobalColor("DnTrend")
  else GlobalColor("Transition")
  else color.current
);

If someone can help to achieve this will help me a lot. The idea is to see all three top tickers confluence in the same direction so that I can open a trade based on that.

Thanks for your help

@samer800 @chewie76 @rad14733

@MerryDay

check the below:

declare upper;

input colorBars = yes;
input symbol1 = "AAPL";
input symbol2 = "NVDA";
input symbol3 = "MSFT";

Script nz {
input src = close;
    def bool = if isNaN(src) then 0 else src;
    plot out = bool;
}
# APPLE HEIKIN ASHI
def haCloseAAPL = ohlc4(symbol1);
def haOpenAAPL = if !haOpenAAPL[1] then (high(symbol1) + low(symbol1)) / 2 else (haOpenAAPL[1] + haCloseAAPL[1]) / 2;
def haTrendUpAAPL = (haCloseAAPL > haOpenAAPL) and (haCloseAAPL[1] >= haOpenAAPL[1]);

# NVIDIA  HEIKIN ASHI
def haCloseNVDA = ohlc4(symbol2);
def haOpenNVDA = if !haOpenNVDA[1] then (high(symbol2) + low(symbol2)) / 2 else (haOpenNVDA[1] + haCloseNVDA[1]) / 2;
def haTrendUpNVDA = haCloseNVDA > haOpenNVDA and (haCloseNVDA[1] >= haOpenNVDA[1]);

# MICROSOFT HEIKIN ASHI
def haCloseMSFT = ohlc4(symbol3);
def haOpenMSFT = if !haOpenMSFT[1] then (high(symbol3) + low(symbol3)) / 2 else (haOpenMSFT[1] + haCloseMSFT[1]) / 2;
def haTrendUpMSFT = (haCloseMSFT > haOpenMSFT) and (haCloseMSFT[1] >= haOpenMSFT[1]);


def haSignal = nz(haTrendUpAAPL) + nz(haTrendUpNVDA) + nz(haTrendUpMSFT);

AssignPriceColor(if !colorBars then Color.CURRENT else
                 if haSignal == 3 then Color.GREEN else
                 if haSignal == 2 then Color.DARK_GREEN else
                 if haSignal == 1 then Color.DARK_RED else
                 if haSignal == 0 then Color.RED else Color.GRAY);

#-- END of CODE



[quijanoj44]

check the below:

declare upper;

input colorBars = yes;
input symbol1 = "AAPL";
input symbol2 = "NVDA";
input symbol3 = "MSFT";

Script nz {
input src = close;
    def bool = if isNaN(src) then 0 else src;
    plot out = bool;
}
# APPLE HEIKIN ASHI
def haCloseAAPL = ohlc4(symbol1);
def haOpenAAPL = if !haOpenAAPL[1] then (high(symbol1) + low(symbol1)) / 2 else (haOpenAAPL[1] + haCloseAAPL[1]) / 2;
def haTrendUpAAPL = (haCloseAAPL > haOpenAAPL) and (haCloseAAPL[1] >= haOpenAAPL[1]);

# NVIDIA  HEIKIN ASHI
def haCloseNVDA = ohlc4(symbol2);
def haOpenNVDA = if !haOpenNVDA[1] then (high(symbol2) + low(symbol2)) / 2 else (haOpenNVDA[1] + haCloseNVDA[1]) / 2;
def haTrendUpNVDA = haCloseNVDA > haOpenNVDA and (haCloseNVDA[1] >= haOpenNVDA[1]);

# MICROSOFT HEIKIN ASHI
def haCloseMSFT = ohlc4(symbol3);
def haOpenMSFT = if !haOpenMSFT[1] then (high(symbol3) + low(symbol3)) / 2 else (haOpenMSFT[1] + haCloseMSFT[1]) / 2;
def haTrendUpMSFT = (haCloseMSFT > haOpenMSFT) and (haCloseMSFT[1] >= haOpenMSFT[1]);


def haSignal = nz(haTrendUpAAPL) + nz(haTrendUpNVDA) + nz(haTrendUpMSFT);

AssignPriceColor(if !colorBars then Color.CURRENT else
                 if haSignal == 3 then Color.GREEN else
                 if haSignal == 2 then Color.DARK_GREEN else
                 if haSignal == 1 then Color.DARK_RED else
                 if haSignal == 0 then Color.RED else Color.GRAY);

#-- END of CODE

Hi Samer, not sure why everything is red candle when NVDA & MFT are up

Can you please check, thanks so much



[samer800]

Hi Samer, not sure why everything is red candle when NVDA & MFT are up

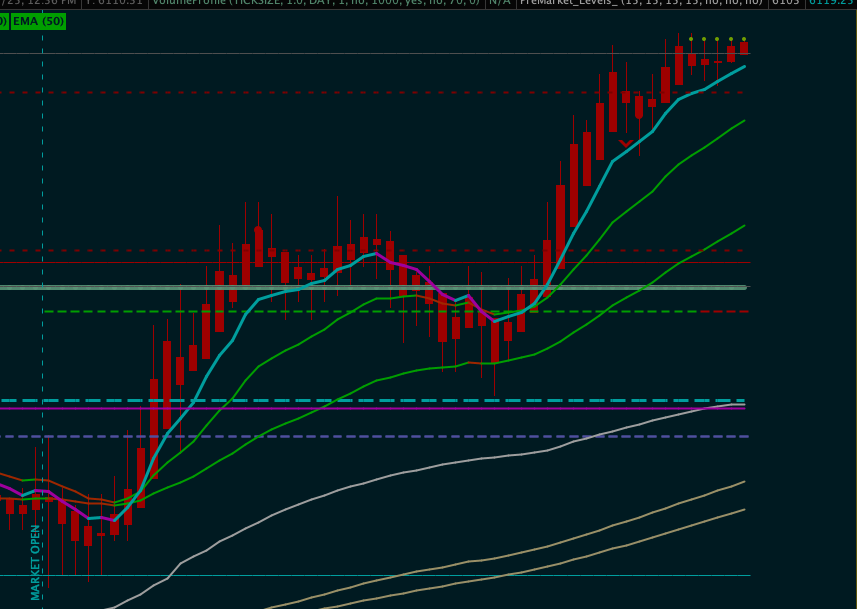

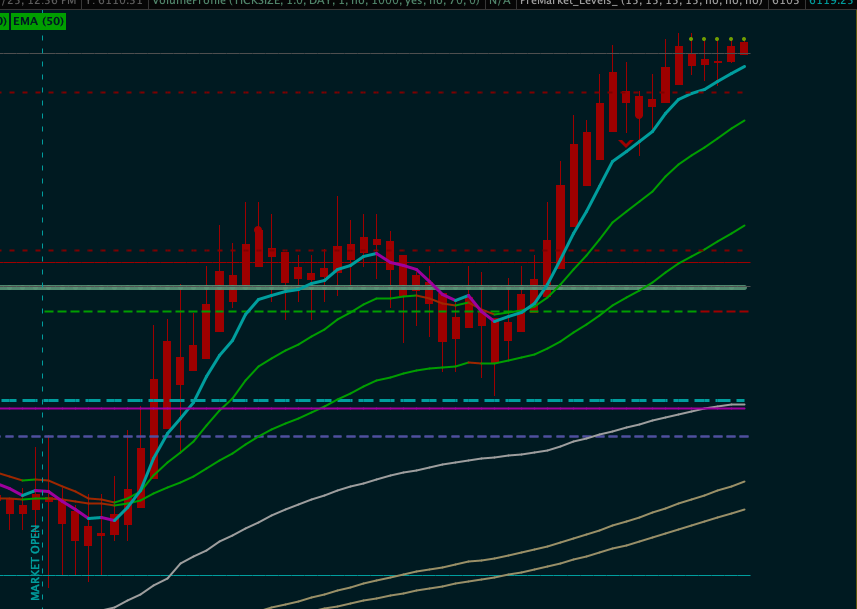

View attachment 23942

Can you please check, thanks so much

check the below:

declare upper;

input colorBars = yes;
input symbol1 = "AAPL";
input symbol2 = "NVDA";
input symbol3 = "MSFT";

Script nz {
input src = close;
    def bool = if isNaN(src) then 0 else src;
    plot out = bool;
}

# APPLE HEIKIN ASHI
def haCloseAAPL = ohlc4(symbol1);
def haOpenAAPL = CompoundValue(1, (haOpenAAPL[1] + haCloseAAPL[1]) / 2, (open(symbol1) + close(symbol1)) / 2);
def haTrendUpAAPL = (haCloseAAPL >= haOpenAAPL) and (haCloseAAPL[1] >= haOpenAAPL[1]);

# NVIDIA  HEIKIN ASHI
def haCloseNVDA = ohlc4(symbol2);
def haOpenNVDA = CompoundValue(1, (haOpenNVDA[1] + haCloseNVDA[1]) / 2, (open(symbol2) + close(symbol2)) / 2);
def haTrendUpNVDA = haCloseNVDA >= haOpenNVDA and (haCloseNVDA[1] >= haOpenNVDA[1]);

# MICROSOFT HEIKIN ASHI
def haCloseMSFT = ohlc4(symbol3);
def haOpenMSFT = CompoundValue(1, (haOpenMSFT[1] + haCloseMSFT[1]) / 2, (open(symbol3) + close(symbol3)) / 2);
def haTrendUpMSFT = (haCloseMSFT >= haOpenMSFT) and (haCloseMSFT[1] >= haOpenMSFT[1]);


def haSignal = nz(haTrendUpAAPL) + nz(haTrendUpNVDA) + nz(haTrendUpMSFT);

AssignPriceColor(if !colorBars then Color.CURRENT else
                 if haSignal == 3 then Color.GREEN else
                 if haSignal == 2 then Color.DARK_GREEN else
                 if haSignal == 1 then Color.DARK_RED else
                 if haSignal == 0 then Color.RED else Color.GRAY);

#-- END of CODE



[quijanoj44]

check the below:

declare upper;

input colorBars = yes;
input symbol1 = "AAPL";
input symbol2 = "NVDA";
input symbol3 = "MSFT";

Script nz {
input src = close;
    def bool = if isNaN(src) then 0 else src;
    plot out = bool;
}

# APPLE HEIKIN ASHI
def haCloseAAPL = ohlc4(symbol1);
def haOpenAAPL = CompoundValue(1, (haOpenAAPL[1] + haCloseAAPL[1]) / 2, (open(symbol1) + close(symbol1)) / 2);
def haTrendUpAAPL = (haCloseAAPL >= haOpenAAPL) and (haCloseAAPL[1] >= haOpenAAPL[1]);

# NVIDIA  HEIKIN ASHI
def haCloseNVDA = ohlc4(symbol2);
def haOpenNVDA = CompoundValue(1, (haOpenNVDA[1] + haCloseNVDA[1]) / 2, (open(symbol2) + close(symbol2)) / 2);
def haTrendUpNVDA = haCloseNVDA >= haOpenNVDA and (haCloseNVDA[1] >= haOpenNVDA[1]);

# MICROSOFT HEIKIN ASHI
def haCloseMSFT = ohlc4(symbol3);
def haOpenMSFT = CompoundValue(1, (haOpenMSFT[1] + haCloseMSFT[1]) / 2, (open(symbol3) + close(symbol3)) / 2);
def haTrendUpMSFT = (haCloseMSFT >= haOpenMSFT) and (haCloseMSFT[1] >= haOpenMSFT[1]);


def haSignal = nz(haTrendUpAAPL) + nz(haTrendUpNVDA) + nz(haTrendUpMSFT);

AssignPriceColor(if !colorBars then Color.CURRENT else
                 if haSignal == 3 then Color.GREEN else
                 if haSignal == 2 then Color.DARK_GREEN else
                 if haSignal == 1 then Color.DARK_RED else
                 if haSignal == 0 then Color.RED else Color.GRAY);

#-- END of CODE

It's still not doing it, when I copied and pasted the new code, it is still giving only red candles, not sure why:

Tahnk you for keep helping.



[samer800]

It's still not doing it, when I copied and pasted the new code, it is still giving only red candles, not sure why:

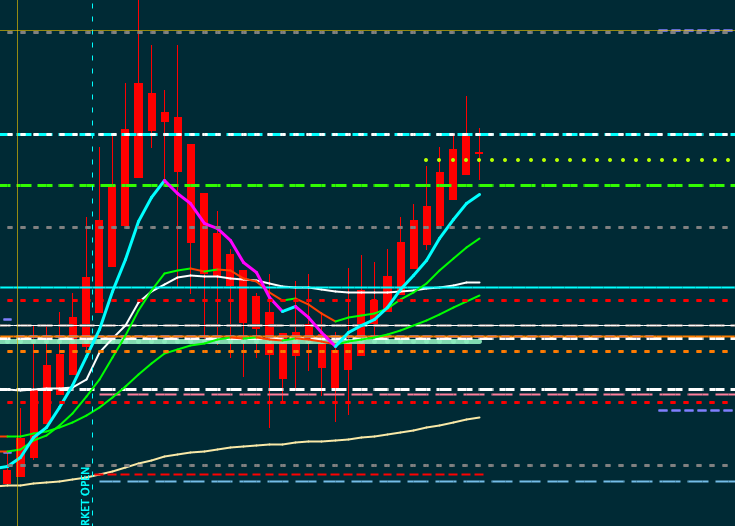

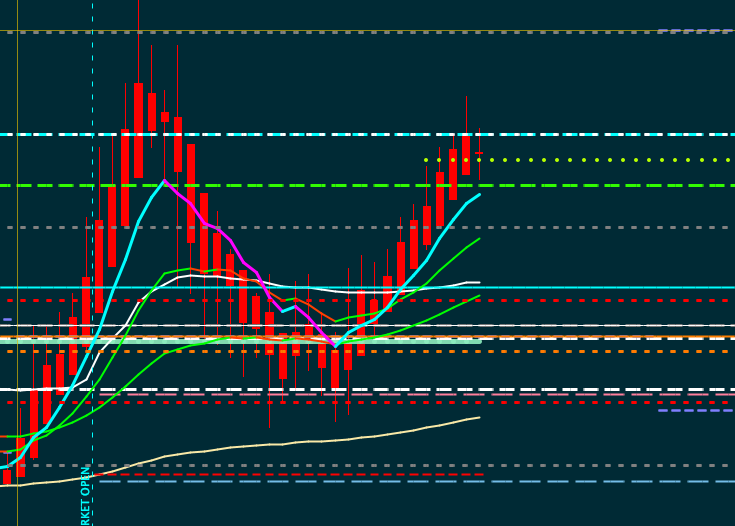

View attachment 23959

Tahnk you for keep helping.

you need to disable then extended hours from the chart setting.
