Ehlers Precision Trend For ThinkOrSwim

[BlackCurtain]

Hi, everyone, I've benefited greatly from many posts here, so wanted to share this that I created from the TASC article by John Ehlers. He calls it the Precision Trend Indicator.

John Ehlers introduces this method that uses two filters to remove unwanted "noise" from price data. These filters react very quickly to price changes, meaning the trend indicator they create closely follows the ups and downs of the market. When the indicator is above zero, it signals an uptrend, and when it's below zero, it indicates a downtrend. This makes it a helpful tool for spotting changes in market direction.

I have always been fascinated by Ehlers' work, especially the decycler and supersmoother. If anyone has ideas on how to use this indicator, please share. I'm not sure how useful it will be but it wasn't coded up in the TASC so I figured I'd take a try at it. [NOTE EDITED AS I MISPASTED THE FIRST VERSION!!!]

# TASC 2024.09 Precision Trend Analysis
# Converted to ThinkScript for thinkorswim
# Original by John F. Ehlers

declare lower;

input length01 = 250;
input length02 = 40;

def PI = 3.14159265359;

# High-pass filter calculations
def a1 = Exp(-1.414 * PI / length01);
def b1 = 2 * a1 * Cos(1.414 * PI / length01);
def c2 = b1;
def c3 = -a1 * a1;
def c1 = (1.0 + c2 - c3) * 0.25;

rec HP1 = if BarNumber() >= 4 then
c1 * (close - 2 * close[1] + close[2]) + c2 * HP1[1] + c3 * HP1[2]
else
0;

def a2 = Exp(-1.414 * PI / length02);
def b2 = 2 * a2 * Cos(1.414 * PI / length02);
def c22 = b2;
def c33 = -a2 * a2;
def c11 = (1.0 + c22 - c33) * 0.25;

rec HP2 = if BarNumber() >= 4 then
c11 * (close - 2 * close[1] + close[2]) + c22 * HP2[1] + c33 * HP2[2]
else
0;

def Trend = HP1 - HP2;
def ROC = (length02 / 6.28) * (Trend - Trend[1]);

plot TrendLine = Trend;
plot ROCLine = ROC;
plot ZeroLine = 0;

TrendLine.SetDefaultColor(GetColor(1));
TrendLine.SetLineWeight(2);
ROCLine.SetDefaultColor(GetColor(5));
ROCLine.SetLineWeight(2);
ZeroLine.SetDefaultColor(GetColor(0));

def Peak = if ROC crosses below 0 and Trend < 0 then ROC else Double.NaN;
def Valley = if ROC crosses above 0 and Trend > 0 then ROC else Double.NaN;

plot PeakMarker = Peak;
plot ValleyMarker = Valley;

PeakMarker.SetPaintingStrategy(PaintingStrategy.POINTS);
PeakMarker.SetLineWeight(3);
PeakMarker.SetDefaultColor(GetColor(1));
ValleyMarker.SetPaintingStrategy(PaintingStrategy.POINTS);
ValleyMarker.SetLineWeight(3);
ValleyMarker.SetDefaultColor(GetColor(2));

# Dynamic coloring
TrendLine.AssignValueColor(if Trend > 0 then Color.GREEN else Color.RED);
#AssignPriceColor(if Trend > 0 then Color.GREEN else Color.RED);



[Drum Rocker]

Hi, everyone, I've benefited greatly from many posts here, so wanted to share this that I created from the TASC article by John Ehlers. He calls it the Precision Trend Indicator.

John Ehlers introduces this method that uses two filters to remove unwanted "noise" from price data. These filters react very quickly to price changes, meaning the trend indicator they create closely follows the ups and downs of the market. When the indicator is above zero, it signals an uptrend, and when it's below zero, it indicates a downtrend. This makes it a helpful tool for spotting changes in market direction.

I have always been fascinated by Ehlers' work, especially the decycler and supersmoother. If anyone has ideas on how to use this indicator, please share. I'm not sure how useful it will be but it wasn't coded up in the TASC so I figured I'd take a try at it. [NOTE EDITED AS I MISPASTED THE FIRST VERSION!!!]

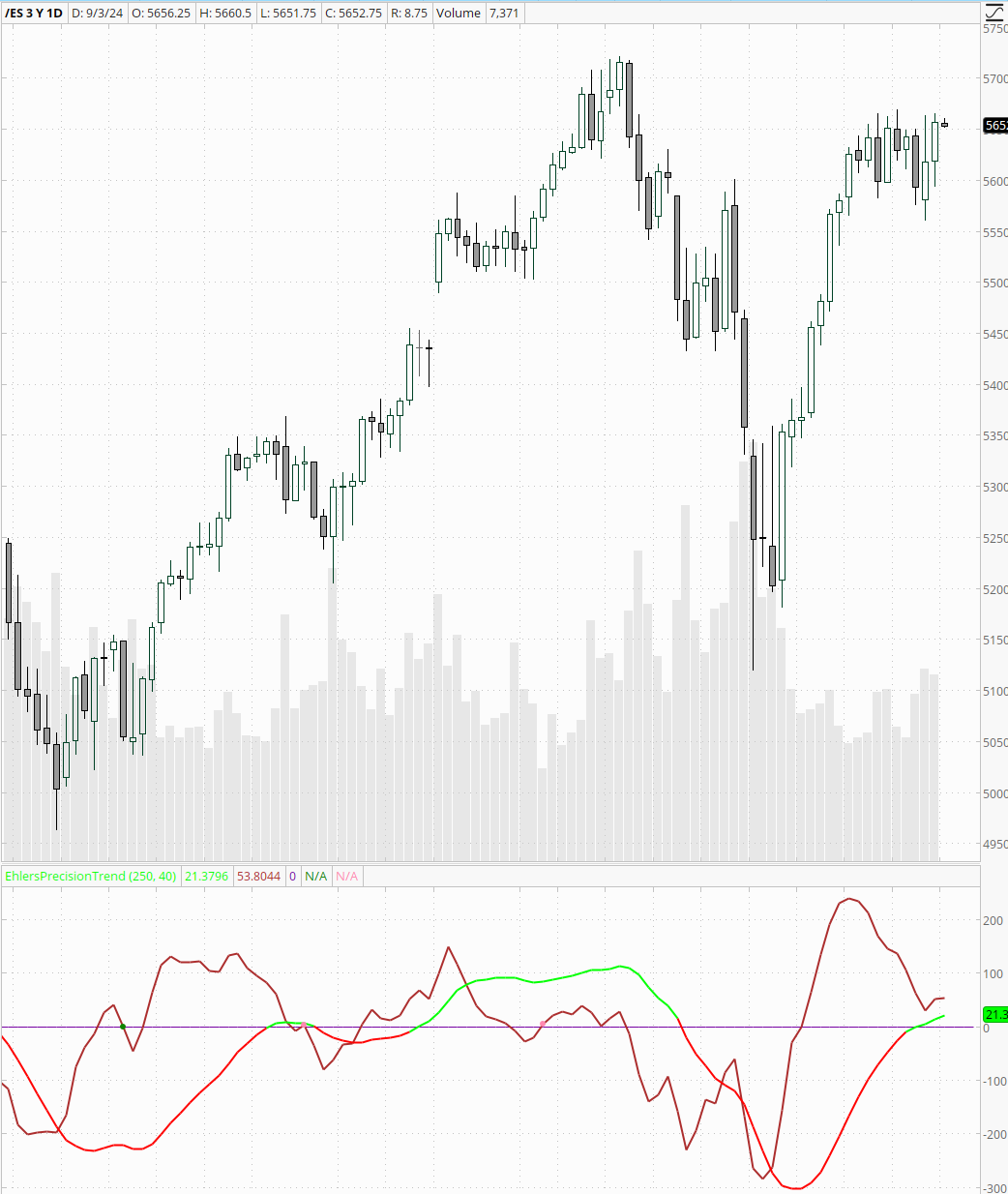

View attachment 22799

# TASC 2024.09 Precision Trend Analysis
# Converted to ThinkScript for thinkorswim
# Original by John F. Ehlers

declare lower;

input length01 = 250;
input length02 = 40;

def PI = 3.14159265359;

# High-pass filter calculations
def a1 = Exp(-1.414 * PI / length01);
def b1 = 2 * a1 * Cos(1.414 * PI / length01);
def c2 = b1;
def c3 = -a1 * a1;
def c1 = (1.0 + c2 - c3) * 0.25;

rec HP1 = if BarNumber() >= 4 then
c1 * (close - 2 * close[1] + close[2]) + c2 * HP1[1] + c3 * HP1[2]
else
0;

def a2 = Exp(-1.414 * PI / length02);
def b2 = 2 * a2 * Cos(1.414 * PI / length02);
def c22 = b2;
def c33 = -a2 * a2;
def c11 = (1.0 + c22 - c33) * 0.25;

rec HP2 = if BarNumber() >= 4 then
c11 * (close - 2 * close[1] + close[2]) + c22 * HP2[1] + c33 * HP2[2]
else
0;

def Trend = HP1 - HP2;
def ROC = (length02 / 6.28) * (Trend - Trend[1]);

plot TrendLine = Trend;
plot ROCLine = ROC;
plot ZeroLine = 0;

TrendLine.SetDefaultColor(GetColor(1));
TrendLine.SetLineWeight(2);
ROCLine.SetDefaultColor(GetColor(5));
ROCLine.SetLineWeight(2);
ZeroLine.SetDefaultColor(GetColor(0));

def Peak = if ROC crosses below 0 and Trend < 0 then ROC else Double.NaN;
def Valley = if ROC crosses above 0 and Trend > 0 then ROC else Double.NaN;

plot PeakMarker = Peak;
plot ValleyMarker = Valley;

PeakMarker.SetPaintingStrategy(PaintingStrategy.POINTS);
PeakMarker.SetLineWeight(3);
PeakMarker.SetDefaultColor(GetColor(1));
ValleyMarker.SetPaintingStrategy(PaintingStrategy.POINTS);
ValleyMarker.SetLineWeight(3);
ValleyMarker.SetDefaultColor(GetColor(2));

# Dynamic coloring
TrendLine.AssignValueColor(if Trend > 0 then Color.GREEN else Color.RED);
#AssignPriceColor(if Trend > 0 then Color.GREEN else Color.RED);

Thanks @BlackCurtain This looks interesting but I am not sure how to interpret the two lines in the indicator. I assume when the faster moving line is above zero the trend is bullish? Not sure how to read the slower moving line. Hopefully others can chime in.



[BlackCurtain]

From the article in the September 2024 issue of TASC magazine, John Ehlers says that you should be long when the trend indicator is above the zero line, and short when the trend indicator is below the zero line.

Better timing can be achieved by adding the ROC indicator as it crosses the zero line; since that is when the trend indicator will be switching, although there are of course false whipsaw signals.

But I think his point is that WHEN the ROC line crosses above/below zero, that is ALWAYS at a turning point, but sometimes it signals a false turning point, too. Would welcome anyone else's interpretation, if you have seen the article!



[apdusp]

I was going to ask someone to convert from the original pine script ( https://www.tradingview.com/script/XxSVTg0v-TASC-2024-09-Precision-Trend-Analysis/ ) and I just saw your thread and that is great. It gave me the idea to use a tool ( github copilot ) to also make the convers ion, , which I have used for similar use, and in this case with some minor corrections.
I do prefer to use different lengths (shorter) but of course each one has a different preference.
================================================

# TASC Issue: September 2024
# Article: Precision Trend Analysis.
# A New Way To Pinpoint Trend.
# Article By: John F. Ehlers
# Language: ThinkScript for ThinkOrSwim
# https://usethinkscript.com/threads/ehlers-precision-trend-for-thinkorswim.19567/
# with minor corrections, converted from pine script by github copilot

declare lower;

# --- Inputs ---
input length01 = 250;
input length02 = 40;

# --- Functions ---
script HighPass {
input Price = close;
input Period = 250;
def a1 = Exp(-1.414 * Double.Pi / Period);
def b1 = 2 * a1 * Cos(1.414 * Double.Pi / Period);
def c2 = b1;
def c3 = -a1 * a1;
def c1 = (1 + c2 - c3) / 4;
def hp = if (BarNumber() >= 4) then
c1 * (Price - 2 * Price[1] + Price[2]) +
c2 * hp[1] + c3 * hp[2]
else 0;
plot HighPass = hp;
}

# --- Calculations ---
def HP1 = HighPass(Price = close, Period = length01);
def HP2 = HighPass(Price = close, Period = length02);
def Trend = HP1 - HP2;
def ROC = (length02 / 6.28) * (Trend - Trend[1]);

def upROC = ROC crosses below 0 and Trend < 0;
def dwROC = ROC crosses above 0 and Trend > 0;

# --- Visuals ---
def up = Trend > 0;
plot TrendIndicator = Trend;
TrendIndicator.AssignValueColor(if up then Color.GREEN else Color.RED);
TrendIndicator.SetLineWeight(2);

plot ROCPlot = ROC;
ROCPlot.SetDefaultColor(Color.BLUE);
ROCPlot.SetPaintingStrategy(PaintingStrategy.HISTOGRAM);
ROCPlot.SetLineWeight(2);

plot ZeroLine = 0;
ZeroLine.SetDefaultColor(Color.GRAY);

AddChartBubble(upROC, ROC, "Peak", Color.RED, yes);
AddChartBubble(dwROC, ROC, "Valley", Color.GREEN, no);

AssignPriceColor(if Trend > 0 then Color.GREEN else Color.RED);



[ckidd63]

Hoping to convert this tradeview indicator for think or swim. It generates a buy signal when the indicator crosses over the zero line. Also, is it possible to create a scan if the formula is not too busy. Thanks.

// TASC Issue: September 2024
// Article: Precision Trend Analysis.
// A New Way To Pinpoint Trend.
// Article By: John F. Ehlers



[useThinkScript]

Hoping to convert this tradeview indicator for think or swim. It generates a buy signal when the indicator crosses over the zero line. Also, is it possible to create a scan if the formula is not too busy. Thanks.

// TASC Issue: September 2024
// Article: Precision Trend Analysis.
// A New Way To Pinpoint Trend.
// Article By: John F. Ehlers

https://usethinkscript.com/threads/ehlers-precision-trend-for-thinkorswim.19556/
