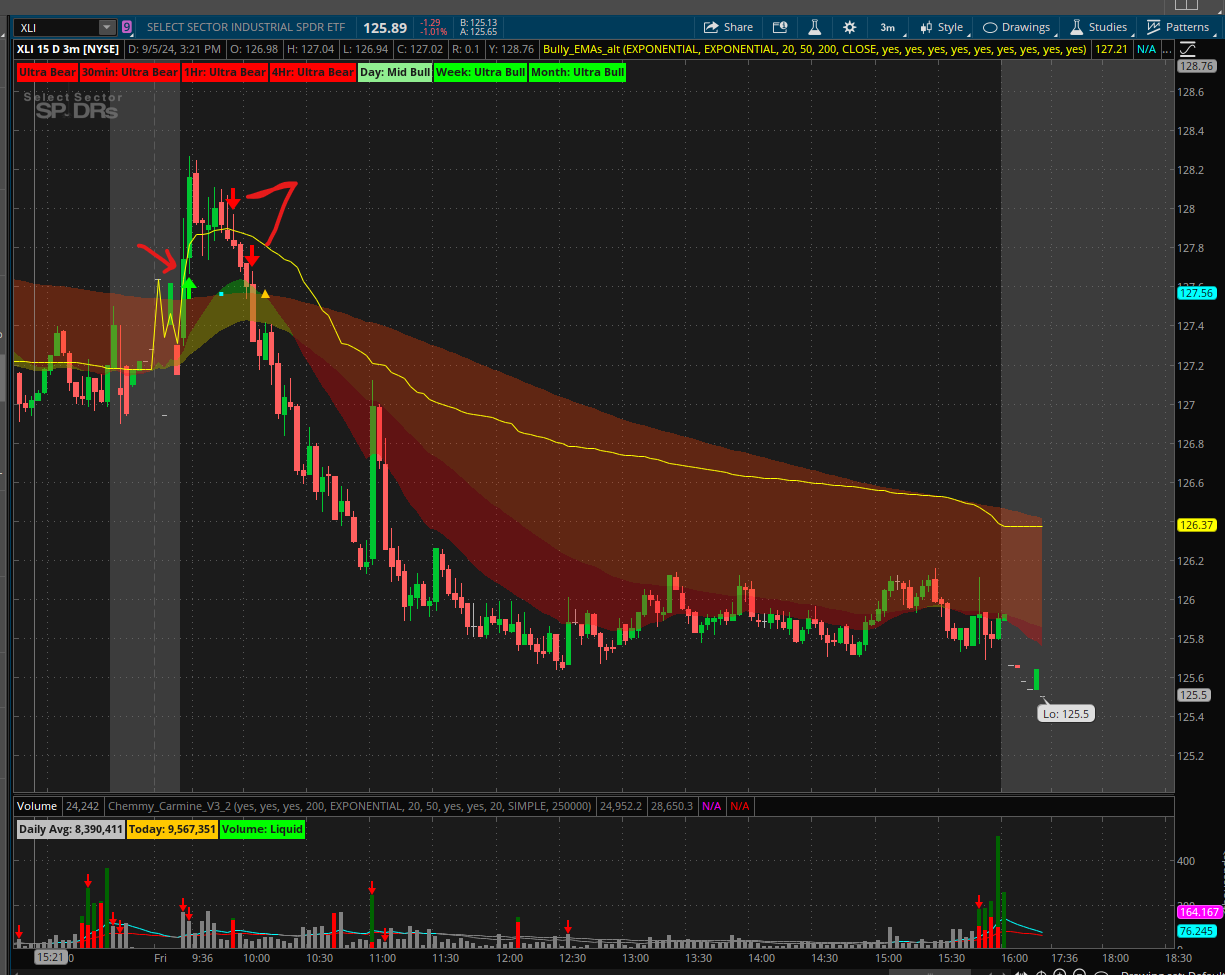

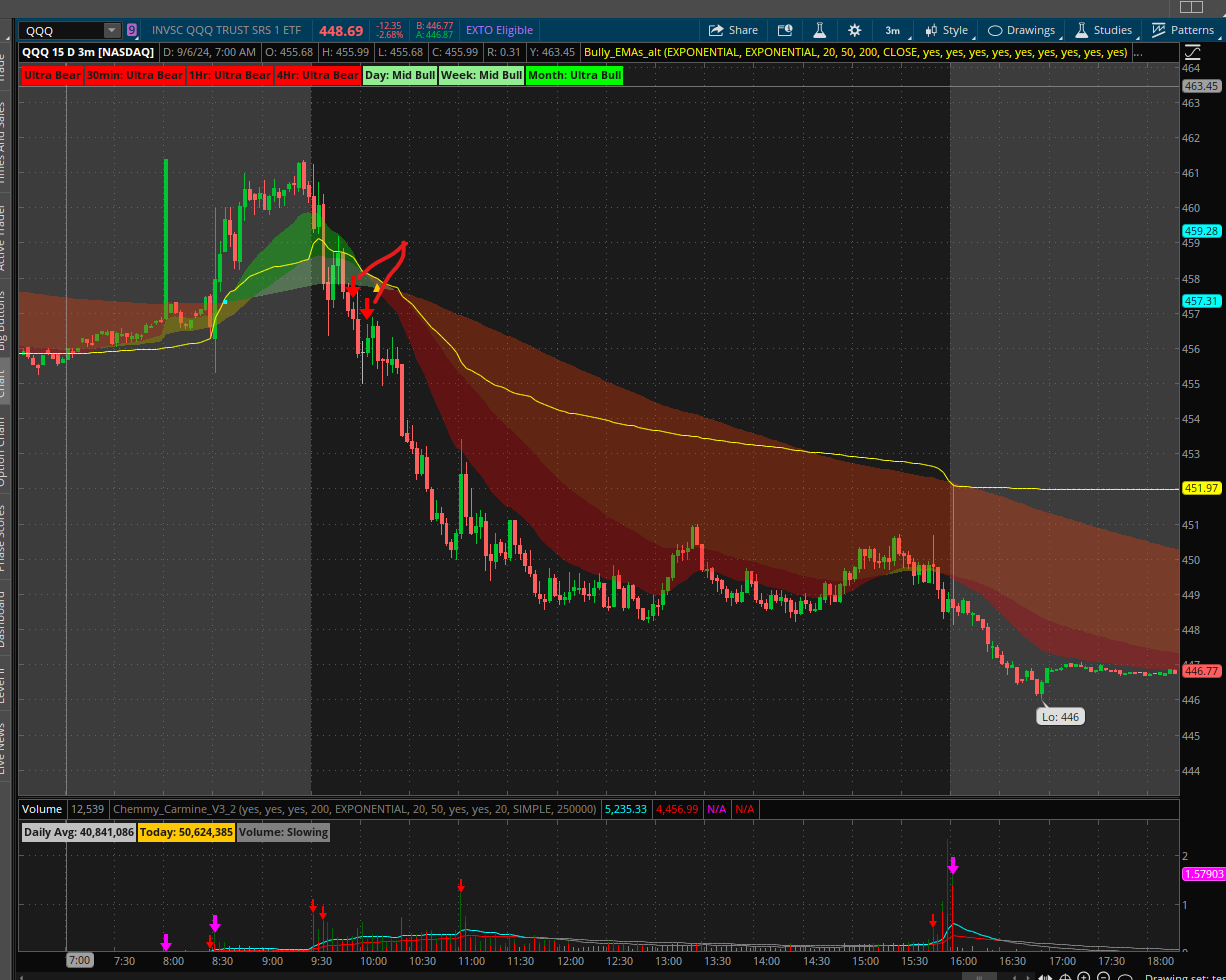

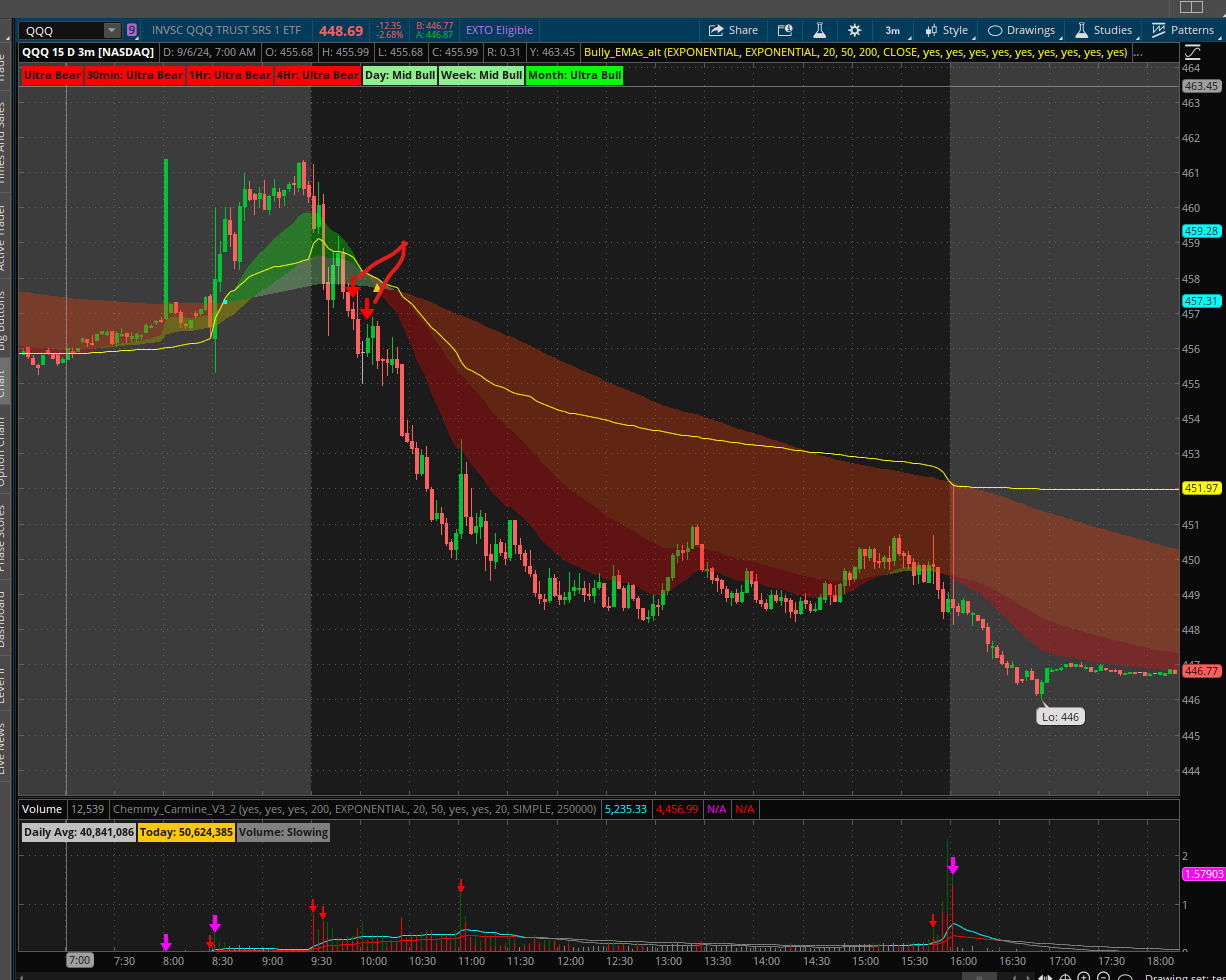

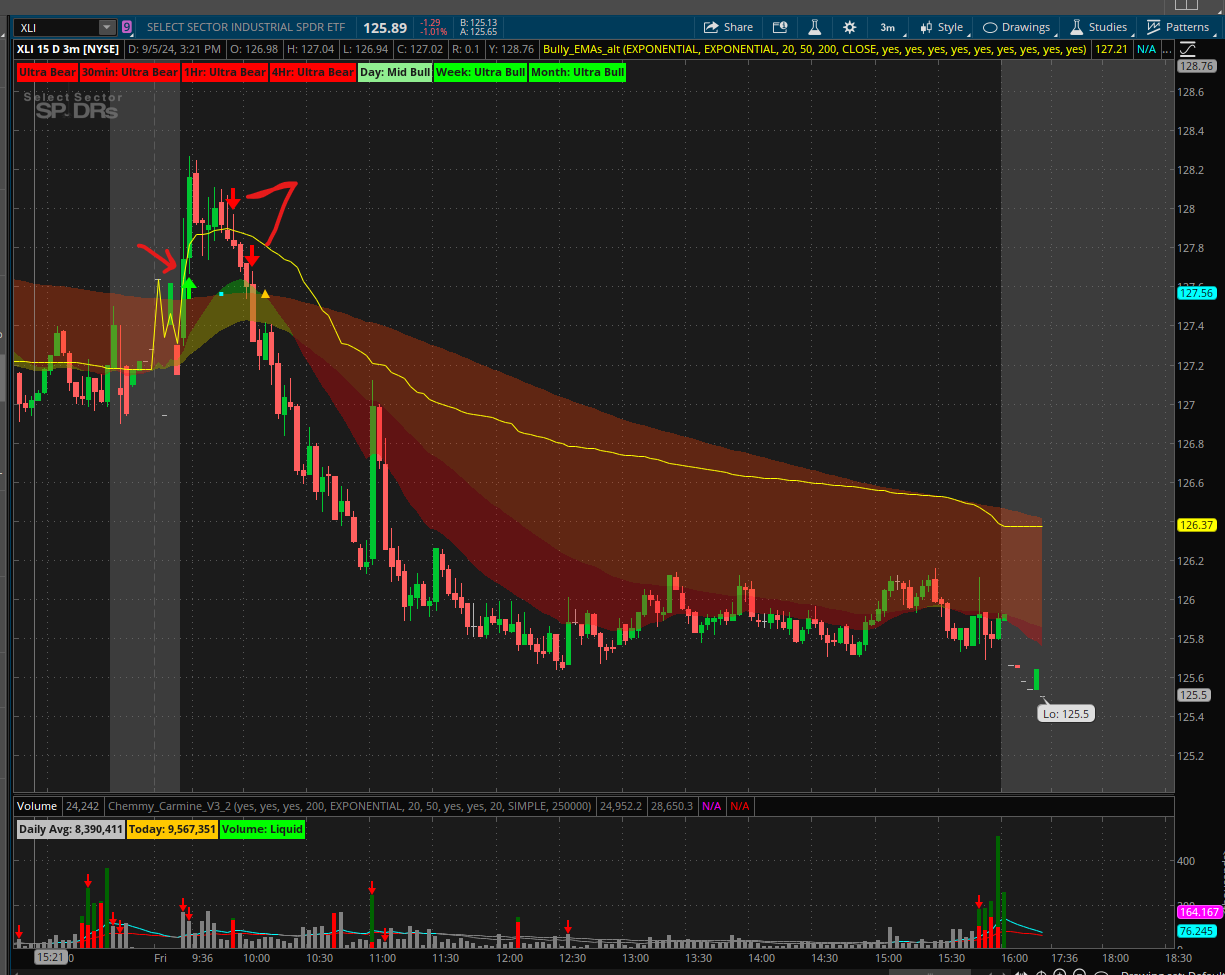

Hi all, I am trying to start a new indicator, and one aspect of it requires taking N number of the SPDR sectors and looking at whether they all flip green or red for the day. However, when I finished this step I noticed that it doesn't seem to show any of the green-flipped results on different stocks, but those results do appear when looking at the first symbol in the code, XLI. I've attached an example of what I mean here, where XLI shows a green arrow off open that does not appear for QQQ -- does anybody know what is going on with this?
View attachment 22854View attachment 22853
Code:
# Input ETF symbols
input etf1 = "XLE";
input etf2 = "XLV";
input etf3 = "XLY";
input etf4 = "XLU";
input etf5 = "XLI";
# Number of ETFs that need to be green/red to trigger a signal
input tolerance = 4;
input agg = aggregationperiod.day;
# Script to check if a symbol is green for the day
script isGreenDay {
input symbol = "";
input aggy = aggregationperiod.day;
def isGreen = close(symbol = symbol) > open(symbol = symbol, period=aggy);
plot result = isGreen;
}
# Script to check if a symbol is red for the day
script isRedDay {
input symbol = "";
input aggy = aggregationperiod.day;
def isRed = close(symbol = symbol) < open(symbol = symbol, period=aggy);
plot result = isRed;
}
# Count green and red ETFs
def greenCount =
isGreenDay(etf1, agg).result +
isGreenDay(etf2, agg).result +
isGreenDay(etf3, agg).result +
isGreenDay(etf4, agg).result +
isGreenDay(etf5, agg).result;
def redCount =
isRedDay(etf1, agg).result +
isRedDay(etf2, agg).result +
isRedDay(etf3, agg).result +
isRedDay(etf4, agg).result +
isRedDay(etf5, agg).result;
# Plot arrows based on the count
def up = greenCount >= tolerance;
def dn = redCount >= tolerance;
plot UpArrow = up and !up[1];
plot DownArrow = dn and !dn[1];
UpArrow.SetPaintingStrategy(PaintingStrategy.boolean_ARROW_UP);
UpArrow.SetDefaultColor(Color.GREEN);
UpArrow.SetLineWeight(3);
DownArrow.SetPaintingStrategy(PaintingStrategy.boolean_ARROW_DOWN);
DownArrow.SetDefaultColor(Color.RED);
DownArrow.SetLineWeight(3);
sometimes issues happen when defining 2 prices, with different aggregation times, in a formula.
like this in the script, which has chart time and day time,
. input aggy = aggregationperiod.day;
. def isGreen = close(symbol = symbol) > open(symbol = symbol, period=aggy);
it is better to define the different agg value (with openz), then reference the variable in the formula.
. def openz = open(symbol = symbol, period=aggy);
. def isGreen = close(symbol = symbol) > openz;
------------------------
with extended hours on, the first bar of day will not show any arrows.
during after hours , up is equal to NAN, so this plot is never true on the first bar of day,
. plot UpArrow = up and !up[1];
updated formula that works on 1st bar of day
. plot UpArrow = if isnan(up[1]) and up then 1 else up and !up[1];
this formula is true for just the first in a series of true values of up.
-----------------------
removed the scripts and 2nd aggregation.
on the first bar of the day, this reads the open and keeps it, for comparing.
changed the green/red bar counting.
each of the 5 stocks is either +1, -1, or 0. then the 5 values are added up, and compared to tolerance.
can show horizontal lines from the day open.
they only show up if one of the five stocks is loaded on the chart.
Code:
#sector_grnred
#https://usethinkscript.com/threads/code-referencing-other-stocks-not-working-properly.19605/
#Code referencing other stocks not working properly
def na = double.nan;
def bn = barnumber();
# Input ETF symbols
input etf1 = "XLE";
input etf2 = "XLV";
input etf3 = "XLY";
input etf4 = "XLU";
input etf5 = "XLI";
def s1cls = close(etf1);
def s2cls = close(etf2);
def s3cls = close(etf3);
def s4cls = close(etf4);
def s5cls = close(etf5);
# Number of ETFs that need to be green/red to trigger a signal
input tolerance = 4;
input start = 0930;
input end = 1600;
def daytime = if secondsfromTime(start) >= 0 and secondstillTime(end) > 0 then 1 else 0;
def startbar = secondsfromTime(start) == 0;
def s1opn;
def s2opn;
def s3opn;
def s4opn;
def s5opn;
if !daytime then {
s1opn = na;
s2opn = na;
s3opn = na;
s4opn = na;
s5opn = na;
} else if startbar then {
s1opn = open(etf1);
s2opn = open(etf2);
s3opn = open(etf3);
s4opn = open(etf4);
s5opn = open(etf5);
} else {
s1opn = s1opn[1];
s2opn = s2opn[1];
s3opn = s3opn[1];
s4opn = s4opn[1];
s5opn = s5opn[1];
}
# count the green and red bars
def is1 = if s1cls > s1opn then 1 else if s1cls < s1opn then -1 else 0;
def is2 = if s2cls > s2opn then 1 else if s2cls < s2opn then -1 else 0;
def is3 = if s3cls > s3opn then 1 else if s3cls < s3opn then -1 else 0;
def is4 = if s4cls > s4opn then 1 else if s4cls < s4opn then -1 else 0;
def is5 = if s5cls > s5opn then 1 else if s5cls < s5opn then -1 else 0;
def cnt = is1 + is2 + is3 + is4 + is5;
# Plot arrows based on the count
def up = cnt >= tolerance;
def dn = cnt <= -tolerance;
plot UpArrow = if isnan(up[1]) and up then 1 else up and !up[1];
plot DownArrow = if isnan(dn[1]) and dn then 1 else dn and !dn[1];
UpArrow.SetPaintingStrategy(PaintingStrategy.boolean_ARROW_UP);
UpArrow.SetDefaultColor(Color.GREEN);
UpArrow.SetLineWeight(3);
DownArrow.SetPaintingStrategy(PaintingStrategy.boolean_ARROW_DOWN);
DownArrow.SetDefaultColor(Color.RED);
DownArrow.SetLineWeight(3);
input open_lines = no;
plot o1 = if open_lines and GetSymbol() == etf1 then s1opn else na;
plot o2 = if open_lines and GetSymbol() == etf2 then s2opn else na;
plot o3 = if open_lines and GetSymbol() == etf3 then s3opn else na;
plot o4 = if open_lines and GetSymbol() == etf4 then s4opn else na;
plot o5 = if open_lines and GetSymbol() == etf5 then s5opn else na;
o1.SetPaintingStrategy(PaintingStrategy.HORIZONTAL);
o2.SetPaintingStrategy(PaintingStrategy.HORIZONTAL);
o3.SetPaintingStrategy(PaintingStrategy.HORIZONTAL);
o4.SetPaintingStrategy(PaintingStrategy.HORIZONTAL);
o5.SetPaintingStrategy(PaintingStrategy.HORIZONTAL);
o1.SetDefaultColor(Color.gray);
o2.SetDefaultColor(Color.gray);
o3.SetDefaultColor(Color.gray);
o4.SetDefaultColor(Color.gray);
o5.SetDefaultColor(Color.gray);
#
