Stacked EMA Dashboard For ThinkOrSwim

[kaiso]

I've been trying to have three bars based on the different conditions in the script but I'm only get one bar. How can I edit the script to get separate bars based on the conditions?
This is the script:
declare lower;
def EMA5 = ExpAverage(close, 5);
def EMA13 = ExpAverage(close, 13);
def EMA20 = ExpAverage(close, 20);
def cond1 = (EMA5 > EMA13);
def cond2 = (EMA13 > EMA20);
def cond3 = (EMA5 < EMA13);
def cond4 = (EMA13 < EMA20);

plot dot = if IsNaN(close) then Double.NaN else 1;
dot.SetStyle(Curve.POINTS);
dot.SetLineWeight(5);
dot.AssignValueColor(if cond1 and cond2 then Color.GREEN
else if cond3 and cond4 then Color.RED
else color.YELLOW);

Thanks



[SleepyZ]

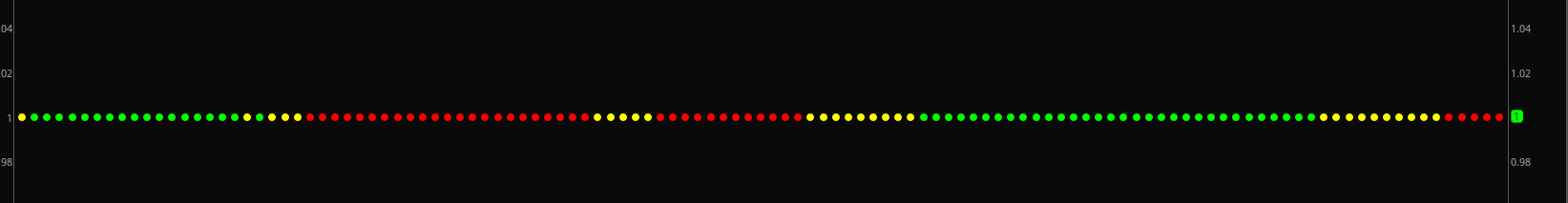

View attachment 21730
I've been trying to have three bars based on the different conditions in the script but I'm only get one bar. How can I edit the script to get separate bars based on the conditions?
This is the script:
declare lower;
def EMA5 = ExpAverage(close, 5);
def EMA13 = ExpAverage(close, 13);
def EMA20 = ExpAverage(close, 20);
def cond1 = (EMA5 > EMA13);
def cond2 = (EMA13 > EMA20);
def cond3 = (EMA5 < EMA13);
def cond4 = (EMA13 < EMA20);

plot dot = if IsNaN(close) then Double.NaN else 1;
dot.SetStyle(Curve.POINTS);
dot.SetLineWeight(5);
dot.AssignValueColor(if cond1 and cond2 then Color.GREEN
else if cond3 and cond4 then Color.RED
else color.YELLOW);

Thanks

See if this helps you.
It has 3 rows.
Row 1 is the comparison of the same 2 averages, cond1 and cond3
Row 2 is the comparison of the same 2 averages, cond2 and cond4
Row 3 is your line, which is the summary, It will be green or red if rows 1 and 2 match, otherwise yellow

declare lower;
def EMA5 = ExpAverage(close, 5);
def EMA13 = ExpAverage(close, 13);
def EMA20 = ExpAverage(close, 20);
def cond1 = (EMA5 > EMA13);
def cond2 = (EMA13 > EMA20);
def cond3 = (EMA5 < EMA13);
def cond4 = (EMA13 < EMA20);

plot dot = if IsNaN(close) then Double.NaN else 3;
dot.SetStyle(Curve.POINTS);
dot.SetLineWeight(5);
dot.AssignValueColor(if cond1 and cond2 then Color.GREEN
else if cond3 and cond4 then Color.RED
else color.YELLOW);
plot dot1 = if IsNaN(close) then Double.NaN else 1;
dot1.SetStyle(Curve.POINTS);
dot1.SetLineWeight(5);
dot1.assignvalueColor(if cond1 then color.green
else if cond3 then color.red
else color.yellow);
plot dot2 = if IsNaN(close) then Double.NaN else 2;
dot2.SetStyle(Curve.POINTS);
dot2.SetLineWeight(5);
dot2.assignvalueColor(if cond2 then color.green
else if cond4 then color.red
else color.yellow);
#



[kaiso]

See if this helps you.
It has 3 rows.
Row 1 is the comparison of the same 2 averages, cond1 and cond3
Row 2 is the comparison of the same 2 averages, cond2 and cond4
Row 3 is your line, which is the summary, It will be green or red if rows 1 and 2 match, otherwise yellow

Perfect. Thank you so so much
