Trend change indicator. I need help adjusting the plot.

[Haamu]

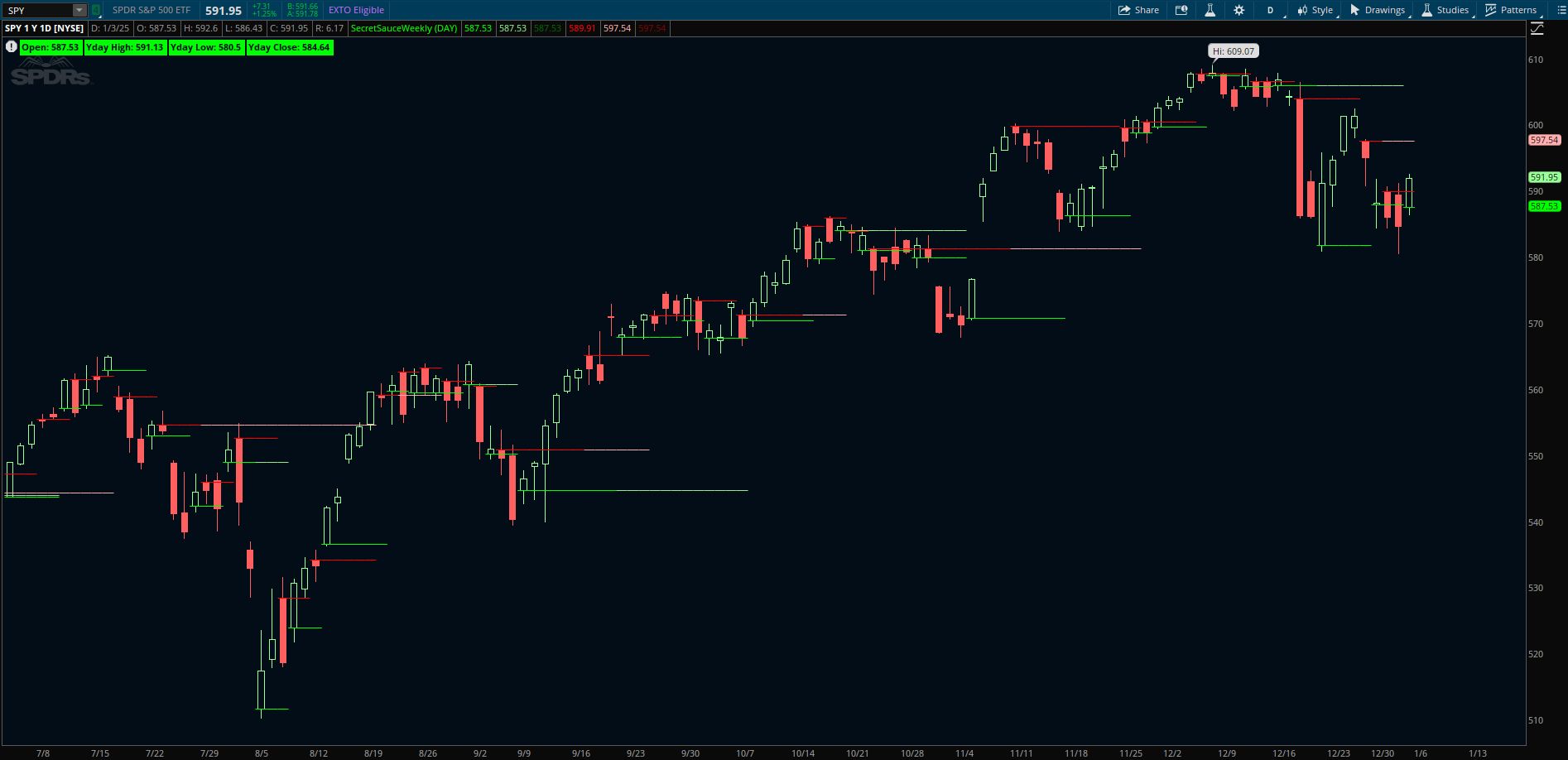

I have built an indicator when a candle changes trend. The plots work fairly well.
I am looking to have the lines extend all the way to the end of the chart and then have the lines stop or go dashed when a candle closes through (not on wicks) preferably a toggle if possible. Thanks in advance!

# Aggregation period for weekly levels
input aggPeriod = AggregationPeriod.WEEK;

# Define high, low, and close for the weekly timeframe
def weekOpen = open(period = aggPeriod);
def weekHigh = high(period = aggPeriod);
def weekLow = low(period = aggPeriod);
def weekClose = close(period = aggPeriod);

# Trend change conditions on the weekly timeframe
def weekDownToUp = weekClose > weekOpen and weekClose[1] < weekOpen[1];
def weekUpToDown = weekClose < weekOpen and weekClose[1] > weekOpen[1];

# Persistent Down-to-Up levels (extend until invalidated on the weekly timeframe)
rec weekDownToUpLevel1 =
if weekDownToUp then weekOpen
else if weekClose[1] <= weekDownToUpLevel1[1] then weekDownToUpLevel1[1]
else weekDownToUpLevel1[1];

rec weekDownToUpLevel2 =
if weekDownToUp and weekClose[1] <= weekDownToUpLevel1 then weekOpen
else if weekClose[1] <= weekDownToUpLevel2[1] then weekDownToUpLevel2[1]
else weekDownToUpLevel2[1];

rec weekDownToUpLevel3 =
if weekDownToUp and weekClose[1] <= weekDownToUpLevel2 then weekOpen
else if weekClose[1] <= weekDownToUpLevel3[1] then weekDownToUpLevel3[1]
else weekDownToUpLevel3[1];

# Persistent Up-to-Down levels (extend until invalidated on the weekly timeframe)
rec weekUpToDownLevel1 =
if weekUpToDown then weekOpen
else if weekClose[1] >= weekUpToDownLevel1[1] then weekUpToDownLevel1[1]
else weekUpToDownLevel1[1];

rec weekUpToDownLevel2 =
if weekUpToDown and weekClose[1] >= weekUpToDownLevel1 then weekOpen
else if weekClose[1] >= weekUpToDownLevel2[1] then weekUpToDownLevel2[1]
else weekUpToDownLevel2[1];

rec weekUpToDownLevel3 =
if weekUpToDown and weekClose[1] >= weekUpToDownLevel2 then weekOpen
else if weekClose[1] >= weekUpToDownLevel3[1] then weekUpToDownLevel3[1]
else weekUpToDownLevel3[1];

# Plot Down-to-Up levels
plot weekDownToUpPlot1 = weekDownToUpLevel1;
weekDownToUpPlot1.SetPaintingStrategy(PaintingStrategy.HORIZONTAL);
weekDownToUpPlot1.SetDefaultColor(Color.GREEN);

plot weekDownToUpPlot2 = weekDownToUpLevel2;
weekDownToUpPlot2.SetPaintingStrategy(PaintingStrategy.HORIZONTAL);
weekDownToUpPlot2.SetDefaultColor(Color.LIGHT_GREEN);

plot weekDownToUpPlot3 = weekDownToUpLevel3;
weekDownToUpPlot3.SetPaintingStrategy(PaintingStrategy.HORIZONTAL);
weekDownToUpPlot3.SetDefaultColor(Color.DARK_GREEN);

# Plot Up-to-Down levels
plot weekUpToDownPlot1 = weekUpToDownLevel1;
weekUpToDownPlot1.SetPaintingStrategy(PaintingStrategy.HORIZONTAL);
weekUpToDownPlot1.SetDefaultColor(Color.RED);

plot weekUpToDownPlot2 = weekUpToDownLevel2;
weekUpToDownPlot2.SetPaintingStrategy(PaintingStrategy.HORIZONTAL);
weekUpToDownPlot2.SetDefaultColor(Color.PINK);

plot weekUpToDownPlot3 = weekUpToDownLevel3;
weekUpToDownPlot3.SetPaintingStrategy(PaintingStrategy.HORIZONTAL);
weekUpToDownPlot3.SetDefaultColor(Color.DARK_RED);



[halcyonguy]

I have built an indicator when a candle changes trend. The plots work fairly well.
I am looking to have the lines extend all the way to the end of the chart and then have the lines stop or go dashed when a candle closes through (not on wicks) preferably a toggle if possible. Thanks in advance!

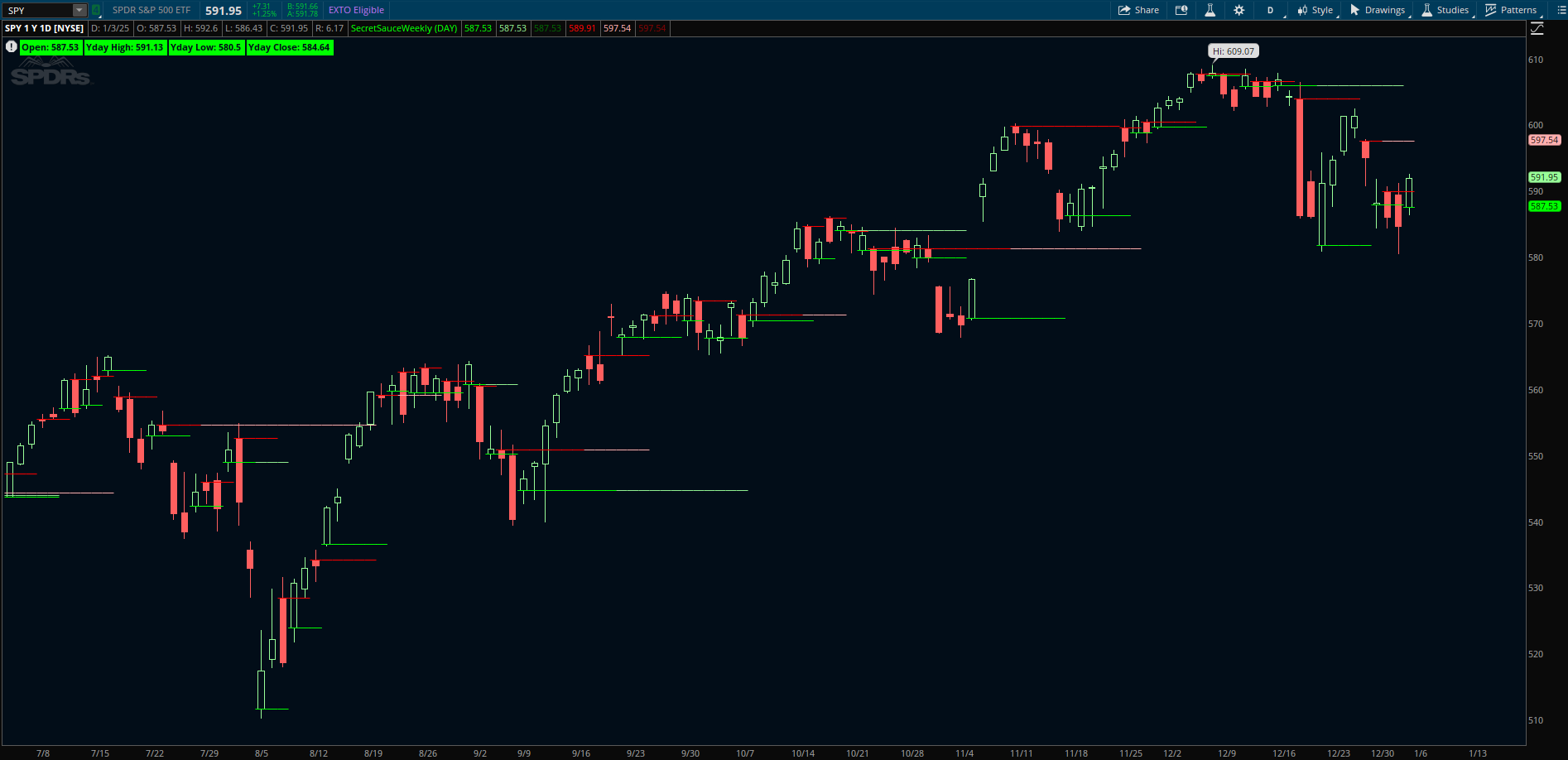

View attachment 23702



# Aggregation period for weekly levels
input aggPeriod = AggregationPeriod.WEEK;

# Define high, low, and close for the weekly timeframe
def weekOpen = open(period = aggPeriod);
def weekHigh = high(period = aggPeriod);
def weekLow = low(period = aggPeriod);
def weekClose = close(period = aggPeriod);

# Trend change conditions on the weekly timeframe
def weekDownToUp = weekClose > weekOpen and weekClose[1] < weekOpen[1];
def weekUpToDown = weekClose < weekOpen and weekClose[1] > weekOpen[1];

# Persistent Down-to-Up levels (extend until invalidated on the weekly timeframe)
rec weekDownToUpLevel1 =
if weekDownToUp then weekOpen
else if weekClose[1] <= weekDownToUpLevel1[1] then weekDownToUpLevel1[1]
else weekDownToUpLevel1[1];

rec weekDownToUpLevel2 =
if weekDownToUp and weekClose[1] <= weekDownToUpLevel1 then weekOpen
else if weekClose[1] <= weekDownToUpLevel2[1] then weekDownToUpLevel2[1]
else weekDownToUpLevel2[1];

rec weekDownToUpLevel3 =
if weekDownToUp and weekClose[1] <= weekDownToUpLevel2 then weekOpen
else if weekClose[1] <= weekDownToUpLevel3[1] then weekDownToUpLevel3[1]
else weekDownToUpLevel3[1];

# Persistent Up-to-Down levels (extend until invalidated on the weekly timeframe)
rec weekUpToDownLevel1 =
if weekUpToDown then weekOpen
else if weekClose[1] >= weekUpToDownLevel1[1] then weekUpToDownLevel1[1]
else weekUpToDownLevel1[1];

rec weekUpToDownLevel2 =
if weekUpToDown and weekClose[1] >= weekUpToDownLevel1 then weekOpen
else if weekClose[1] >= weekUpToDownLevel2[1] then weekUpToDownLevel2[1]
else weekUpToDownLevel2[1];

rec weekUpToDownLevel3 =
if weekUpToDown and weekClose[1] >= weekUpToDownLevel2 then weekOpen
else if weekClose[1] >= weekUpToDownLevel3[1] then weekUpToDownLevel3[1]
else weekUpToDownLevel3[1];

# Plot Down-to-Up levels
plot weekDownToUpPlot1 = weekDownToUpLevel1;
weekDownToUpPlot1.SetPaintingStrategy(PaintingStrategy.HORIZONTAL);
weekDownToUpPlot1.SetDefaultColor(Color.GREEN);

plot weekDownToUpPlot2 = weekDownToUpLevel2;
weekDownToUpPlot2.SetPaintingStrategy(PaintingStrategy.HORIZONTAL);
weekDownToUpPlot2.SetDefaultColor(Color.LIGHT_GREEN);

plot weekDownToUpPlot3 = weekDownToUpLevel3;
weekDownToUpPlot3.SetPaintingStrategy(PaintingStrategy.HORIZONTAL);
weekDownToUpPlot3.SetDefaultColor(Color.DARK_GREEN);

# Plot Up-to-Down levels
plot weekUpToDownPlot1 = weekUpToDownLevel1;
weekUpToDownPlot1.SetPaintingStrategy(PaintingStrategy.HORIZONTAL);
weekUpToDownPlot1.SetDefaultColor(Color.RED);

plot weekUpToDownPlot2 = weekUpToDownLevel2;
weekUpToDownPlot2.SetPaintingStrategy(PaintingStrategy.HORIZONTAL);
weekUpToDownPlot2.SetDefaultColor(Color.PINK);

plot weekUpToDownPlot3 = weekUpToDownLevel3;
weekUpToDownPlot3.SetPaintingStrategy(PaintingStrategy.HORIZONTAL);
weekUpToDownPlot3.SetDefaultColor(Color.DARK_RED);

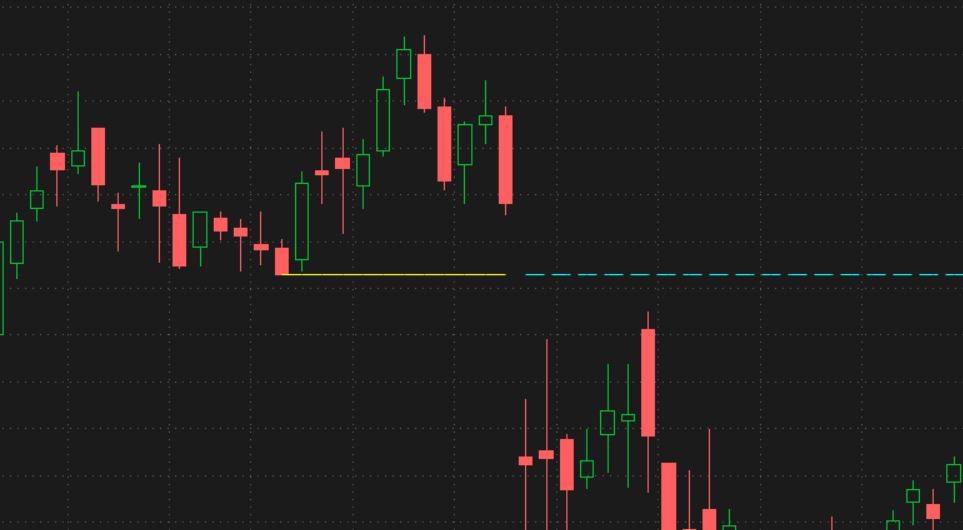

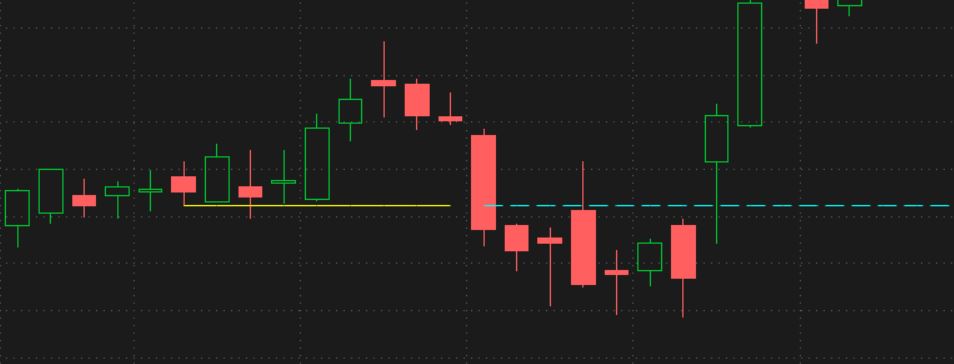

here is one way to draw a line that changes to a dash, when it crosses a bar body.
it will also change to a dash if it passes through a gap in bars.
it starts drawing a line at some barnumber. change it so it is near a lowest low.
if it crosses the next bar, then you won't see any solid line, it will change to dash right away.

i didn't do anything with your study. if you want multiple lines to exist on a bar, you will need a plot formula for each line and all the supporting formulas. so if you want 10 lines, you will need 10 copies of this study.

# bar_cross_line_dash

#https://usethinkscript.com/threads/trend-change-indicator-i-need-help-adjusting-the-plot.20287/

def na = double.nan;
def bn = barnumber();

# define start of a horz line
#input line_start_bn = 104;
input line_start_bn = 116;
input price = low;

def bodytop = max(open,close);
def bodybot = min(open,close);

def line1 = if bn == 1 then na
 # start defining a line
 else if bn == line_start_bn then price
 else if isnan(close) then na
 # chk for bar crossing line, chg to neg #
 else if bodytop > line1[1] and bodybot < line1[1] and line1[1] > 0 then -line1[1]
# test if line goes thru a gap in bars
 else if (bodybot[1] > line1[1] and bodytop < line1[1]) or (bodytop[1] < line1[1] and bodybot > line1[1]) then -line1[1]
 else line1[1];

# plot solid line from a bar
plot z1 = if line1 > 0 then line1 else na;
z1.SetDefaultColor(Color.yellow);
#z1.setlineweight(1);
z1.hidebubble();

# plot a dash line after crossing a bar
plot z2 = if line1 < 0 then -line1 else na;
z2.SetStyle(Curve.MEDIUM_DASH);
z2.SetDefaultColor(Color.cyan);
z2.hidebubble();

addchartbubble(0, low,
 (bodybot[1] > line1[1] and bodytop < line1[1]) + " BT\n" +
 (bodytop[1] < line1[1] and bodybot > line1[1]) + " TB"
, color.yellow, no);
#
