Moving Averages Converge / Diverge Label

[shellyonthepelli]

Looking for a simple green label when the WMA 8 and 16 are converging and maybe white when they are not on and it work on multiple time frames with the same study? i'm trying to set it up to work on 1 min, 2 min, 3 min, 4, min, 5 min, 6 min, 7 min, 8 min, 9min, 10 min, 15 min, 20 min, 30 min, 1h, 90 min, 2 h



[halcyonguy]

Looking for a simple green label when the WMA 8 and 16 are converging and maybe white when they are not on and it work on multiple time frames with the same study? i'm trying to set it up to work on 1 min, 2 min, 3 min, 4, min, 5 min, 6 min, 7 min, 8 min, 9min, 10 min, 15 min, 20 min, 30 min, 1h, 90 min, 2 h

here is a study that checks if the gap between 2 averages is getting closer or farther apart.
i set up 4 conditions, up and down , and whether if wma8 is above or below the other wma.

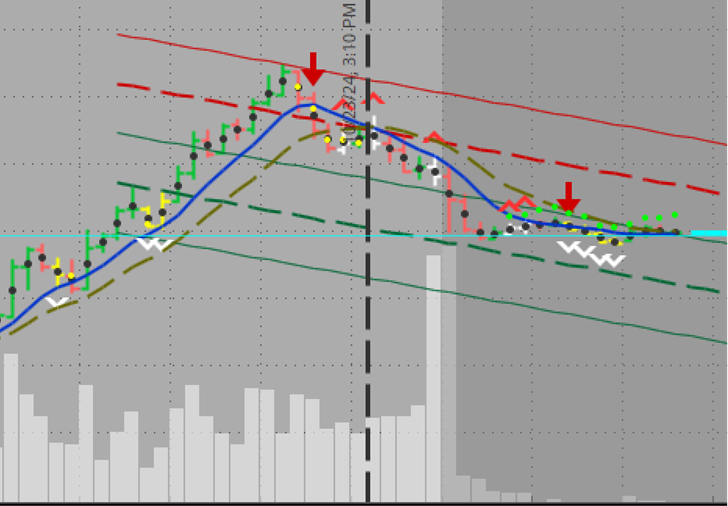

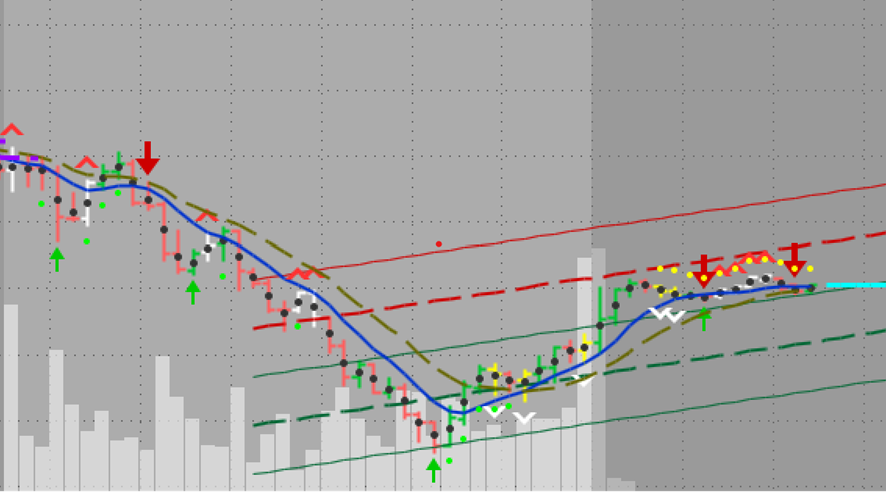

can show colored dots for each condition.
can show colored vertical test lines.
i used MovingAverage( weighted ) for WMA(). i like using that to allow changes to other average types.
it displays a colored label , based on the current bar.
default wma8 and wma16

wma8 < wma16
. converge_dwn , green
. diverge_dwn , white
wma8 > wma16
. converge_up , yellow
. diverge_up , cyan

#avgs_converge_label
#https://usethinkscript.com/threads/moving-averages-converge-diverge-label.19643/
#WMA 8 and 16 label?

def na = Double.NaN;
def bn = BarNumber();

DefineGlobalColor("converge_dwn", color.green);
DefineGlobalColor("diverge_dwn", color.white);
DefineGlobalColor("converge_up", color.yellow);
DefineGlobalColor("diverge_up", color.cyan);
#GlobalColor("converge_dwn")
#GlobalColor("diverge_dwn")
#GlobalColor("converge_up")
#GlobalColor("diverge_up")


#input avg1_type = AverageType.exponential;
input avg1_type = AverageType.WEIGHTED;
input avg1_length = 8;
def avg1 = MovingAverage(avg1_type, close, avg1_length );

input avg2_type = AverageType.WEIGHTED;
input avg2_length = 16;
def avg2 = MovingAverage(avg2_type, close, avg2_length );

def xup = avg1 crosses above avg2;
def xdwn = avg1 crosses below avg2;
def gap = avg1 - avg2;

# WMA 8 and 16 are converging after a drop
def converge_dwn = avg1 < avg2 and absvalue(gap[0]) < absvalue(gap[1]);
def diverge_dwn = avg1 < avg2 and absvalue(gap[0]) > absvalue(gap[1]);
def converge_up = avg1 > avg2 and absvalue(gap[0]) < absvalue(gap[1]);
def diverge_up = avg1 > avg2 and absvalue(gap[0]) > absvalue(gap[1]);

addlabel(1, "   ", color.black);
addlabel(converge_dwn, "converge down", GlobalColor("converge_dwn"));
addlabel(diverge_dwn, "diverge down", GlobalColor("diverge_dwn"));
addlabel(converge_up, "converge up", GlobalColor("converge_up"));
addlabel(diverge_up, "diverge up", GlobalColor("diverge_up"));

input converge_dwn_dots = yes;
plot cd = if converge_dwn_dots and converge_dwn then low*0.999 else na;
cd.SetPaintingStrategy(PaintingStrategy.POINTS);
cd.SetDefaultColor(GlobalColor("converge_dwn"));
cd.setlineweight(3);
cd.hidebubble();

input diverge_dwn_dots = yes;
plot dd = if diverge_dwn_dots and diverge_dwn then low*0.999 else na;
dd.SetPaintingStrategy(PaintingStrategy.POINTS);
dd.SetDefaultColor(GlobalColor("diverge_dwn"));
dd.setlineweight(3);
dd.hidebubble();

input converge_up_dots = yes;
plot cu = if converge_up_dots and converge_up then high*1.001 else na;
cu.SetPaintingStrategy(PaintingStrategy.POINTS);
cu.SetDefaultColor(GlobalColor("converge_up"));
cu.setlineweight(3);
cu.hidebubble();

input diverge_up_dots = yes;
plot du = if diverge_up_dots and diverge_up then high*1.001 else na;
du.SetPaintingStrategy(PaintingStrategy.POINTS);
du.SetDefaultColor(GlobalColor("diverge_up"));
du.setlineweight(3);
du.hidebubble();

input show_avg_lines = yes;
plot zavg1 = if show_avg_lines then avg1 else na;
plot zavg2 = if show_avg_lines then avg2 else na;
zavg1.SetDefaultColor(Color.CYAN);
zavg1.SetLineWeight(1);
zavg1.HideBubble();
zavg2.SetDefaultColor(Color.YELLOW);
zavg2.SetLineWeight(1);
zavg2.HideBubble();

#----------------------------

input test_vert_lines = no;
addverticalline(test_vert_lines and converge_dwn, "-", GlobalColor("converge_dwn"));
addverticalline(test_vert_lines and diverge_dwn, "-", GlobalColor("diverge_dwn"));
addverticalline(test_vert_lines and converge_up, "-", GlobalColor("converge_up"));
addverticalline(test_vert_lines and diverge_up, "-", GlobalColor("diverge_up"));

#https://toslc.thinkorswim.com/center/reference/thinkScript/Constants/AverageType
#input avg1_type = AverageType.exponential;
#input avg1_type = AverageType.hull;
#input avg1_type = AverageType.Simple;
#input avg1_type = AverageType.weighted;   WMA()
#input avg1_type = AverageType.wilders;
#



[shellyonthepelli]

im still at the stage of finding the strategies that i like.... i just want to say thank you. this one i've found to be very helpful and i like the way it puts the dots on the chart. thank you.
