Identifying Market Pullback (i.e. 5%+)

scottsamesame

New member
I am looking to document corrections on the S&P over the last 10 years. Specifically, I am looking to find corrections of 5%+ and then count the number of days of the decline, what the high was prior to the decline, what the low was once we put in the bottom of the decline, and what the ultimate % change was during the decline. Does anyone know of a script that's already been created to do this? Or, would it be easier to do this by hand by looking a the charts? TY

Solution
I am looking to document corrections on the S&P over the last 10 years. Specifically, I am looking to find corrections of 5%+ and then count the number of days of the decline, what the high was prior to the decline, what the low was once we put in the bottom of the decline, and what the ultimate % change was during the decline. Does anyone know of a script that's already been created to do this? Or, would it be easier to do this by hand by looking a the charts? TY

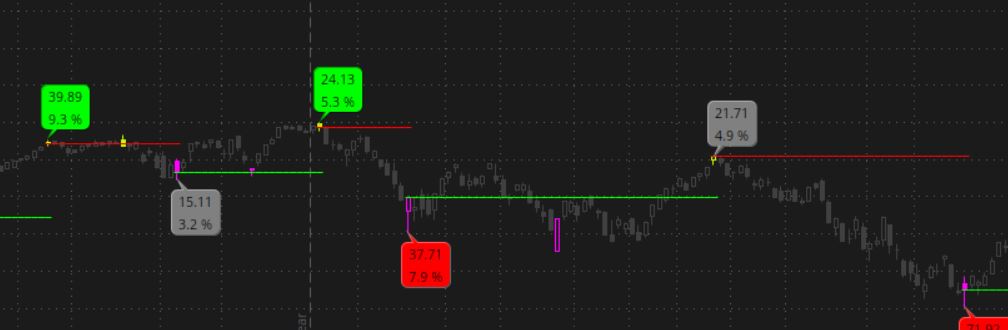

find peaks and valleys, based on x bars, before and after them.
draw horizontal lines from them. skip over +2 of the same signal
( if 2 peaks in a row, skip 2nd peak)
find the price and percent difference between them.
enter a minimum %. bubble colors determined by...

halcyonguy

Well-known member
VIP
Lifetime
I am looking to document corrections on the S&P over the last 10 years. Specifically, I am looking to find corrections of 5%+ and then count the number of days of the decline, what the high was prior to the decline, what the low was once we put in the bottom of the decline, and what the ultimate % change was during the decline. Does anyone know of a script that's already been created to do this? Or, would it be easier to do this by hand by looking a the charts? TY

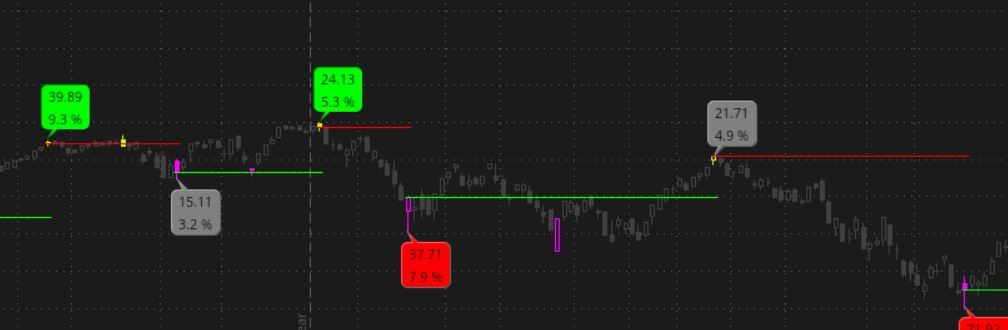

find peaks and valleys, based on x bars, before and after them.
draw horizontal lines from them. skip over +2 of the same signal
( if 2 peaks in a row, skip 2nd peak)
find the price and percent difference between them.
enter a minimum %. bubble colors determined by this.
can change color of bars.

Code:
# corrections_peak_to_valley_00

#https://usethinkscript.com/threads/identifying-market-pullback-i-e-5.12744/
#Identifying Market Pullback (i.e. 5%+)
# Thread starterscottsamesame  Start dateToday at 9:01 AM

#.........................................
# ref: peak/valley code , robert  post#10
# https://usethinkscript.com/threads/zigzag-high-low-with-supply-demand-zones-for-thinkorswim.172/#post-7048
#.........................................

input min_percent_change = 5;
input length = 10;

def na = double.nan;
def bn = BarNumber();
def lastBar = HighestAll(if IsNaN(close) then 0 else bn);
def offset = Min(length - 1, lastBar - bn);

def peak = high > highest(high[1], length - 1) and high == GetValue(highest(high, length), -offset);
def valley = low < Lowest(low[1], length - 1) and low == GetValue(Lowest(low, length), -offset);

# set to 0 if peak and valley happen on same bar
def pv = if bn == 1 then 0
  else if peak and valley then 0
  else if peak then 1
  else if valley then -1
  else pv[1];

def peak2 = if bn == 1 then 0
  else if peak and pv[1] != -1 then 0
  else peak;

def valley2 = if bn == 1 then 0
  else if valley and pv[1] != 1 then 0
  else valley;

input color_peak_valley_bars = yes;
input color_remaining_bars = yes;

AssignPriceColor(
       if (peak and color_peak_valley_bars) then Color.LIME
  else if (valley and color_peak_valley_bars) then Color.magenta
  else if (peak and !color_peak_valley_bars) then Color.current
  else if (valley and !color_peak_valley_bars) then Color.current
  else if color_remaining_bars then Color.DARK_GRAY
  else color.current);

def peak_line = if bn == 1 then 0
  else if peak2 then close
  else if valley2[1] then 0
  else peak_line[1];

def valley_line = if bn == 1 then 0
  else if valley2 then close
  else if peak2[1] then 0
  else valley_line[1];

plot zp = if peak_line > 0 then peak_line else na;
zp.setdefaultcolor(color.red);
zp.SetPaintingStrategy(PaintingStrategy.HORIZONTAL);

plot zv = if valley_line > 0 then valley_line else na;
zv.setdefaultcolor(color.green);
zv.SetPaintingStrategy(PaintingStrategy.HORIZONTAL);

#----------------------------
input gain_drop_stats = yes;

def gain = if pv[1] == 0 then 0
  else if peak2 then round(close - valley_line, 2)
  else 0;
def gain_per = if pv[1] == 0 then 0 else round( 100 * gain/valley_line, 1);
def is_gain_big = (gain_per >= min_percent_change);

addchartbubble((gain_drop_stats and peak2 and valley_line > 0), high,
gain + "\n" +
gain_per + " %"
, ( if is_gain_big then color.green else color.gray), yes);

#----------------------------
def drop = if pv[1] == 0 then 0
  else if valley2 then round(peak_line - close, 2)
  else 0;
def drop_per = if pv[1] == 0 then 0 else round( 100 * drop/peak_line, 1);
def is_drop_big = (drop_per >= min_percent_change);

addchartbubble((gain_drop_stats and valley2 and peak_line > 0), low,
drop + "\n" +
drop_per + " %"
, ( if is_drop_big then color.red else color.gray), no);
#


Solution

johnnybravo

New member
VIP
find peaks and valleys, based on x bars, before and after them.
draw horizontal lines from them. skip over +2 of the same signal
( if 2 peaks in a row, skip 2nd peak)
find the price and percent difference between them.
enter a minimum %. bubble colors determined by this.
can change color of bars.

Code:
# corrections_peak_to_valley_00

#https://usethinkscript.com/threads/identifying-market-pullback-i-e-5.12744/
#Identifying Market Pullback (i.e. 5%+)
# Thread starterscottsamesame  Start dateToday at 9:01 AM

#.........................................
# ref: peak/valley code , robert  post#10
# https://usethinkscript.com/threads/zigzag-high-low-with-supply-demand-zones-for-thinkorswim.172/#post-7048
#.........................................

input min_percent_change = 5;
input length = 10;

def na = double.nan;
def bn = BarNumber();
def lastBar = HighestAll(if IsNaN(close) then 0 else bn);
def offset = Min(length - 1, lastBar - bn);

def peak = high > highest(high[1], length - 1) and high == GetValue(highest(high, length), -offset);
def valley = low < Lowest(low[1], length - 1) and low == GetValue(Lowest(low, length), -offset);

# set to 0 if peak and valley happen on same bar
def pv = if bn == 1 then 0
  else if peak and valley then 0
  else if peak then 1
  else if valley then -1
  else pv[1];

def peak2 = if bn == 1 then 0
  else if peak and pv[1] != -1 then 0
  else peak;

def valley2 = if bn == 1 then 0
  else if valley and pv[1] != 1 then 0
  else valley;

input color_peak_valley_bars = yes;
input color_remaining_bars = yes;

AssignPriceColor(
       if (peak and color_peak_valley_bars) then Color.LIME
  else if (valley and color_peak_valley_bars) then Color.magenta
  else if (peak and !color_peak_valley_bars) then Color.current
  else if (valley and !color_peak_valley_bars) then Color.current
  else if color_remaining_bars then Color.DARK_GRAY
  else color.current);

def peak_line = if bn == 1 then 0
  else if peak2 then close
  else if valley2[1] then 0
  else peak_line[1];

def valley_line = if bn == 1 then 0
  else if valley2 then close
  else if peak2[1] then 0
  else valley_line[1];

plot zp = if peak_line > 0 then peak_line else na;
zp.setdefaultcolor(color.red);
zp.SetPaintingStrategy(PaintingStrategy.HORIZONTAL);

plot zv = if valley_line > 0 then valley_line else na;
zv.setdefaultcolor(color.green);
zv.SetPaintingStrategy(PaintingStrategy.HORIZONTAL);

#----------------------------
input gain_drop_stats = yes;

def gain = if pv[1] == 0 then 0
  else if peak2 then round(close - valley_line, 2)
  else 0;
def gain_per = if pv[1] == 0 then 0 else round( 100 * gain/valley_line, 1);
def is_gain_big = (gain_per >= min_percent_change);

addchartbubble((gain_drop_stats and peak2 and valley_line > 0), high,
gain + "\n" +
gain_per + " %"
, ( if is_gain_big then color.green else color.gray), yes);

#----------------------------
def drop = if pv[1] == 0 then 0
  else if valley2 then round(peak_line - close, 2)
  else 0;
def drop_per = if pv[1] == 0 then 0 else round( 100 * drop/peak_line, 1);
def is_drop_big = (drop_per >= min_percent_change);

addchartbubble((gain_drop_stats and valley2 and peak_line > 0), low,
drop + "\n" +
drop_per + " %"
, ( if is_drop_big then color.red else color.gray), no);
#

This is a nice indicator to track corrections. Can you briefly explain how it works? Does it repaint? Thanks for posting!


halcyonguy

Well-known member
VIP
Lifetime
This is a nice indicator to track corrections. Can you briefly explain how it works? Does it repaint? Thanks for posting!

it finds peaks and valleys, based on this,
input length = 10;
on every bar, it looks back 10 bars and forward 10 bars and checks if the current bar is,
..the highest , for a peak
..or the lowest, for a valley.

it uses code from robert, that uses a changing offset to look for valleys and peaks, so it can still find them on the last 10 bars. if this wasn't used , and it looked ahead 10 bars and tried to read from a bar that doesn't exist, there would be an error, and it wouldn't draw a line.
def offset = Min(length - 1, lastBar - bn);

it could redraw/undraw a line... during the last 10 bars on the chart.
it is looking at different quantities of bars in the future. when it gets to the 11th bar from the last, it won't change anymore.

sometimes 2 of the same, peak or valley, happen in a row. if they do, i wanted the 2nd one to be ignored, and the line from the first to keep going. i left in code to highlight every peak and valley, so users could see when one is skipped (no line from it)

this calculates the price level for a peak line,
def peak_line = if bn == 1 then 0 # if the 1st bar , set to 0
else if peak2 then close # if a peak occurs, read the close
else if valley2[1] then 0 # if a valley occurs , reset the price
else peak_line[1]; # if no signals , then read the previous value to keep it going.
