Create HH/HL indicator

ShoNuff

New member

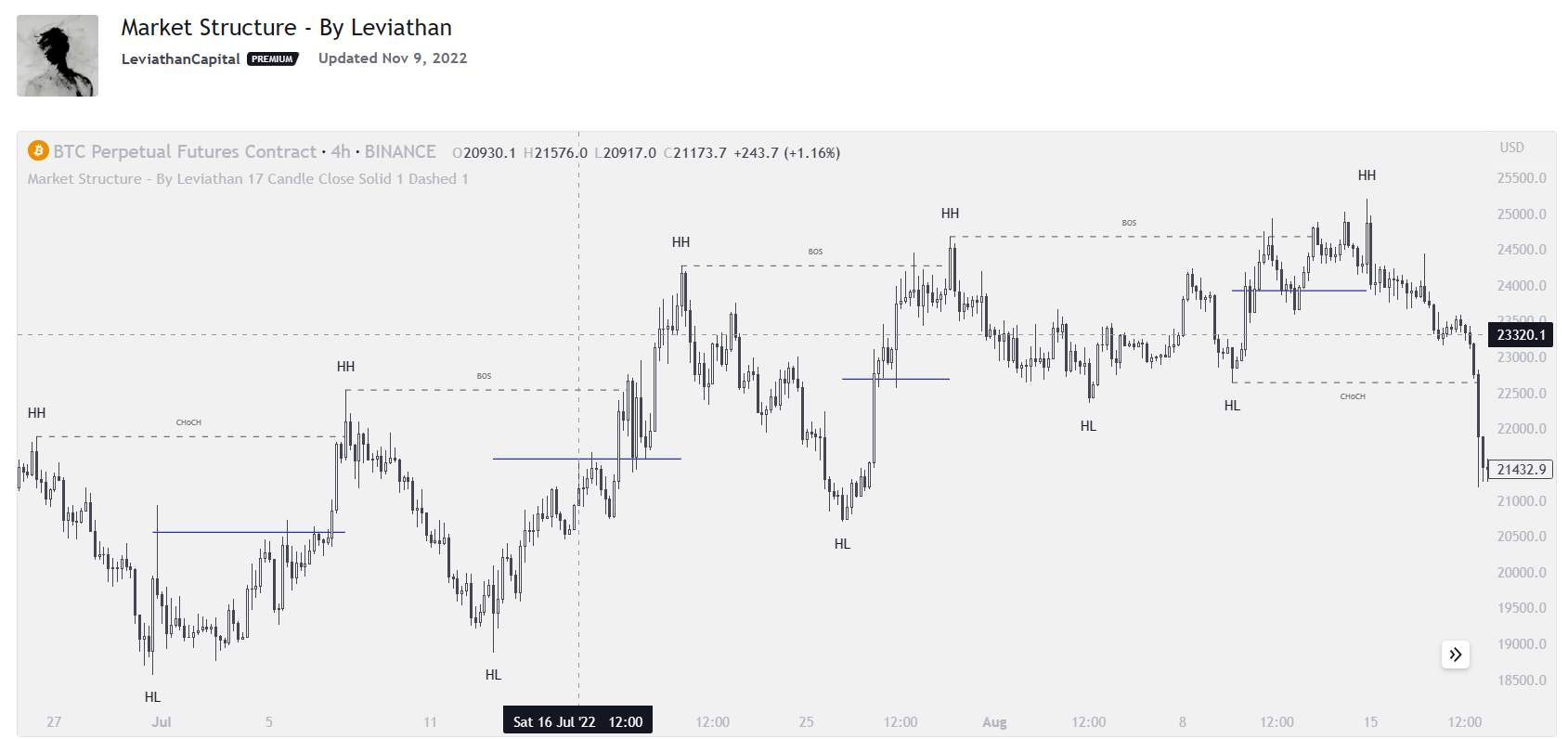

Tradingvew has a nice HH/HL indicator. I don't see 1 in TOS. Is it possible to create 1 similar.

https://www.tradingview.com/script/bXic0E3l-Market-Structure-By-Leviathan/


Join useThinkScript to post your question to a community of 21,000+ developers and traders.

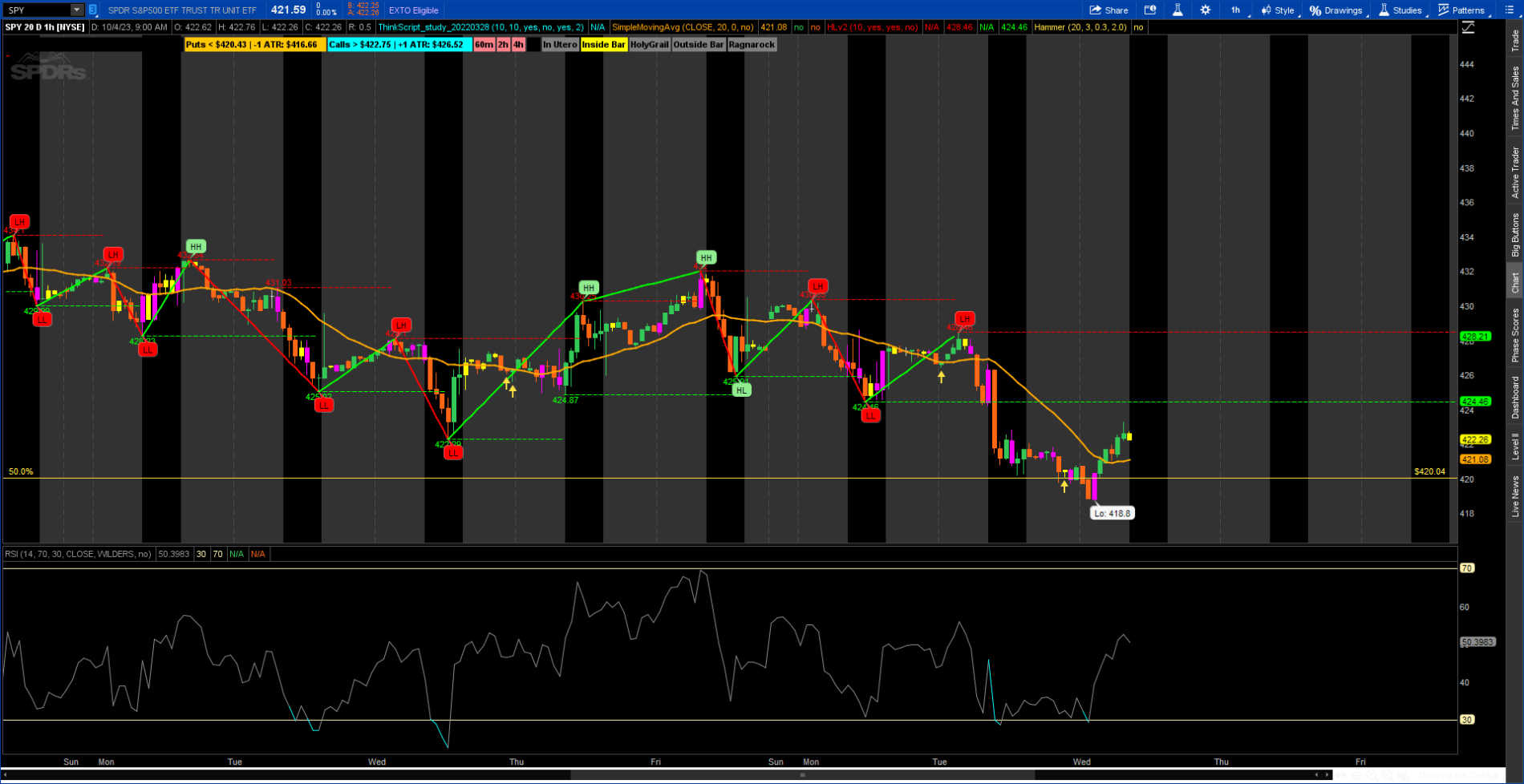

I use it in conjunction with price action and RSI
If SleepyZ's suggestion above isn't what you're looking for, perhaps this adaptation of a Mobius indicator could be a start for you:

Code:
# Mobius
# Mobius on My Trade
# High_Low_Pivots(n value below 10) (Swing High Swing Low n value +21)
# V001.06.2012
# modified by vollermist in 2023, includes HH,LH,HL,LL bubbles
#input bias = {default long, short};
input n = 9;
def decimal_places = 2; #input decimal_places = 2 for stocks; #default 5 for forex etc.
input showPricesHL = yes;
input ShowLines = yes;
input showBubblesHL = yes;

def o = open;
def h = high;
def l = low;
def c = close;
def nan = Double.NaN;


def bar1 = BarNumber();
def ph;
def pl;
def isH = fold i = 1
             to n + 1
             with p = 1
             while p
             do h > GetValue(h, -i);
ph = if (bar1 > n
            and h == Highest(h, n)
            and isH)
            then RoundUp(h,decimal_places)
            else Double.NaN;
def isL = fold j = 1
            to n + 1
            with q = 1
            while q
            do l < GetValue(low, -j);
pl = if (bar1 > n
            and l == Lowest(l, n)
            and isL)
            then RoundDown(l,decimal_places)
            else Double.NaN;
rec phl = if !IsNaN(ph)
             then RoundUp(ph,decimal_places)
             else phl[1];
rec pll = if !IsNaN(pl)
             then RoundDown(pl,decimal_places)
             else pll[1];

def pivotH = if showPricesHL then ph else nan;
plot pivotHigh = if showPricesHL then pivotH else nan;
pivotHigh.SetPaintingStrategy(PaintingStrategy.VALUES_ABOVE);
pivotHigh.SetDefaultColor(CreateColor(255,0,0));

plot pivotHighLine = if phl > 0
                       then phl
                       else Double.NaN;
pivotHighLine.SetHiding(!ShowLines);
pivotHighLine.SetPaintingStrategy(PaintingStrategy.DASHES);
pivotHighLine.SetDefaultColor(CreateColor(255,0,0));

plot pivotLow = if showPricesHL then pl else nan;
pivotLow.SetPaintingStrategy(PaintingStrategy.VALUES_BELOW);
pivotLow.SetDefaultColor(CreateColor(0,255,0));

plot pivotLowLine = if pll > 0
                      then pll
                      else Double.NaN;
pivotLowLine.SetHiding(!ShowLines);
pivotLowLine.SetPaintingStrategy(PaintingStrategy.DASHES);
pivotLowLine.SetDefaultColor(CreateColor(0,255,0));
##############################################################
### Additions by vollermist

def unitriskA = pivotHighLine - pivotLow;
def unitriskB = pivotHigh - pivotLowLine;
def unitriskC = pivotHighLine - pivotLowLine;

def unitrisk = AbsValue(if !IsNaN(unitriskA) then unitriskA else if !IsNaN(unitriskB) then unitriskB else unitriskC);

############################
########## Bubbles #########
############################
def barnow = IsNaN(close[-1]) and !IsNaN(close);
def bubbleoffset = 0.01;

######################################
### HH, LH, HL, LL bubbles

def pHigh = GetValue(if !IsNaN(pivotHigh) then pivotHighLine[1] else pHigh[1], 0);
def pLow = GetValue(if !IsNaN(pivotLow) then pivotLowLine[1] else pLow[1], 0);
def HH = pivotHigh > pHigh;
def LH = pivotHigh < pHigh;
def HL = pivotLow > pLow;
def LL = pivotLow < pLow;

AddChartBubble(showBubblesHL and HH, text = "HH", "price location" = high + bubbleoffset, color = Color.LIME, yes);

AddChartBubble(showBubblesHL and LH, text = "LH", "price location" = high + bubbleoffset, color = Color.PINK, yes);

AddChartBubble(showBubblesHL and HL, text = "HL", "price location" = low - bubbleoffset, color = Color.LIGHT_GREEN, no);

AddChartBubble(showBubblesHL and LL, text = "LL", "price location" = low - bubbleoffset, color = Color.LIGHT_RED, no);

If SleepyZ's suggestion above isn't what you're looking for, perhaps this adaptation of a Mobius indicator could be a start for you:

Code:
# Mobius
# Mobius on My Trade
# High_Low_Pivots(n value below 10) (Swing High Swing Low n value +21)
# V001.06.2012
# modified by vollermist in 2023, includes HH,LH,HL,LL bubbles
#input bias = {default long, short};
input n = 9;
def decimal_places = 2; #input decimal_places = 2 for stocks; #default 5 for forex etc.
input showPricesHL = yes;
input ShowLines = yes;
input showBubblesHL = yes;

def o = open;
def h = high;
def l = low;
def c = close;
def nan = Double.NaN;


def bar1 = BarNumber();
def ph;
def pl;
def isH = fold i = 1
             to n + 1
             with p = 1
             while p
             do h > GetValue(h, -i);
ph = if (bar1 > n
            and h == Highest(h, n)
            and isH)
            then RoundUp(h,decimal_places)
            else Double.NaN;
def isL = fold j = 1
            to n + 1
            with q = 1
            while q
            do l < GetValue(low, -j);
pl = if (bar1 > n
            and l == Lowest(l, n)
            and isL)
            then RoundDown(l,decimal_places)
            else Double.NaN;
rec phl = if !IsNaN(ph)
             then RoundUp(ph,decimal_places)
             else phl[1];
rec pll = if !IsNaN(pl)
             then RoundDown(pl,decimal_places)
             else pll[1];

def pivotH = if showPricesHL then ph else nan;
plot pivotHigh = if showPricesHL then pivotH else nan;
pivotHigh.SetPaintingStrategy(PaintingStrategy.VALUES_ABOVE);
pivotHigh.SetDefaultColor(CreateColor(255,0,0));

plot pivotHighLine = if phl > 0
                       then phl
                       else Double.NaN;
pivotHighLine.SetHiding(!ShowLines);
pivotHighLine.SetPaintingStrategy(PaintingStrategy.DASHES);
pivotHighLine.SetDefaultColor(CreateColor(255,0,0));

plot pivotLow = if showPricesHL then pl else nan;
pivotLow.SetPaintingStrategy(PaintingStrategy.VALUES_BELOW);
pivotLow.SetDefaultColor(CreateColor(0,255,0));

plot pivotLowLine = if pll > 0
                      then pll
                      else Double.NaN;
pivotLowLine.SetHiding(!ShowLines);
pivotLowLine.SetPaintingStrategy(PaintingStrategy.DASHES);
pivotLowLine.SetDefaultColor(CreateColor(0,255,0));
##############################################################
### Additions by vollermist

def unitriskA = pivotHighLine - pivotLow;
def unitriskB = pivotHigh - pivotLowLine;
def unitriskC = pivotHighLine - pivotLowLine;

def unitrisk = AbsValue(if !IsNaN(unitriskA) then unitriskA else if !IsNaN(unitriskB) then unitriskB else unitriskC);

############################
########## Bubbles #########
############################
def barnow = IsNaN(close[-1]) and !IsNaN(close);
def bubbleoffset = 0.01;

######################################
### HH, LH, HL, LL bubbles

def pHigh = GetValue(if !IsNaN(pivotHigh) then pivotHighLine[1] else pHigh[1], 0);
def pLow = GetValue(if !IsNaN(pivotLow) then pivotLowLine[1] else pLow[1], 0);
def HH = pivotHigh > pHigh;
def LH = pivotHigh < pHigh;
def HL = pivotLow > pLow;
def LL = pivotLow < pLow;

AddChartBubble(showBubblesHL and HH, text = "HH", "price location" = high + bubbleoffset, color = Color.LIME, yes);

AddChartBubble(showBubblesHL and LH, text = "LH", "price location" = high + bubbleoffset, color = Color.PINK, yes);

AddChartBubble(showBubblesHL and HL, text = "HL", "price location" = low - bubbleoffset, color = Color.LIGHT_GREEN, no);

AddChartBubble(showBubblesHL and LL, text = "LL", "price location" = low - bubbleoffset, color = Color.LIGHT_RED, no);
This is the best one I received its spot on. Is it possible to create a scanner that look at the most recent swing high or low and retrace certain percent?

Also is it possible to add the zig/zag lines to the script

Last edited by a moderator:
Glad my additions to Mobius code helped. I'm just a beginner picking up tidbits of knowledge to fill my specific needs. I'm sure that there are coders out there that can help you. I'm just not close to that level yet.
This is the best one I received its spot on. Is it possible to create a scanner that look at the most recent swing high or low and retrace certain percent?

Also is it possible to add the zig/zag lines to the script View attachment 19860

Last edited:
Glad my additions to Mobius code helped. I'm just a beginner picking up tidbits of knowledge to fill my specific needs. I'm sure that there are coders out there that can help you. I'm just not close to that level yet.
@vollermist have you noticed you need to refresh to see the higher highs and lower lows using this code? I didn't notice it until today 11/1/23 when a higher high didn't get plotted so I refreshed and there it was 😕

If SleepyZ's suggestion above isn't what you're looking for, perhaps this adaptation of a Mobius indicator could be a start for you:

Code:
# Mobius
# Mobius on My Trade
# High_Low_Pivots(n value below 10) (Swing High Swing Low n value +21)
# V001.06.2012
# modified by vollermist in 2023, includes HH,LH,HL,LL bubbles
#input bias = {default long, short};
input n = 9;
def decimal_places = 2; #input decimal_places = 2 for stocks; #default 5 for forex etc.
input showPricesHL = yes;
input ShowLines = yes;
input showBubblesHL = yes;

def o = open;
def h = high;
def l = low;
def c = close;
def nan = Double.NaN;


def bar1 = BarNumber();
def ph;
def pl;
def isH = fold i = 1
             to n + 1
             with p = 1
             while p
             do h > GetValue(h, -i);
ph = if (bar1 > n
            and h == Highest(h, n)
            and isH)
            then RoundUp(h,decimal_places)
            else Double.NaN;
def isL = fold j = 1
            to n + 1
            with q = 1
            while q
            do l < GetValue(low, -j);
pl = if (bar1 > n
            and l == Lowest(l, n)
            and isL)
            then RoundDown(l,decimal_places)
            else Double.NaN;
rec phl = if !IsNaN(ph)
             then RoundUp(ph,decimal_places)
             else phl[1];
rec pll = if !IsNaN(pl)
             then RoundDown(pl,decimal_places)
             else pll[1];

def pivotH = if showPricesHL then ph else nan;
plot pivotHigh = if showPricesHL then pivotH else nan;
pivotHigh.SetPaintingStrategy(PaintingStrategy.VALUES_ABOVE);
pivotHigh.SetDefaultColor(CreateColor(255,0,0));

plot pivotHighLine = if phl > 0
                       then phl
                       else Double.NaN;
pivotHighLine.SetHiding(!ShowLines);
pivotHighLine.SetPaintingStrategy(PaintingStrategy.DASHES);
pivotHighLine.SetDefaultColor(CreateColor(255,0,0));

plot pivotLow = if showPricesHL then pl else nan;
pivotLow.SetPaintingStrategy(PaintingStrategy.VALUES_BELOW);
pivotLow.SetDefaultColor(CreateColor(0,255,0));

plot pivotLowLine = if pll > 0
                      then pll
                      else Double.NaN;
pivotLowLine.SetHiding(!ShowLines);
pivotLowLine.SetPaintingStrategy(PaintingStrategy.DASHES);
pivotLowLine.SetDefaultColor(CreateColor(0,255,0));
##############################################################
### Additions by vollermist

def unitriskA = pivotHighLine - pivotLow;
def unitriskB = pivotHigh - pivotLowLine;
def unitriskC = pivotHighLine - pivotLowLine;

def unitrisk = AbsValue(if !IsNaN(unitriskA) then unitriskA else if !IsNaN(unitriskB) then unitriskB else unitriskC);

############################
########## Bubbles #########
############################
def barnow = IsNaN(close[-1]) and !IsNaN(close);
def bubbleoffset = 0.01;

######################################
### HH, LH, HL, LL bubbles

def pHigh = GetValue(if !IsNaN(pivotHigh) then pivotHighLine[1] else pHigh[1], 0);
def pLow = GetValue(if !IsNaN(pivotLow) then pivotLowLine[1] else pLow[1], 0);
def HH = pivotHigh > pHigh;
def LH = pivotHigh < pHigh;
def HL = pivotLow > pLow;
def LL = pivotLow < pLow;

AddChartBubble(showBubblesHL and HH, text = "HH", "price location" = high + bubbleoffset, color = Color.LIME, yes);

AddChartBubble(showBubblesHL and LH, text = "LH", "price location" = high + bubbleoffset, color = Color.PINK, yes);

AddChartBubble(showBubblesHL and HL, text = "HL", "price location" = low - bubbleoffset, color = Color.LIGHT_GREEN, no);

AddChartBubble(showBubblesHL and LL, text = "LL", "price location" = low - bubbleoffset, color = Color.LIGHT_RED, no);
@SleepyZ @MerryDay any Idea why when using this indicator it needs to be refreshed in order to see the recent swings instead of it repainting them? I like this and I feel it provides an edge without being to busy but you have to always refresh after you see a swing high or low. PLEASE HELP

There have been a rash of posts recently, referencing that member's charts are not updating in real time.

You will need to contact ToS Support to address the issue.
https://usethinkscript.com/threads/how-to-contact-tos-support-for-thinkorswim.11520/

They generally do not address problems with custom studies, but it seems to be more of a chart updating issue. Which Schwab needs to be made aware of.

IMPORTANT: All of you experiencing this situation MUST report the problem.
They will need to see an uptick in this complaint before they will be able to isolate wherein the disconnect lies.
